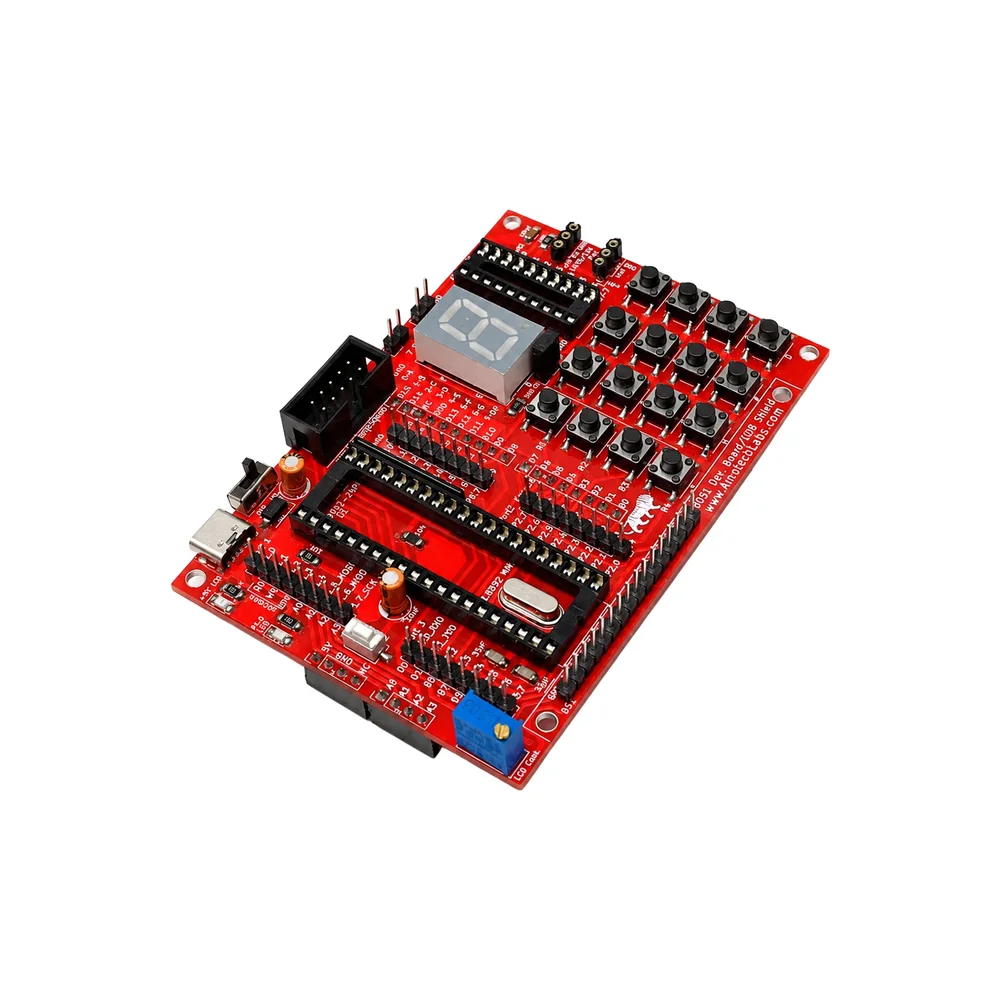

Amotech Labs 8051 Development Board w/ AT89S52 & USB-C
The Amotech Labs 8051 Development Board is a versatile platform for embedded systems development, supporting AT89S52 and other 40-pin DIP 8051 microcontrollers. It features USB Type-C power, ISP programming, and integrated I/O interfaces for hands-on learning and prototyping.
Features
- Supports AT89S52 and all 40-pin DIP 8051 MCUs for flexible project development.
- Features USB Type-C +5V power input for convenient and modern power delivery.
- Includes onboard ISP programming connector for easy code uploads and debugging.
- Integrated 4×4 keypad, seven-segment display interface, and ADC0804 support for comprehensive I/O experiments.
- Compact 100x67mm board with 32 I/O lines and 3 timers, ideal for educational and prototyping use.
Out of stock

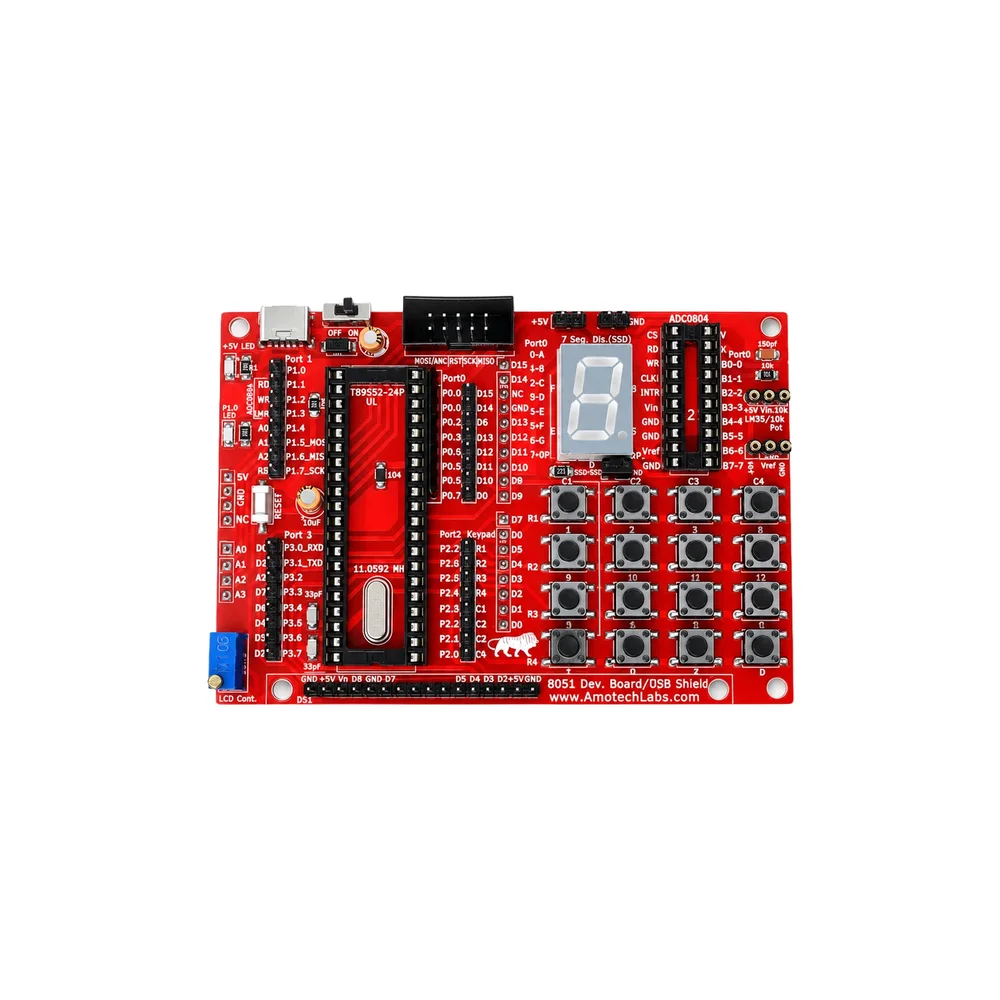

The Amotech Labs 8051 Development Board provides a dedicated hardware environment for mastering the classic 8051 microcontroller architecture. It is designed around a 40-pin DIP socket, default populated with an AT89S52 featuring 8KB Flash and 256 bytes RAM, operating at frequencies up to 33MHz. The board integrates essential peripherals including a 4×4 Matrix keypad, a seven-segment display driver interface, and dedicated connections for an ADC0804 analog-to-digital converter, enabling real-world sensor interfacing and data acquisition projects.
Power is supplied via a modern USB Type-C connector, delivering a stable +5V rail. An integrated In-System Programming (ISP) header allows for direct firmware flashing without removing the MCU, streamlining the development cycle. With 32 configurable I/O lines across four ports, two tactile input buttons, and expansion headers for LCDs and additional I/O, this board serves as a complete lab for students, hobbyists, and engineers to build and debug embedded systems, from basic GPIO control to complex state machines and communication protocols.
Additional Information
| Weight | 0.063 kg |
|---|---|
| Dimensions | 12 × 8 × 3 cm |
