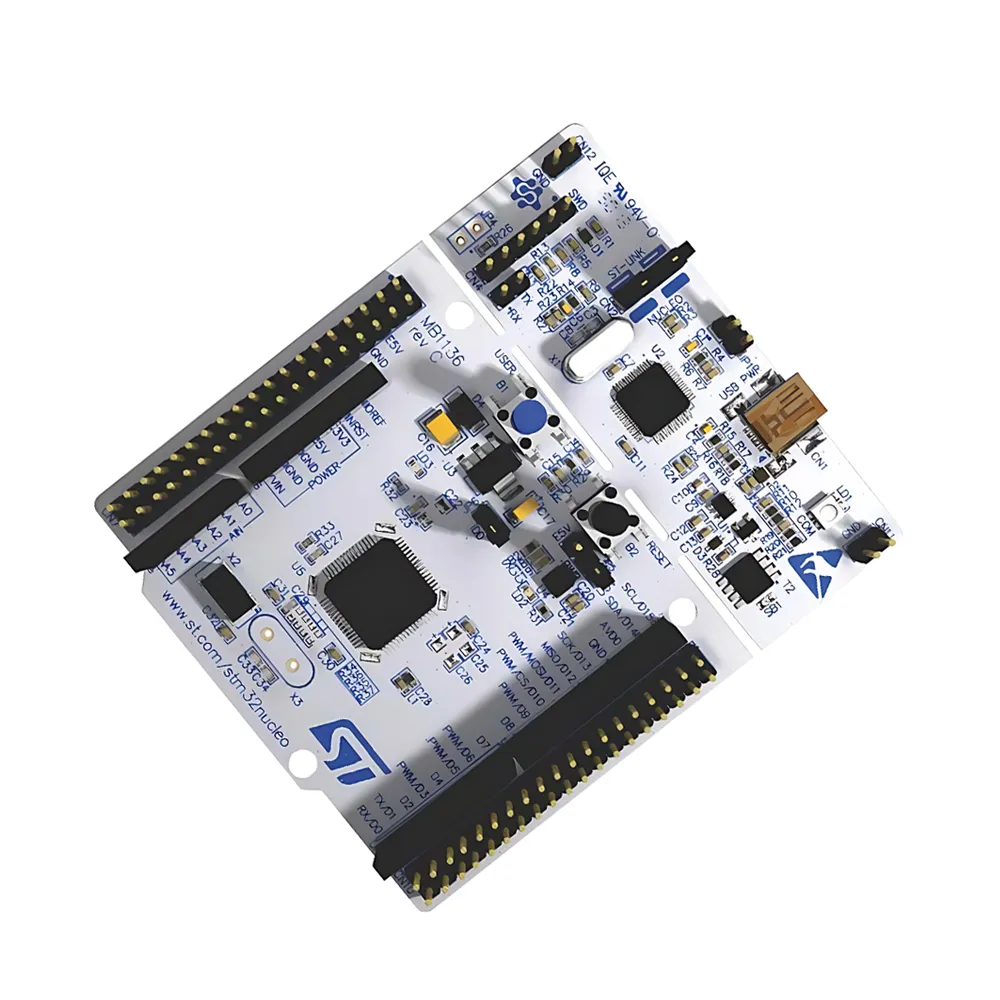

STM32 Nucleo-F070RB Dev Board, Arduino Uno V3

The Nucleo-F070RB board features the STMicroelectronics STM32F070RB microcontroller, which is based on the ARM Cortex-M0 core. This MCU provides a balance of performance and efficiency, making it suitable for a wide range of embedded applications, especially those requiring low power consumption and a cost-effective solution.

The board integrates an ST-LINK/V2-1 debugger and programmer, eliminating the need for external tools. This embedded solution supports USB re-enumeration, providing a virtual COM port, mass storage interface, and debug port over a single USB connection for streamlined development and firmware uploading processes.

The Nucleo-F070RB offers excellent expansion capabilities through Arduino Uno V3 connectivity headers, allowing the use of various existing shields. Additionally, ST Morpho extension pin headers provide full access to all STM32 microcontroller I/Os, enabling flexible custom peripheral integration and advanced prototyping scenarios.

The STM32 Nucleo-F070RB is compatible with various IDEs, including STM32CubeIDE, Keil MDK-ARM, and IAR Embedded Workbench. It is fully supported by the STM32Cube ecosystem, which provides comprehensive HAL libraries and graphical configuration tools for easy project setup and efficient code generation.

The board supports flexible power supply options. It can be powered via the USB connector, an external power supply connected to the Arduino or ST Morpho headers, or a dedicated external power supply connector. It operates with input voltages of 3.3V, 5V, and 7-12V, offering versatility.
