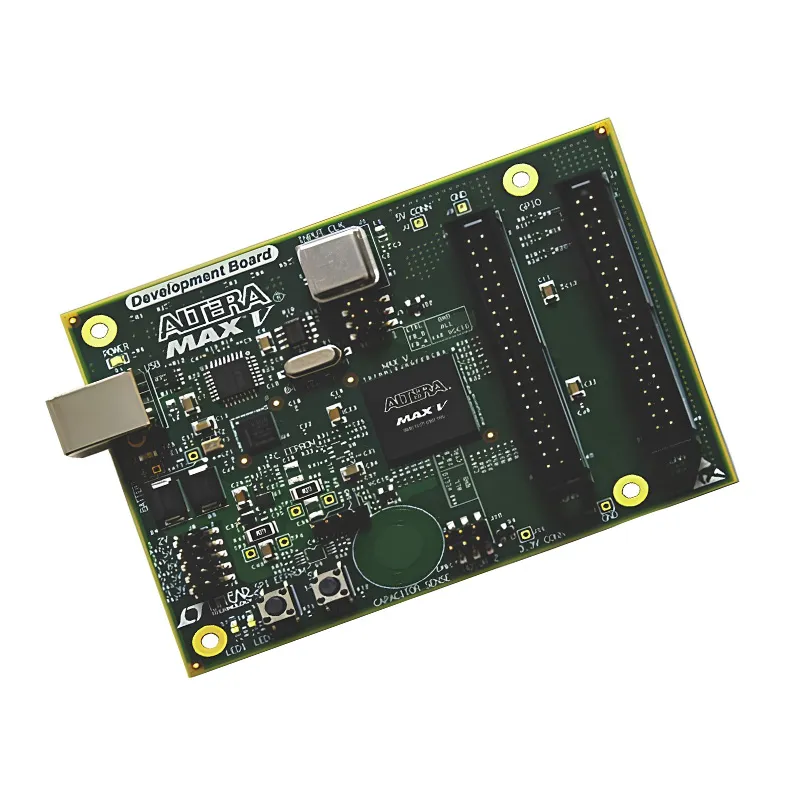

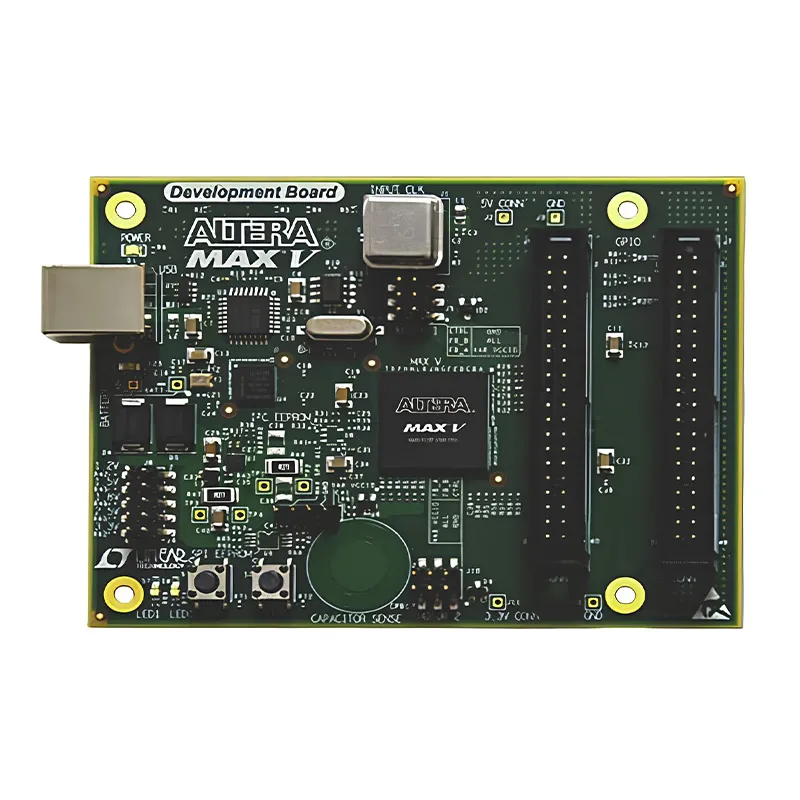

Altera MAX V 5M570ZN CPLD Development Kit
The Altera MAX V 5M570ZN CPLD Development Kit provides a robust, low-cost hardware platform for quickly prototyping CPLD designs. Featuring a 256-pin FineLine BGA package and USB-Blaster JTAG configuration, it supports common applications like I/O expansion, interface bridging, and power management.
Features
- Features a MAX V 5M570Z CPLD in a 256-pin FineLine BGA package.
- Includes USB-Blaster JTAG for efficient configuration and programming.
- Integrated power measurement circuitry for VCCINT and VCCIO analysis.
- Offers expandability with I2C/SPI EEPROMs and 8Kb user flash memory.
- Provides multiple external connectors for interfacing with peripheral devices.
Out of stock
The Altera MAX V 5M570ZN CPLD Development Kit is engineered to accelerate the development of low-cost, low-power CPLD designs. This comprehensive platform allows users to explore a wide range of CPLD applications, including I/O expansion, intricate interface bridging, precise power management control, and robust configuration and initialization routines. Its design facilitates rapid prototyping, enabling developers to quickly implement and test their logical designs.
With this kit, engineers can not only develop designs for the powerful 5M570Z CPLD but also accurately measure CPLD power consumption across VCCINT and VCCIO rails. The board supports bridging between different I/O voltages, featuring an adjustable VCCIO on CPLD Bank 2, and offers extensive interfacing capabilities via four external connectors. Moreover, it allows for reading and writing to various memory types, including the 8-kilobit (Kb) user flash memory (UFM) within the 5M570Z CPLD and user-installed I2C or SPI EEPROMs, making it a versatile tool for complex embedded projects.
Additional Information
| Weight | 0.279 kg |
|---|---|
| Dimensions | 27 × 20 × 5 cm |
