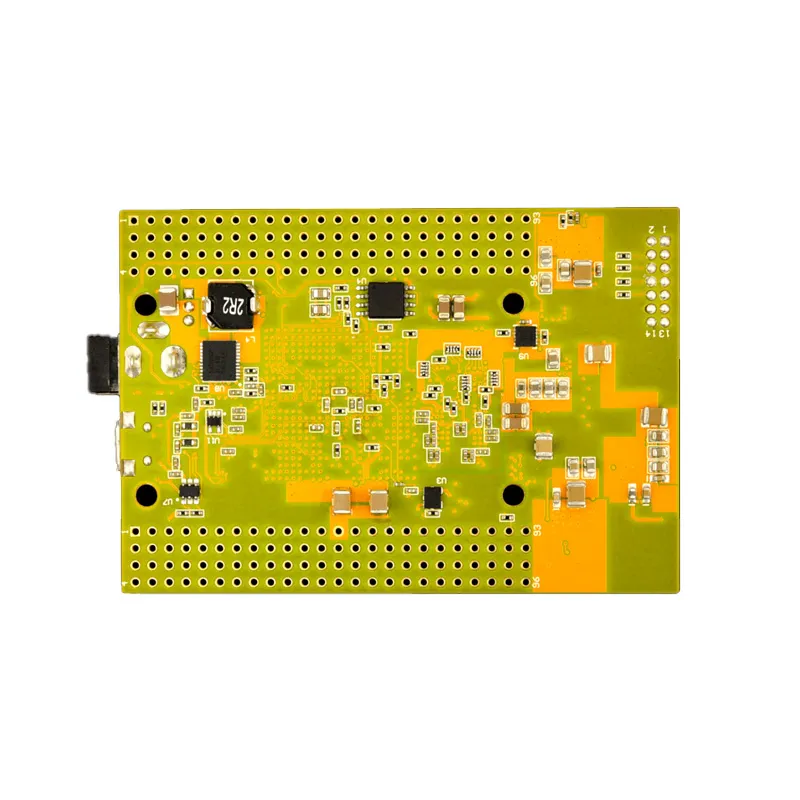

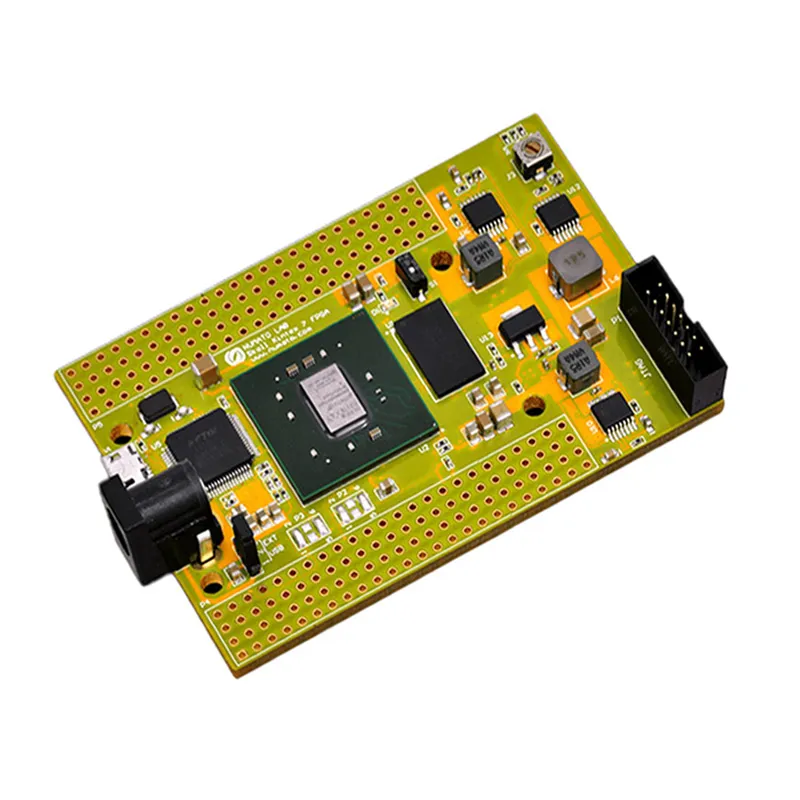

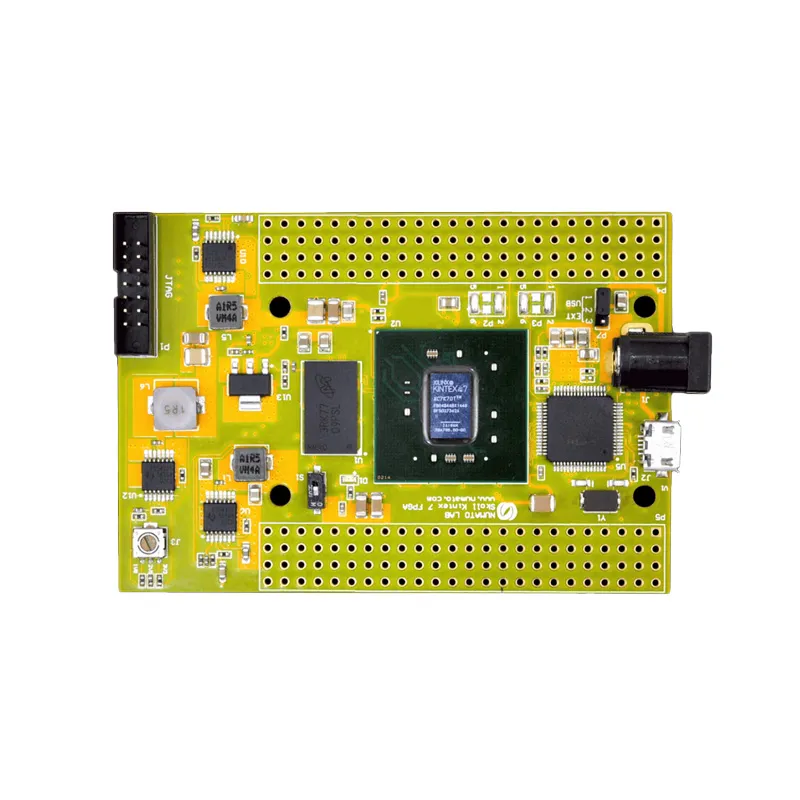

NumatoLab Skoll K7 USB FPGA Module

The NumatoLab Skoll K7 features an AMD Kintex-7 XC7K70T FPGA in an FBG484 package with a Speed Grade of 1. This device offers substantial logic resources for complex digital designs, signal processing, and high-speed data handling, making it suitable for advanced applications requiring significant processing power.

The Skoll K7 module is programmed and configured via its high-speed USB 2.0 interface, utilizing an FTDI FT2232H chip. This setup supports JTAG for direct FPGA configuration and SPI flash programming for storing bitstreams, allowing for easy updates and project management without additional dedicated programmers.

The module is equipped with 2Gb of DDR3 SDRAM, providing ample high-bandwidth memory for complex algorithms and large data sets. Additionally, it includes 128Mb of Quad SPI flash memory, specifically the N25Q128A13EF840E, for storing the FPGA configuration bitstream and user application data.

Yes, the Skoll K7 features both HDMI input and output interfaces for multimedia applications and video processing. It also includes a Gigabit Ethernet port, enabling high-speed network connectivity for applications like remote data acquisition, network protocol development, or embedded web servers.

Kintex-7 FPGAs are primarily developed using AMD's Vivado Design Suite. This comprehensive toolchain provides capabilities for design entry, synthesis, implementation, simulation, and bitstream generation. Users can leverage VHDL, Verilog, or high-level synthesis (HLS) with C/C++ to create custom logic.
