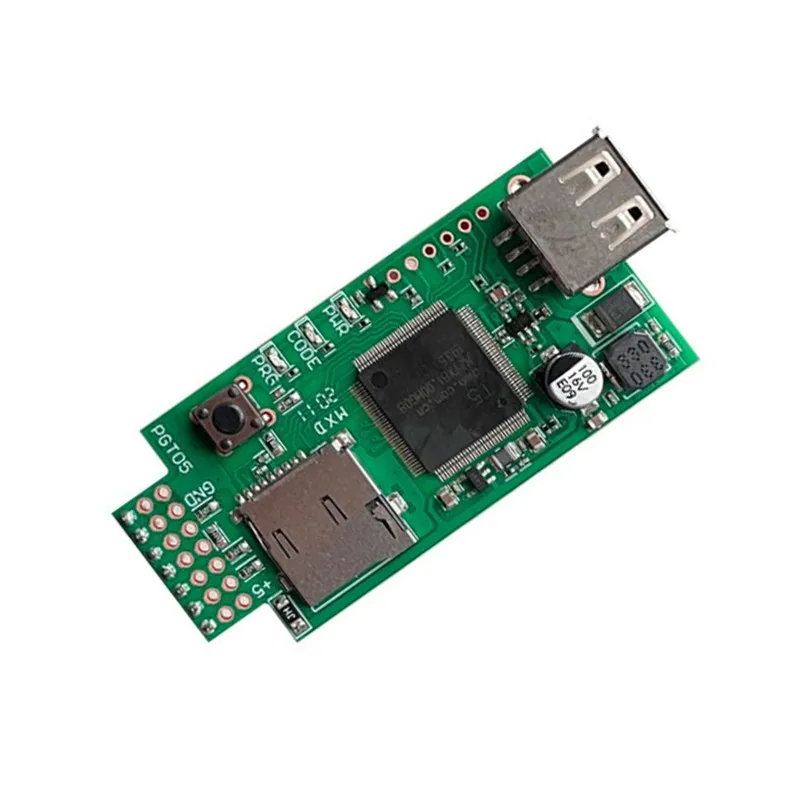

DWIN PGT05 JTAG Kernel/OS Burner Hardware

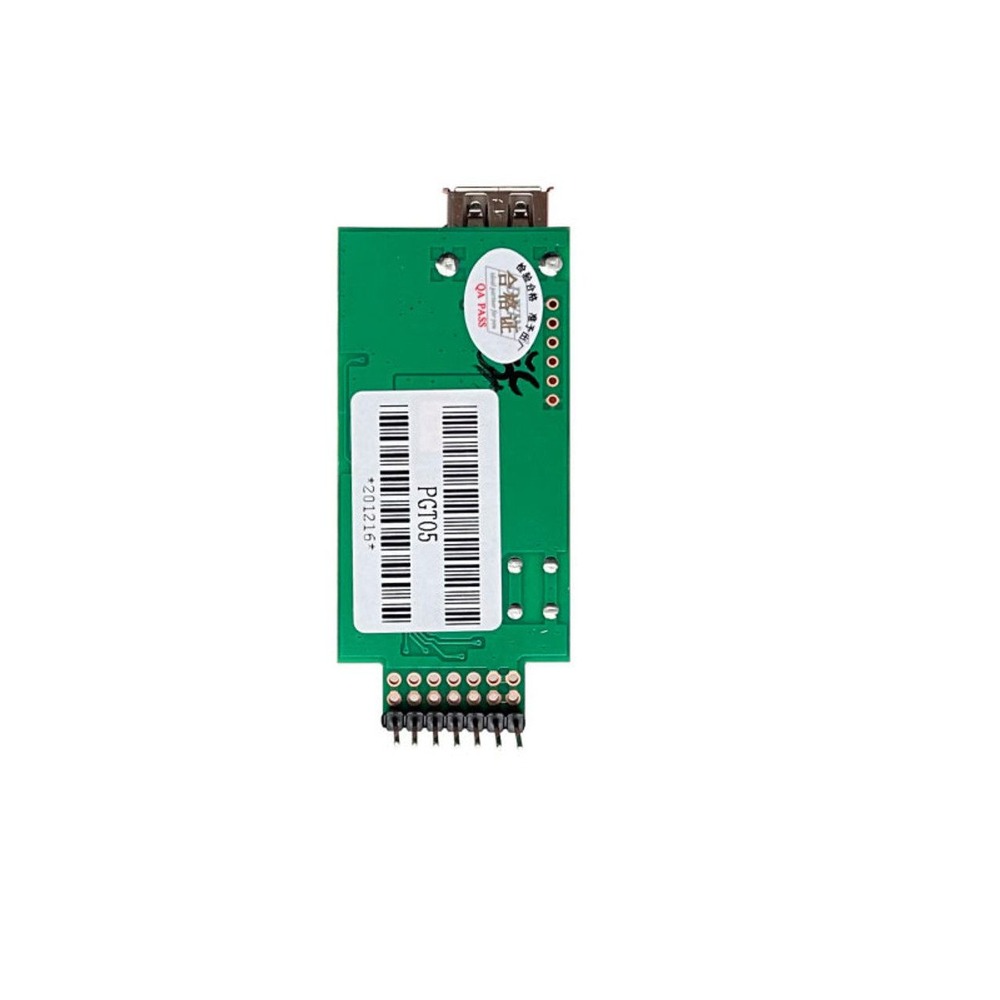

DWIN PGT05 JTAG Kernel/OS Burner Hardware - Image 2

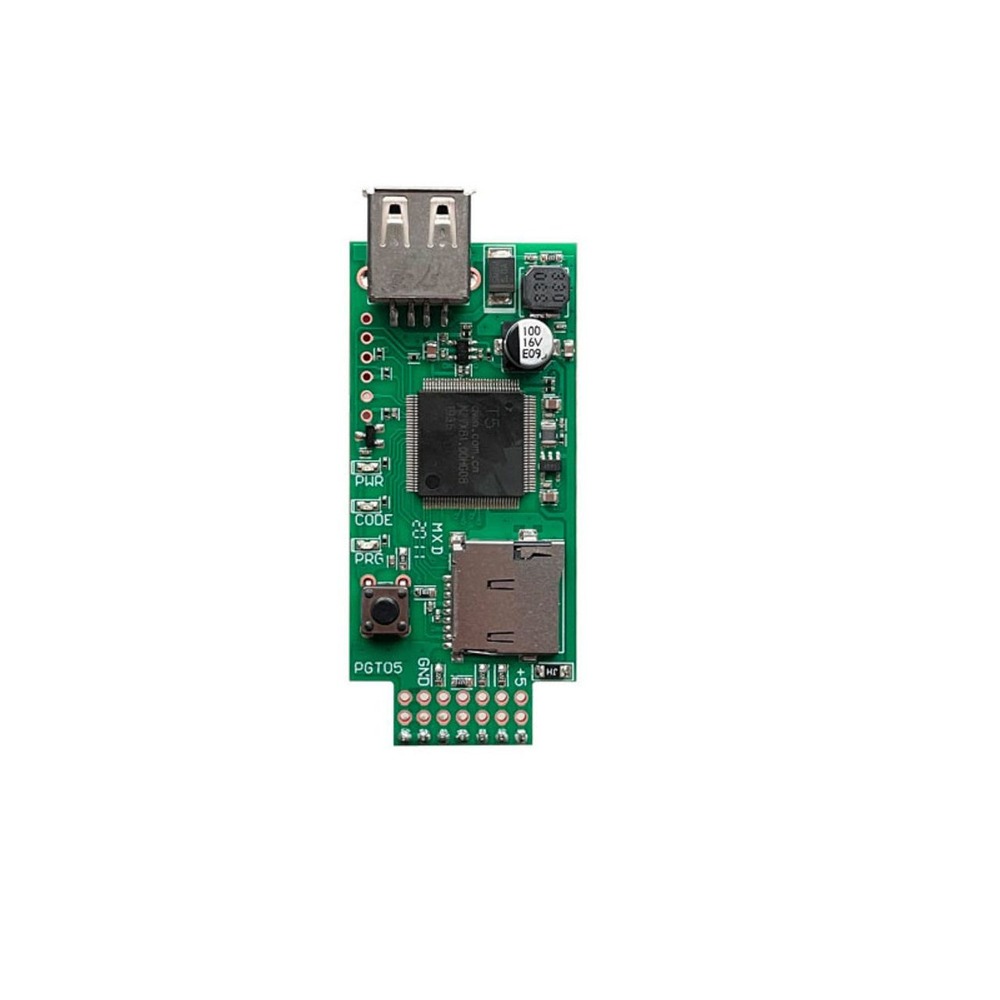

DWIN PGT05 JTAG Kernel/OS Burner Hardware - Image 3
SKU: SBCD-0775
📋 GST Invoice Available

DWIN PGT05 JTAG Kernel/OS Burner Hardware

₹999.00 (Inclusive of all taxes)
Out of Stock

The DWIN PGT05 is a specialized JTAG kernel and OS burner hardware designed to program DWIN HMI displays. Featuring an enhanced 7-pin configuration, it ensures efficient and reliable kernel file burning for seamless HMI development.

Features

  • Enhanced 7-pin JTAG configuration for improved functionality.
  • Efficiently burns kernel and OS files to DWIN HMI displays.
  • Robust construction designed for professional use.
  • Ensures seamless programming for DWIN HMI series.

Out of stock

Description

The DWIN PGT05 – JTAG Kernel/ OS Burner Hardware is an essential tool engineered to enhance the programming capabilities of DWIN HMI displays. This advanced kernel programmer is specifically designed for efficiently burning kernel files, offering superior performance and reliability. Its robust construction and innovative design ensure seamless programming, making it an indispensable asset for developers working with DWIN HMI displays.

Sharing a similar naming convention with other DWIN programmers, the PGT05 T5L model distinguishes itself with an additional pin, featuring 7 pins compared to the 6-pin T5 programmer. This enhanced pin configuration significantly improves the functionality and compatibility of the programmer, facilitating optimal results in embedded projects requiring precise kernel and OS updates.

Key Features

  • Enhanced 7-Pin Configuration: The PGT05 T5L programmer incorporates 7 pins, offering increased flexibility and performance compared to 6-pin predecessors, ensuring broader compatibility.
  • Efficient Kernel File Burning: Specifically engineered for burning kernel files, the PGT05 guarantees quick and reliable programming of your DWIN HMI displays.
  • Broad Compatibility: Seamlessly integrates with various DWIN HMI display models, providing a versatile programming solution.
  • Robust Construction: Built for durability, the PGT05 withstands rigorous professional usage, ensuring long-term reliability in industrial or development environments.
  • User-Friendly Design: Features an intuitive design with clear instructions, simplifying the kernel programming process and optimizing development time.

Technical Specifications

Item TypeHardware Debugger and Programmer
Voltage Rating12V
Length13.209 cm
Width5.994 cm
Weight0.012 kg

Frequently Asked Questions

What is the primary function of the DWIN PGT05 JTAG Burner?

The DWIN PGT05 JTAG Burner is designed to efficiently program kernel and operating system files onto DWIN HMI displays. It provides a reliable interface for updating firmware, ensuring the proper functioning and customization of DWIN's human-machine interface products, crucial for embedded development and maintenance.

How does the 7-pin configuration of the PGT05 enhance its capabilities?

The PGT05 features an enhanced 7-pin configuration, offering greater flexibility and improved performance compared to older 6-pin models. This additional pin often provides better signal integrity, expanded control lines, or support for more complex JTAG operations, leading to more stable and versatile programming across various DWIN HMI models.

What voltage supply does the DWIN PGT05 require for operation?

The DWIN PGT05 JTAG Kernel/OS Burner hardware operates on a 12V voltage supply. It is essential to provide a stable and correctly regulated 12V power source to ensure proper functionality and prevent damage to the programmer or the target DWIN HMI display during the burning process.

Is the DWIN PGT05 compatible with all DWIN HMI displays?

The DWIN PGT05 is designed for broad compatibility with various DWIN HMI displays, particularly those utilizing DWIN's T5L series processors. While it offers versatile programming capabilities, users should verify compatibility with their specific DWIN HMI model's documentation to ensure seamless integration and successful kernel file burning.

Package Includes

  • 1 x DWIN PGT05 - JTAG Kernel/ OS Burner Hardware

Additional Information

Weight 0.012 kg
Dimensions 13.209 × 5.994 cm
