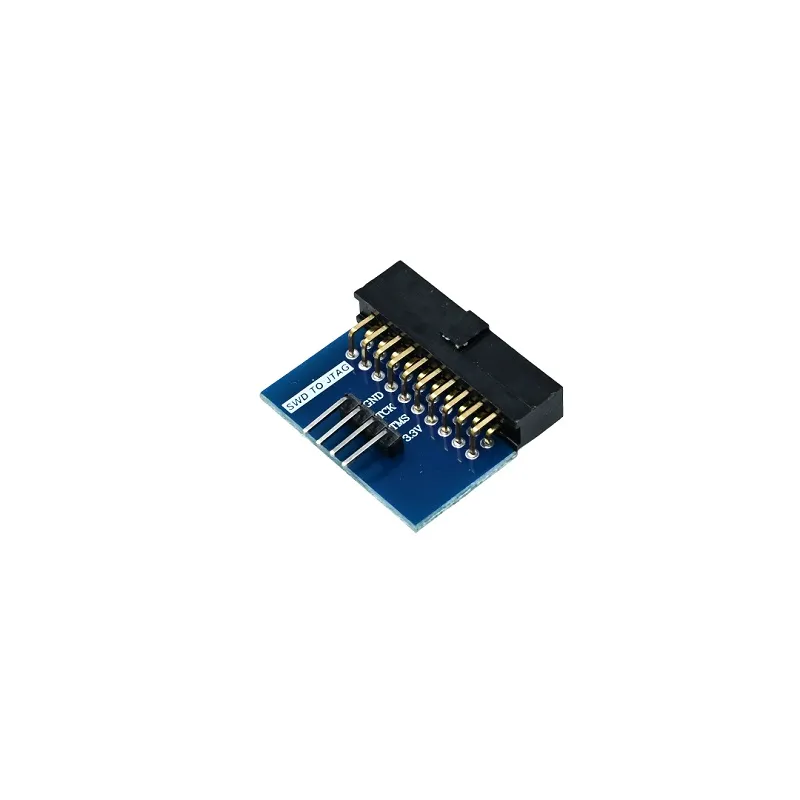

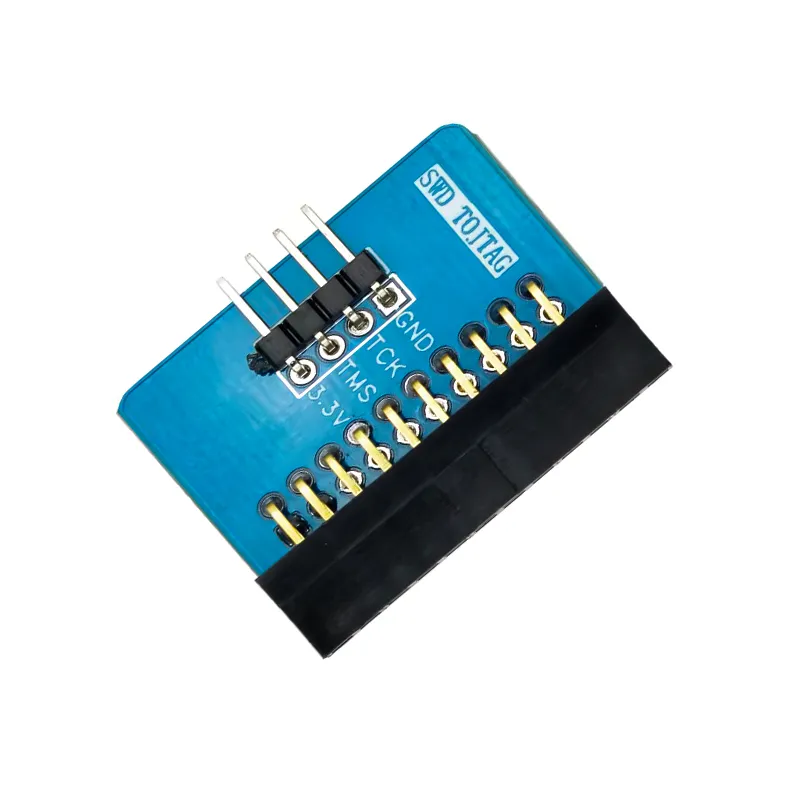

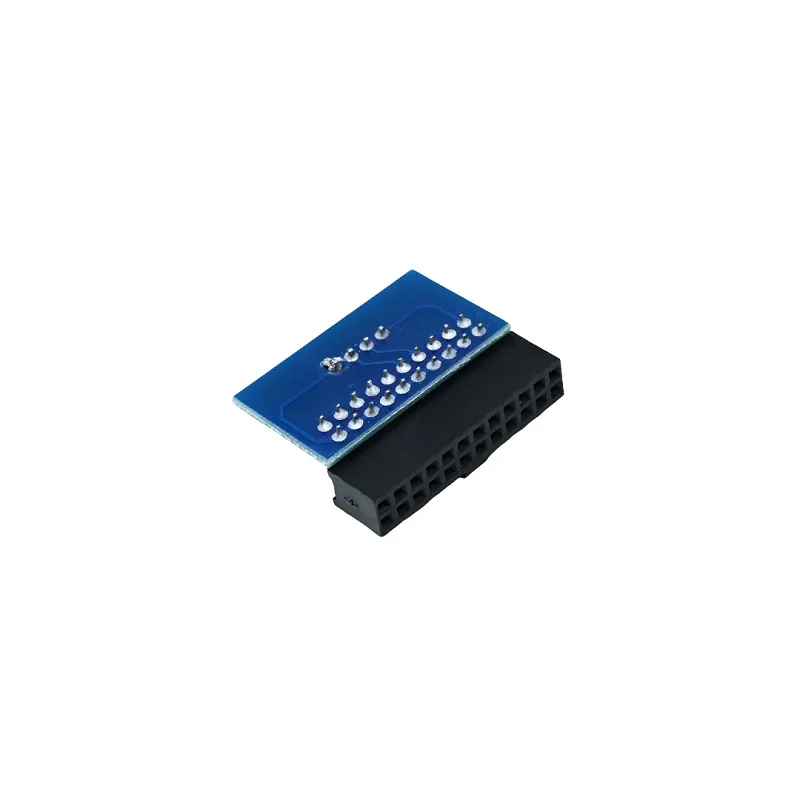

SWD to JTAG Adapter Board for JLINK Debuggers
This compact adapter board converts a standard 20-pin 2.54mm pitch JTAG interface to a 4-pin SWD output, enabling seamless compatibility with JLINK programmers for ARM Cortex MCU debugging and programming.
Features
- Converts 20-pin 2.54mm pitch JTAG to 4-pin SWD interface.
- Ensures full compatibility with JLINK series programmers and debuggers.
- Facilitates reliable debugging and flashing for ARM Cortex MCUs.
- Compact design (31 x 19.8 mm) for convenient integration into development setups.
Out of stock
The SWD to JTAG adapter board provides essential interface conversion for embedded system debugging. It features a standard 20-pin 2.54mm pitch JTAG input, commonly found on many development boards, and converts it to a 4-pin Serial Wire Debug (SWD) output. This conversion capability is crucial for leveraging the widespread support of JLINK programmers and debuggers across various microcontroller architectures.
Engineered for stability and efficiency, this adapter ensures reliable signal integrity during programming and debugging operations. Its compact form factor (31mm x 19.8mm) and minimal weight make it highly portable and easy to integrate into any workbench or field-testing environment. It is an indispensable tool for developers working with ARM Cortex-M microcontrollers, enabling seamless firmware flashing, hardware diagnostics, and real-time debugging.
Additional Information
| Weight | 0.0049 kg |
|---|---|
| Dimensions | 3.1 × 1.98 cm |
