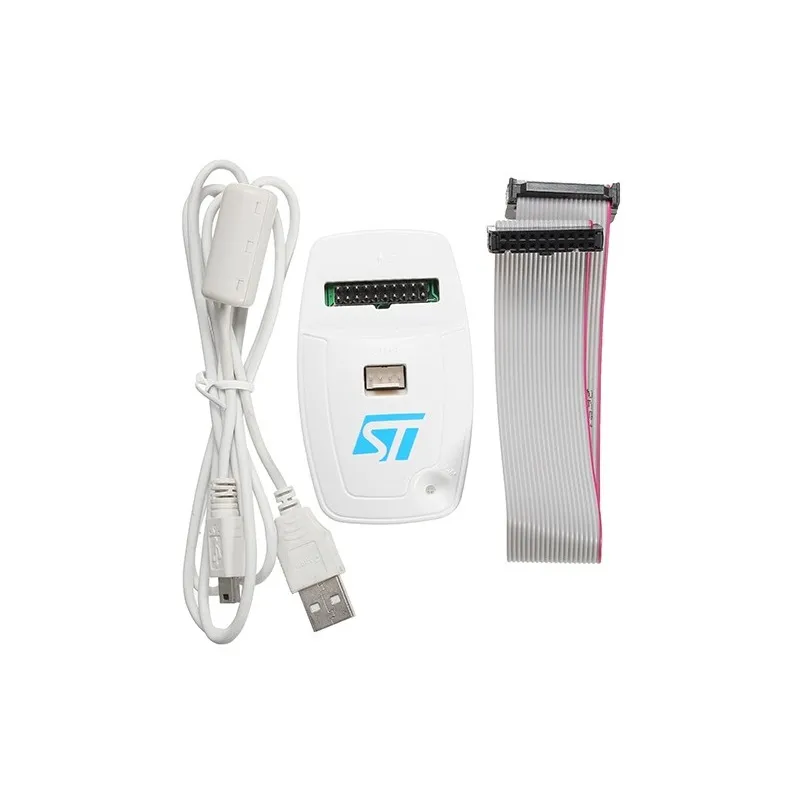

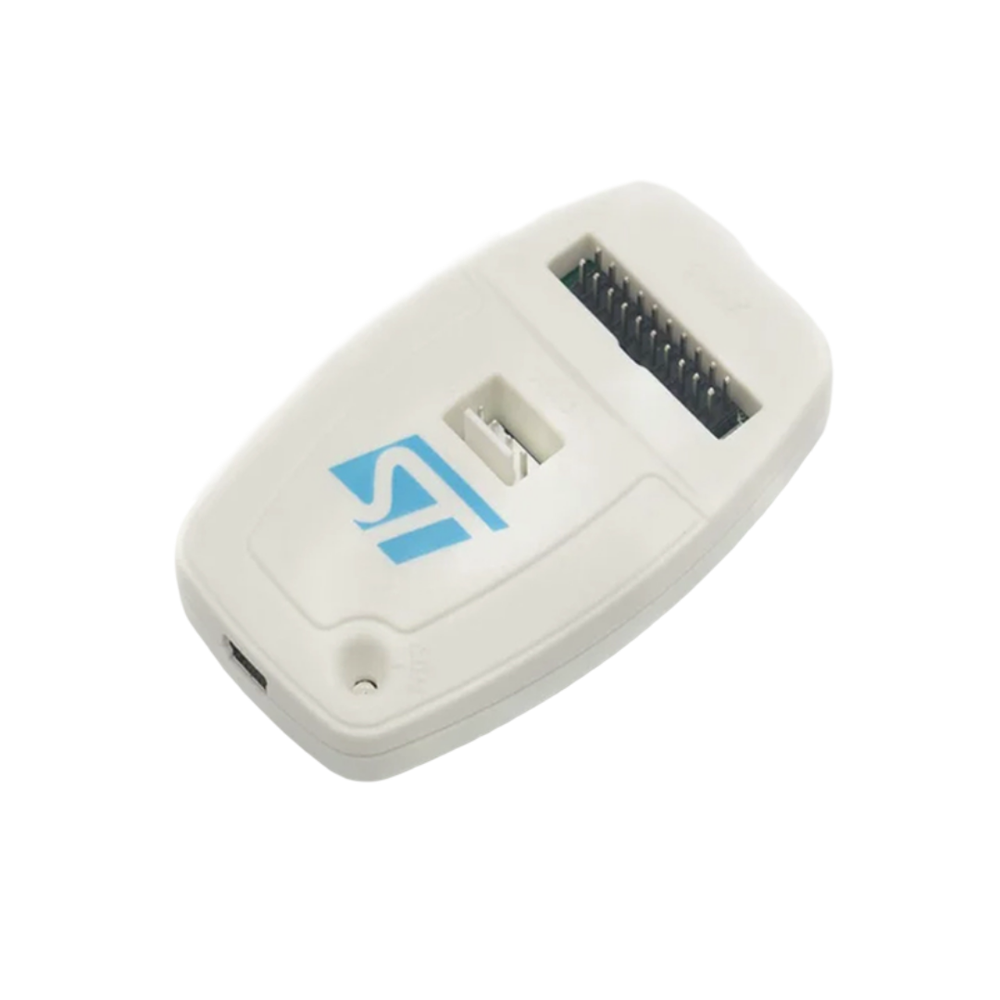

ST-LINK/V2 In-Circuit Debugger Programmer STM8 STM32
The ST-LINK/V2 is an essential in-circuit debugger and programmer for STM8 and STM32 microcontrollers, offering seamless integration with various IDEs. It provides power via a USB 2.0 full-speed interface and supports application voltages from 1.65V to 5.5V across its SWIM and JTAG/SWD interfaces.
Features
- In-circuit debugging and programming for STM8 and STM32 microcontrollers.
- Supports both Single Wire Interface Module (SWIM) and JTAG/Serial Wire Debug (SWD).
- USB 2.0 full-speed compatible interface for host PC communication.
- Wide application voltage range from 1.65V to 5.5V on SWIM interface.
- Features a status LED for clear communication indication.
Out of stock
The ST-LINK/V2 is an indispensable in-circuit debugger and programmer engineered for comprehensive development with STMicroelectronics’ STM8 and STM32 microcontroller families. It utilizes the Single Wire Interface Module (SWIM) and JTAG/Serial Wire Debug (SWD) interfaces, enabling communication with a broad range of STM8 and STM32 devices directly on the target application board. This robust tool streamlines the development process by facilitating real-time debugging and efficient program flashing.
For STM8 applications, the ST-LINK/V2 interfaces with ST Visual Develop (STVD) or ST Visual Program (STVP) software via its USB full-speed connection. Similarly, STM32 developers can integrate the ST-LINK/V2 with popular integrated development environments such as Atollic TrueSTUDIO, IAR Embedded Workbench, Keil MDK-ARM, or TASKING. Its direct firmware update capability ensures the debugger remains current, while the status LED provides visual feedback during PC communication.
Additional Information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 12 × 8 × 3 cm |
