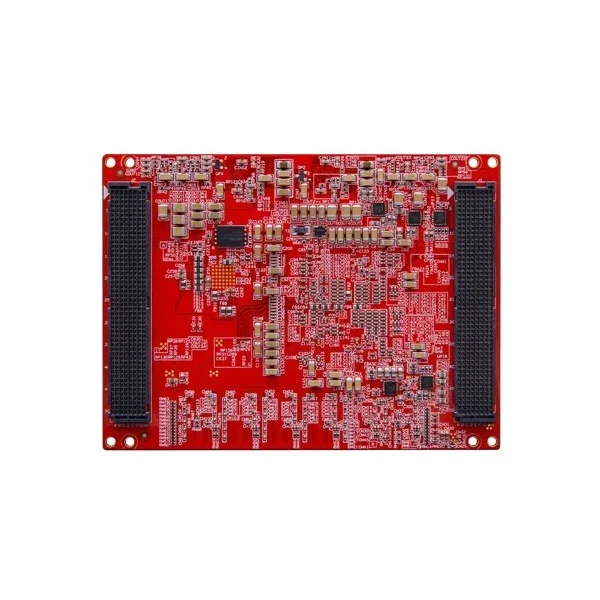

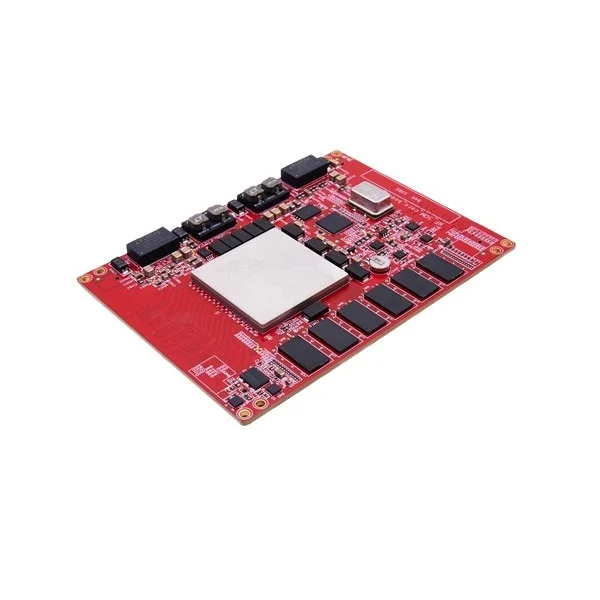

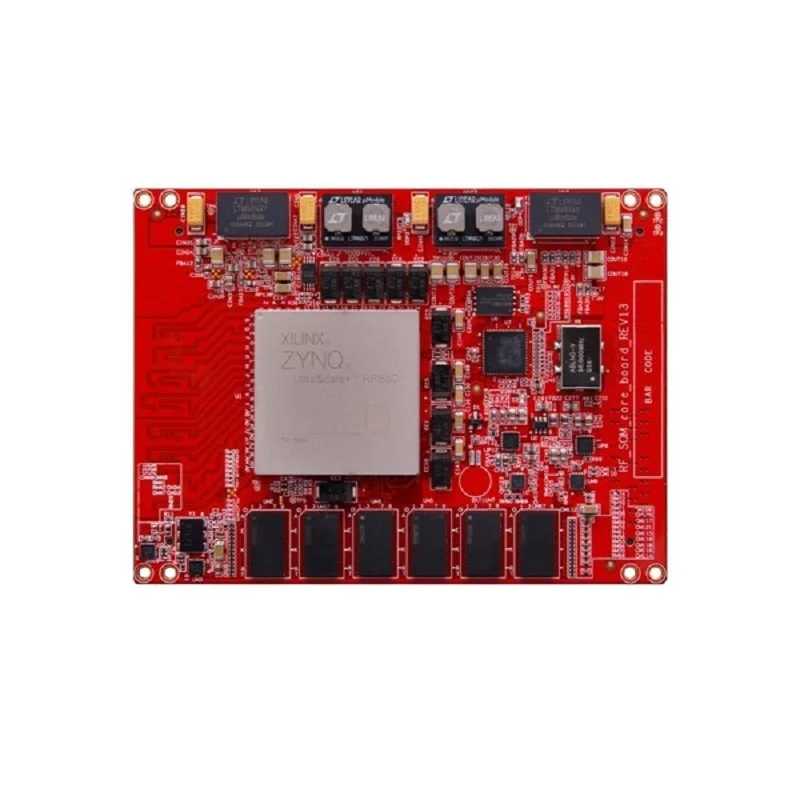

Alinx ACRF47 SoM AMD Zynq UltraScale+ RFSoC XCZU47DR
The Alinx ACRF47 System-on-Module (SoM) integrates the AMD Zynq UltraScale+ RFSoC XCZU47DR, featuring a quad-core ARM Cortex-A53 processor, 16nm FPGA fabric, and integrated high-speed RF data converters for prototyping 5G, radar, and software-defined radio (SDR) systems.
Features
- High-Performance RFSoC: Combines a 1.333 GHz quad-core ARM Cortex-A53, dual-core Cortex-R5F, and a 16nm FinFET+ FPGA for complex signal processing.
- Integrated High-Speed Data Converters: Features 8x 14-bit ADCs (up to 5 GSPS) and 8x 14-bit DACs (up to 9.85 GSPS) for direct RF sampling.
- Ample Memory Architecture: Includes 4 GB DDR4 for the Processing System (PS) and 2 GB DDR4 for the Programmable Logic (PL), plus 128 MB QSPI Flash.
- High-Speed Connectivity: Equipped with 8 GTY transceivers (28.21 Gbps) and 4 PS-GTR transceivers (6 Gbps) for high-bandwidth interfaces.
- Industrial-Grade Reliability: Operates across an extended temperature range from -40°C to +85°C with a single 5V power supply input.
Out of stock
The Alinx ACRF47 is a sophisticated System-on-Module engineered around the AMD Zynq UltraScale+ RFSoC XCZU47DR, designed for high-performance wireless and signal processing applications. It merges a powerful application processor, reconfigurable FPGA logic, and integrated RF analog-to-digital/digital-to-analog converters into a single, compact platform.
This integration enables direct RF signal acquisition and generation up to the C-band, eliminating the need for external data converters and simplifying system architecture for 5G, phased array radar, and spectrum monitoring projects. The module’s robust memory subsystem and high-speed serial transceivers support demanding data throughput requirements for MIMO and beamforming systems.
Additional Information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 6 × 12 × 3 cm |
