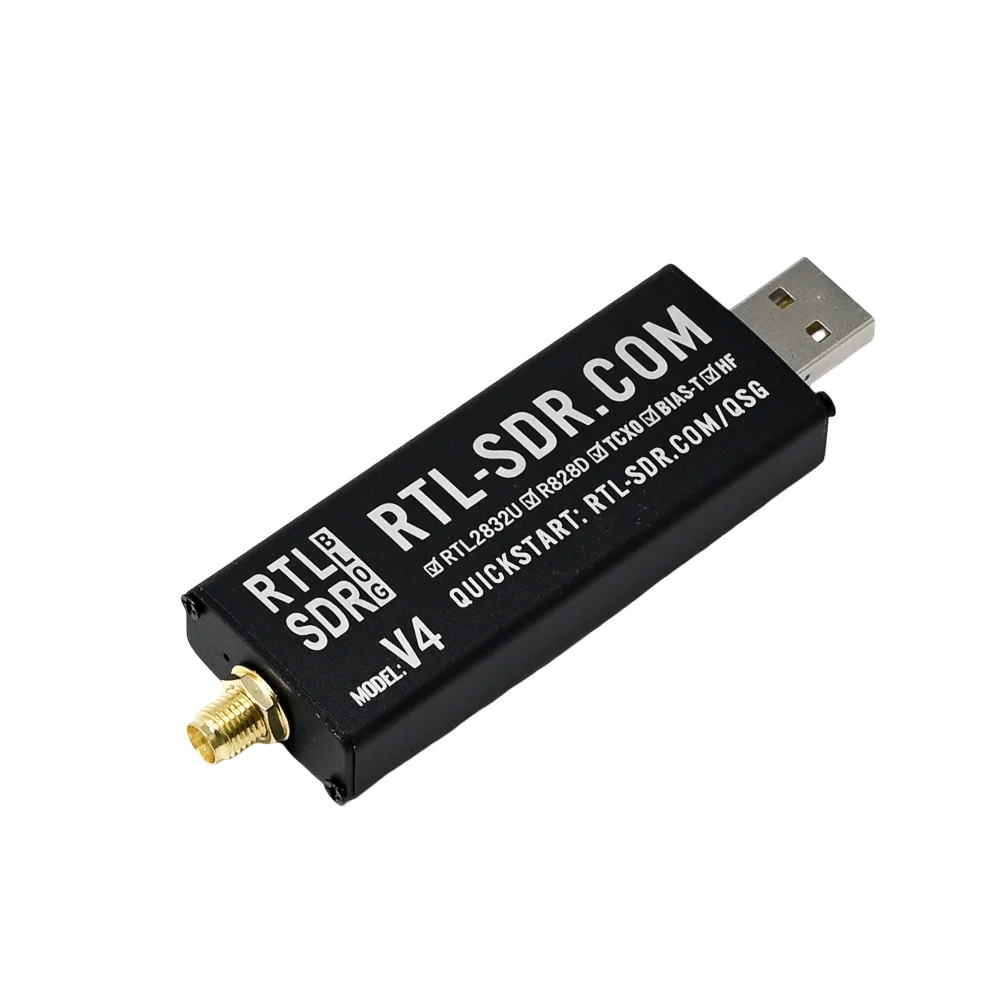

RTL-SDR Blog Blog V4 R828D RTL2832U 1PPM TCXO SMA Software Defined Radio Dongle

The dongle is plug-and-play compatible with most popular SDR applications on Windows, Linux, and macOS. Primary software includes SDR#, HDSDR, CubicSDR, and GNU Radio. For Linux, install the osmocom drivers. For ADS-B decoding, use dump1090 or Virtual Radar Server. Ensure you install the correct Zadig USB drivers on Windows for optimal performance and stable operation with these applications.

The bias tee is enabled by default on the V4 model and supplies approximately 4.5V DC to the center pin of the SMA connector. Connect your active antenna or LNA directly to the dongle's SMA port. No external configuration is typically required. Ensure your active device operates within the supplied voltage and current limits. For applications not requiring bias tee power, you can use a passive antenna or verify if your SDR software has an option to disable the feature.

The 1 Part-Per-Million Temperature Compensated Crystal Oscillator provides exceptional frequency stability, minimizing drift caused by temperature changes. This high accuracy is crucial for precise signal monitoring, narrowband decoding, and long-term spectral logging. Compared to standard crystal oscillators with higher ppm values, the TCXO ensures your tuned frequency remains accurate, which is vital for digital modes like FT8, satellite tracking, or identifying weak signals in crowded RF environments.

Yes, the V4 model includes an integrated HF upconverter and supports direct sampling mode for the 500 kHz to 30 MHz range. This hardware improvement provides significantly better sensitivity and reception for HF bands compared to earlier versions. In your SDR software, you may need to select the 'Direct Sampling (Q Branch)' input source for optimal HF performance. This allows reception of amateur radio, international shortwave broadcasts, and naval communications without an external upconverter.
