Red Pitaya STEMlab 125-14 Diagnostic Kit

₹106,069.00 (Inclusive of all taxes)
Out of Stock

The Red Pitaya STEMlab 125-14 Diagnostic Kit is a versatile, high-performance platform featuring a Xilinx Zynq 7010 SoC, offering integrated oscilloscope, spectrum analyzer, and signal generator capabilities ideal for rapid prototyping and advanced measurement applications. It provides 14-bit ADC/DAC resolution at 125 MS/s for precise signal analysis and generation.

Features

  • Dual-Core ARM Cortex-A9 Xilinx Zynq 7010 SoC with integrated FPGA.
  • Dual-channel 14-bit ADCs/DACs with 125 MS/s sampling for high-fidelity signal acquisition and generation.
  • Multi-instrument functionality: Oscilloscope, Spectrum Analyzer, Signal Generator, Logic Analyzer, and more.
  • Open-source design with Ethernet and WiFi connectivity for remote control and custom applications.
  • Supports development with C, LabVIEW, MATLAB, Python, and Scilab for diverse project integration.

Out of stock

Description

The Red Pitaya STEMlab 125-14 Diagnostic Kit is an advanced, compact multi-instrument platform built around the powerful Xilinx Zynq 7010 SoC. This integrated system-on-chip combines a dual-core ARM Cortex-A9 processor with an FPGA, enabling parallel processing and high-speed data acquisition crucial for complex measurement and control tasks. The board delivers precise signal analysis and generation with its two 14-bit ADCs and two 14-bit DACs, both operating at a rapid 125 MS/s, supporting a DC–60 MHz bandwidth.

Designed for both educational and professional applications, the STEMlab 125-14 provides a comprehensive suite of instruments accessible via web apps, including an oscilloscope, spectrum analyzer, signal generator, and logic analyzer. Its open-source architecture promotes customization and flexibility, allowing users to develop bespoke solutions using various programming environments like C, LabVIEW, MATLAB, and Python. The kit’s robust connectivity options, including Gigabit Ethernet and a Wi-Fi dongle, facilitate seamless remote operation and integration into existing setups, making it an indispensable tool for research, development, and testing across diverse fields.

Key Features

  • Small form factor multi-instrument platform.
  • Dual-Core ARM Cortex-A9 MPCore Xilinx ZYNQ 7010 SoC for combined CPU and FPGA processing.
  • Fast sampling speed: 125 MS/s for two simultaneous inputs and outputs.
  • Open-source hardware design for advanced customization and flexibility.
  • Integrated Ethernet connectivity and included WiFi dongle for versatile networking.
  • Available open-source software code with extensive application examples.
  • Web-browser accessible free applications: Oscilloscope, Signal Generator, Spectrum, Bode, Logic Analyzer, SDR, VNA, PID controller.
  • Remote programmability via C, LabVIEW, MATLAB, Python, or Scilab.
  • Designed for custom development to meet specific application needs.

Applications

  • Real-time signal analysis and waveform generation using the Oscilloscope & Signal Generator.
  • Frequency-domain signal measurement and spectral analysis with the Spectrum Analyzer.
  • Gain and phase response testing for electronic circuits via the Bode Analyzer.
  • Digital signal capture and protocol decoding (I2C, SPI, UART) using the Logic Analyzer.
  • Utilizing advanced tools such as LCR Meter, VNA, SDR, Signal Streaming, and Calibration utilities for specialized tasks.

Technical Specifications

SoCXilinx ZYNQ 7010 (Dual-Core ARM Cortex-A9 MPCore + FPGA)
Ethernet1 Gbit
USBUSB 2.0
Wi-FiVia included Wi-Fi dongle
RF Input Channels (2)
Input Sample Rate125 MS/s
ADC Resolution14-bit
Full Scale Voltage Range±1V / ±20V
Input CouplingDC
Input BandwidthDC–60 MHz
Input Impedance1 MΩ
RF Output Channels (2)
Output Sample Rate125 MS/s
DAC Resolution14-bit
Full Scale Voltage Range±1V
Load Impedance50 Ω
Short Circuit ProtectionYes
Typical Rising/Falling Time2V / 10 ns
Output BandwidthDC–60 MHz
Extension Connector
Digital I/Os16
Analog Inputs4 Channels (0–3.5V, 12-bit)
Analog Outputs4 Channels (0–1.8V, 12-bit)
Communication InterfacesI2C, SPI, UART
Available Voltages–4V, +3.3V, +5V
Synchronization
Trigger InputThrough Extension Connector
Daisy Chain ConnectionOver SATA Connection
General
Use CaseAcademia, Industry
Dimensions41 × 14.5 × 9 cm
Weight1.2 kg

Frequently Asked Questions

What is the core processing unit of the Red Pitaya STEMlab 125-14?

The STEMlab 125-14 is powered by a Xilinx Zynq 7010 SoC, which integrates a dual-core ARM Cortex-A9 processor with a high-performance FPGA. This combination allows for both general-purpose computing and accelerated, reconfigurable hardware processing for signal acquisition and generation tasks.

What are the key analog performance specifications of this diagnostic kit?

It features two RF input and two RF output channels, both offering 14-bit resolution with a 125 MS/s sampling rate. The input bandwidth is DC–60 MHz with a ±1V / ±20V range, while outputs provide ±1V range and a DC–60 MHz bandwidth, ensuring high-fidelity signal handling.

How can I control and program the Red Pitaya STEMlab 125-14?

The device can be controlled remotely via Ethernet or the included Wi-Fi dongle, accessing free web-based applications for instruments like an oscilloscope and signal generator. For custom development, it supports programming with popular environments such as C, LabVIEW, MATLAB, Python, and Scilab.

What type of expansion is available for the STEMlab 125-14?

The board includes an extension connector featuring 16 digital I/Os, 4 analog inputs (12-bit, 0–3.5V), and 4 analog outputs (12-bit, 0–1.8V). It also provides I2C, SPI, and UART communication interfaces, enabling broad peripheral integration and system expansion.

Package Includes

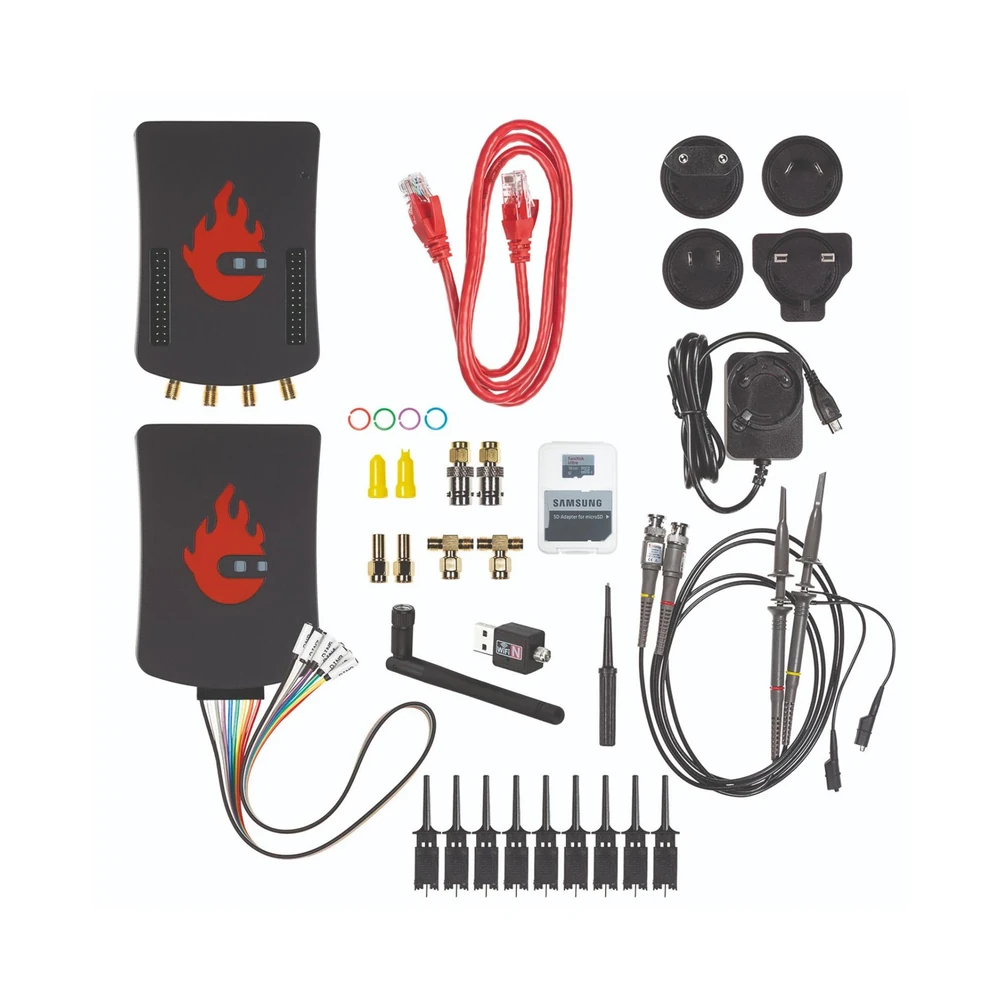

  • 1 x Red Pitaya STEMlab 125-14 digitizer board
  • 1 x SD card (32GB, class 10)
  • 1 x Ethernet cable (1m)

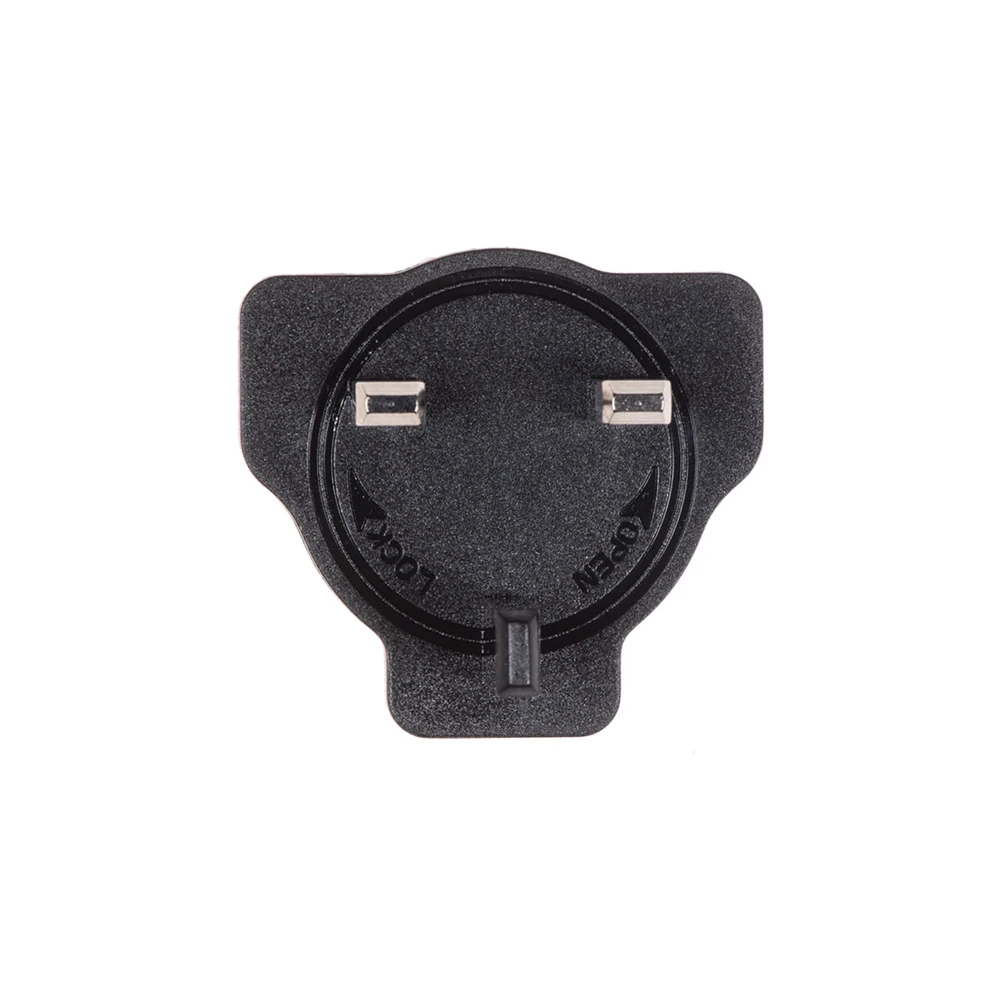

  • 1 x Power supply (5V, 2A)
  • 1 x Aluminium case
  • 1 x Logic analyzer extension module

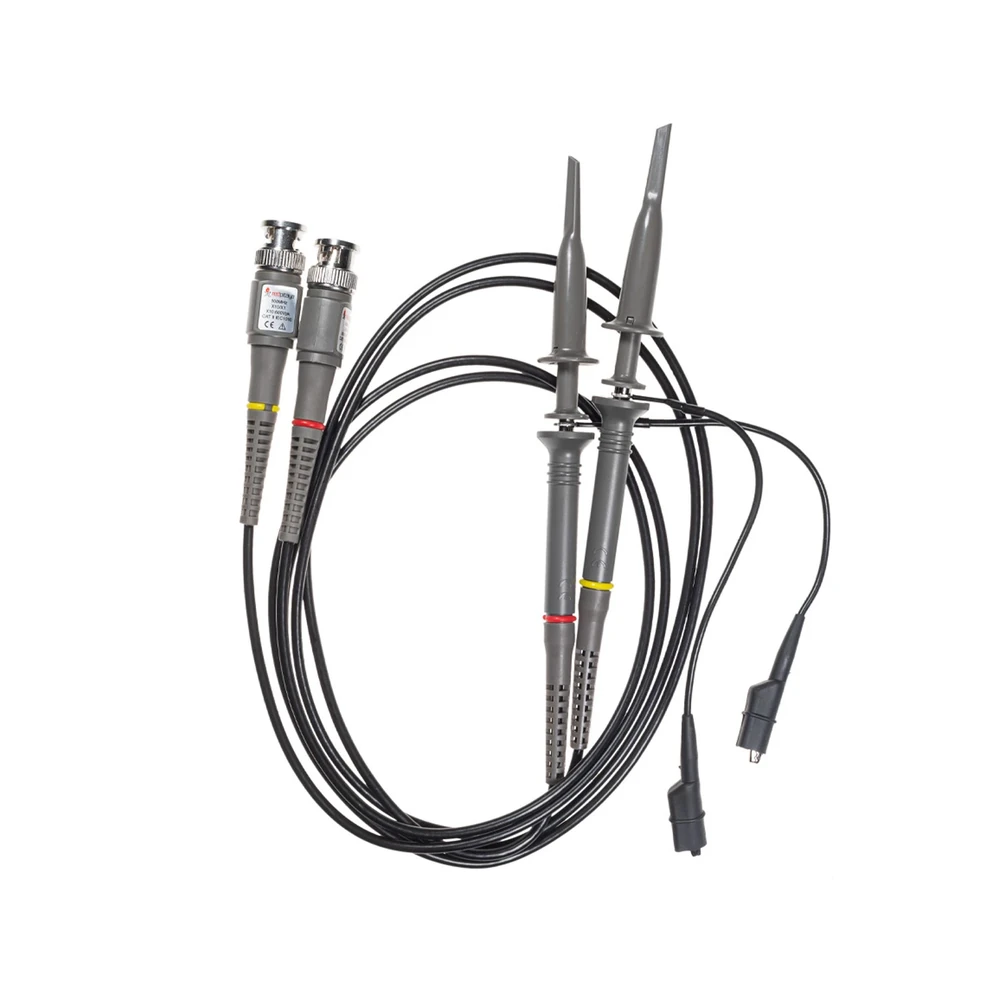

  • 2 x Oscilloscope probes
  • 2 x SMA to BNC adapter
  • 2 x 50 ohm termination
  • 2 x SMA T adapter

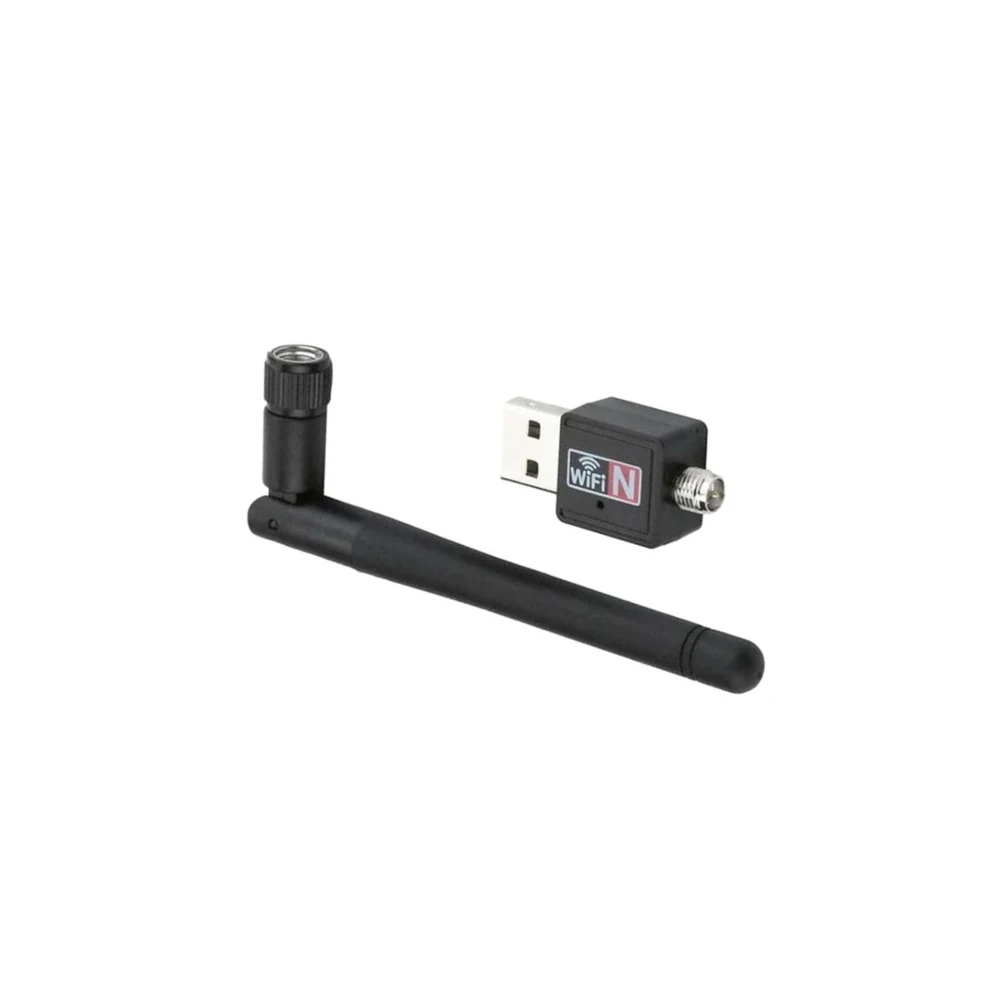

  • 1 x WiFi dongle

Additional Information

Weight 1.2 kg
Dimensions 41 × 14.5 × 9 cm
