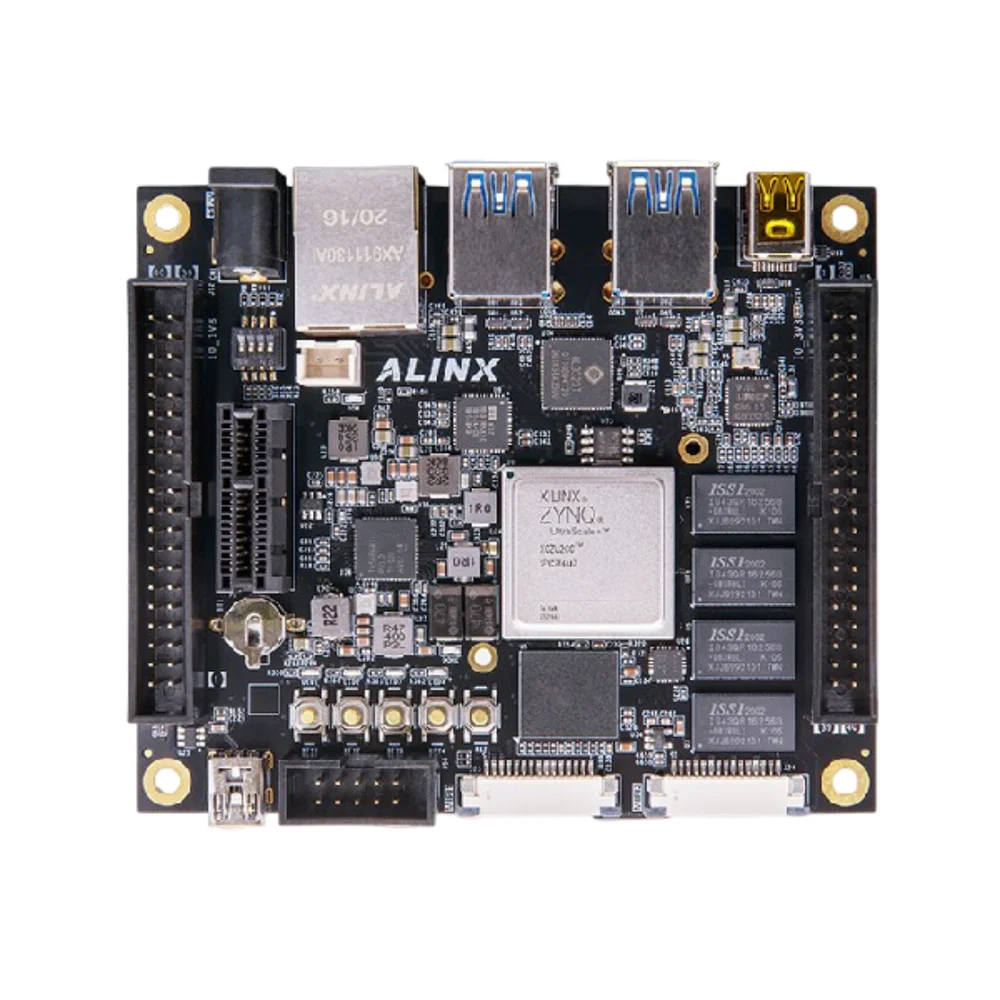

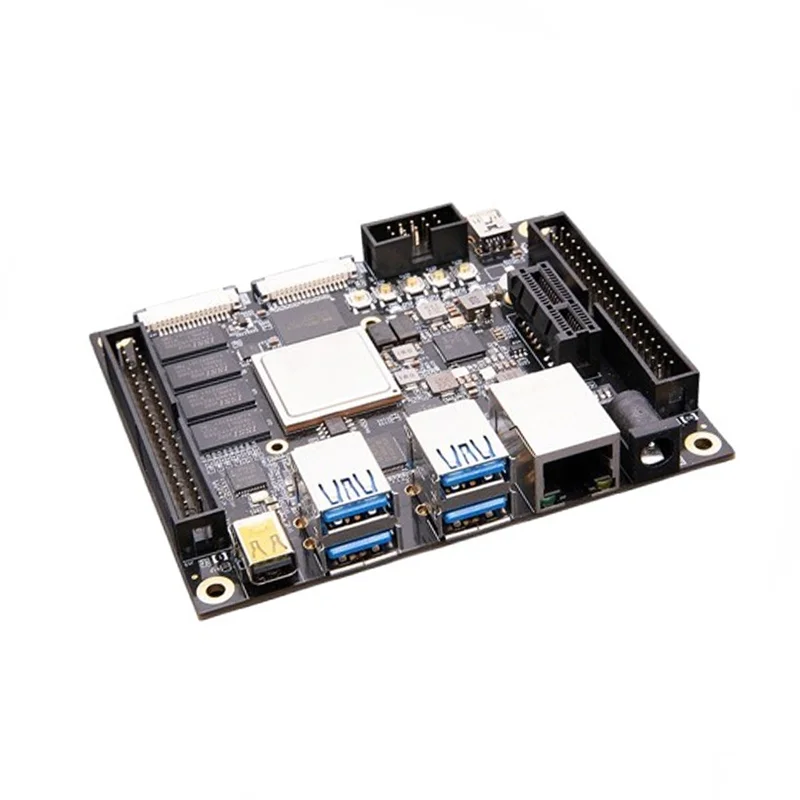

Alinx AXU2CGB Dev Board & Heatsink with AMD Zynq UltraScale+ MPSoC ZU2CG
The Alinx AXU2CGB is a high-performance development board featuring the AMD/Xilinx Zynq UltraScale+ XCZU2CG MPSoC, designed for rapid prototyping in AI, industrial, and automotive applications. It integrates 4GB DDR4 RAM, 8GB eMMC, and extensive I/O including DP, M.2, and RS485, powered by a 12V supply.
Features
- Powered by AMD/Xilinx Zynq UltraScale+ XCZU2CG-1SFVC784E MPSoC for high-performance adaptive computing.
- Equipped with 4GB DDR4 SDRAM for the Processing System (PS) and 1GB DDR4 for the Programmable Logic (PL).
- Features 8GB eMMC Flash and 32MB QSPI Flash for robust, high-speed onboard storage.

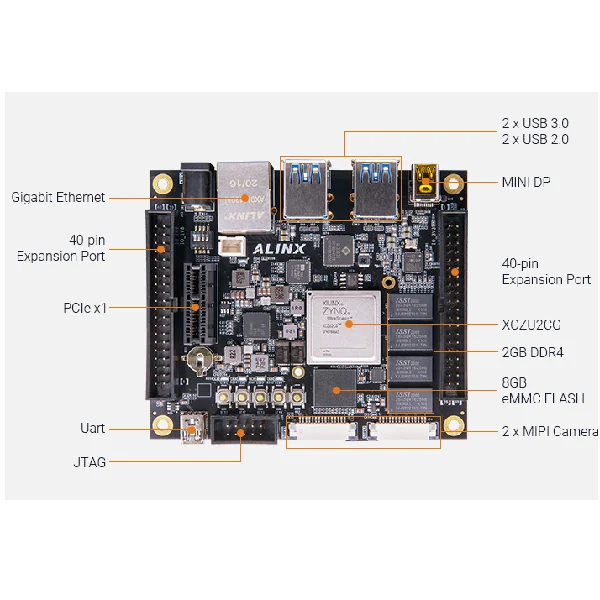

- Includes comprehensive interfaces: DisplayPort (DP), M.2 for NVMe storage, USB 3.0, CAN, RS485, and MIPI.
- Comes with a preinstalled heatsink kit for thermal management during intensive processing tasks.
Out of stock
The Alinx AXU2CGB Development Board is engineered as a design-in kit for the AMD/Xilinx Zynq UltraScale+ MPSoC platform, accelerating time-to-market for complex embedded systems. Its architecture combines a quad-core Arm Cortex-A53 application processor with a rich programmable logic (PL) fabric, enabling hardware-software co-design for compute-intensive tasks.
With substantial memory resources including 4GB of DDR4 ECC SDRAM for the processing system and 1GB for the programmable logic, the board supports demanding workloads in signal processing and data buffering. The inclusion of high-speed storage via an M.2 slot and 8GB eMMC, alongside video output via DisplayPort, makes it suitable for edge AI inference, video streaming, and real-time sensor fusion applications in industrial and automotive environments.
Additional Information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 8 × 12 × 4 cm |
