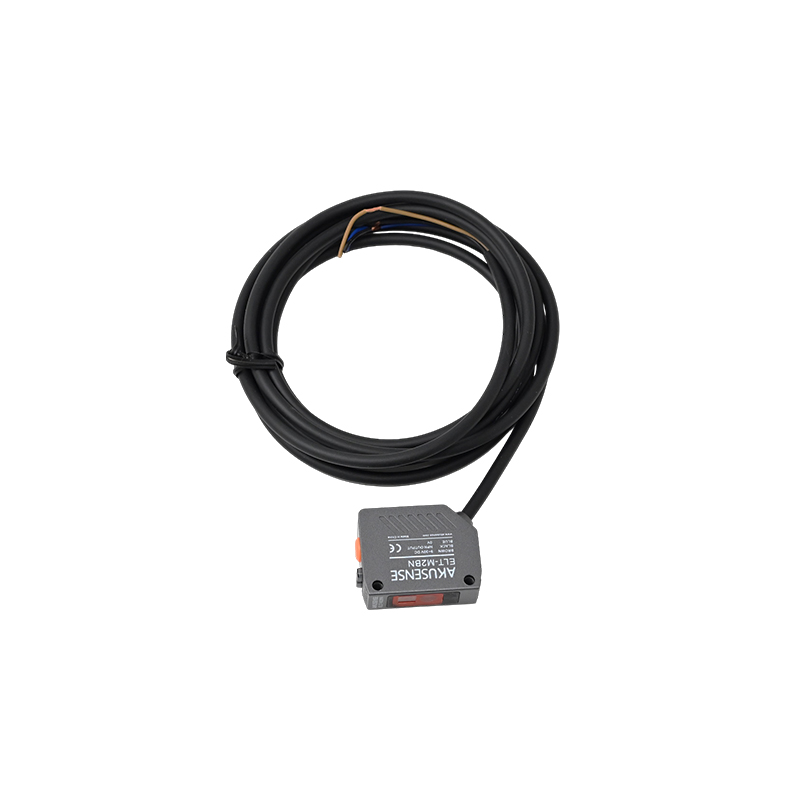

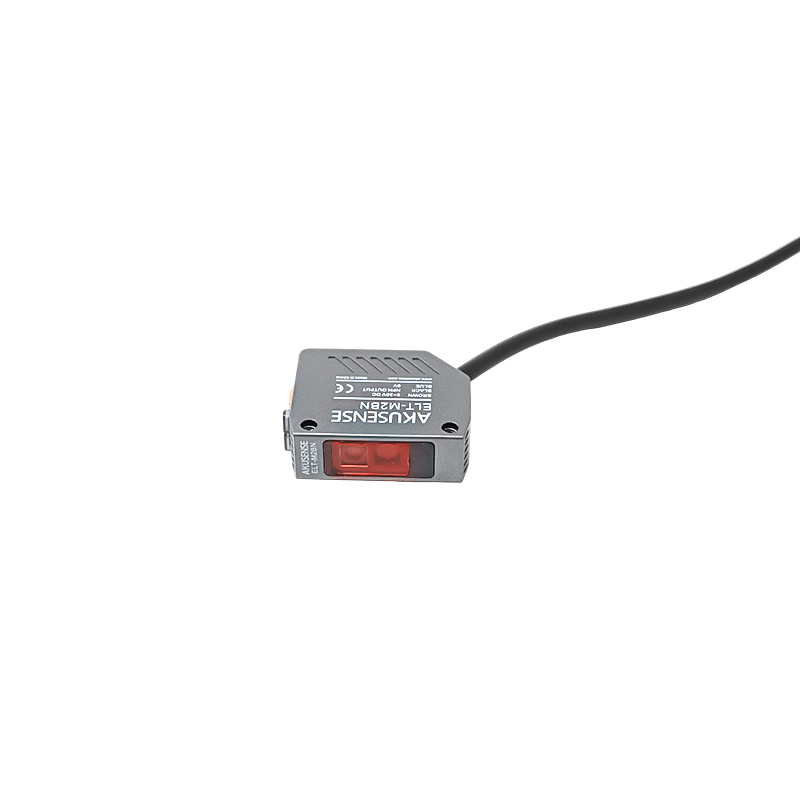

AkuSense ELT-M2BN TOF Square Proximity Sensor, Class 2 Laser Diode, Range 0.05-2m, NPN Output
The AkuSense ELT-M2BN is a compact, square Time-of-Flight (TOF) proximity sensor featuring a Class 2 laser diode for precise distance measurement from 0.05 to 2 meters. It provides a fast NPN open-collector output compatible with industrial PLCs, automation controllers, and robotics systems operating on a wide 9-30V DC supply.
Features
- TOF-based square proximity sensor with 0.05-2m detection range.
- Class 2 laser diode (650nm) for safe, precise distance measurement.
- Fast 1ms response time and NPN open collector output (NO/NC selectable).
- Wide 9-30V DC operating voltage for industrial compatibility.
- IP54-rated housing for protection against dust and water splashes.
Out of stock
The AkuSense ELT-M2BN utilizes Time-of-Flight (TOF) technology to calculate distance by measuring the round-trip time of a reflected laser pulse. This method provides high-speed, consistent measurements independent of object color or surface reflectivity, making it suitable for dynamic industrial environments. The sensor’s integrated Class 2 laser diode operates at a 650nm wavelength, offering a focused beam for accurate targeting.
Housed in a robust, compact square enclosure with an IP54 rating, the ELT-M2BN is designed to withstand dust and water splashes common in automation settings. Its wide 9-30V DC input range ensures compatibility with standard industrial power supplies, while the configurable NPN output allows for easy integration into control logic for object detection, positioning, and collision avoidance systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3.45 × 2.62 cm |
