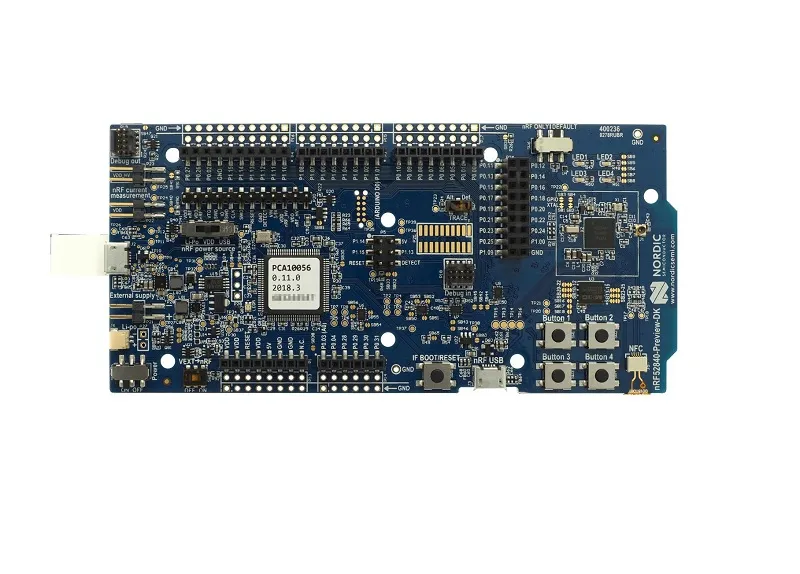

Nordic Semiconductor NRF52840-DK Development Kit

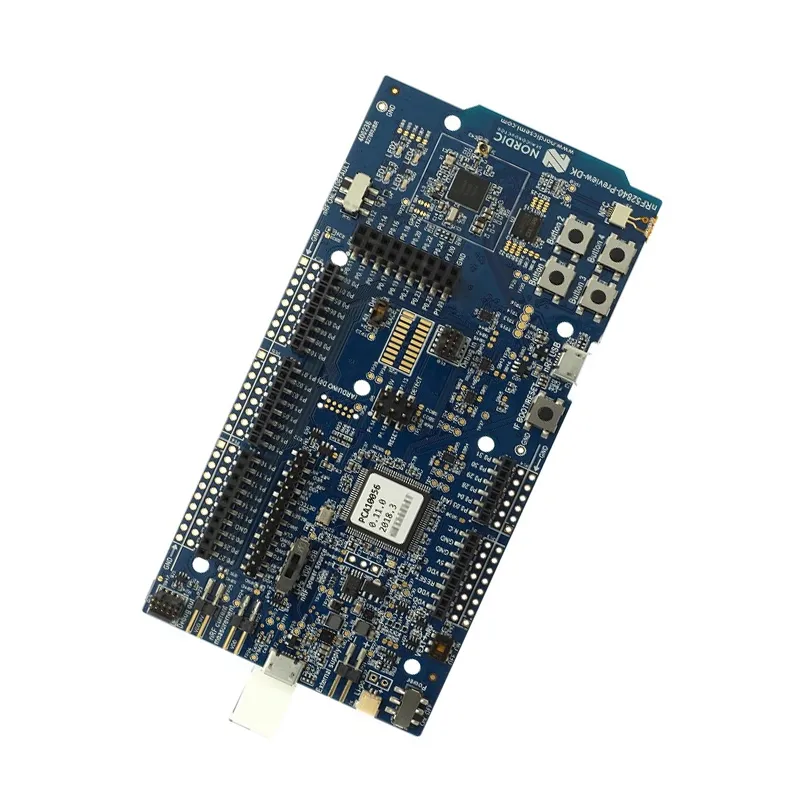

Nordic Semiconductor NRF52840-DK Development Kit - Image 2
SKU: SBCD-0409
📋 GST Invoice Available

Nordic Semiconductor NRF52840-DK Development Kit

₹7,519.00 (Inclusive of all taxes)
Out of Stock

The Nordic Semiconductor nRF52840-DK Development Kit is a multiprotocol platform for Bluetooth LE, Thread, Zigbee, and ANT. Featuring a 64 MHz ARM Cortex-M4F CPU with extensive memory, it offers robust performance for advanced wireless IoT applications, compatible with Arduino ecosystems and featuring Segger Segger for seamless debugging.

Features

  • High-performance 64 MHz ARM Cortex-M4F CPU with FPU.
  • 1 MB Flash and 256 KB RAM for complex applications.
  • Multiprotocol support: Bluetooth LE, Thread, Zigbee, ANT.
  • Integrated Segger Segger OB for advanced debugging capabilities.
  • Arduino compatible headers for versatile shield integration.

Out of stock

Description

The NRF52840-DK Development Kit SoC is a high-performance, multiprotocol solution ideal for advanced applications requiring Bluetooth Low Energy, Bluetooth mesh, Thread, Zigbee, and more. Built on a 64 MHz ARM Cortex-M4 CPU with 1 MB Flash and 256 KB RAM, it offers excellent processing power and memory for demanding tasks.

This development kit features NFC-A for easy pairing, extensive digital interfaces including UART, SPI, and USB, along with a 12-bit ADC. Enhanced security is provided through ARM TrustZone CryptoCell. With exceptional energy efficiency and up to +8 dBm TX power, the nRF52840 is perfect for developing robust IoT devices, wearables, and smart home applications.

Key Features

  • High-performance 64 MHz ARM Cortex-M4F processor with Floating Point Unit (FPU).
  • Generous memory: 1 MB Flash and 256 KB RAM for complex firmware and data storage.
  • Configurable TX power up to +8 dBm, extending wireless range.
  • Integrated NFC-A tag for simplified out-of-band pairing and payment applications.
  • Advanced power management system for ultra-low energy consumption in battery-powered devices.
  • Rich peripheral set including UART, SPI, TWI, PDM, I2S, QSPI, and full-speed USB 2.0.
  • On-board 12-bit Analog-to-Digital Converter (ADC) and Pulse Width Modulation (PWM) support.
  • Robust security features with ARM TrustZone CryptoCell and 128-bit AES CCM for data protection.
  • Arduino-compatible header layout for shield integration and ecosystem flexibility.
  • Integrated Segger Segger OB debugger for streamlined development and programming.

Applications

  • IoT gateways and advanced sensor nodes.
  • Wearable electronics and fitness trackers.
  • Smart home automation and building control systems.
  • Bluetooth Low Energy (BLE) peripherals and beacons.
  • Wireless mesh networking solutions.

Technical Specifications

Item TypeKit
MicrocontrollerSoC (nRF52840)
CPU64 MHz ARM Cortex-M4F with FPU
Flash Memory1 MB
RAM256 KB
Protocols SupportedBluetooth LE, Bluetooth mesh, Thread, Zigbee, ANT, 802.15.4
TX PowerUp to +8 dBm
NFC SupportNFC-A
Security FeaturesARM TrustZone CryptoCell, 128-bit AES CCM
Digital InterfacesUART, SPI, TWI, PDM, I2S, QSPI, USB 2.0
Analog Features12-bit ADC, PWM

Frequently Asked Questions

What wireless protocols does the nRF52840-DK support?

The nRF52840-DK supports a wide range of protocols, including Bluetooth Low Energy (BLE), Bluetooth mesh, Thread, Zigbee, and ANT. It also supports 802.15.4, making it highly versatile for various wireless IoT applications and network topologies.

What development environment and tools are compatible with this kit?

The nRF52840-DK is compatible with the nRF Connect SDK, including support for Zephyr RTOS, and can be programmed using Segger Embedded Studio, Keil, or IAR. Its integrated Segger Segger OB debugger allows seamless programming and debugging directly via USB.

Can the nRF52840-DK be powered via USB, and what are its power capabilities?

Yes, the nRF52840-DK can be powered directly via USB. It features a flexible power supply range, accommodating coin-cell batteries (1.7-3.6V) and USB (5V). The SoC itself boasts ultra-low power consumption, making it ideal for battery-operated IoT devices.

Does the nRF52840-DK offer any hardware security features?

Absolutely. The nRF52840-DK integrates advanced hardware security features, including ARM TrustZone CryptoCell-310, a comprehensive security subsystem offering cryptographic accelerators, true random number generation, and secure key storage. This ensures robust protection for sensitive data and firmware.

Package Includes

  • 1 x Nordic Semiconductor NRF52840-DK Development Kit

Additional Information

Weight 0.075 kg
Dimensions 16 × 8 × 3 cm
