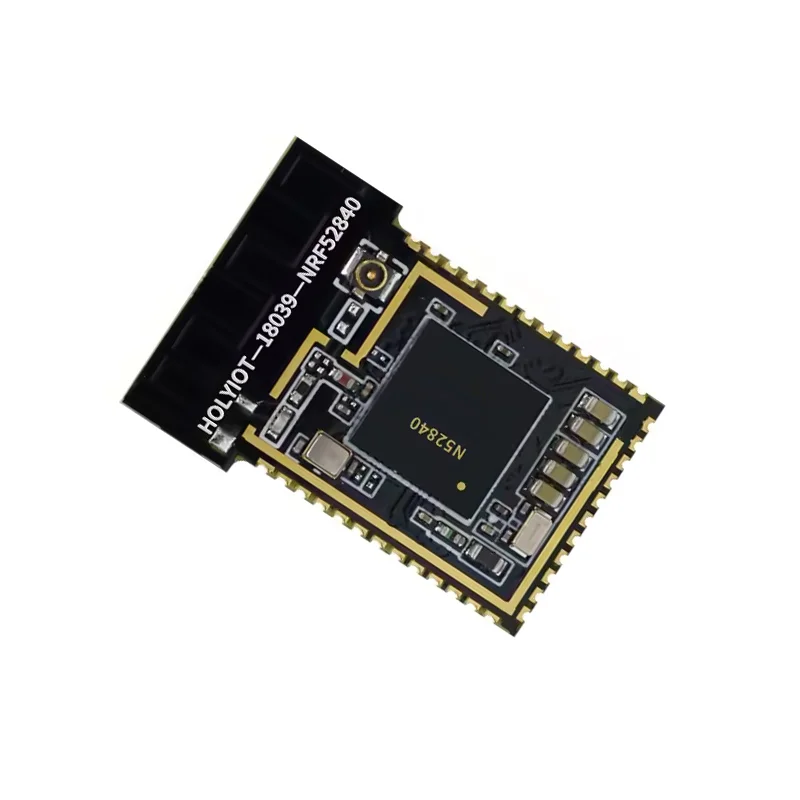

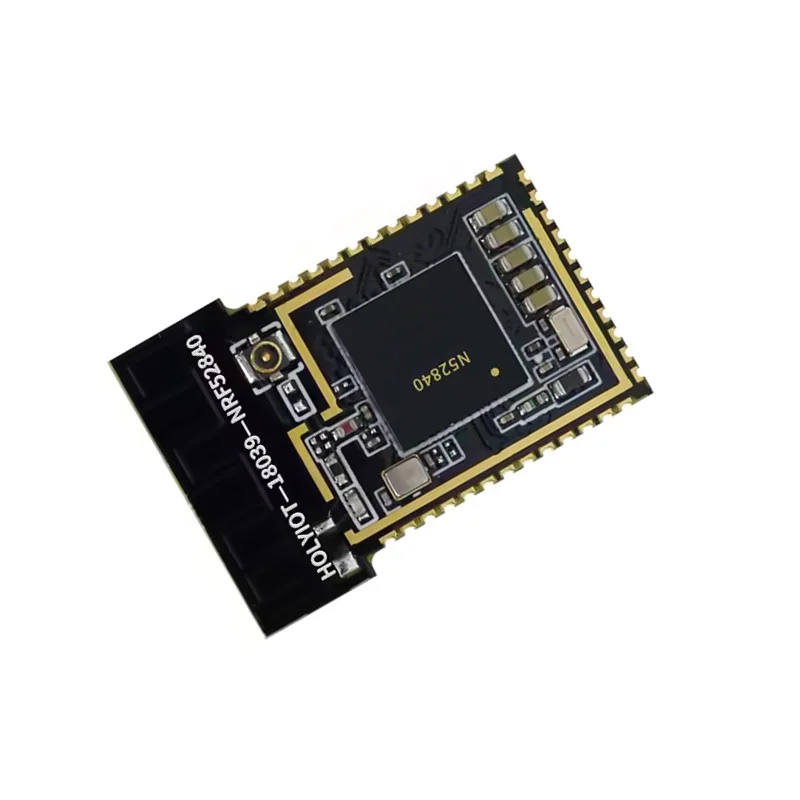

Holyiot 18039 nRF52840 BLE 5.0 Module w/ Zigbee & Thread
The Holyiot 18039 is a multi-protocol wireless module based on the Nordic Semiconductor nRF52840 SoC, featuring Bluetooth 5.0 long-range, Zigbee, and Thread support, powered by a 64MHz ARM Cortex-M4F processor for advanced IoT and beacon applications.
Features
- Multi-protocol SoC supports Bluetooth 5.0 (2Mbps, long-range), Zigbee, and Thread for flexible wireless IoT network design.
- High-performance 32-bit ARM Cortex-M4F processor running at 64MHz with integrated CryptoCell 310 hardware security.
- Exceptional RF sensitivity of -96dBm and a wide 1.7V–5.5V supply range for robust, long-distance communication.
- Comprehensive peripheral set includes USB, NFC Tag-A, QSPI, I²S, PDM, ADC, and Easy DMA for sensor and interface expansion.
- Ultra-low-power design with on-chip DC-DC converter, ideal for battery-powered beacons, wearables, and smart home devices.
Out of stock
The Holyiot 18039 module integrates Nordic Semiconductor Semiconductor’s flagship nRF52840 system-on-chip (SoC), engineered for demanding wireless IoT deployments. Its ARM Cortex-M4F core delivers the processing muscle needed for concurrent protocol stacks, advanced encryption via CryptoCell, and real-time sensor data handling. The module’s RF front-end is optimized for Bluetooth 5’s long-range feature, significantly extending the operational distance for beaconing and data transmission in challenging environments.
Beyond BLE, its native IEEE 802.15.4 radio opens the door to mesh networking with Zigbee and Thread, providing a future-proof path for smart home and industrial automation systems. The inclusion of a full-speed USB interface and NFC Tag-A support simplifies device provisioning, debugging, and user interaction. With an ultra-wide operating voltage and advanced power management, this module is a cornerstone for designing compact, efficient, and secure wireless nodes.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 2.5 × 1.5 cm |
