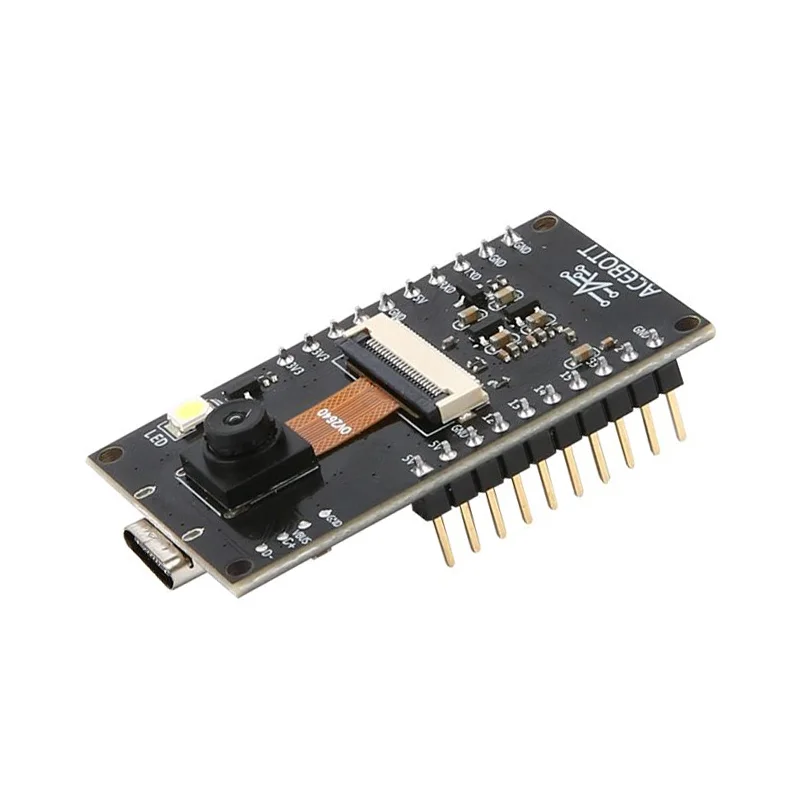

ACEBOTT ESP32 CAM V2.0 Development Board with OV2640
The ACEBOTT ESP32 CAM V2.0 is a compact, ESP32-based development board with an integrated OV2640 camera sensor, designed for IoT vision projects. It provides Wi-Fi connectivity and extensive I/O for integration with Arduino IDE or ESP-IDF, powered via a Type-C USB port.
Features
- Dual-core ESP32 SoC with 240 MHz processing power and 8MB PSRAM for handling image data.
- Integrated OV2640 camera sensor supporting JPEG, BMP, and grayscale image output up to 1280×800 resolution.
- 802.11b/g/n Wi-Fi connectivity enables wireless video streaming, remote monitoring, and IoT telemetry.
- Comprehensive I/O suite includes UART, SPI, I2C, PWM, ADC, and DAC for flexible peripheral integration.
- Low-power deep sleep mode (~6mA) and wide 4.75V-5.25V Type-C power input for portable applications.
Out of stock
The ACEBOTT ESP32 CAM V2.0 Development Board integrates the powerful ESP32 dual-core microcontroller with an OV2640 camera module into a single, compact form factor. This combination provides a capable edge computing platform for real-time image capture, processing, and wireless transmission over Wi-Fi. The board’s 8MB of PSRAM is crucial for buffering high-resolution image frames, while the ESP32’s wireless stack supports secure WPA2 network connections.
Designed for efficient operation, the module features a deep sleep mode for battery-powered deployments and a robust set of serial and analog interfaces for connecting sensors, displays, or actuators. Its structural design prioritizes a small footprint, making it suitable for embedding into enclosures for smart home security, industrial machine vision, or QR code recognition systems.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 2.71 × 4.71 cm |
