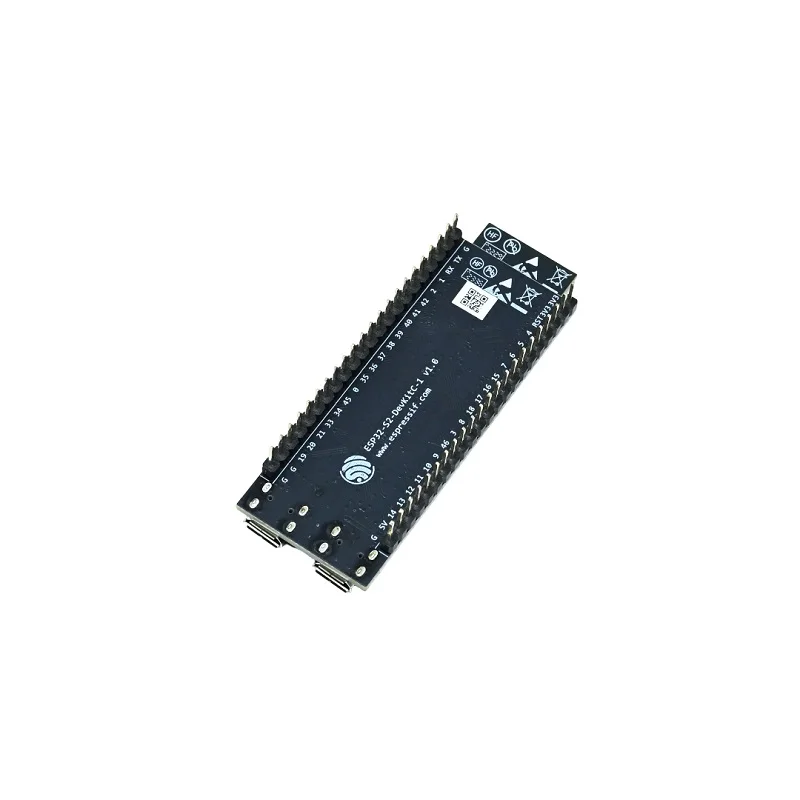

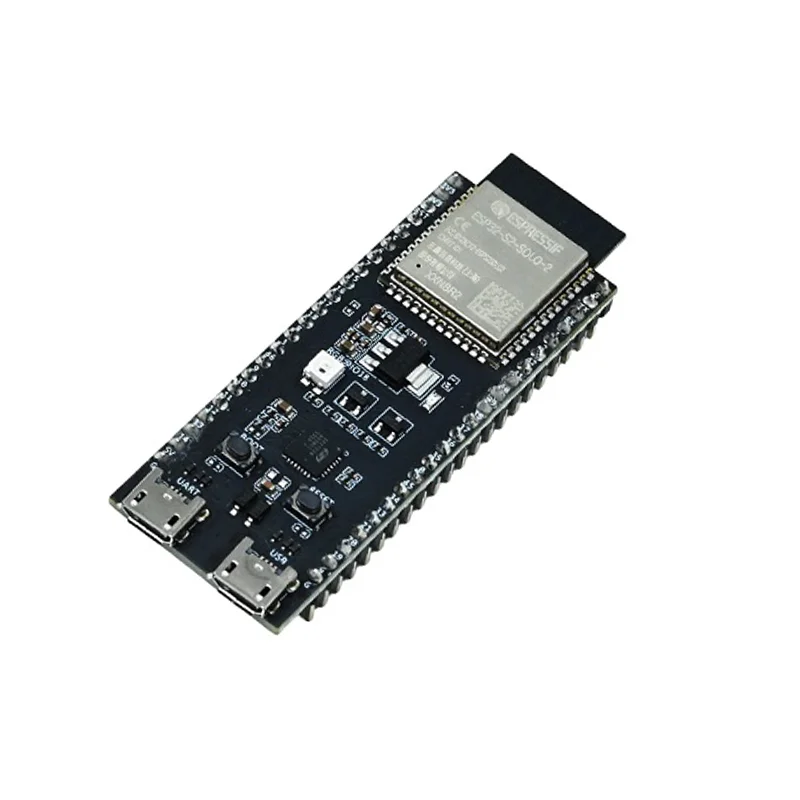

Espressif ESP32-S2-DevKitC-1-N8R2 Wi-Fi Development Board

You can program it using Espressif's official ESP-IDF framework, the Arduino IDE with the ESP32 board package, or MicroPython. Connect the board via the provided USB-C cable to your computer. The board should enumerate as a serial port. In ESP-IDF, select the 'esp32s2' target and the correct serial port before building and flashing your project. For Arduino, install the 'ESP32 by Espressif Systems' board package via the Board Manager and select 'ESP32S2 Dev Module' as your target. (Word count: 50)

The 'N8R2' suffix indicates this specific variant comes with 8 MB of SPI flash memory and 2 MB of PSRAM. Other variants may have different flash sizes (like 4MB) or lack PSRAM entirely. The N8R2 provides ample non-volatile storage for complex applications, OTA updates, and a filesystem, while the PSRAM allows for handling larger data buffers in audio or graphics applications without taxing the internal SRAM. Always check the exact model number when ordering for your memory requirements. (Word count: 50)

Yes, the board can be powered externally. While the primary method is via the USB-C port providing 5V, you can also supply 5V directly to the '5V' pin on the breakout headers or 3.3V to the '3V3' pin. Ensure your external power supply is clean and regulated. When using the 5V pin, the on-board regulator will provide 3.3V to the ESP32-S2. Avoid applying voltage to the 3V3 pin if you are also powering via USB to prevent potential back-feeding. (Word count: 50)
