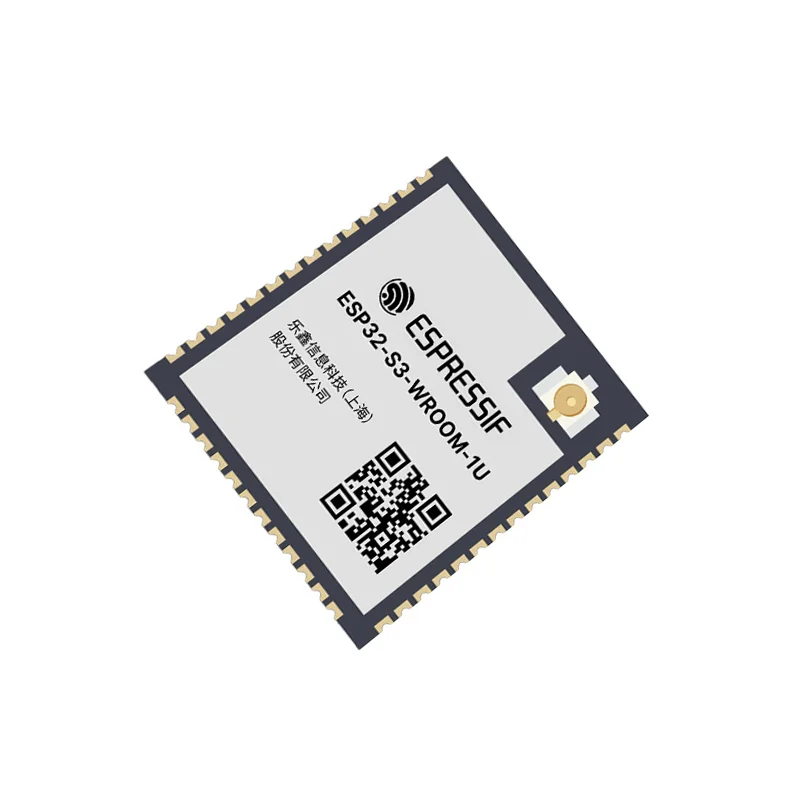

Espressif ESP32-S3-WROOM-1U-N8R8 Wi-Fi & BLE 5.0 AIoT Module

The 'N8' denotes 8 MB of flash memory, while 'R8' indicates an additional 8 MB of octal SPI PSRAM integrated on the module. The N8R8 variant provides this extra high-speed RAM, which is crucial for buffering camera frames, audio data, or running larger machine learning models directly on the edge without external memory.

You can program it using Espressif's official ESP-IDF framework, the Arduino IDE with ESP32-S3 board support, or MicroPython. Connect the module's UART0 pins (TX/RX) and GPIO0 (boot) to a USB-to-serial adapter. Hold GPIO0 low during reset to enter download mode, then flash your compiled firmware using esptool.py or the Arduino IDE's serial uploader.

The '-1U' suffix signifies this module variant comes with a pre-integrated PCB trace antenna, requiring no external antenna for operation. For designs needing a different radiation pattern or external antenna placement, you would select the '-1' variant which features an IPEX connector for attaching external antennas like a 2.4 GHz dipole or ceramic chip antenna.

Active power consumption varies with CPU frequency and radio activity; with Wi-Fi active it can range from 100-250 mA. The module supports several low-power modes: Modem-sleep (a few mA), Light-sleep (sub-mA), and Deep-sleep (around 10-20 μA with RTC memory retention). Use the power management APIs in ESP-IDF to optimize battery life for your specific application duty cycle.
