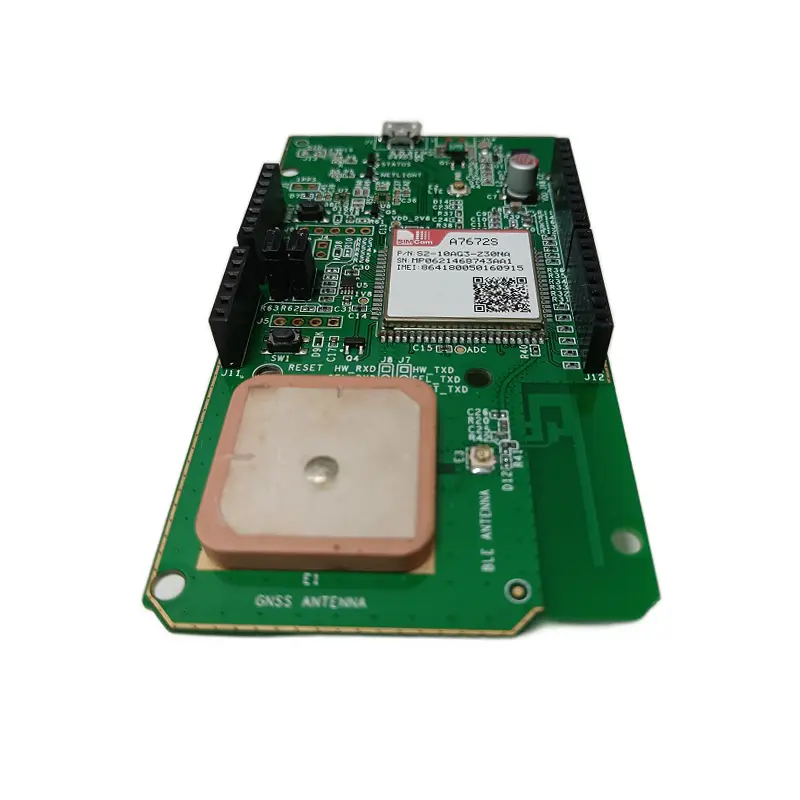

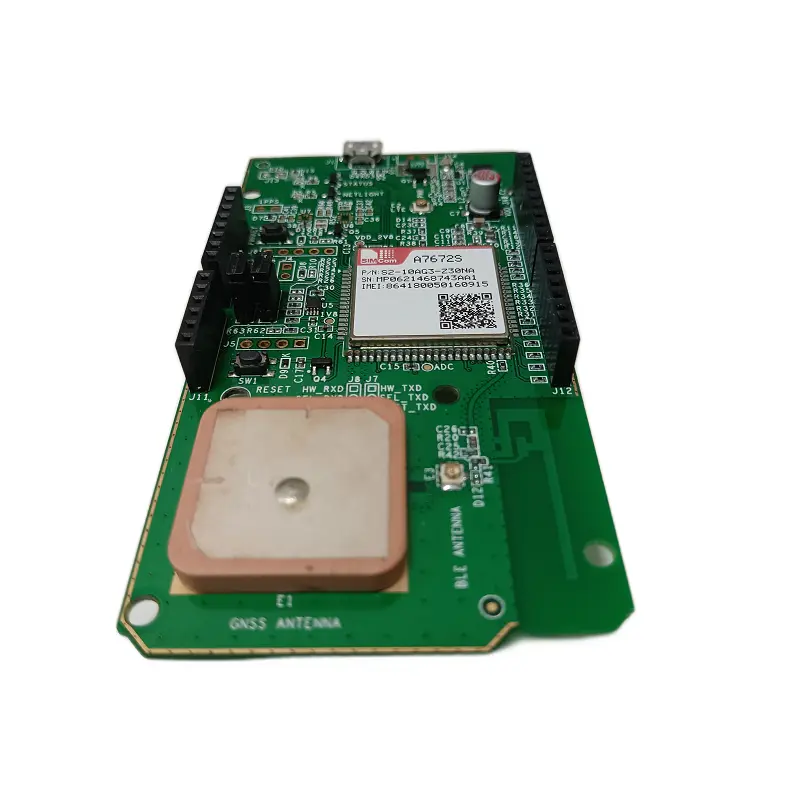

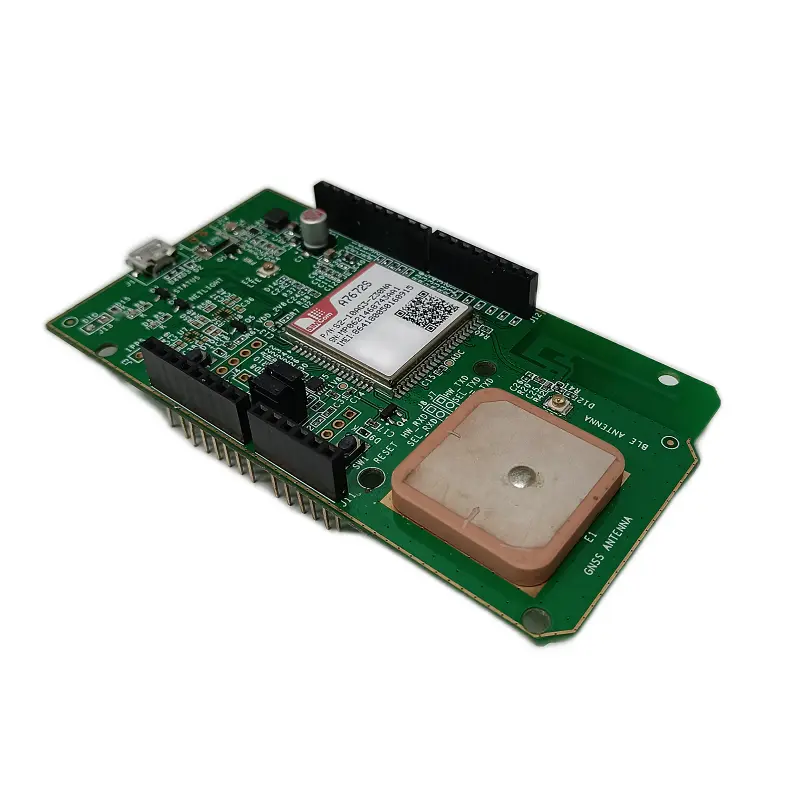

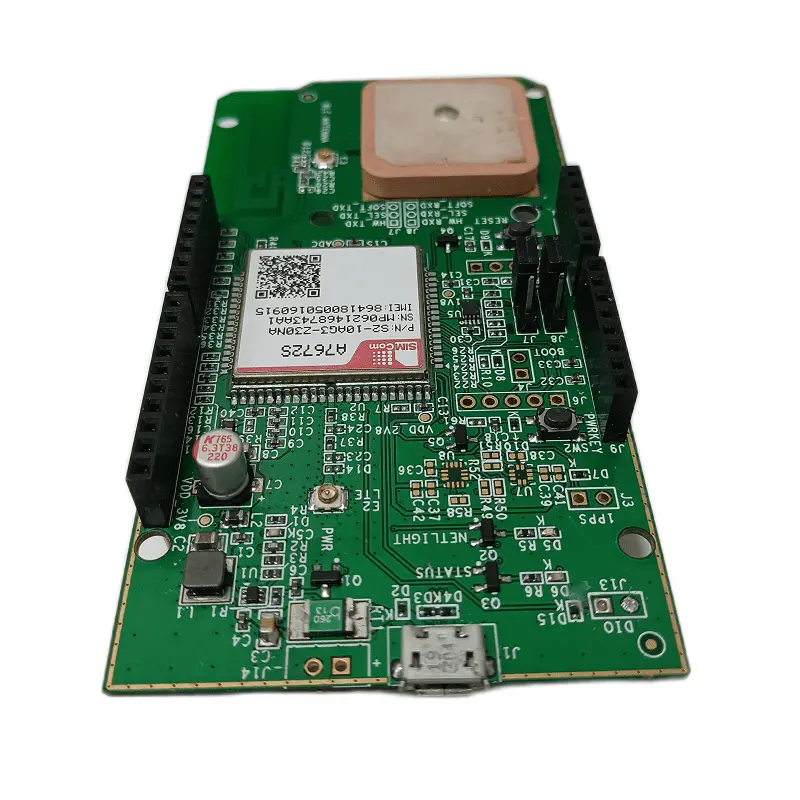

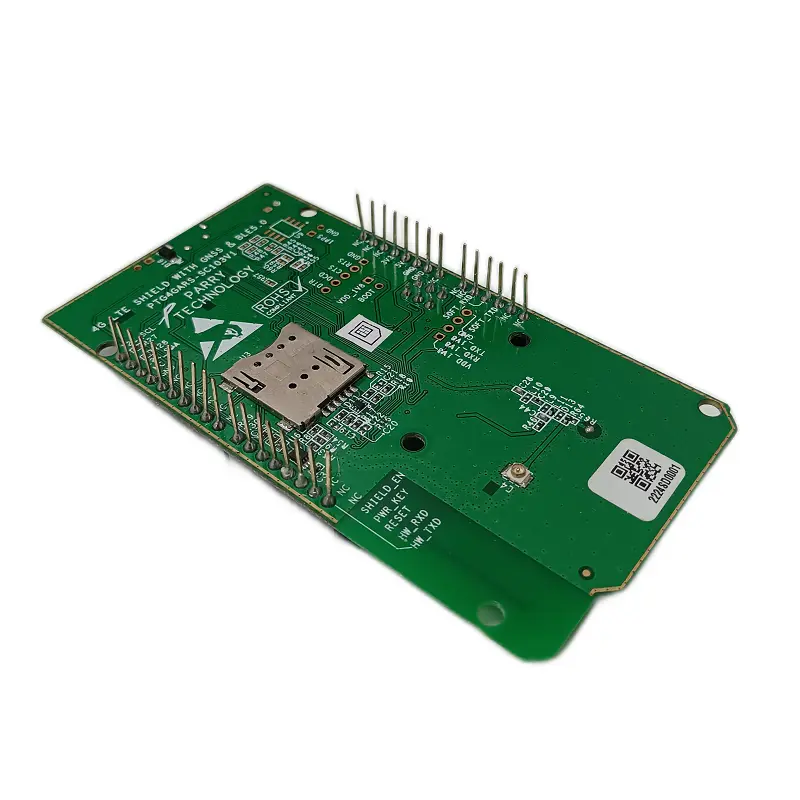

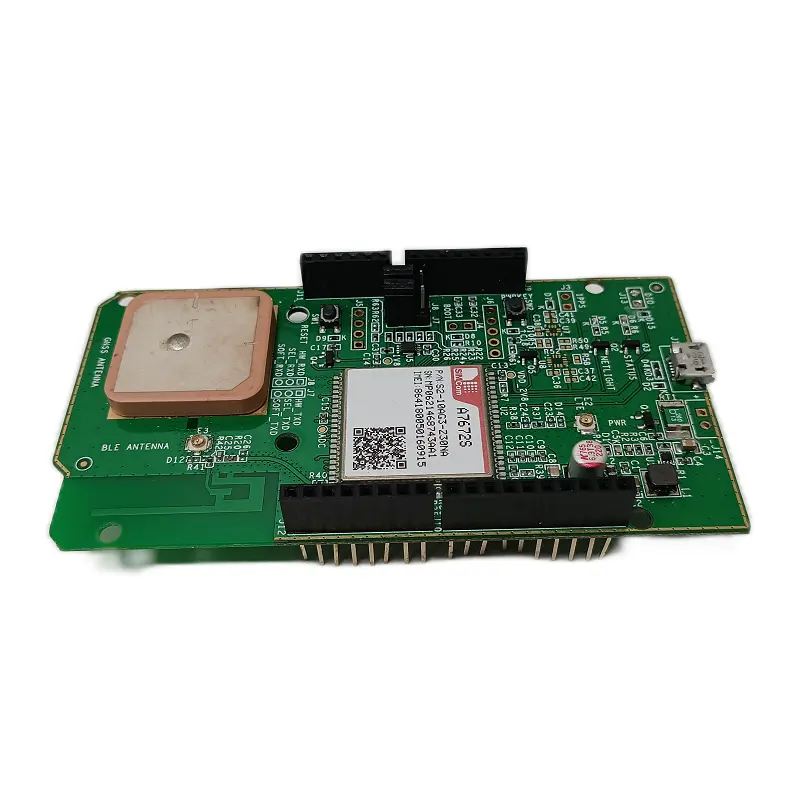

4G LTE GNSS BLE 5.0 IoT Shield for Arduino & Raspberry Pi
This versatile 4G LTE, GNSS, and BLE 5.0 IoT module serves as a shield for Arduino and Raspberry Pi, providing global cellular communication and accurate multi-constellation satellite positioning. Designed for IoT and tracking applications, it offers robust data connectivity and location services with flexible interface options.
Features
- Worldwide 4G/3G/2G cellular communication coverage with VoLTE support.
- Multi-constellation GNSS (GPS, BeiDou, GLONASS) and LBS positioning capabilities.
- Integrated BLE 5.0 for short-range wireless connectivity with onboard PCB antenna.
- Flexible USB and UART interfaces for seamless integration with Arduino, Raspberry Pi, or standalone PCs.
- Robust four-layer PCB design ensures optimal RF performance, extended range, and lower power consumption.
Out of stock
Based on the A7672S LTE module, this shield provides comprehensive GSM, LTE-FDD, and LTE-TDD communications at LTE-CAT1 speeds, alongside integrated GNSS (GPS) and BLE 5.0. It functions as a multi-band 4G/3G/2G communication and GNSS positioning solution, offering a versatile platform for various IoT and tracking applications.
Designed for direct compatibility with Arduino UNO, this module enables advanced 4G LTE data connectivity for Internet of Things (IoT) and asset tracking projects, utilizing either USB or UART interfaces. Its USB interface also facilitates standalone operation, allowing connection to Windows, Linux, or Android PCs, or industrial PCs without an Arduino. The UART interface ensures easy integration with virtually any other microcontroller platform, expanding its utility beyond Arduino environments.
Additional Information
| Dimensions | 1.1 × 5.3 × 3 cm |
|---|
