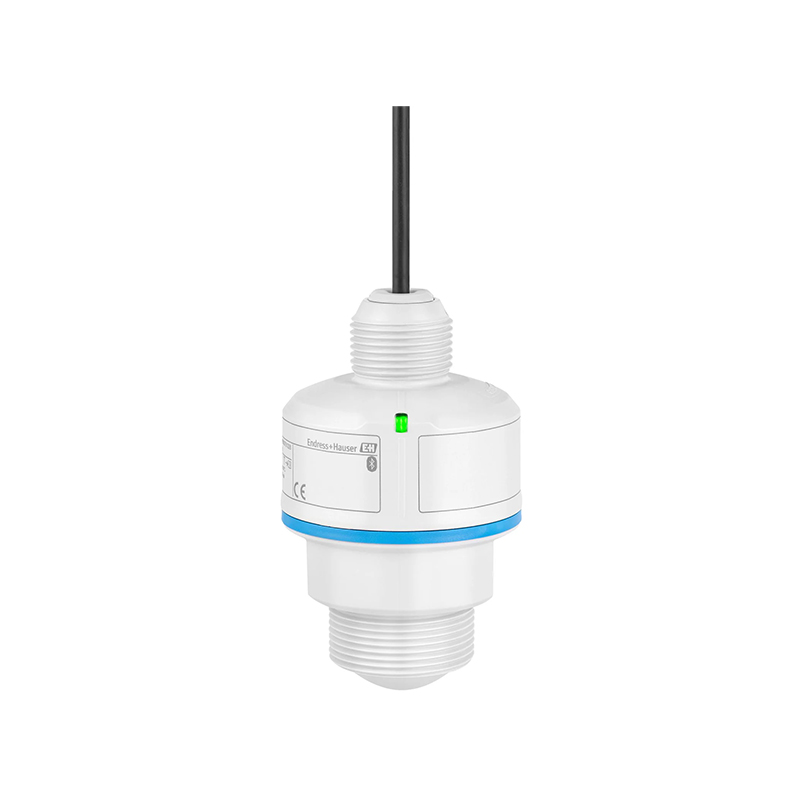

Endress+Hauser FMR20B-AABADTBMWDGWEEB Radar Level Transmitter, G1-1/2, 3 bar, ±2mm Accuracy - 4-20mA HART 2-Wire
The Endress+Hauser Micropilot FMR20B is a compact, high-precision FMCW radar level transmitter designed for continuous, non-contact measurement of liquids and bulk solids. It integrates seamlessly into industrial PLC and DCS systems via its 4-20mA HART 2-wire interface, operating from a 12-30 VDC supply.
Features
- High-precision FMCW radar technology delivers ±2 mm (±0.08″) accuracy.
- Dual digital and analog output via 4-20mA 2-wire loop with HART communication protocol.
- Rugged PBT/PC housing with IP66/68 & NEMA 4X/6P protection for harsh industrial environments.
- Bluetooth-enabled for remote configuration and diagnostics via the SmartBlue App.
- Suitable for continuous level measurement of liquids and bulk solids up to 30 meters.
Out of stock
The Micropilot FMR20B utilizes Frequency Modulated Continuous Wave (FMCW) radar technology to provide reliable, non-contact level measurement independent of process media properties like density, conductivity, or dielectric constant. This ensures stable readings in applications with foam, vapor, or dust. The integrated signal processing delivers a robust 4-20mA analog output superimposed with digital HART signals for bidirectional communication with host systems.
Engineered for demanding environments, the transmitter features a corrosion-resistant PBT/PC housing, an IP66/68 ingress protection rating, and an operational temperature range from -40°C to +80°C. Its compact design with a G1-1/2 process connection and tool-free installation facilitates easy integration and replacement in tanks, silos, and process vessels.
Additional Information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 17 × 13 × 13 cm |
