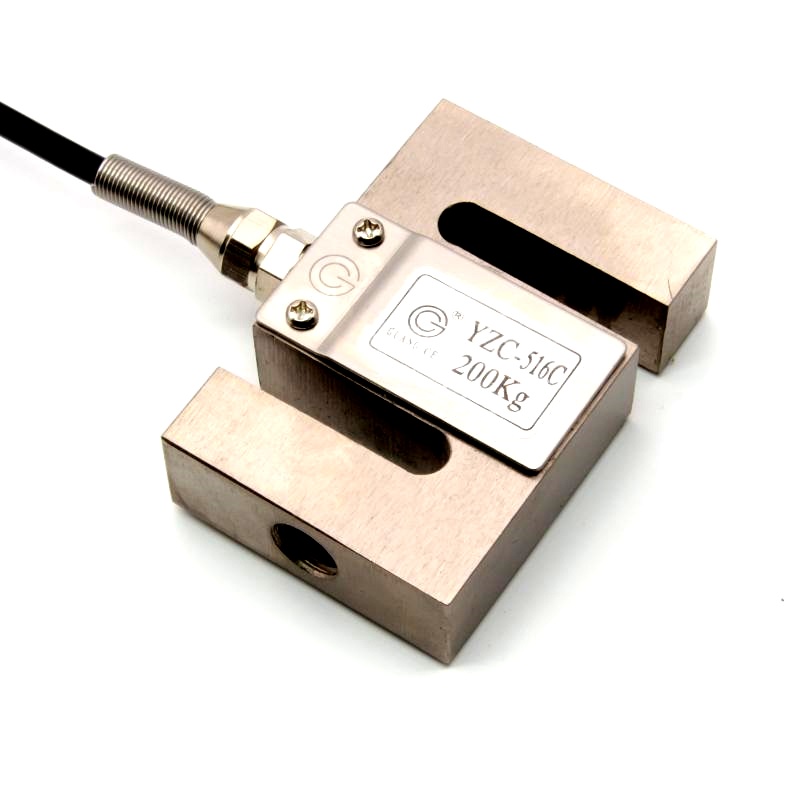

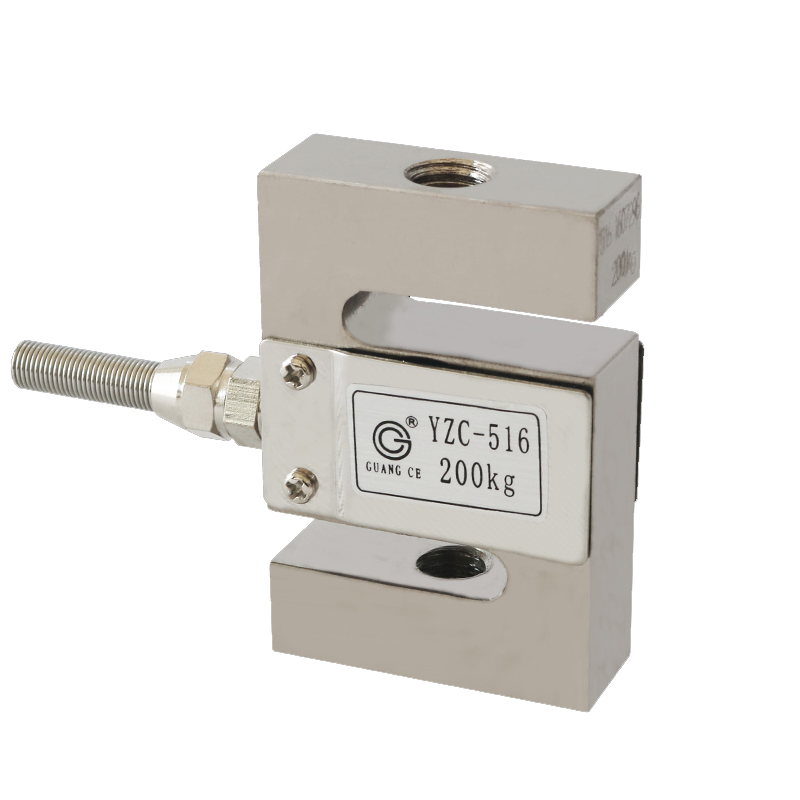

YZC-516C S-Type Load Cell 200KG Capacity - Alloy Steel, IP66, 3M Cable

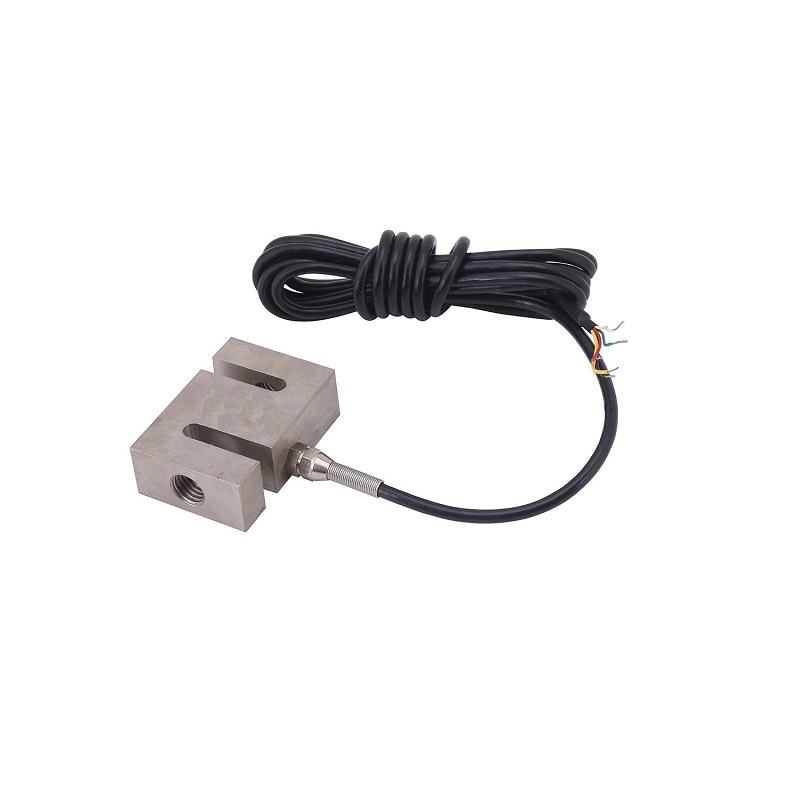

The standard 4-wire cable uses red for excitation positive (E+), black for excitation negative (E-), green for signal positive (O+), and white for signal negative (O-). This configuration connects directly to most load cell amplifier boards, such as the HX711 module.

The YZC-516C is designed for a driving voltage range of 5 to 10V DC. A typical 5V supply from an Arduino or Raspberry Pi is sufficient. Higher excitation voltages (up to 10V) can provide a stronger output signal, improving the signal-to-noise ratio in your measurement system.

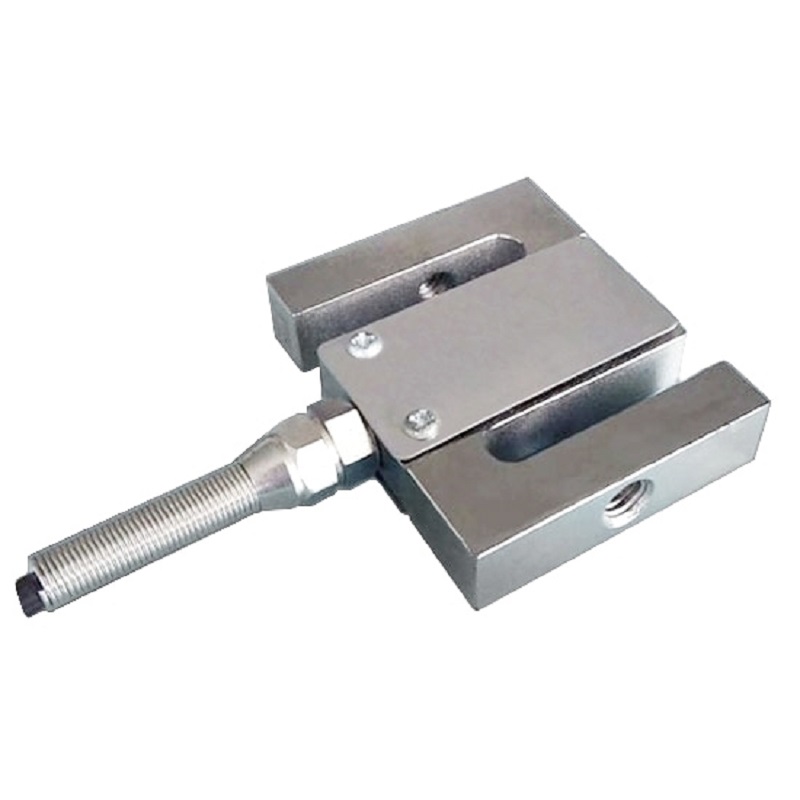

Yes, the symmetrical S-beam design allows the YZC-516C to measure both tensile (pulling) and compressive (pushing) forces up to its 200 kg rated capacity. Ensure it is mounted securely using the provided M4 and M5 holes, aligning the force axially through the cell for accurate readings.

You require a precision analog-to-digital converter (ADC) module designed for strain gauges, such as the HX711. Connect the load cell's four wires to the HX711 amplifier, which then communicates with your microcontroller via a simple digital serial interface (clock and data pins). Libraries are widely available for Arduino.

An IP66 rating indicates the load cell is totally protected against dust ingress and against powerful jets of water from any direction. This makes it suitable for industrial and outdoor applications where exposure to dust, dirt, or occasional washdowns is expected, though it is not submersible.
