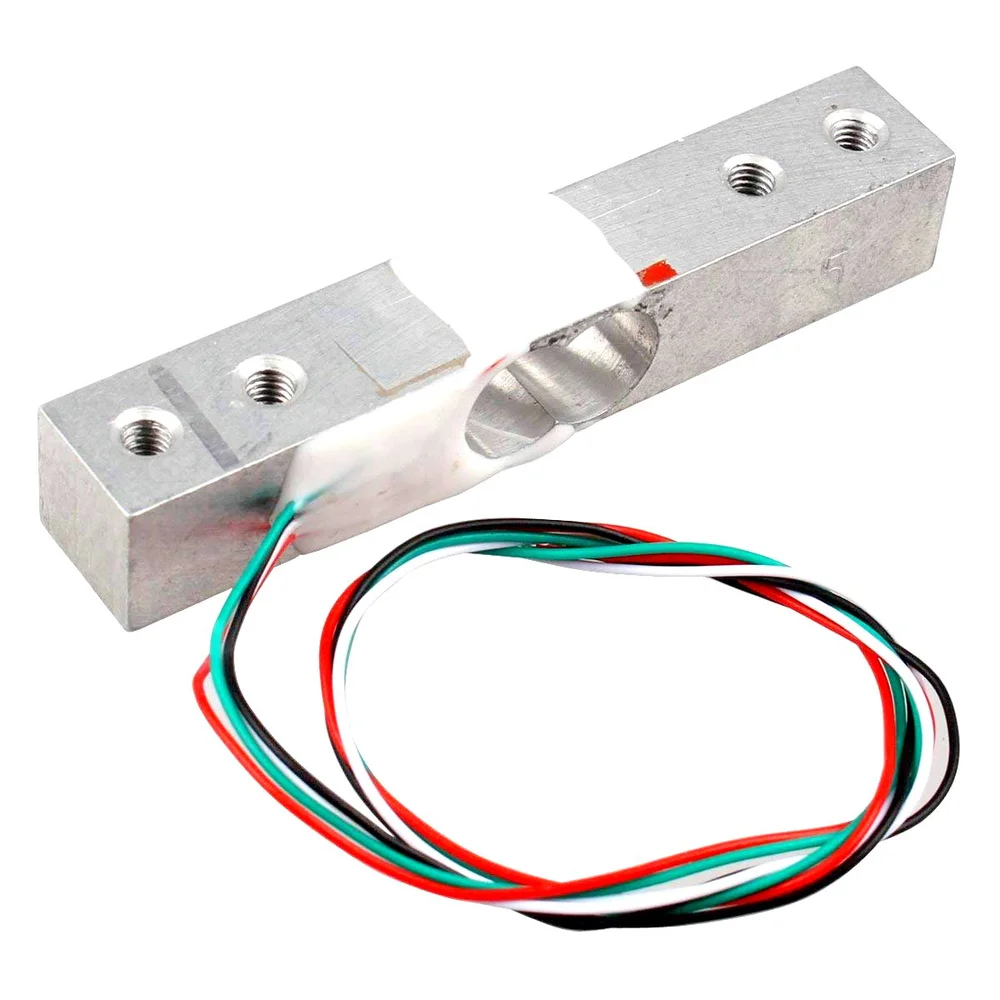

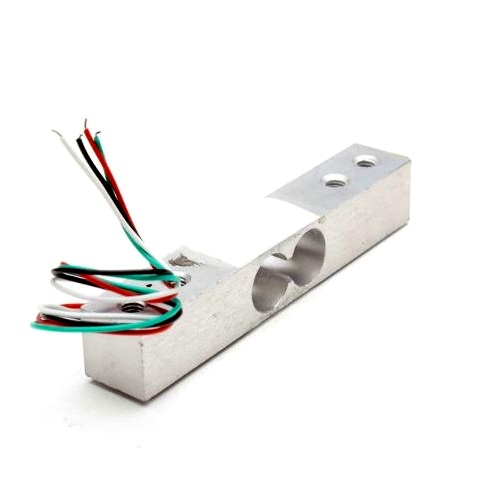

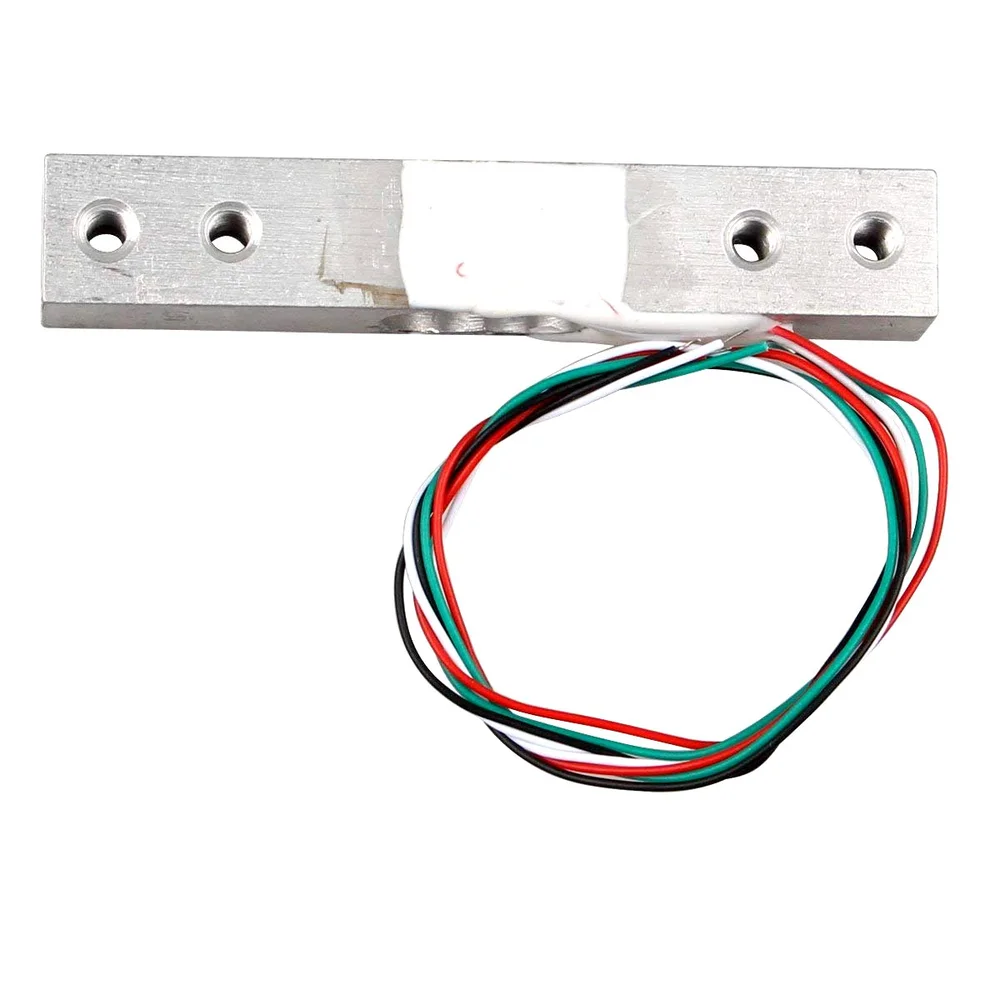

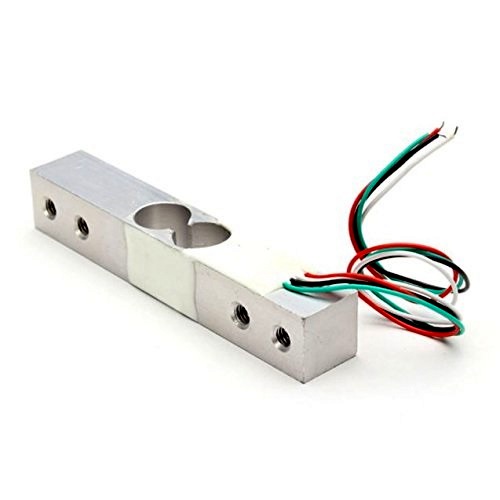

YZC-133 10kg Load Cell Sensor with Wires
The YZC-133 is a straight-bar strain gauge load cell rated for 10kg capacity, providing a 1.0mV/V output signal for precise weight measurement. It is compatible with instrumentation amplifiers like the HX711 ADC and operates on a 5-10V excitation voltage for integration into electronic scales and industrial control systems.
Features
- 10kg (22 lb) rated capacity with high linearity and repeatability.
- 1.0mV/V nominal output sensitivity for precise signal measurement.
- Aluminum alloy construction ensures durability and consistent performance.
- Four-wire configuration (Red, Black, White, Green) for Wheatstone bridge connection.
- Wide operating temperature range from -20°C to +60°C.
Out of stock
The YZC-133 is a single-point, straight-bar load cell utilizing a bonded foil strain gauge technology. When force is applied, the resulting strain alters the resistance of the internal gauges arranged in a Wheatstone bridge configuration. This change in resistance produces a millivolt-level output signal proportional to the applied load, enabling precise weight measurement.
Designed for electronic weighing applications, this sensor requires an external signal conditioner or analog-to-digital converter, such as the 24-bit HX711 module, to amplify and digitize its low-level output. Its aluminum alloy body provides a robust yet lightweight structure suitable for bench-top scales, process control, and force monitoring systems where accurate, repeatable measurements are critical.
Additional Information
| Weight | 0.027 kg |
|---|
