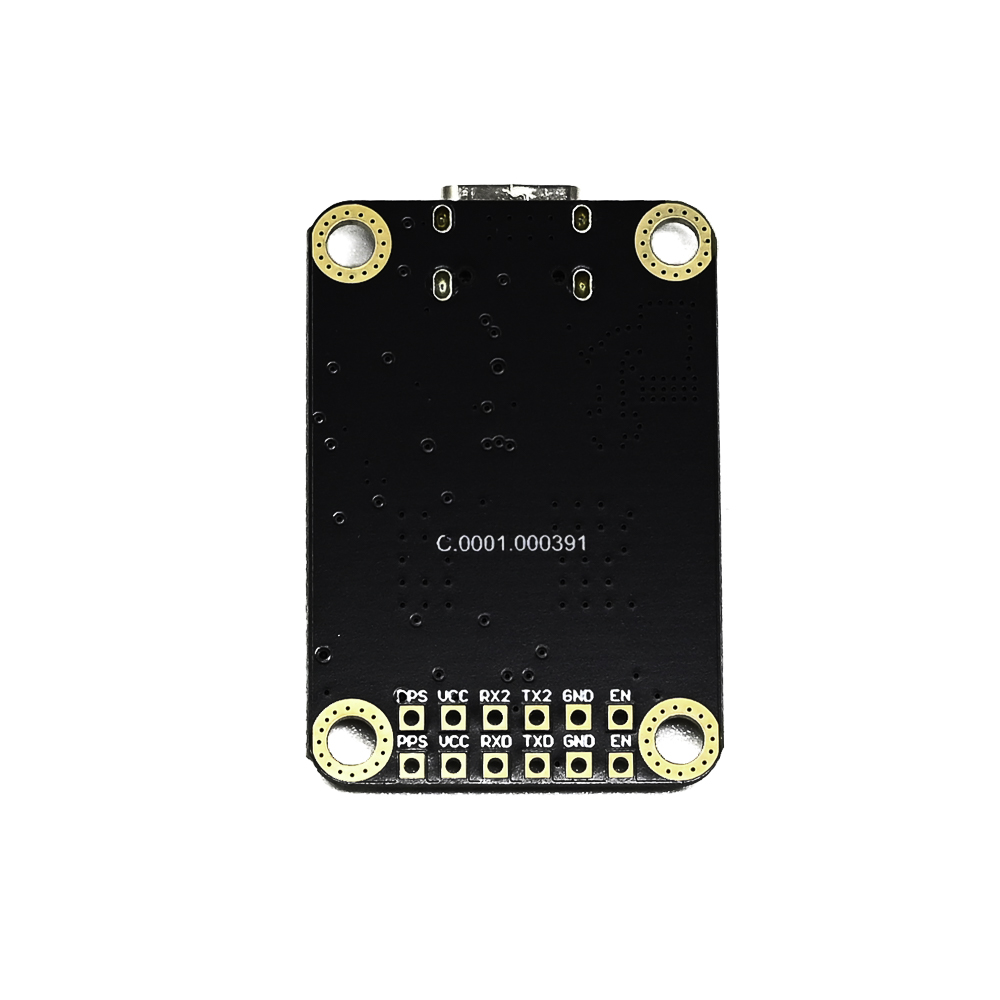

WTMotion WTRTK-960 RTK GNSS Receiver Module | Single Antenna (Centimeter-Level Accuracy)
The WTMotion WTRTK-960 is a high-precision RTK GNSS receiver module delivering centimeter-level accuracy for demanding positioning applications. Powered by the NebulasIV GNSS SoC, it supports multi-frequency tracking of GPS, BDS, GLONASS, Galileo, and QZSS constellations, making it ideal for integration into drones, autonomous vehicles, and surveying equipment.
Features
- Centimeter-level RTK positioning accuracy (0.8 cm horizontal + 1 ppm)
- Full-constellation, multi-frequency GNSS support (GPS, BDS, GLONASS, Galileo, QZSS)
- Powered by Unicore Starlink NebulasIV SoC with on-chip RTK engine
- Advanced 60 dB narrowband anti-interference capability
- Compact 26 x 38 mm footprint with low power consumption (158mA @ 5V)
Out of stock
The WTRTK-960 RTK GNSS Receiver Module is engineered for high-accuracy, real-time kinematic positioning in challenging environments. Utilizing the latest NebulasIV GNSS System-on-Chip, it processes multi-frequency signals from all major satellite constellations, enabling robust performance even in areas with signal obstructions or interference. Its integrated RTK engine provides real-time corrections for centimeter-level precision.
Designed for industrial durability, the module operates across an extended temperature range from -40°C to +80°C. It outputs positioning data via a standard serial interface using the NMEA0183 protocol, with update rates configurable up to 20 Hz. This combination of high performance, compact size, and environmental robustness makes it a core component for advanced navigation and mapping systems.
Additional Information
| Weight | 0.048 kg |
|---|---|
| Dimensions | 2.6 × 3.8 cm |
