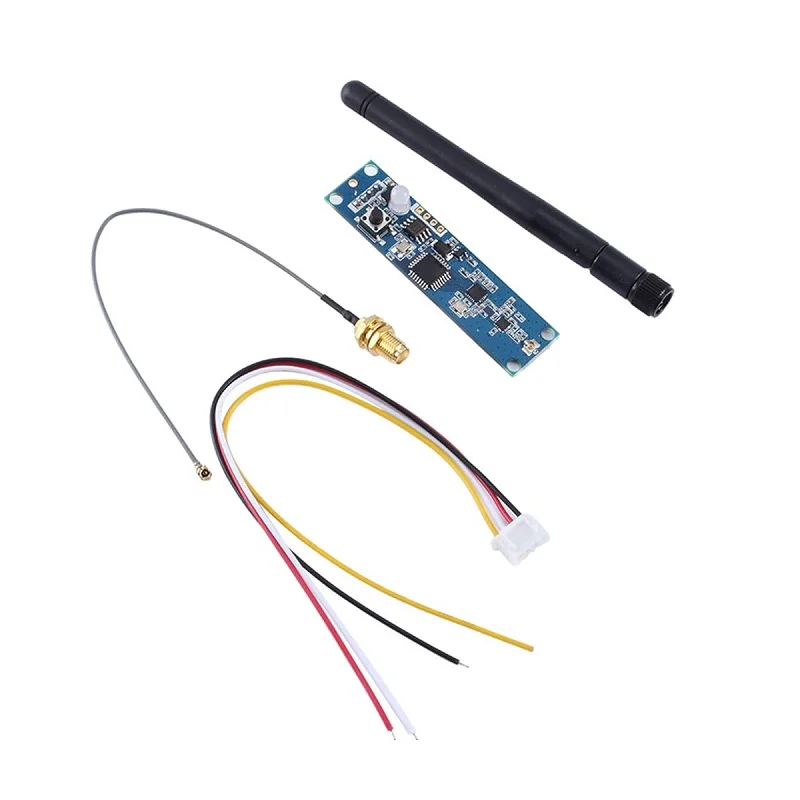

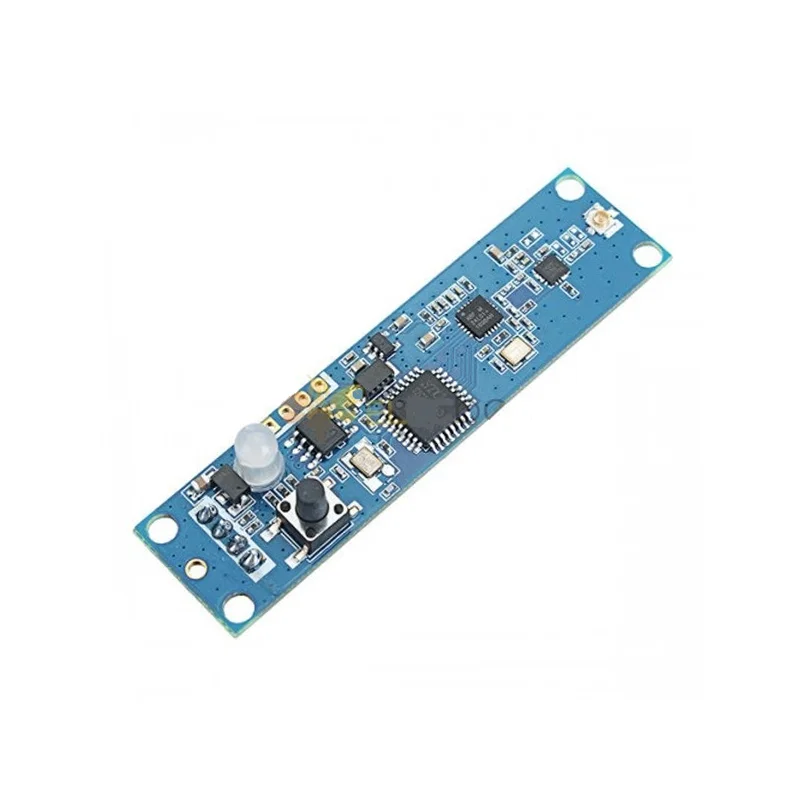

Wireless DMX512 2.4GHz Receiver Transmitter PCB Module
This 5V-powered 2.4GHz wireless DMX512 transceiver PCB module provides a reliable, low-latency link for stage lighting control, eliminating the need for wired DMX512 cables. It operates on the ISM band with 126 channels for flexible, interference-resistant signal transmission between fixtures and consoles.
Features
- Wireless DMX512 Control: Transmits and receives standard DMX512 lighting protocol signals wirelessly for flexible stage and architectural lighting setups.
- 2.4GHz ISM Band Operation: Utilizes the license-free 2.4GHz spectrum with 126 selectable channels to minimize interference and ensure reliable data links.
- High RF Performance: Features a robust 20dBm (100mW) transmit power and a high receiver sensitivity of -94dBm for extended range and stable connections.
- 5VDC Power Supply: Simple 5V input voltage compatibility for easy integration into existing lighting power rails or control systems.
- Compact PCB Form Factor: Designed as a bare module for direct integration into lighting fixtures, control consoles, or custom enclosures.
Out of stock
The Wireless DMX512 2.4GHz Transceiver Module is engineered for professional lighting environments, providing a robust RF link for DMX512 data. It replaces physical XLR cabling with a wireless connection, offering significant setup flexibility and reducing cable clutter in complex stage, studio, or permanent installation lighting rigs.
Built around a dedicated 2.4GHz RF transceiver, the module ensures low-latency transmission critical for synchronized lighting cues. Its interface supports direct connection via RS485 or a CPU serial UART, allowing it to be embedded into lighting fixtures or standalone wireless gateways. The module’s architecture prioritizes signal integrity and precise timing to maintain the strict synchronization requirements of the DMX512 protocol.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 10 × 13 × 2 cm |
