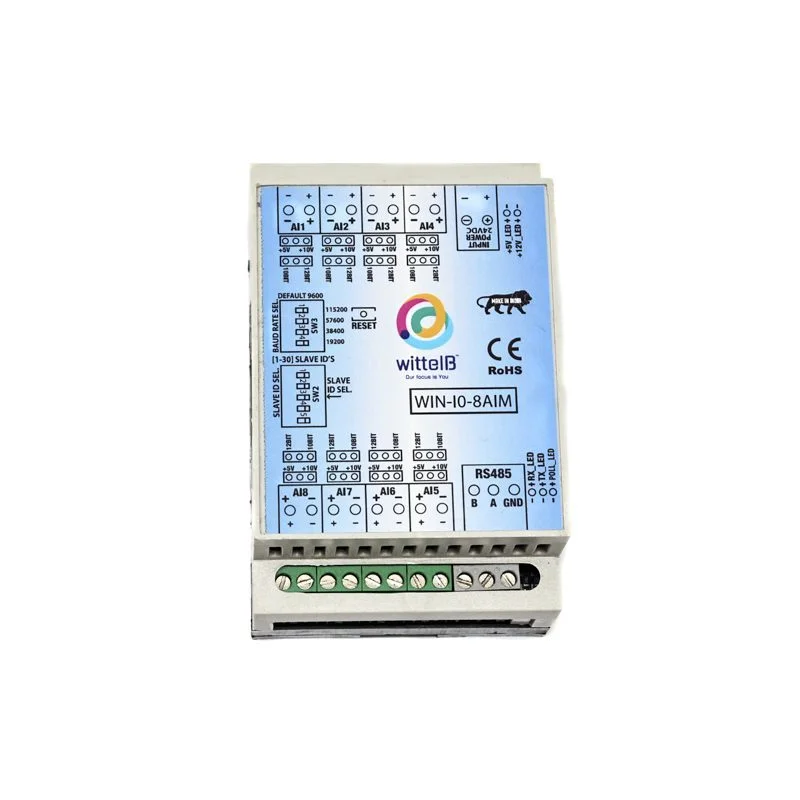

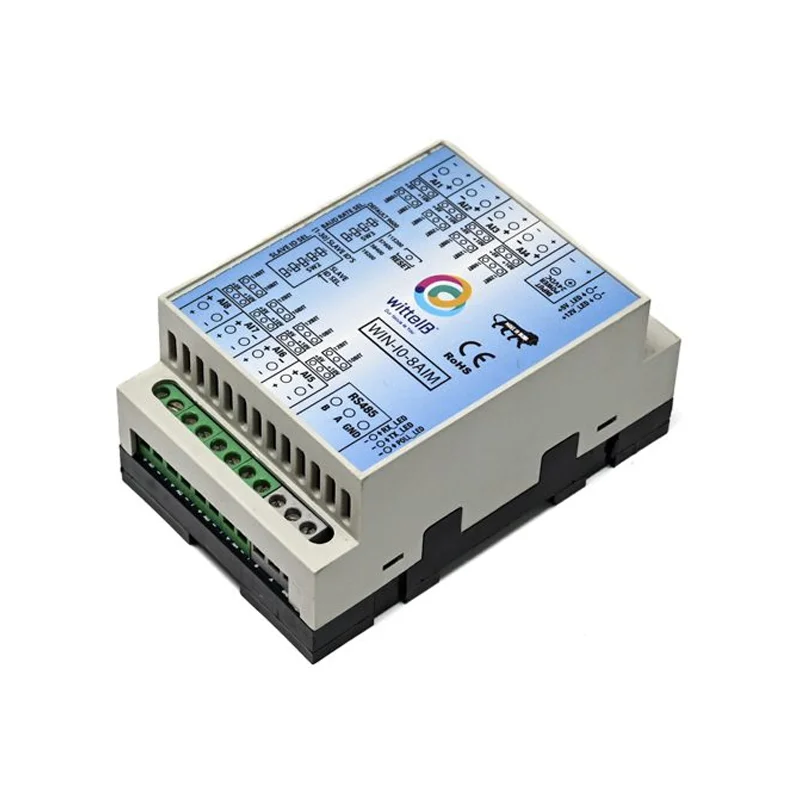

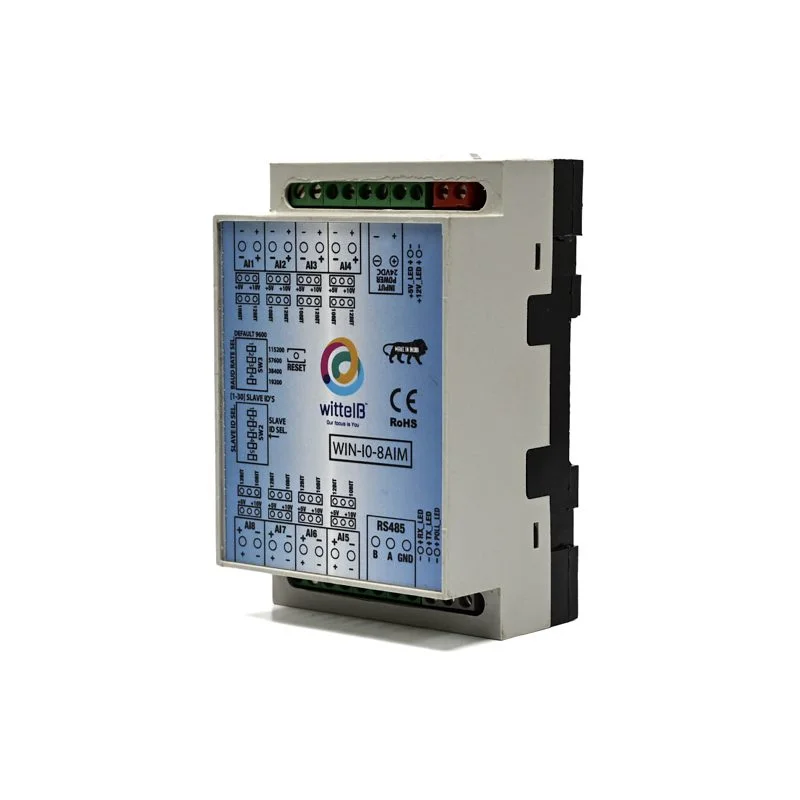

Wittelb WIN-IO-8AIM 8-Port Analog Input to Modbus RS485 Converter
The Wittelb WIN-IO-8AIM is an 8-port analog input signal converter that translates 4-20mA, 0-10V, and 0-5V signals into Modbus RTU data over a robust RS485 bus, supporting communication distances up to 700 meters for industrial automation and IIoT telemetry applications.
Features
- 8-channel analog input converter for 4-20mA, 0-20mA, 0-10V, and 0-5V industrial signals.
- Long-range RS485 Modbus RTU communication up to 700 meters without repeaters.
- DIN-rail mountable enclosure with LED indicators for easy industrial panel integration.
- Flexible configuration via internal DIP switch for Slave ID and baud rate settings.
- Comprehensive protection with reverse polarity, ESD (±30KV), EFT, and 750V isolation.
Out of stock
The WIN-IO-8AIM converter module serves as a critical interface between analog field sensors and digital control systems. It digitizes up to eight analog inputs with 12-bit resolution, providing accurate conversion of standard industrial current and voltage loops into Modbus RTU register values. Its robust RS485 transceiver ensures reliable data transmission over extended cable runs typical in factory floors or remote monitoring sites.
Engineered for harsh industrial environments, the module features full electrical isolation between the analog inputs, communication port, and power supply, protecting your main controller from ground loops and noise. The low-power design and durable DIN-rail casing make it suitable for continuous operation in control cabinets. Configuration is streamlined through a hardware DIP switch, eliminating the need for complex software setup for basic network parameters.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 11 × 11 cm |
