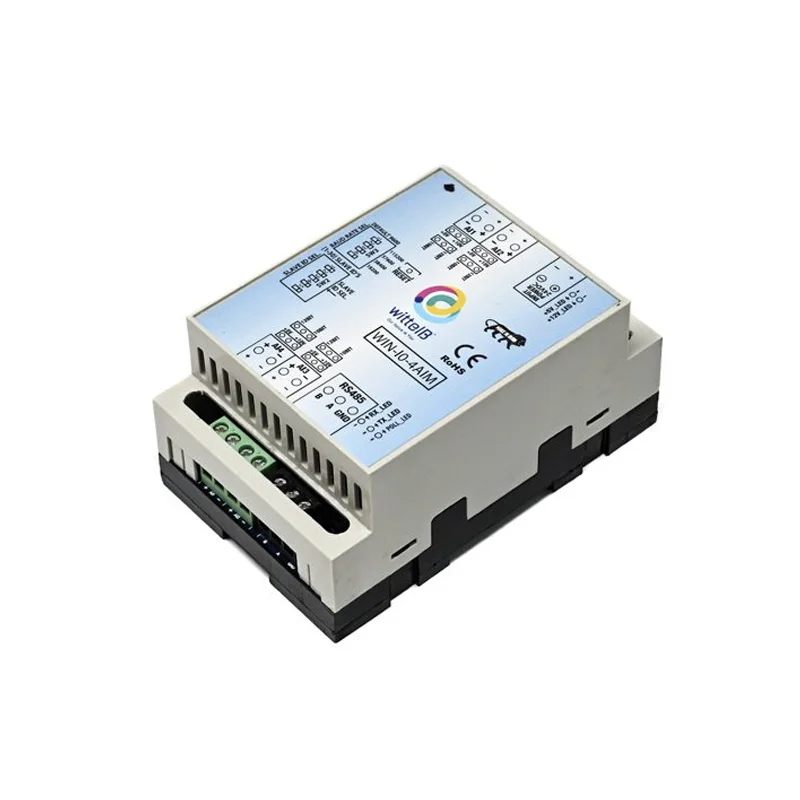

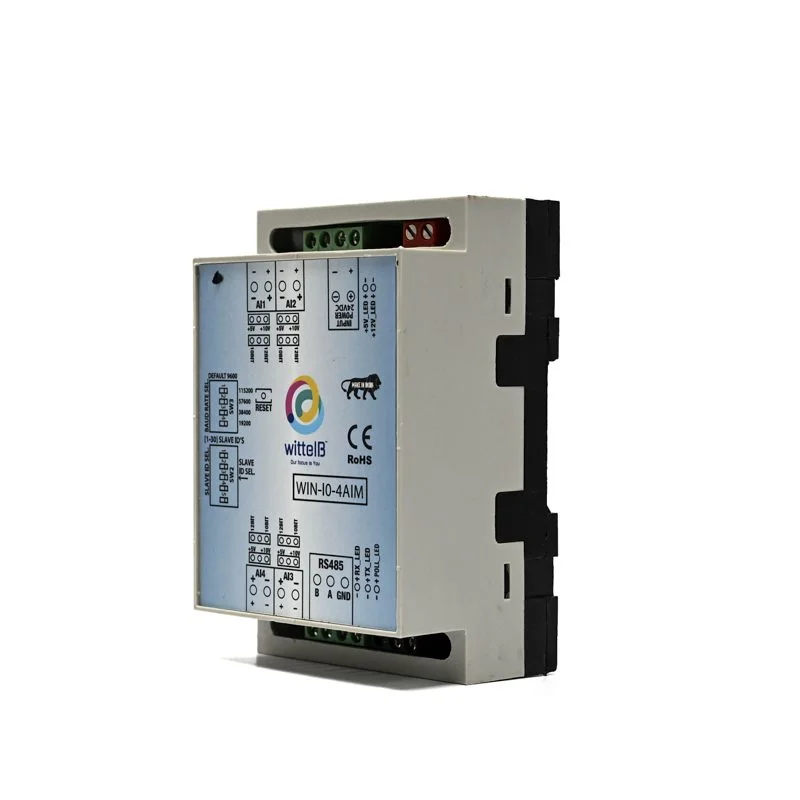

Wittelb WIN-IO-4AIM 4-Port Analog Input to Modbus RS485 Converter (12-Bit)
The Wittelb WIN-IO-4AIM is a DIN-rail mountable industrial converter that translates 4-channel analog signals (4-20mA, 0-20mA, 0-10V) to Modbus RTU protocol over a robust RS485 network, enabling remote data acquisition up to 700 meters for PLCs and SCADA systems.
Features
- Converts 4 analog inputs (4-20mA/0-20mA/0-10V) to Modbus RTU over RS485 for industrial sensor integration.
- Supports long-range RS485 communication up to 700 meters, ideal for distributed factory floor or building automation systems.

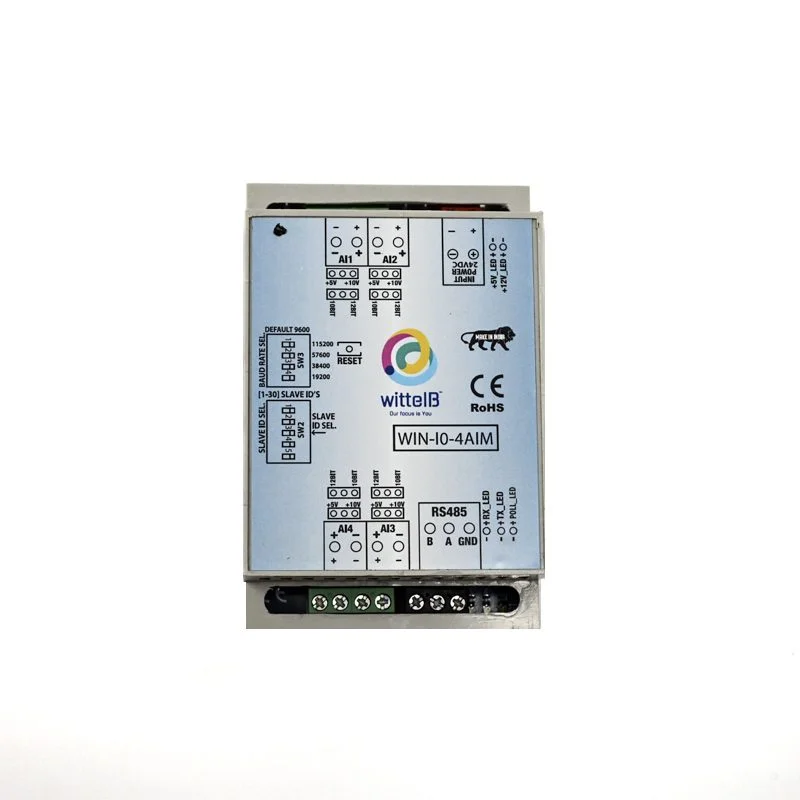

- Features configurable Slave ID and Baud Rate via internal DIP switch for easy network integration.
- Designed for low power consumption (~1.32W) and includes reverse polarity protection with resettable fuses.
- Compact, DIN-rail mountable housing with LED indicators for status monitoring and simplified installation.
Out of stock
The Wittelb WIN-IO-4AIM is a dedicated industrial signal converter designed to bridge the gap between legacy analog sensors and modern digital control networks. It accepts inputs from four independent channels, supporting standard industrial signals like 4-20mA current loops and 0-10V voltage levels, and converts them into precise digital values transmitted via the Modbus RTU protocol over an RS485 bus.
Engineered for reliability in harsh environments, the module operates on a 12-24VDC supply and features a durable casing rated for 0-60°C. Its integrated RS485 transceiver enables robust, noise-immune communication over distances up to 700 meters without repeaters, making it suitable for expansive industrial plants, water treatment facilities, and energy monitoring applications. The internal DIP switch allows field technicians to quickly set the module’s unique slave address and communication baud rate, streamlining deployment and maintenance.
Additional Information
| Weight | 0.124 kg |
|---|---|
| Dimensions | 7 × 11 × 6 cm |
