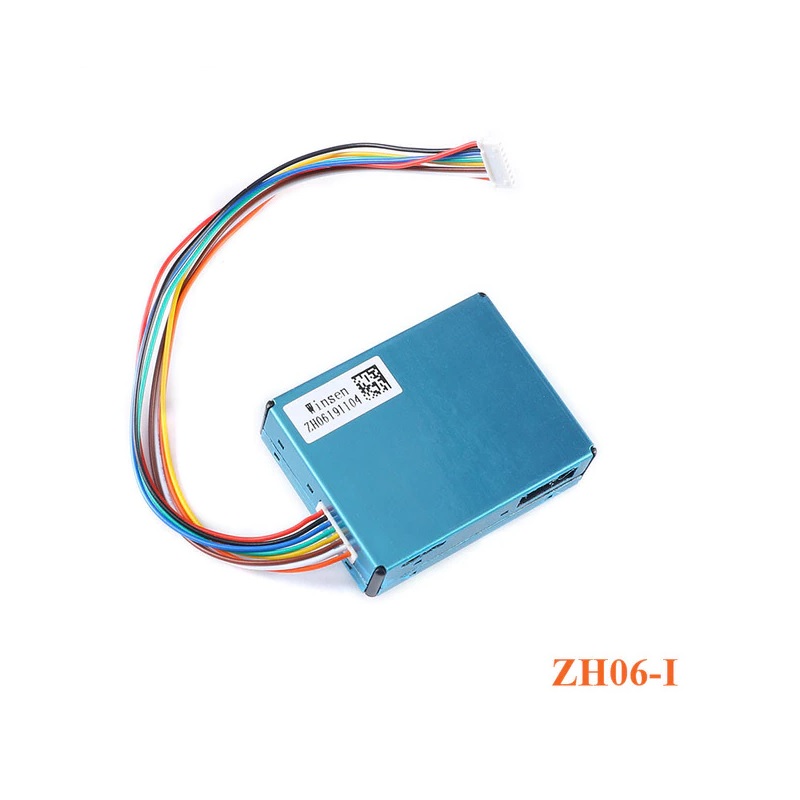

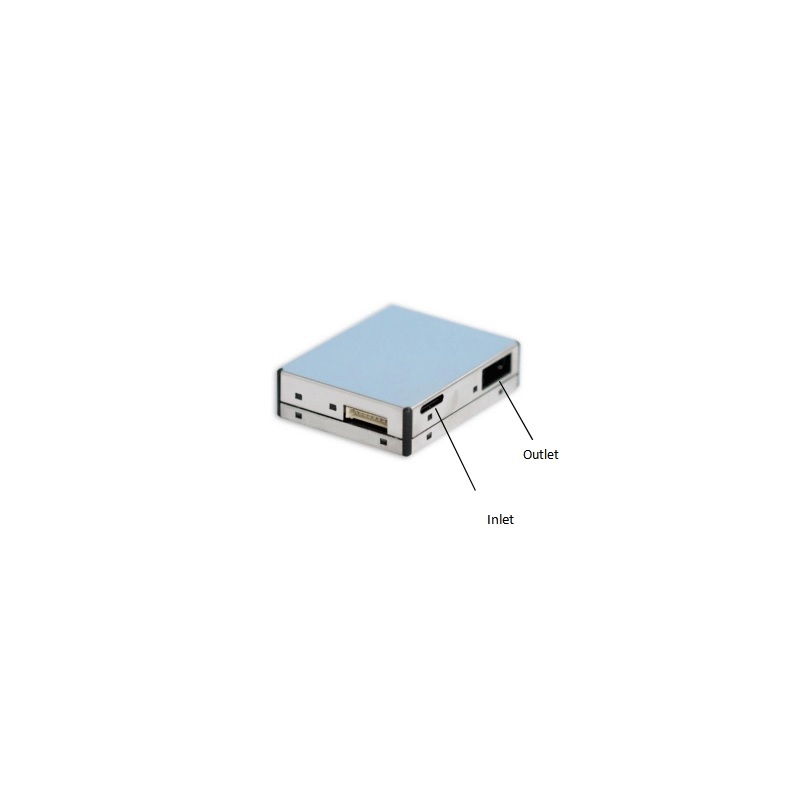

Winsen ZH06-I Laser Dust Sensor - UART & PWM Output
The Winsen ZH06-I is a compact laser-based dust sensor module designed for real-time particulate matter (PM) concentration measurement. It provides simultaneous PM1.0, PM2.5, and PM10 data via UART serial or PWM output, making it compatible with microcontrollers like Arduino, ESP32, and industrial PLCs for air quality monitoring systems.
Features
- Laser scattering principle for PM1.0, PM2.5, and PM10 detection.
- Dual output interfaces: UART serial communication and PWM signal.
- Compact footprint measuring 47mm x 37mm with low power consumption (<120mA).
- High sensitivity with a minimum detectable Particle diameter of 0.3 µm.
- Wide operating temperature range from -10°C to 60°C.
Out of stock
The Winsen ZH06-I Laser Dust Sensor employs a laser scattering principle to accurately detect and quantify airborne particulate matter concentrations. An internal laser diode illuminates particles, and a photodetector measures the scattered light intensity, which is processed to provide real-time data for PM1.0, PM2.5, and PM10 metrics. This method ensures reliable and consistent measurements suitable for continuous environmental monitoring.
The module features dual output modes: a UART interface for direct digital data communication with host systems and a PWM output for simplified analog-style interfacing. Its robust design supports operation in a wide temperature range, making it suitable for integration into various indoor and semi-outdoor air quality monitoring applications, from smart home devices to commercial HVAC systems.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 4.7 × 3.7 cm |
