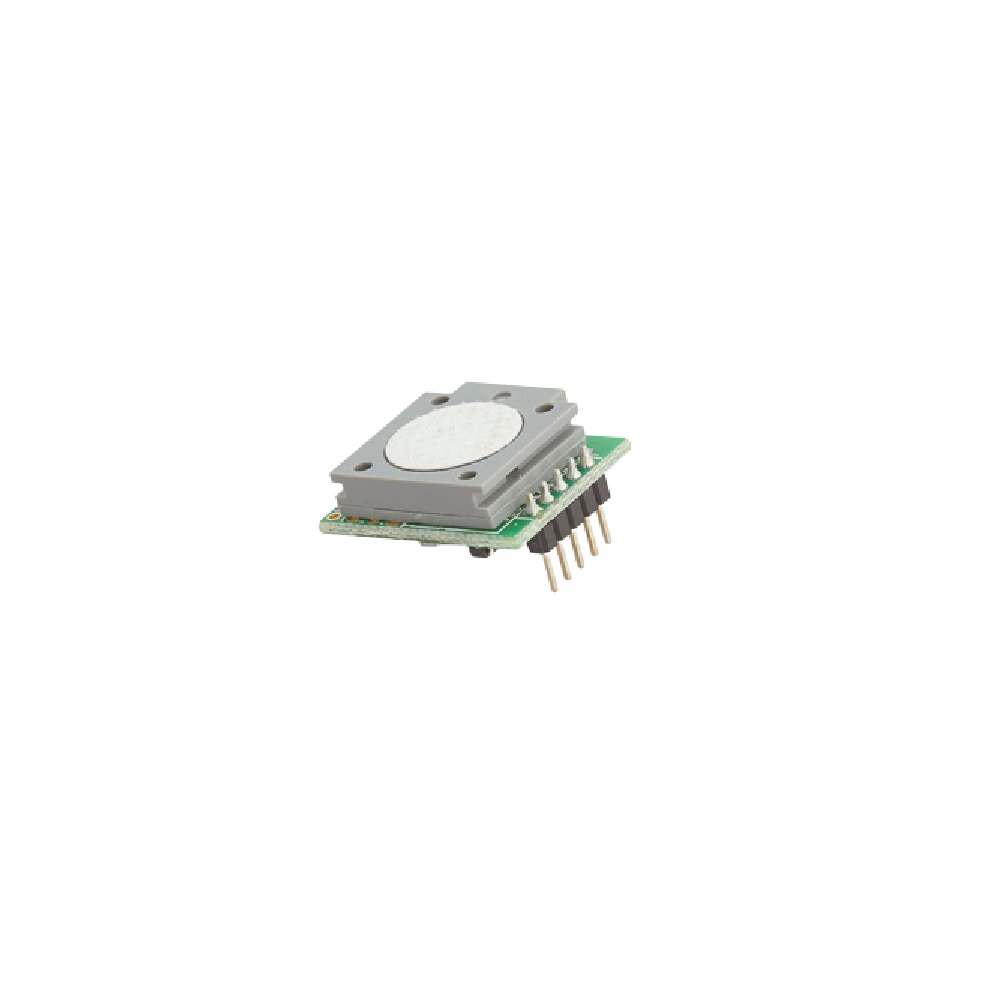

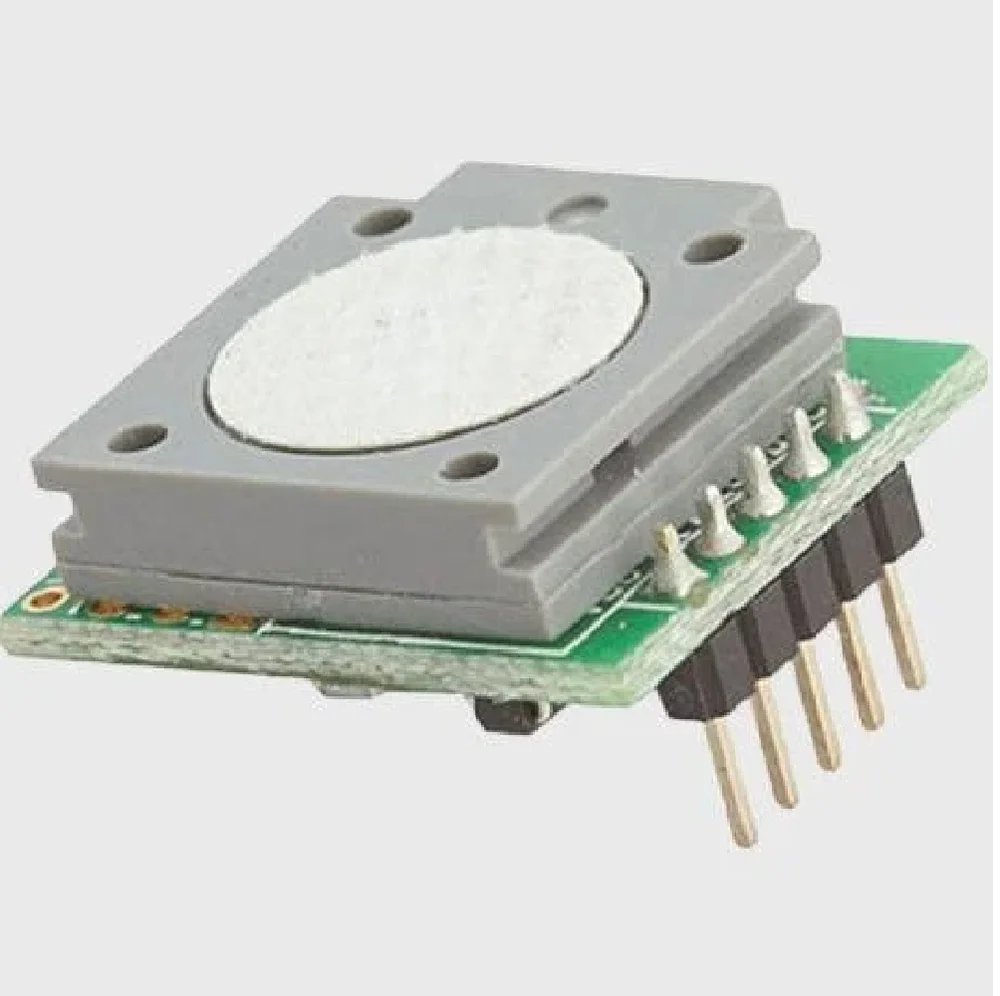

Winsen ZE08B-CH2O Formaldehyde Gas Detection Module - UART Output

Name: Winsen ZE08B-CH2O Formaldehyde Gas Detection Module - UART Output
Brand: Winsen
SKU: SENS-0849
Price: 1869.00 INR
Availability: OutOfStock

₹1,869.00 (Inclusive of all taxes)

Out of Stock

The Winsen ZE08B-CH2O is an electrochemical formaldehyde (CH2O) gas detection module providing digital UART and analog voltage outputs. It is designed for integration into portable detectors, air quality monitors, and smart home systems operating from a 3.7V to 5.5V DC supply.

Features

Electrochemical CH2O sensor with high selectivity and stability
Dual output: digital UART (3V logic) and analog voltage
Integrated temperature sensor for automatic compensation
Fast warm-up time of ≤3 minutes and T90 response ≤60 seconds
Compact module design for easy PCB integration

Out of stock

Get Notified When Available

Description

The ZE08B-CH2O module employs a mature electrochemical sensing principle specifically tuned for formaldehyde (CH2O) detection, ensuring high selectivity against other common gases. Its sophisticated internal signal conditioning circuitry provides both a linear analog voltage output and a digital UART interface for direct communication with microcontrollers like Arduino, ESP32, or Raspberry Pi.

Built-in temperature compensation via an integrated sensor ensures measurement accuracy across its 0°C to 50°C operating range. The module is designed for long-term stability and low power consumption, making it suitable for continuous monitoring applications in residential and commercial indoor air quality systems.

Key Features

Electrochemical formaldehyde sensor with high sensitivity and ≤0.01ppm resolution
Dual-output interface: UART (3V logic level) and analog voltage for flexible integration
Onboard temperature compensation for stable readings across environmental changes
Low power consumption and a typical operational life of 2 years in air
Compact and miniaturized module footprint for space-constrained designs
Excellent linear output and strong anti-interference characteristics
Fast warm-start (≤3 min) and recovery time (≤60s) for responsive monitoring

Applications

Portable formaldehyde detectors and personal air quality monitors
Residential and commercial indoor air quality (IAQ) monitoring systems
Integration into air purifiers, cleaners, and HVAC renewal systems
Smart home environmental sensing and automation control
Industrial hygiene and workplace safety monitoring for CH2O exposure

Technical Specifications

Item Type	Gas Sensor Module
Manufacturer Part Number	ZE08B-CH2O
Detecting Gas	Formaldehyde (CH2O)
Detecting Range	0 – 1.6 ppm
Resolution	≤ 0.01 ppm
Output Interface	UART (3V Logic Level), Analog Voltage
Operating Voltage	3.7 V to 5.5 V DC
Warm Start Time	≤ 3 minutes
Response Time (T90)	≤ 60 seconds
Recovery Time	≤ 60 seconds
Operating Temperature	0°C to 50°C
Operating Humidity	15% RH to 90% RH (Non-condensing)
Storage Temperature	0°C to 25°C
Sensor Life	2 years (in air)

Frequently Asked Questions

What is the output interface of the ZE08B-CH2O module?

The module provides dual outputs: a digital UART interface operating at 3V logic levels for direct communication with microcontrollers, and a linear analog voltage output proportional to the formaldehyde concentration. This allows for flexible integration into both digital and analog measurement systems.

What is the recommended operating voltage and how do I power it?

The module requires a DC power supply between 3.7V and 5.5V. It can be powered directly from a regulated 3.3V or 5V microcontroller rail, or via a dedicated LDO regulator. Ensure the power source is stable and free from noise for optimal sensor performance.

How fast does the sensor respond and how long does it take to warm up?

The sensor has a warm-up (start-up) time of 3 minutes or less from a cold start. Once warmed up, it achieves 90% of its final reading (T90) within 60 seconds of exposure to a target gas concentration, and recovers to baseline within a similar timeframe.

What is the sensor's lifespan and does it require calibration?

The electrochemical sensor element has a typical operational life of 2 years when exposed continuously to air. For accurate measurements, periodic calibration using a known formaldehyde standard is recommended, especially after extended use or exposure to high concentrations.
