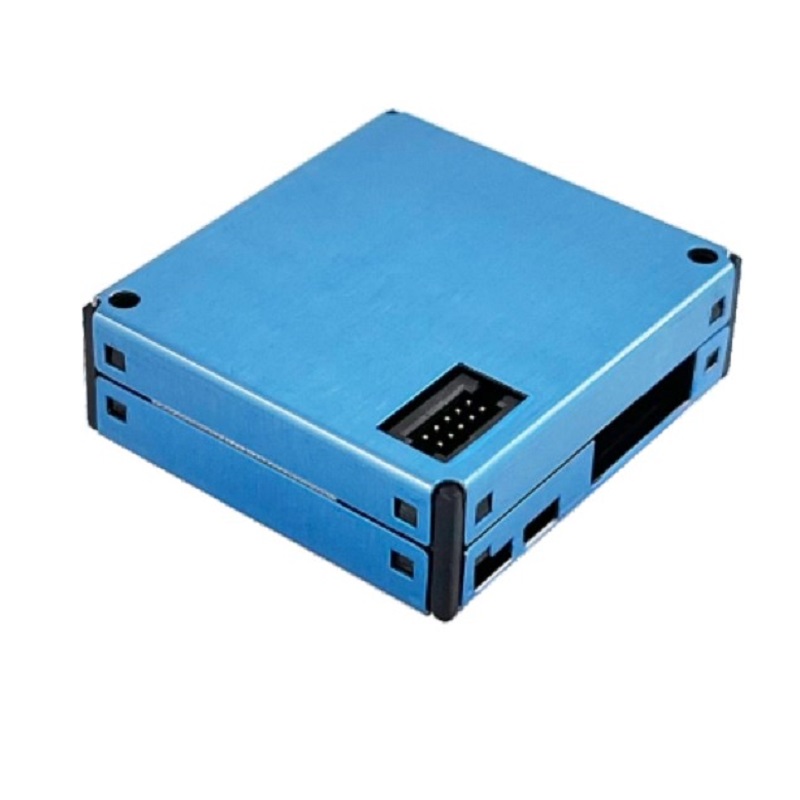

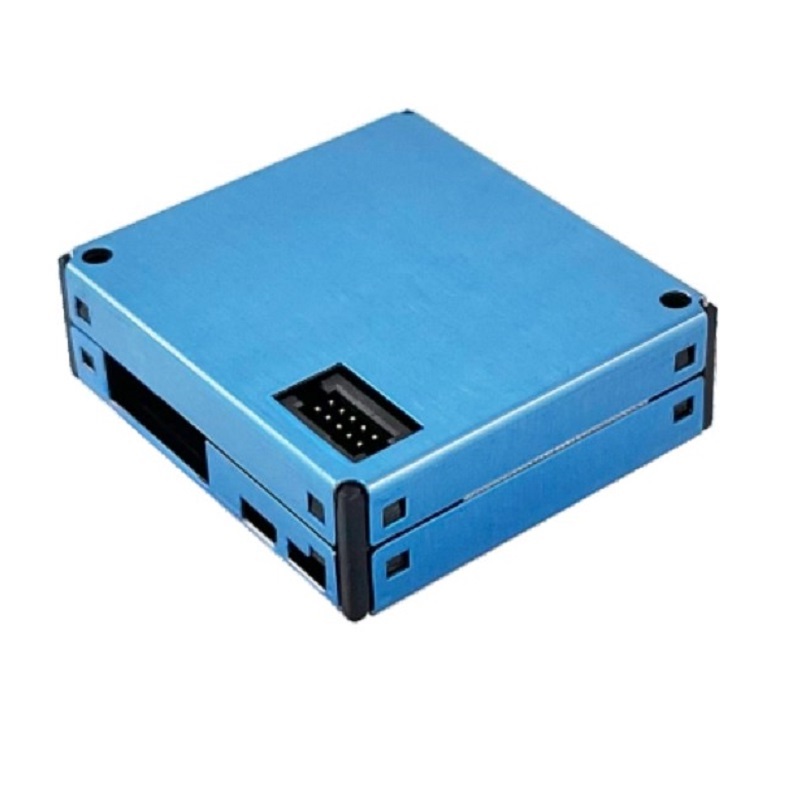

MemsFrontier MPM10-AD Laser PM Sensor (Side Air Inlet/Outlet, 10-Pin)
The MemsFrontier MPM10-AD is a laser-based particulate matter sensor with side-mounted air inlets, designed for precise PM1.0, PM2.5, and PM10 concentration measurement. It offers UART, I2C, and PWM output interfaces for easy integration into air quality monitoring systems, Arduino projects, and industrial PLCs.
Features
- Laser scattering principle for precise PM1.0, PM2.5, and PM10 detection.
- Triple output interfaces: UART (serial), I2C, and PWM for flexible system integration.
- Wide measurement range from 0 to 1000 μg/m³ with ±15 μg/m³ or ±15% reading accuracy.

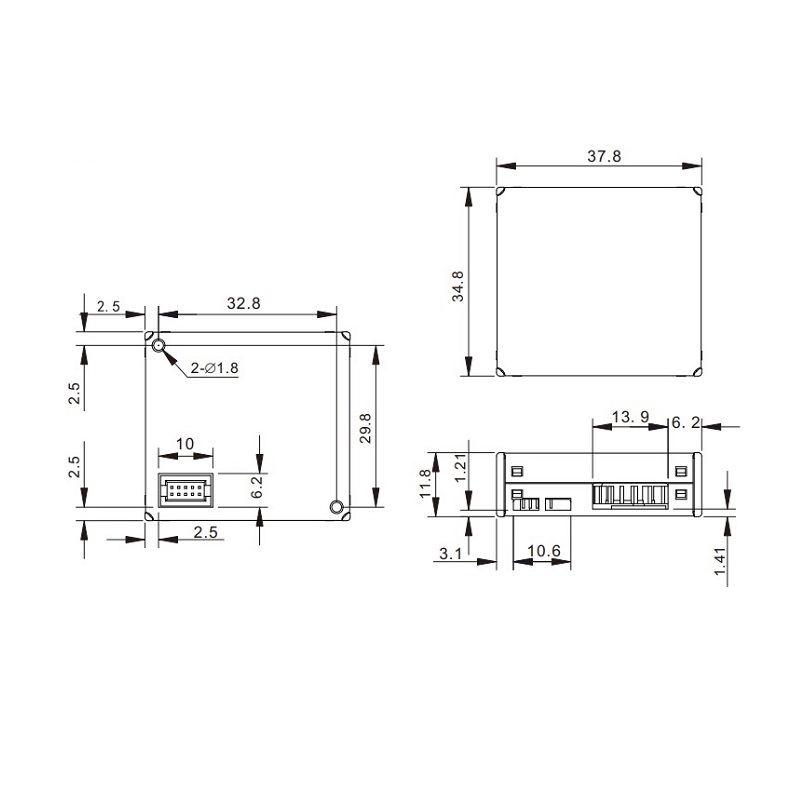

- Compact 37.8 x 34.8 x 11.8 mm form factor with side air flow design.
- Low power operation with ≤85 mA working current at 5V DC supply.
Out of stock
The MPM10-AD sensor employs a laser scattering technique to detect and quantify airborne particulate matter. Its optical chamber and photodetector are engineered to analyze particles in the 0.3 to 10 μm size range, providing real-time concentration data for PM1.0, PM2.5, and PM10. The side-mounted air inlet and outlet design promotes consistent airflow and reduces dust accumulation, enhancing long-term measurement stability.
This sensor features a robust 10-pin interface supporting configurable UART (serial), I2C, and PWM output signals, allowing seamless connection to microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi. It operates within an industrial temperature range of -10°C to +60°C and 0-95% RH (non-condensing), making it suitable for demanding environmental monitoring applications. The module requires an external 5V DC power supply and does not include a pre-attached connector.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 3.78 × 3.48 × 1.18 cm |
