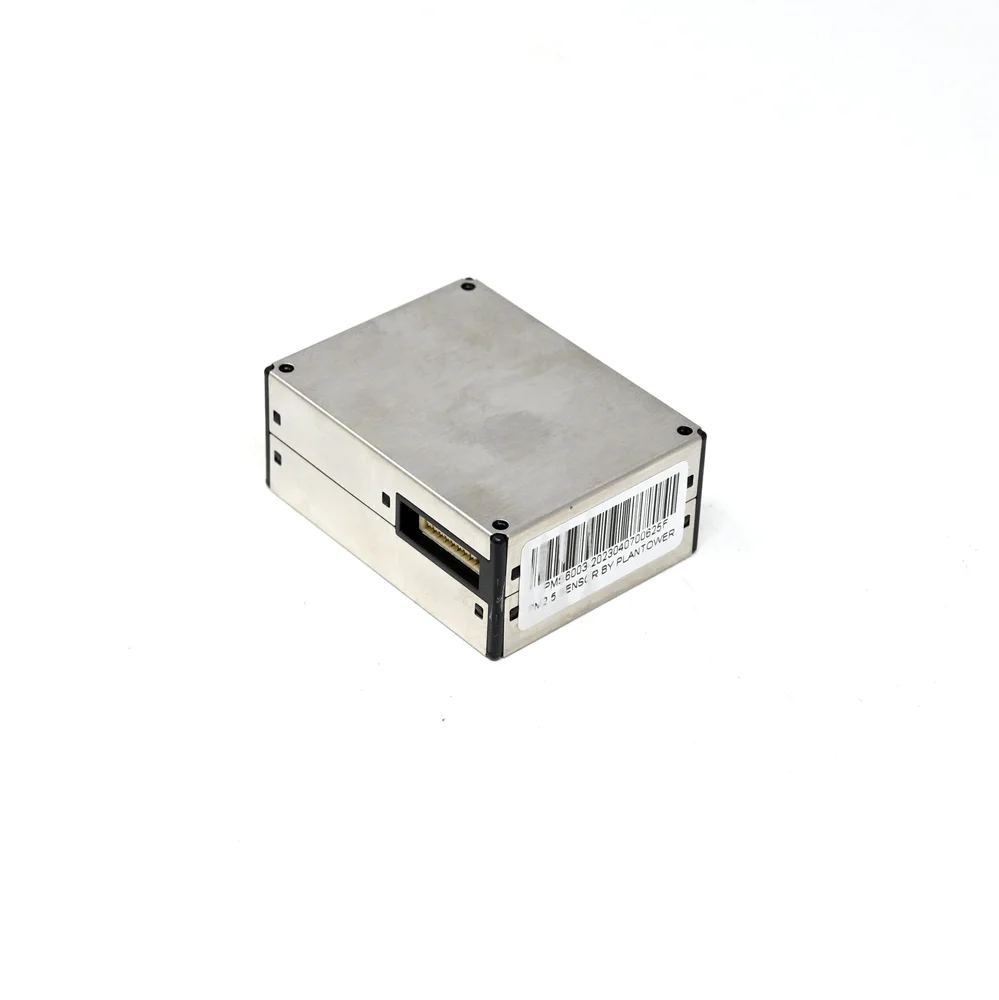

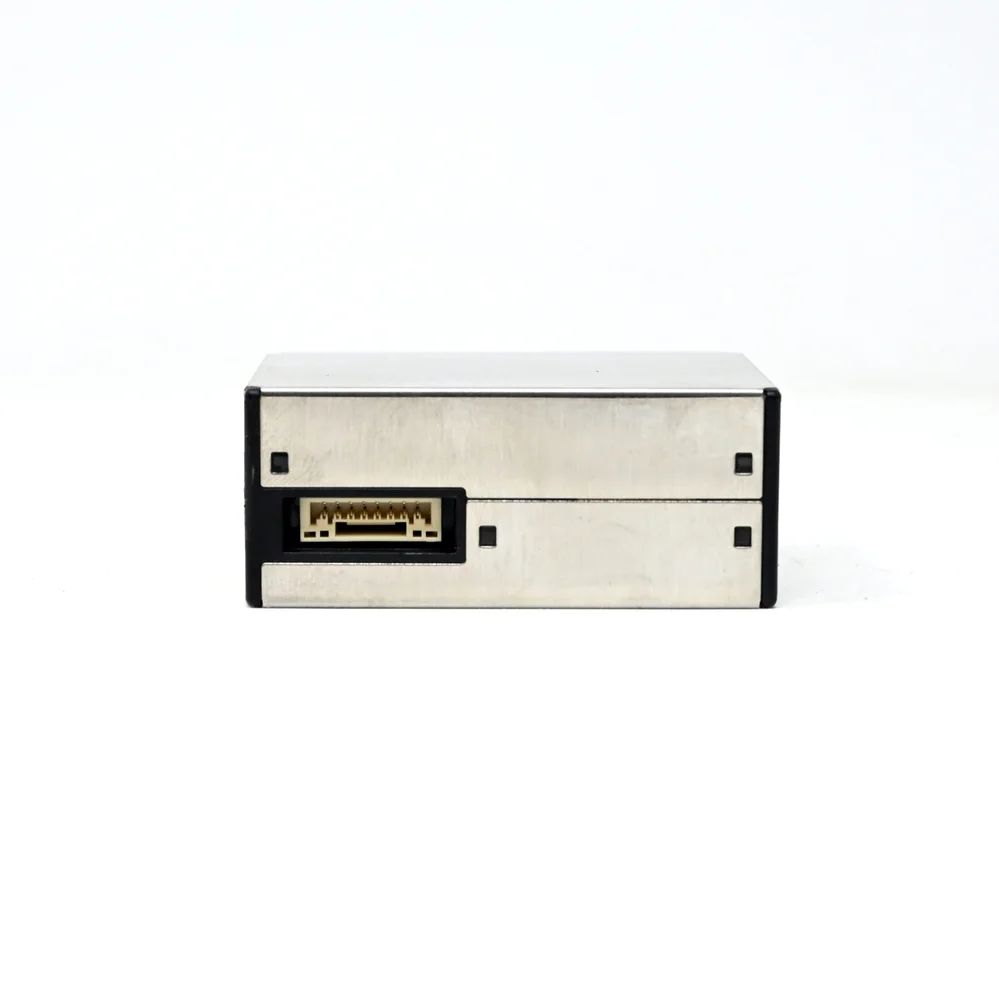

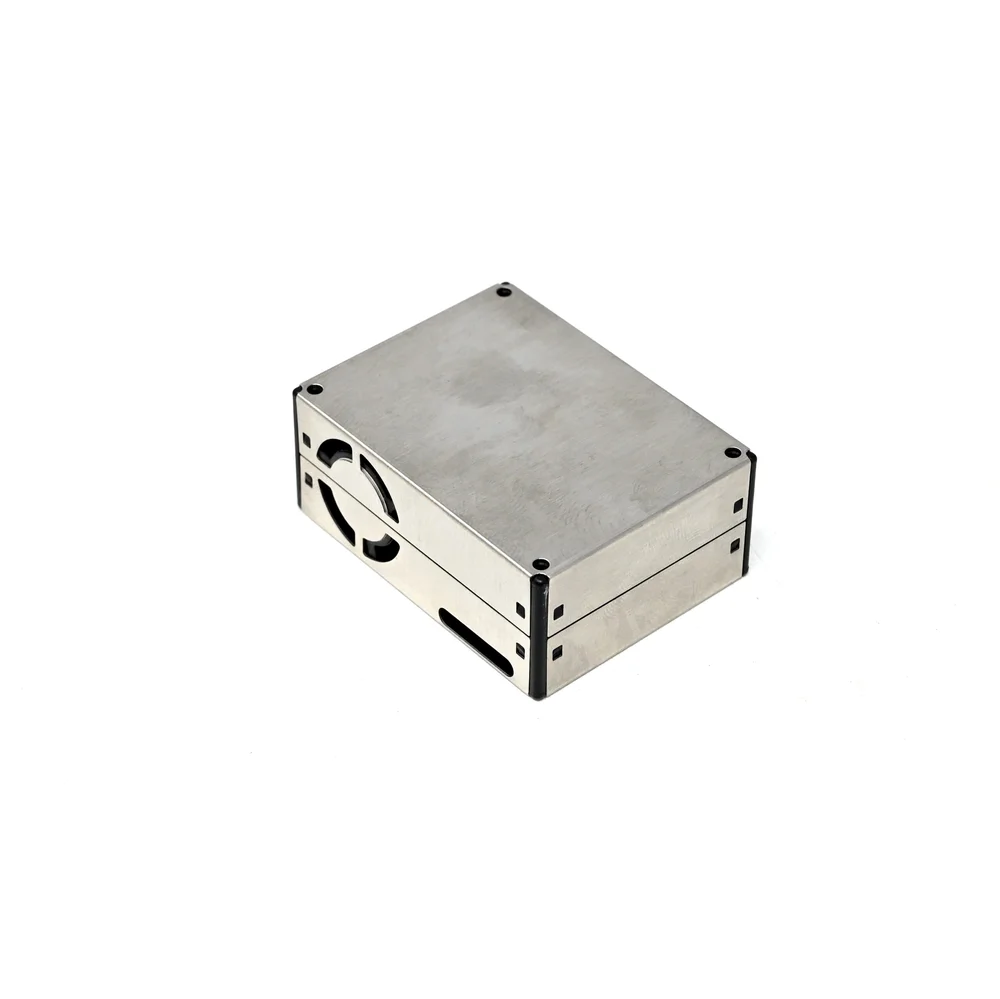

Plantower PMS6003 PM2.5 Laser Particle Concentration Sensor, UART, 0~500 µg/m³, 5V
The Plantower PMS6003 is a digital laser Particle concentration sensor with a UART interface, designed for real-time monitoring of airborne particulate matter (PM2.5). It provides accurate concentration data for integration with Arduino, Raspberry Pi, ESP32, and other 5V logic systems.
Features
- High-precision laser scattering principle for Particle counting.
- Dual-laser system for enhanced longevity and self-checking accuracy.
- Detects Particle sizes from 0.3 μm to 10 μm.
- Digital UART output for easy microcontroller integration.
- Low power consumption, operating at 5V DC with ≤100 mA current draw.
Out of stock
The Plantower PMS6003 employs a laser scattering principle to count and size airborne particles, outputting real-time concentration data for PM1.0, PM2.5, and PM10 via a simple UART serial interface. Its patented dual-laser system alternates operation, providing internal consistency checks and effectively doubling the sensor’s operational lifespan compared to single-laser designs.
Engineered for reliability, the sensor features a six-sided shield to minimize optical interference from ambient light and internal electronic noise. This makes it suitable for continuous monitoring in variable environments, providing stable data for air quality assessment systems, smart HVAC controls, and environmental sensing networks.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 8 × 2 cm |
