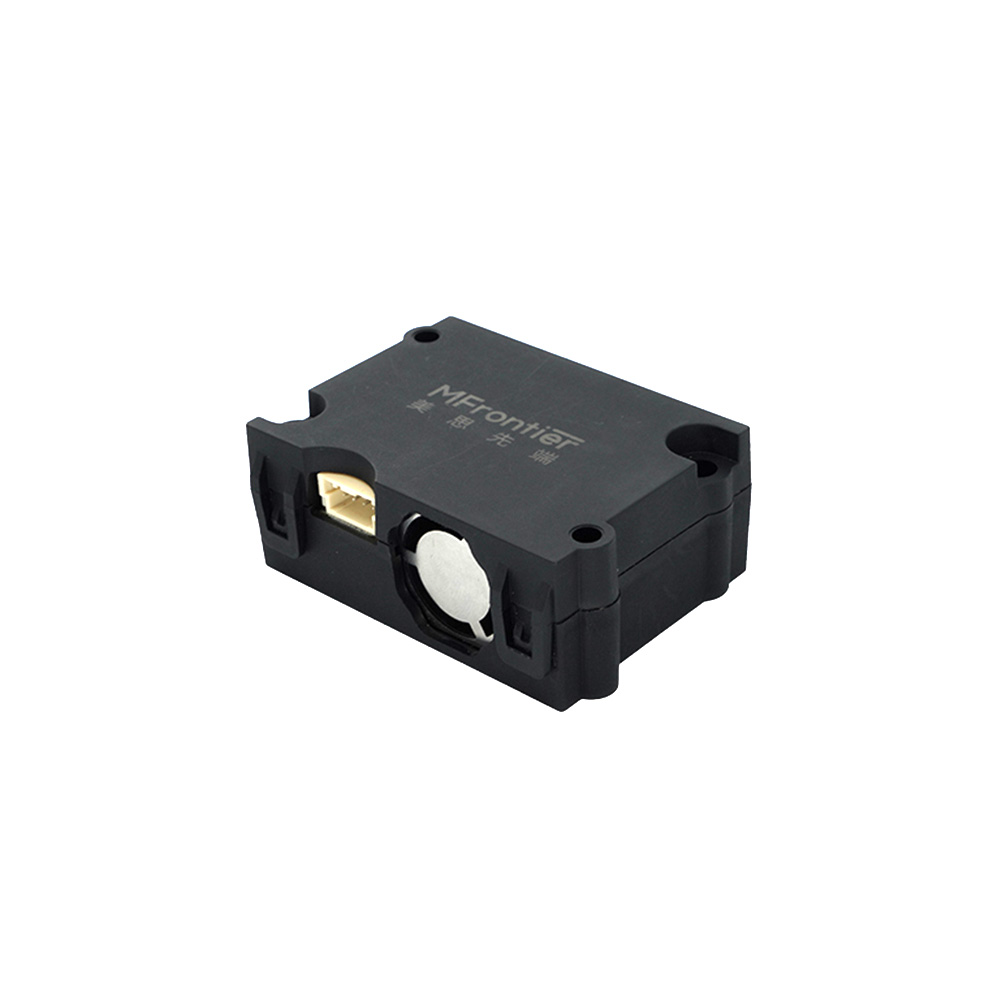

MemsFrontier MPM60-C4 Vehicle PM Sensor - LIN Output
The MemsFrontier MPM60-C4 is a laser-scattering-based particulate matter sensor designed for automotive HVAC systems, providing real-time PM2.5 concentration data via a LIN bus interface for in-vehicle air quality control.
Features
- Measures PM2.5 mass concentration from 0 to 1000 μg/m³ with 1 μg/m³ resolution.
- Utilizes laser scattering principle with scientific Particle identification algorithm.
- LIN bus output for direct integration with automotive networks and HVAC controllers.
- Fast response with ≤1s single response and ≤10s integrated response time.
- Designed for vehicle environments with an operating range of -20 to 70°C and 0-95% RH.
Out of stock
The MPM60-C4 is a MEMS-based particulate matter sensor engineered for automotive cabin air quality monitoring. It employs a laser scattering detection principle, where a laser diode illuminates particles and a photodetector measures the scattered light intensity. This analog signal is processed through proprietary mathematical algorithms and factory calibration to output precise PM2.5 mass concentration values in μg/m³.
Designed for the harsh automotive environment, the sensor operates from a 9-16V DC vehicle supply and communicates via a Local Interconnect Network (LIN) bus, making it directly compatible with automotive HVAC control modules. Its robust construction ensures reliable performance across a wide temperature and humidity range, enabling real-time air quality assessment and automated recirculation control to protect passenger health.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 9 × 3 cm |
