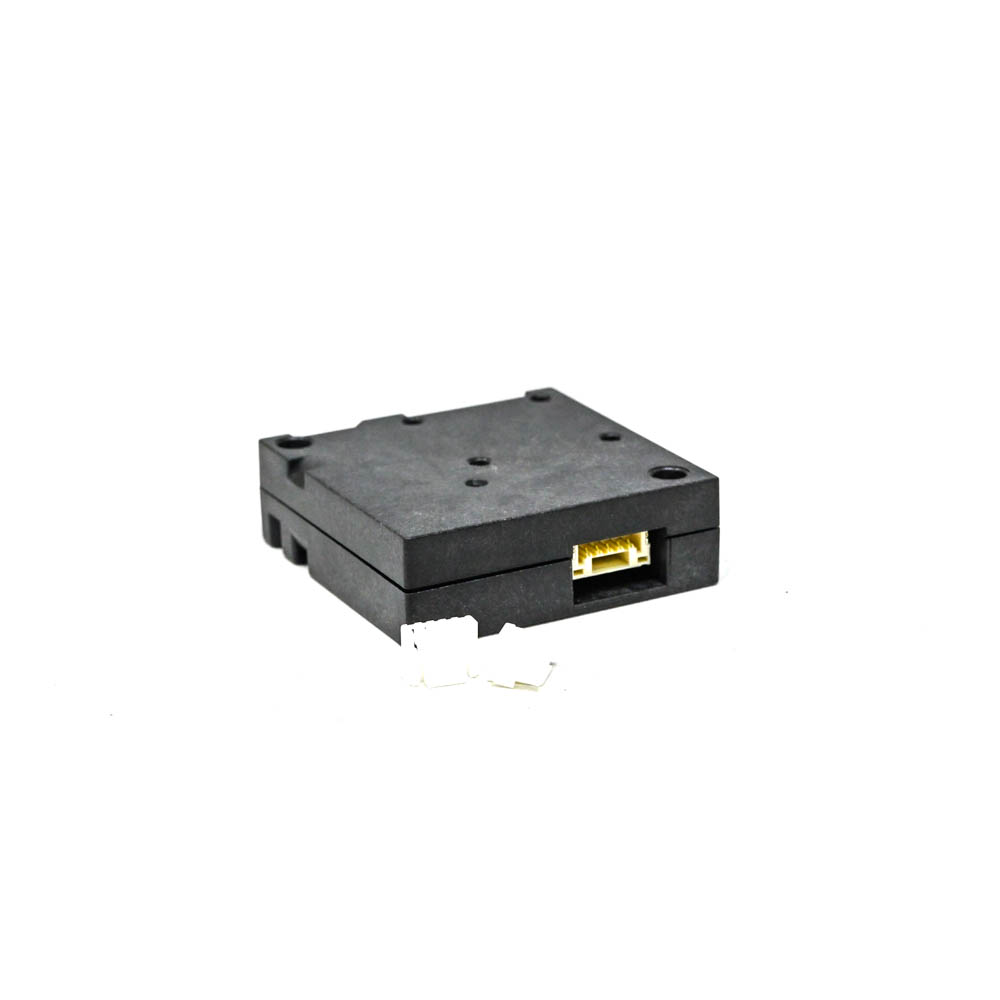

Panasonic SN-GCJA5 Air Quality Sensor, Range: 0-2000 μg/m³

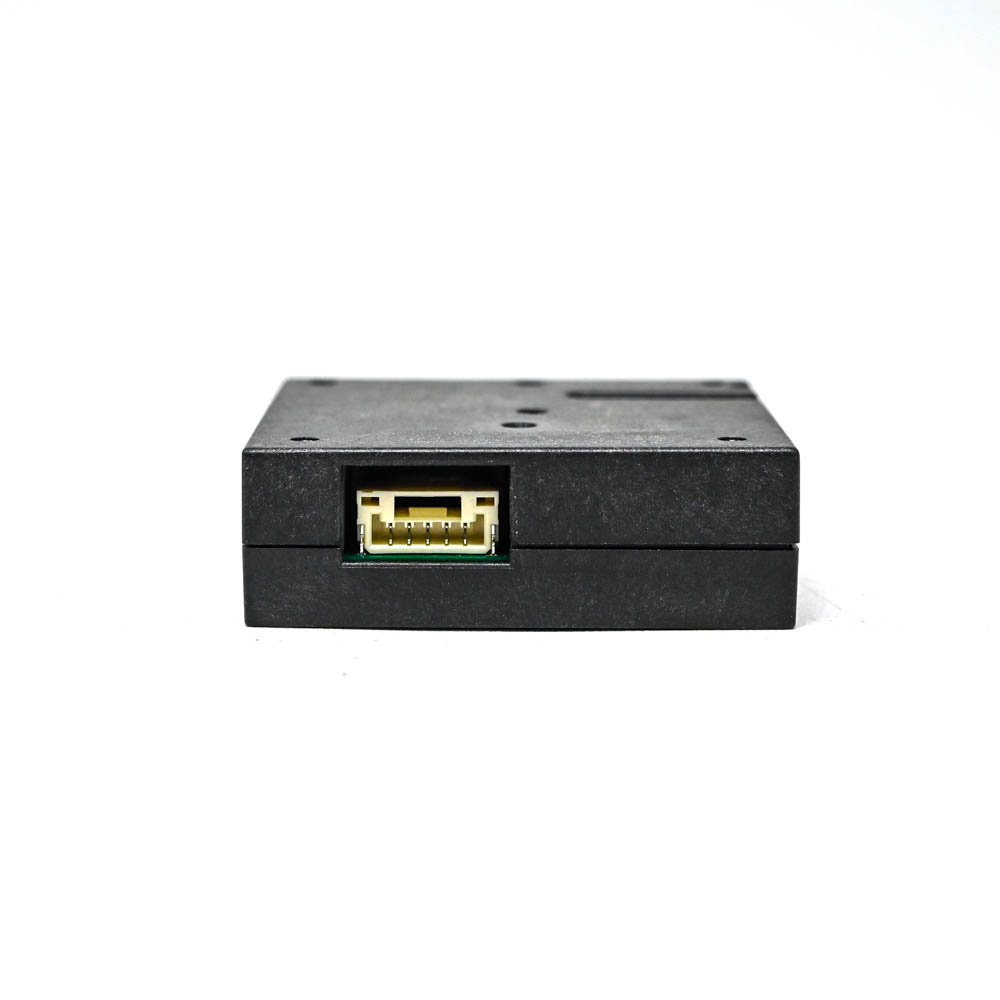

Panasonic SN-GCJA5 Air Quality Sensor, Range: 0-2000 μg/m³ - Image 2

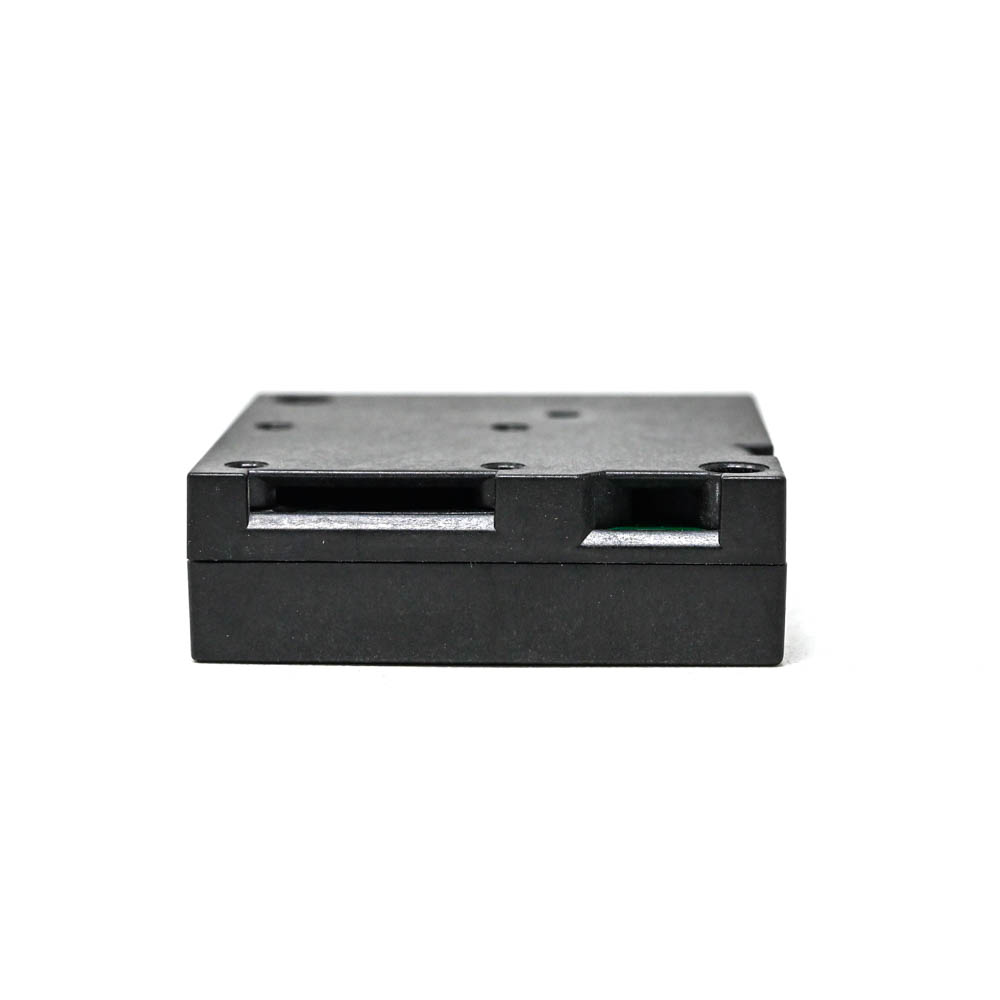

Panasonic SN-GCJA5 Air Quality Sensor, Range: 0-2000 μg/m³ - Image 3
SKU: SENS-0269
📋 GST Invoice Available

Panasonic SN-GCJA5 Air Quality Sensor, Range: 0-2000 μg/m³

₹2,209.00 (Inclusive of all taxes)
Out of Stock

The Panasonic SN-GCJA5 is a compact Particle sensor designed for precise air quality monitoring, compatible with 5V logic systems like Arduino and Raspberry Pi. It accurately measures PM concentrations from 0 to 2000 μg/m³ for integration into environmental monitoring and HVAC systems.

Features

  • High-precision Particle concentration detection up to 2000 μg/m³
  • Compact, lightweight design weighing only 13 grams
  • Wide operating voltage range of 4.5V to 5.5V DC
  • Ideal for integration into air quality monitoring systems and IoT devices
  • Reliable performance in diverse environmental sensing applications

Out of stock

Description

The Panasonic SN-GCJA5 employs advanced optical sensing technology to detect and quantify particulate matter (PM) concentrations in the air. Its precise measurement capability from 0 to 2000 μg/m³ makes it suitable for monitoring air quality in residential, commercial, and industrial environments.

Engineered for stable operation within a 4.5V to 5.5V DC range, this sensor provides reliable data output for system integration. Its compact form factor and low weight facilitate easy installation into embedded systems, portable monitors, and fixed environmental stations.

Key Features

  • Accurate optical Particle sensing for PM1.0, PM2.5, and PM10 concentrations
  • Optimized for low-power operation within a 4.5V to 5.5V supply range
  • Compact and lightweight construction at 13 grams for space-constrained designs
  • High-reliability performance for continuous air quality monitoring applications
  • Tray packaging ensures component protection and handling ease
  • Designed for seamless integration with microcontrollers and data loggers

Applications

  • Indoor air quality monitors and smart HVAC control systems
  • Portable environmental sensing devices and personal air quality trackers
  • Industrial air filtration system monitoring and maintenance
  • Embedded air quality sensing in IoT gateways and building automation
  • Research and educational projects for particulate matter analysis

Technical Specifications

Model NumberSN-GCJA5
Sensor TypeParticle Sensor (PM)
Measurement Range0 μg/m³ to 2000 μg/m³
Operating Voltage4.5V to 5.5V DC
Typical Supply Voltage5V DC
Unit Weight13 g
PackagingTray
Shipping Weight0.014 kg
Shipping Dimensions9 cm × 6 cm × 2 cm

Frequently Asked Questions

What is the operating voltage range for the Panasonic SN-GCJA5 sensor?

The SN-GCJA5 operates within a voltage range of 4.5V to 5.5V DC, with a typical supply voltage of 5V. It is designed for direct compatibility with standard 5V microcontroller systems like Arduino and Raspberry Pi, ensuring stable performance without requiring additional voltage regulation in most cases.

What Particle sizes does the SN-GCJA5 sensor detect?

The Panasonic SN-GCJA5 is an optical Particle sensor capable of detecting particulate matter (PM) concentrations. It is designed to measure PM1.0, PM2.5, and PM10 size fractions, providing a comprehensive assessment of air quality with a measurement range up to 2000 μg/m³.

How do I interface with the SN-GCJA5 sensor?

Interface details, including the communication protocol (typically UART or I2C) and pinout, are specified in the official Panasonic datasheet. Users must consult the datasheet for the exact wiring diagram, data output format, and command structure to properly integrate the sensor into their monitoring system or microcontroller project.

Is this sensor suitable for outdoor environmental monitoring?

While the SN-GCJA5 provides accurate Particle concentration data, its suitability for outdoor use depends on the specific environmental enclosure and protection applied. For prolonged outdoor deployment, a protective housing that shields the optical components from direct moisture, condensation, and extreme particulates is recommended to ensure long-term reliability.

Package Includes

  • 1 x Panasonic SN-GCJA5 Air Quality Sensor

Additional Information

Weight 0.014 kg
Dimensions 9 × 6 × 2 cm
