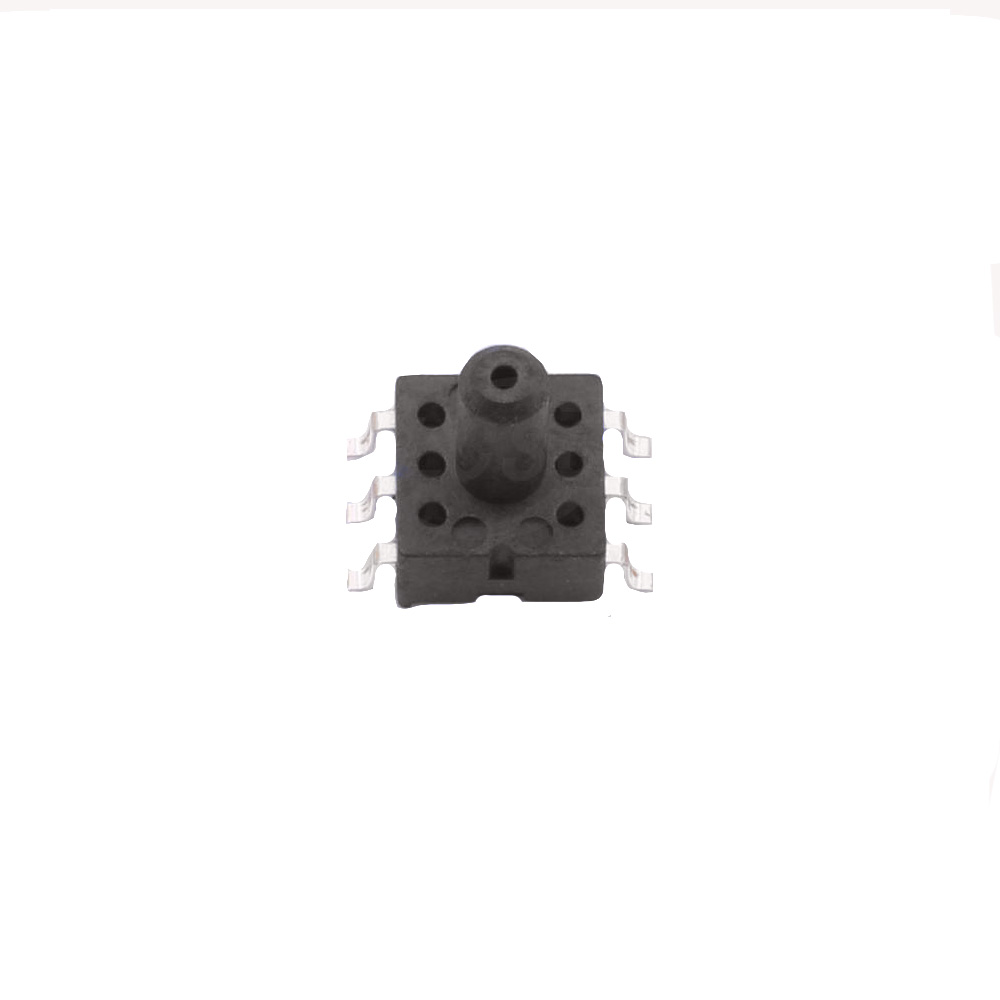

WFSensor WF100DPZ 10BG S6 DT Digital Pressure Sensor, Gauge Type, SMD-6P 6×6 mm, Range: 0-1000 kPa
The WFSensor WF100DPZ 10BG S6 DT is a compact, surface-mount digital pressure sensor featuring a MEMS piezoresistive sensing element and I2C/SPI digital output. Designed for integration into space-constrained 3.3V systems, it provides precise gauge pressure measurement from 0 to 1000 kPa for applications in consumer electronics, medical devices, and industrial monitoring.
Features
- Compact SMD-6P package measuring just 6×6 mm for high-density PCB layouts.
- Digital I2C/SPI output interface for direct connection to microcontrollers (MCUs) like STM32, ESP32, and Raspberry Pi.
- Wide operating supply voltage range from 1.8V to 3.6V, compatible with low-power 3.3V logic systems.
- MEMS piezoresistive sensing technology ensures high precision and stability for gauge pressure measurements.
- RoHS compliant construction, suitable for environmentally conscious designs and global market compliance.
Out of stock
The WF100DPZ 10BG S6 DT is a miniaturized digital pressure sensor utilizing a MEMS piezoresistive silicon diaphragm. Pressure variations cause a measurable change in resistance within the Wheatstone bridge circuit, which is then conditioned and digitized by an integrated ASIC. This design provides a stable, temperature-compensated digital signal directly over I2C or SPI, eliminating the need for external analog-to-digital conversion.
Its surface-mount SMD-6P package is engineered for automated pick-and-place assembly, making it ideal for high-volume production in compact electronic devices. The sensor’s robust construction ensures reliable performance across its specified operating conditions, suitable for integration into portable medical equipment, HVAC controls, and IoT monitoring nodes where board space and power consumption are critical constraints.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 0.6 × 0.6 cm |
