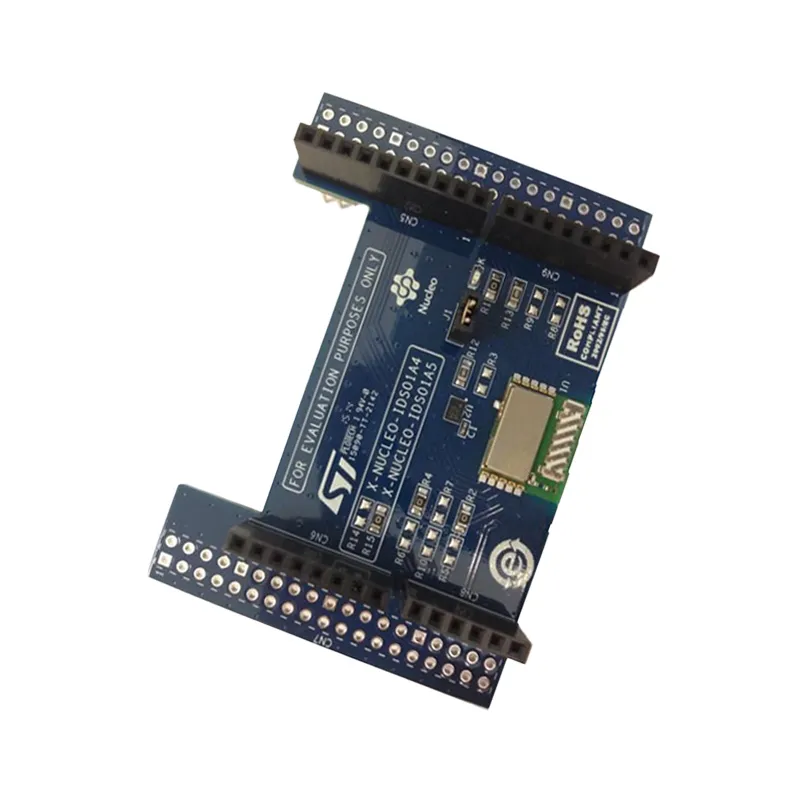

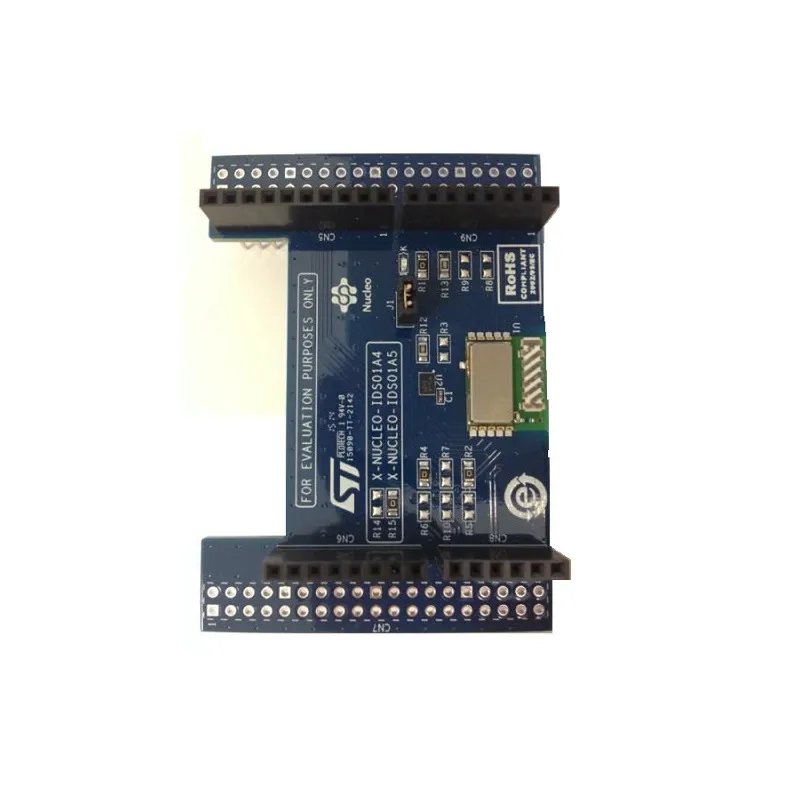

STMicroelectronics X-NUCLEO-IDS01A5 SPIRIT1 RF Module 915 MHz
The STMicroelectronics X-NUCLEO-IDS01A5 is an expansion board for STM32 Nucleo development boards, featuring the SPSGRF-915 SPIRIT1 RF module for robust wireless communication in the 915 MHz ISM band.
Features
- Integrates the SPSGRF-915 SPIRIT1 RF module for 915 MHz ISM band operation.
- FCC and IC certified, ensuring regulatory compliance for wireless applications.
- Designed for seamless compatibility with all STM32 Nucleo development boards.
- Features standard Arduino UNO R3 and ST Morpho connector layouts for versatile integration.
- Communicates with the STM32 microcontroller via a high-speed SPI interface.
Out of stock
The X-NUCLEO-IDS01A5 is a dedicated evaluation board engineered to expand the wireless capabilities of STM32 Nucleo development platforms. At its core, it features the SPSGRF-915 SPIRIT1 RF module, enabling reliable sub-1 GHz wireless communication within the 915 MHz ISM band. This module is pre-certified by both FCC (FCC ID: S9NSPSGRF) and IC (IC: 8976C-SPSGRF), simplifying the regulatory path for product development.
Designed for maximum compatibility, the X-NUCLEO-IDS01A5 aligns with both the ST Morpho and Arduino UNO R3 connector standards, ensuring it can be easily integrated with a wide range of STM32 Nucleo boards. Communication with the host STM32 microcontroller is established through a high-speed SPI interface complemented by GPIO pins, some of which are user-configurable via resistor adjustments. This allows for flexible system integration and the development of scalable wireless solutions, supported by example firmware compatible with STM32Cube.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 12 × 14 × 3 cm |
