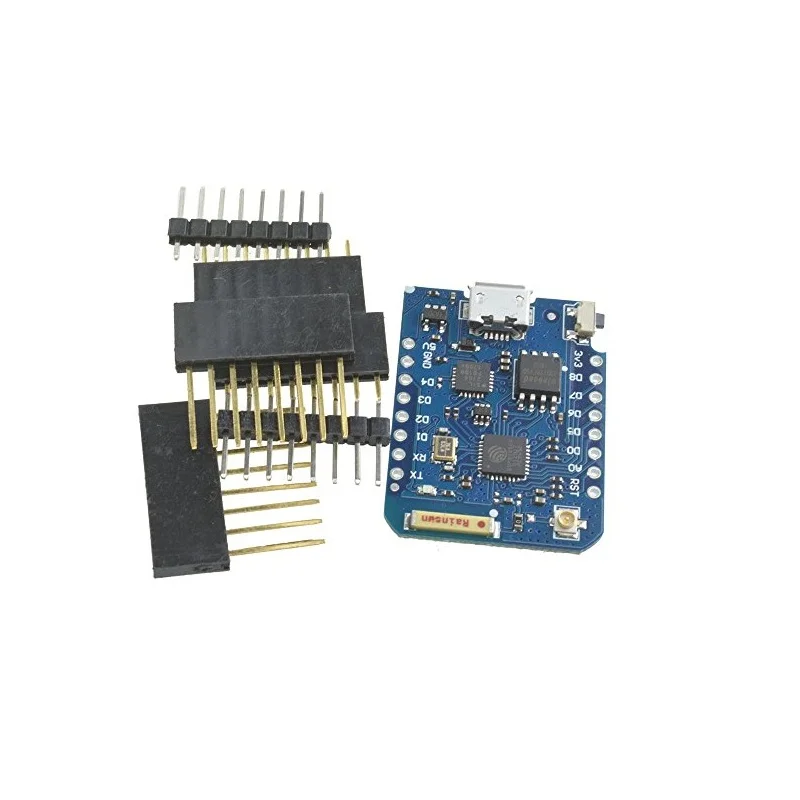

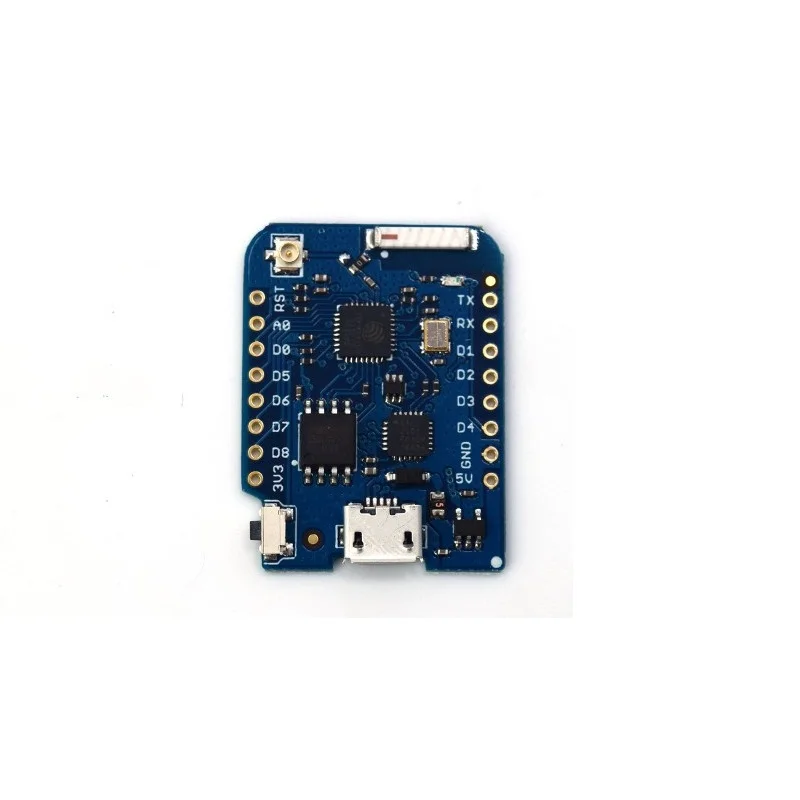

Wemos ESP8266 D1 Pro Mini 16MB External Antenna Connector

First, install the ESP8266 board package via the Arduino Boards Manager. Select 'Wemos D1 R2 & mini' as your board. Connect the board via micro-USB, ensure the CP2104 drivers are installed, and select the correct COM port. You can then upload sketches that utilize the ESP8266WiFi library for network connectivity. The board operates at 3.3V logic, so ensure any connected peripherals are compatible.

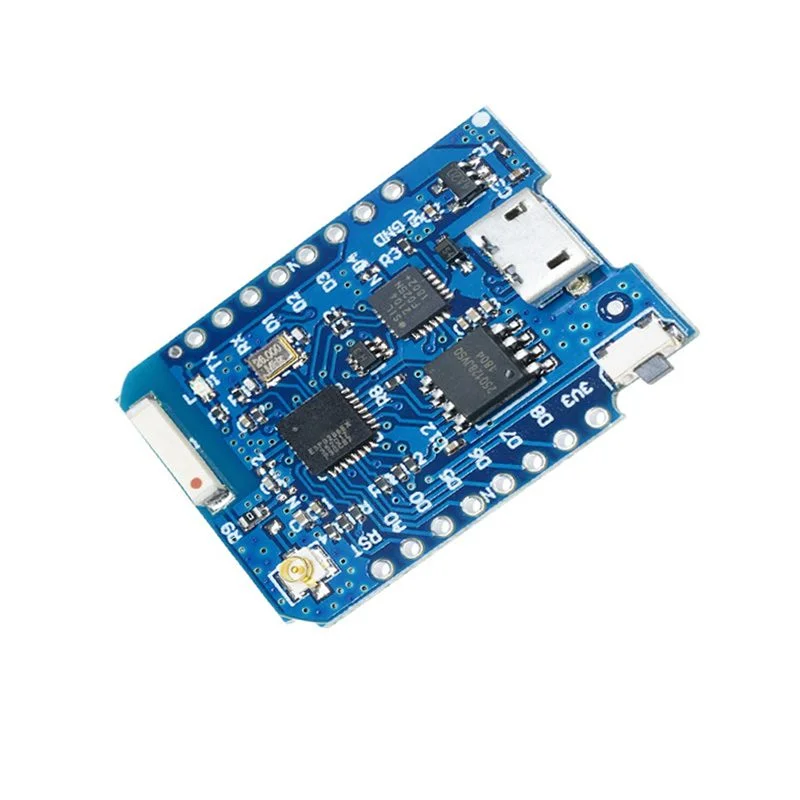

The board has a small surface-mount resistor (or zero-ohm link) near the U.FL connector that acts as an antenna selector. By default, it is connected to the built-in ceramic antenna. To use an external antenna, you must desolder this resistor and bridge the connection to the U.FL connector pad. Always power off the board before making this modification to avoid damaging the RF circuitry.

The 16MB flash provides ample space for your application code, file systems (like SPIFFS or LittleFS), and Over-The-Air (OTA) update binaries. This is significantly larger than typical 4MB boards, enabling you to store extensive web page assets, data logs, or multiple application images. In the Arduino IDE, you may need to adjust the 'Flash Size' setting in the board menu to '16MB' to utilize the full capacity.

The board is powered via its micro-USB port at 5V, with an onboard regulator supplying 3.3V to the ESP8266. For deep sleep operation to conserve battery, you can connect a 3.3V source directly to the 3.3V pin, bypassing the regulator. The ESP8266 can enter modem-sleep, light-sleep, and deep-sleep modes, with deep sleep reducing current to approximately 20µA. Ensure you have a wake-up source configured, such as a timer or external pin interrupt.
