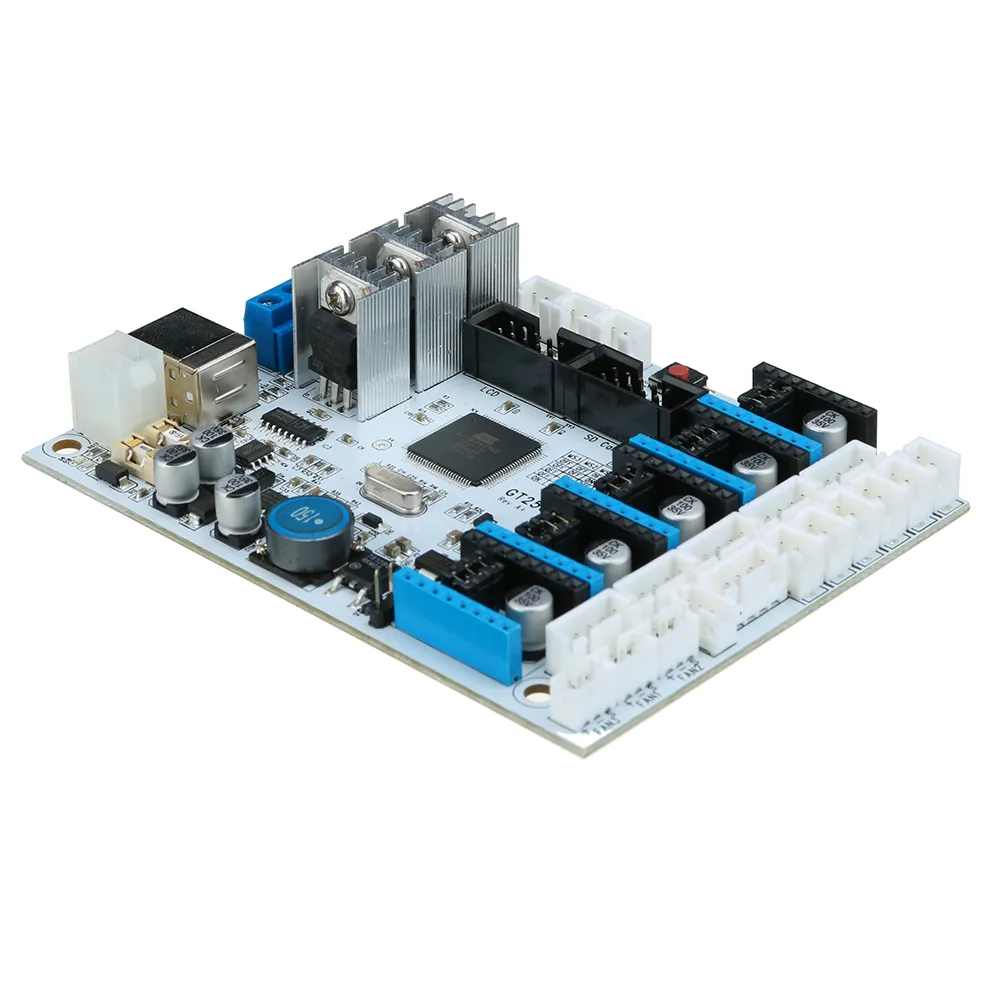

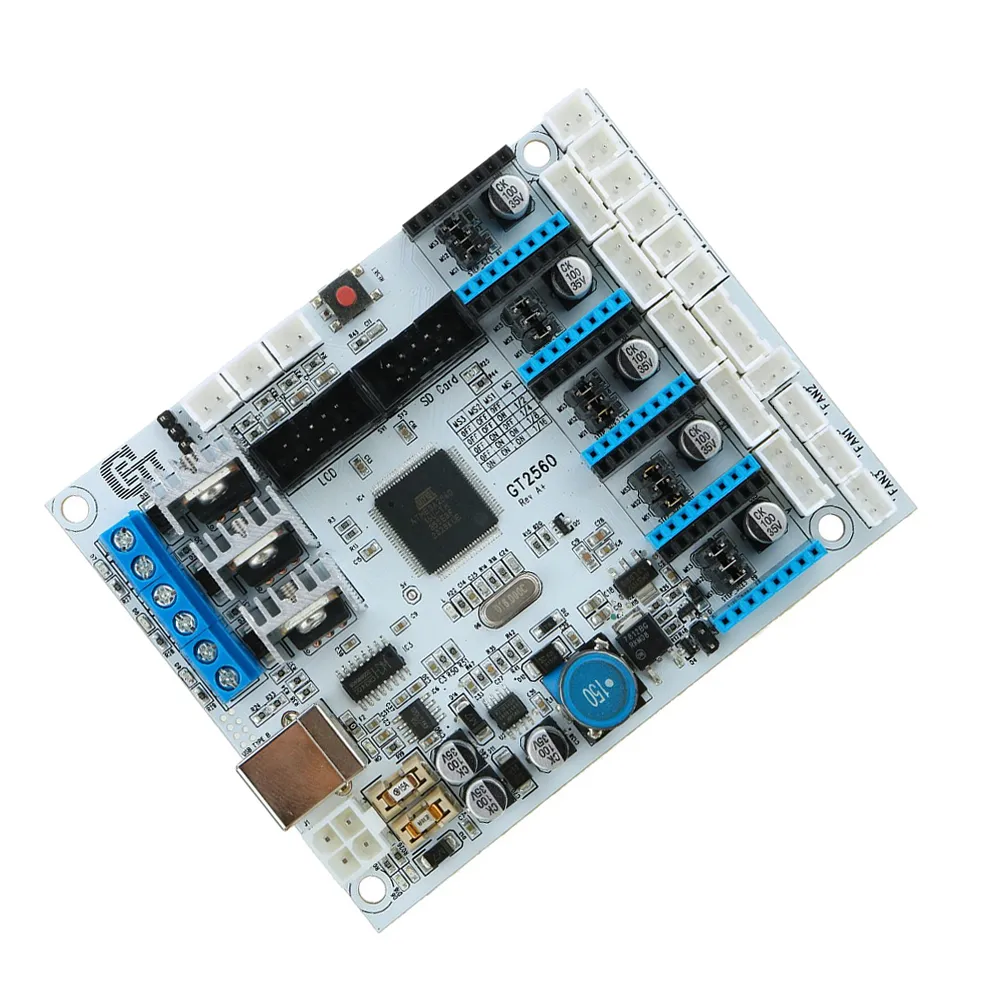

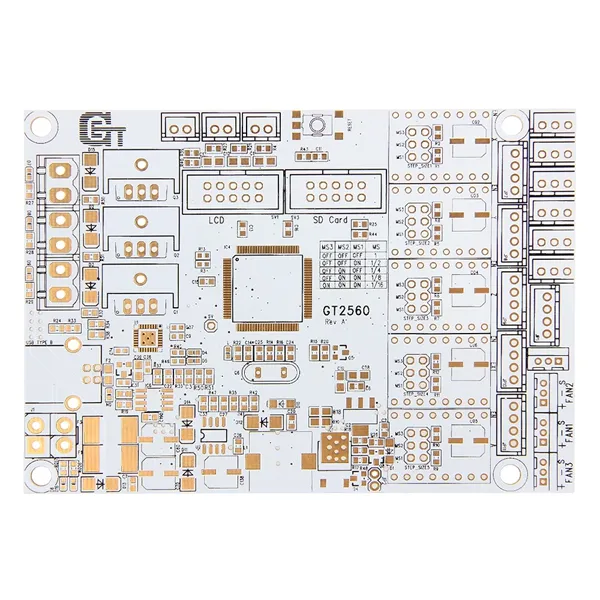

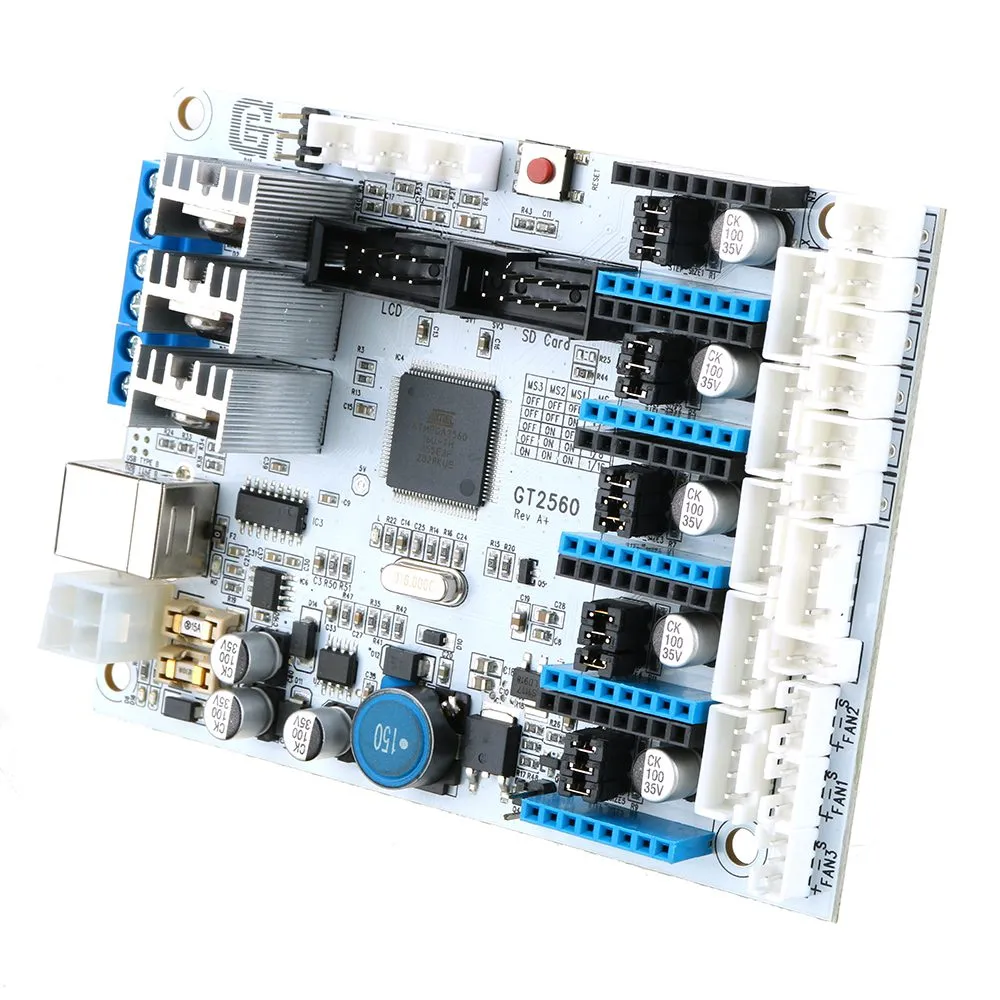

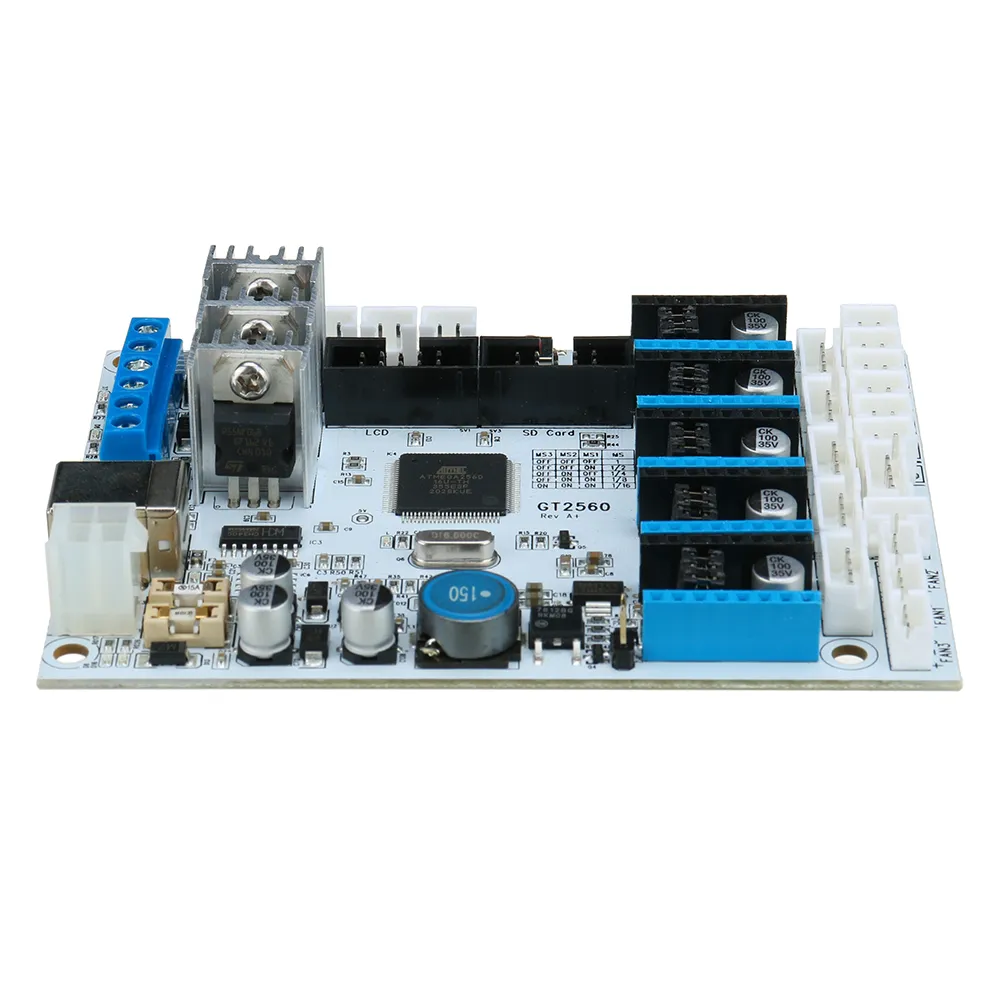

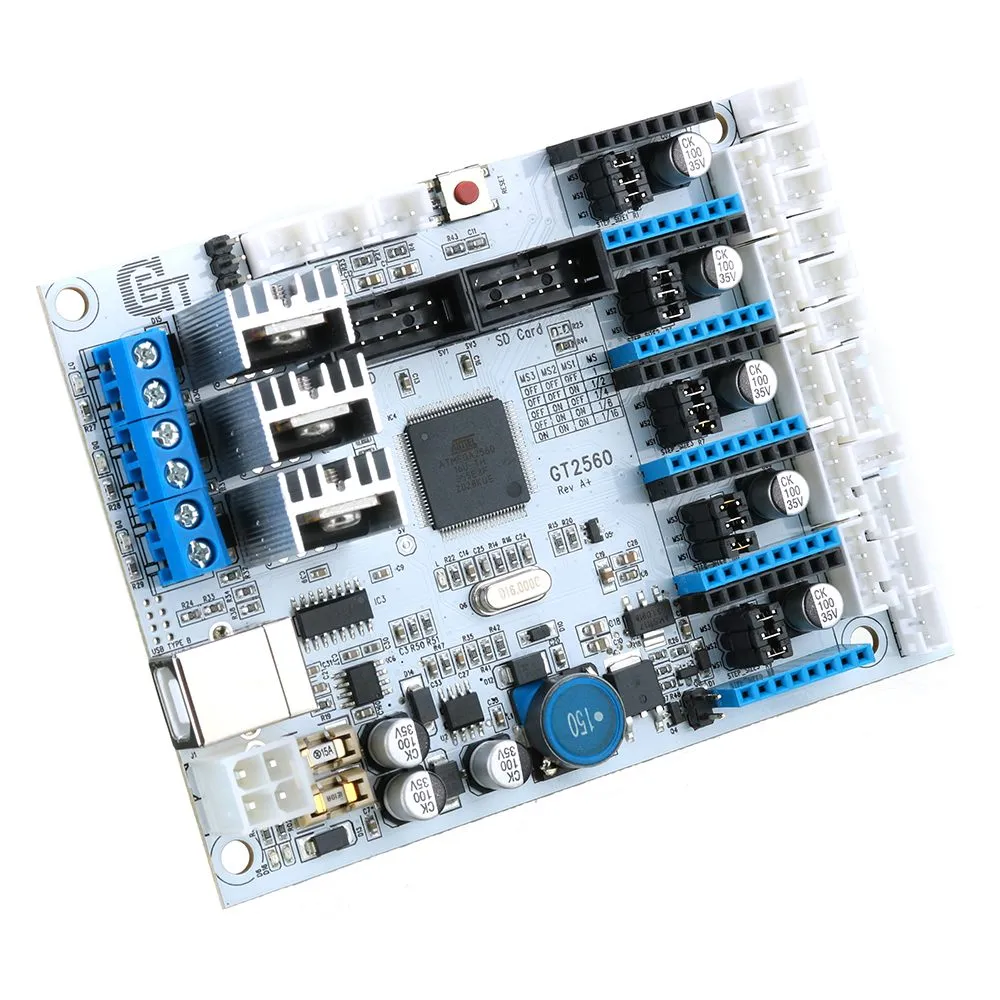

GT2560 Mainboard with ATmega2560 MCU
The GT2560 Mainboard combines the functionality of Mega2560 and Ultimaker, providing a compact and highly integrated control solution for 3D printers with enhanced power management and versatile peripheral connectivity.
Features
- Integrated ATmega2560 MCU with 256KB Flash & 16MHz clock speed.
- Dual 12V power supply for dedicated heatbed (12A) and logic (5A) circuits.
- Supports six endstops (X/Y/Z-MIN/MAX) and three thermistor inputs for precise control.
- Features LCD & SD card interface, three 12V cooling fan outputs, and one PWM output.
- Equipped with high-performance FT232RQ USB serial converter for reliable data communication.
Out of stock
The GT2560 is a compact control board that unifies the robust capabilities of the Mega2560 and Ultimaker platforms into a single, optimized design. It offers full hardware and software compatibility, directly replacing both the Mega2560 and Ultimaker, while introducing a streamlined interface that minimizes complexity. Its highly integrated and organized layout conserves space, facilitating easier integration into a diverse array of embedded applications, particularly within the 3D printing domain.
At its core, the board features the powerful ATmega2560 processor, providing 256KB of flash memory and a 16MHz operating frequency for stable and efficient performance. The GT2560 is engineered for flexibility, supporting five stepper motors with swappable driving modules. Additionally, the inclusion of the high-performance FT232RQ USB serial converter significantly improves data communication reliability, crucial for demanding 3D printing operations and general embedded control tasks.
Additional Information
| Weight | 0.14 kg |
|---|---|
| Dimensions | 15 × 10 × 3 cm |
