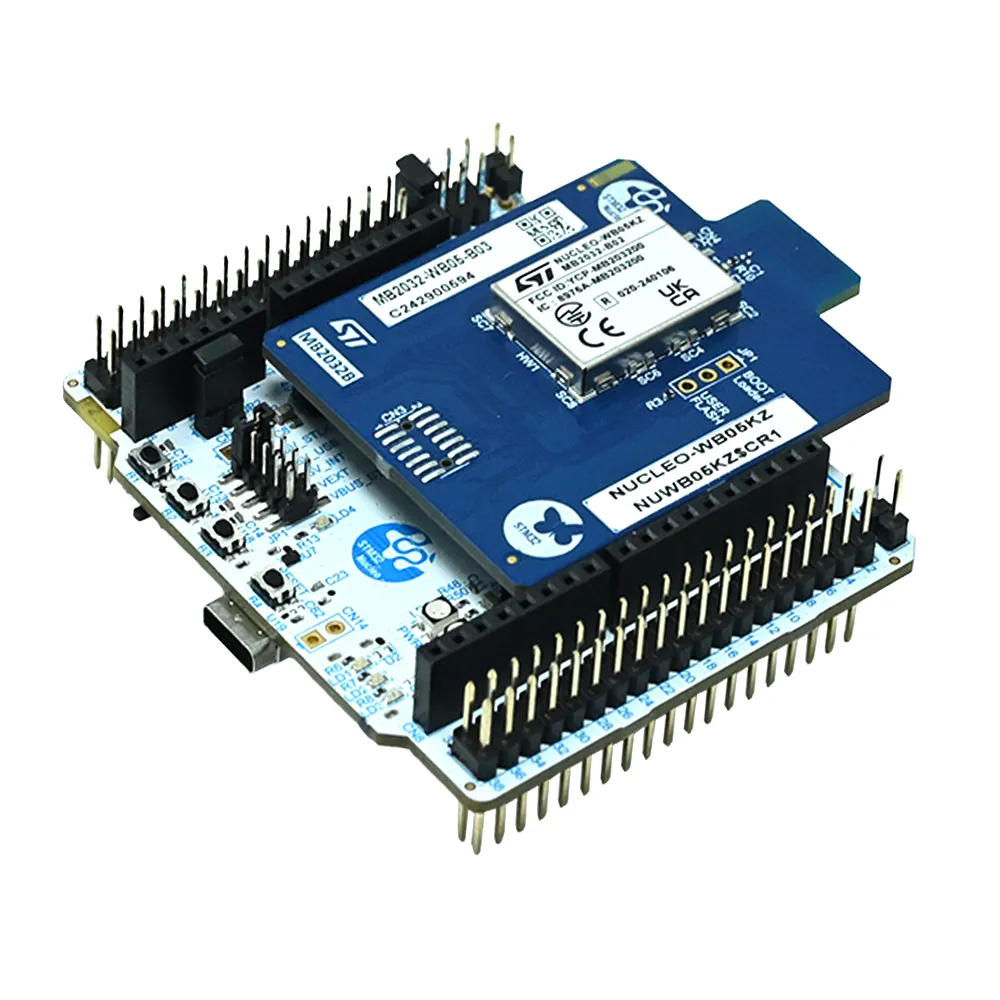

STM32 NUCLEO-WB05KZ Development Board - Arm Cortex-M0+

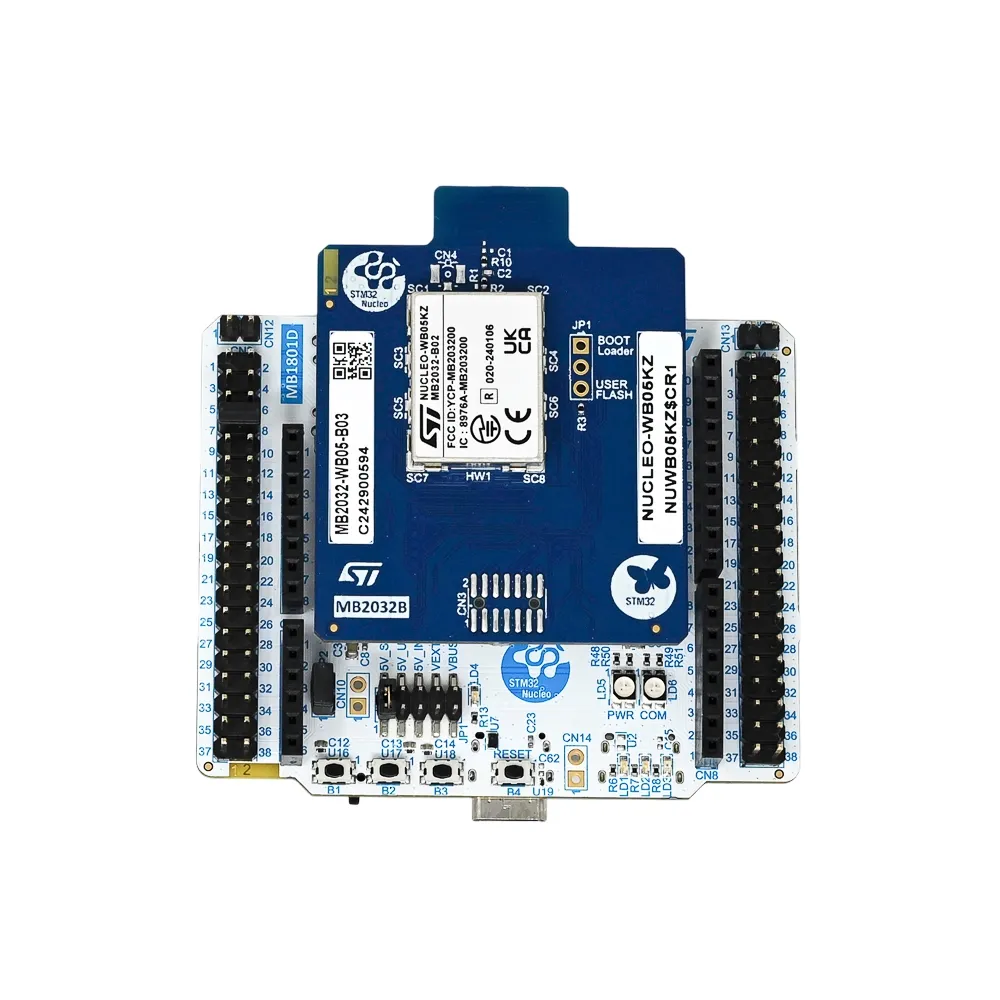

STM32 NUCLEO-WB05KZ Development Board - Arm Cortex-M0+ - Image 2

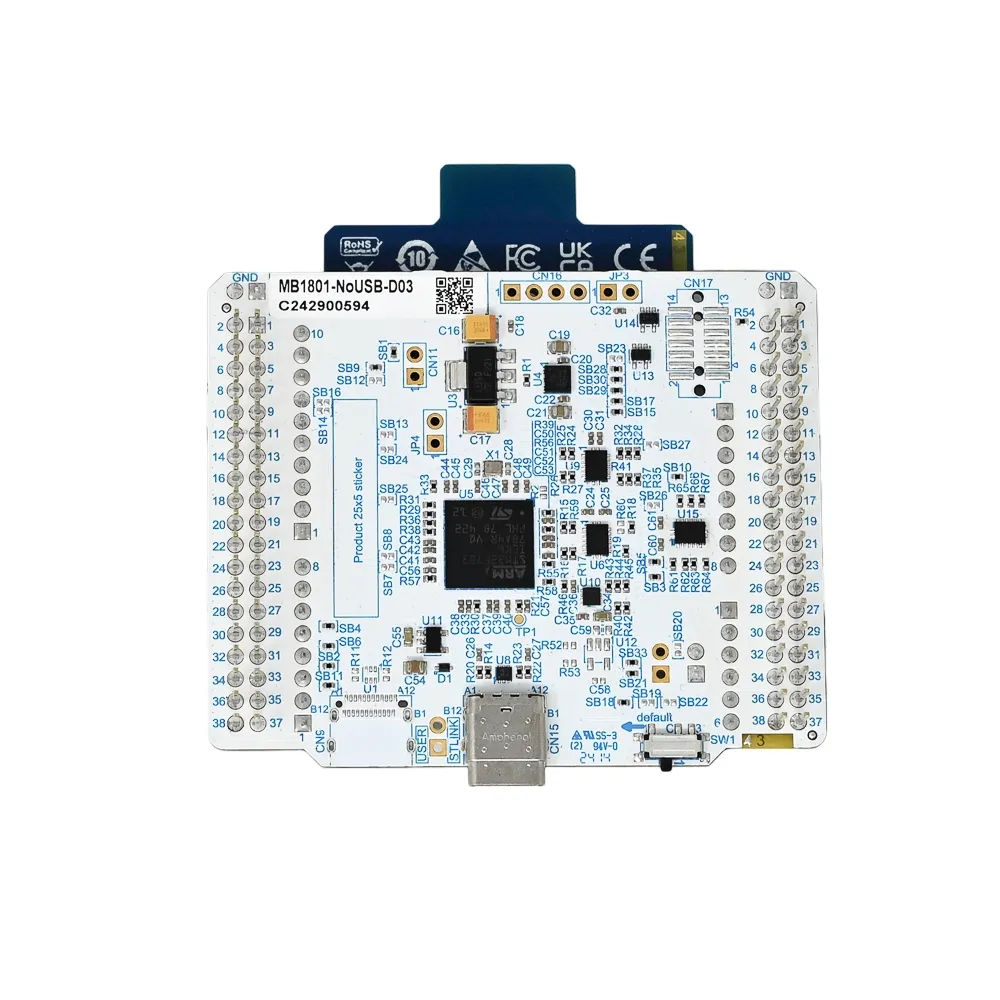

STM32 NUCLEO-WB05KZ Development Board - Arm Cortex-M0+ - Image 3
SKU: SBCD-0020
📋 GST Invoice Available

STM32 NUCLEO-WB05KZ Development Board - Arm Cortex-M0+

₹2,939.00 (Inclusive of all taxes)
Out of Stock

The STMicroelectronics NUCLEO-WB05KZ is a development board designed for Bluetooth Low Energy (BLE) wireless applications, featuring an ultra-low-power STM32WB05KZ MCU based on the Arm Cortex-M0+ core.

Features

  • Powered by Arm Cortex-M0+ MCU with 192 KB Flash and 24 KB SRAM.
  • Integrated 2.4 GHz Bluetooth Low Energy v5.4 wireless connectivity.
  • On-board STLINK-V3EC debugger/programmer for streamlined development.
  • Features Arduino Uno V3 and ST Morpho headers for extensive peripheral expansion.

Out of stock

Description

The STMicroelectronics NUCLEO-WB05KZ development board provides a robust platform for evaluating and developing Bluetooth Low Energy wireless applications. It leverages the ultra-low-power STM32WB05KZ microcontroller, which integrates an Arm Cortex-M0+ core and a 2.4 GHz RF transceiver compliant with Bluetooth v5.4, including a built-in PCB antenna for efficient wireless communication.

Designed for flexibility, the board offers Arduino Uno V3 and ST Morpho expansion headers, granting full access to the MCU’s I/O pins for custom circuit integration. Development is accelerated with the integrated STLINK-V3EC debugger, USB Type-C connectivity, and comprehensive support from the STM32CubeWB software package, making it an ideal choice for wireless IoT and various embedded system projects.

Key Features

  • Integrated STM32WB05KZ ultra-low-power wireless microcontroller.
  • Supports Bluetooth Low Energy v5.4 for robust wireless communication.
  • Equipped with an on-board PCB antenna for simplified RF integration.
  • Provides Arduino Uno V3 and ST Morpho headers for broad expansion compatibility.
  • Includes an on-board STLINK-V3EC debugger/programmer for efficient code development and debugging.
  • Features Arm Cortex-M0+ 32-bit core architecture for optimized processing.
  • Offers 192 KB Flash memory and 24 KB SRAM for application code and data.
  • Compatible with STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM development environments.

Applications

  • Bluetooth Low Energy (BLE) sensor nodes and beacons.
  • Wireless IoT (Internet of Things) devices.
  • Low-power embedded systems.
  • Smart home and industrial automation.
  • Wearable electronics with BLE connectivity.

Technical Specifications

MCU CoreArm Cortex-M0+ (32-bit)
Flash Memory192 KB
SRAM24 KB
Wireless Connectivity2.4 GHz Bluetooth Low Energy v5.4
Antenna TypeIntegrated PCB antenna
Debug InterfaceOn-board STLINK-V3EC
Expansion HeadersArduino Uno V3, ST Morpho
User Interface3 LEDs, 3 user buttons, 1 reset button
GPIOsUp to 39
Operating Voltage1.8 V to 3.6 V
Supported IDEsSTM32CubeIDE, IAR Embedded Workbench, MDK-ARM

Frequently Asked Questions

What microcontroller powers the NUCLEO-WB05KZ board?

The NUCLEO-WB05KZ is powered by the STM32WB05KZ ultra-low-power wireless microcontroller. This MCU integrates an Arm Cortex-M0+ core, 192 KB Flash, and 24 KB SRAM, making it suitable for compact and power-sensitive wireless applications requiring efficient processing.

What wireless protocols does this development board support?

The board supports 2.4 GHz Bluetooth Low Energy (BLE) v5.4 connectivity. It features an integrated RF transceiver and an on-board PCB antenna, enabling seamless development of BLE-based communication for IoT devices, sensor networks, and other wireless embedded applications.

Which development environments are compatible with the NUCLEO-WB05KZ?

The NUCLEO-WB05KZ board is compatible with several industry-standard development environments, including STMicroelectronics' own STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM. These IDEs provide comprehensive tools for coding, debugging, and flashing the STM32WB05KZ microcontroller.

Does the NUCLEO-WB05KZ require an external debugger?

No, the NUCLEO-WB05KZ includes an on-board STLINK-V3EC debugger/programmer. This integrated tool simplifies the development process by allowing direct programming and debugging of the STM32WB05KZ MCU via a single USB Type-C connection, eliminating the need for additional hardware.

What expansion options are available on the NUCLEO-WB05KZ?

The board features both Arduino Uno V3 and ST Morpho expansion headers. These headers provide extensive access to the STM32WB05KZ's GPIOs, analog inputs, and communication interfaces, allowing developers to easily connect a wide array of shields, modules, and custom circuits for prototyping.

Package Includes

  • 1 x STMicroelectronics NUCLEO-WB05KZ Development Board

Additional Information

Weight 0.04 kg
Dimensions 7 × 7.36 cm
