CNC 3-Axis Stepper Motor Driver & Laser Controller Board

₹2,669.00 (Inclusive of all taxes)
Out of Stock

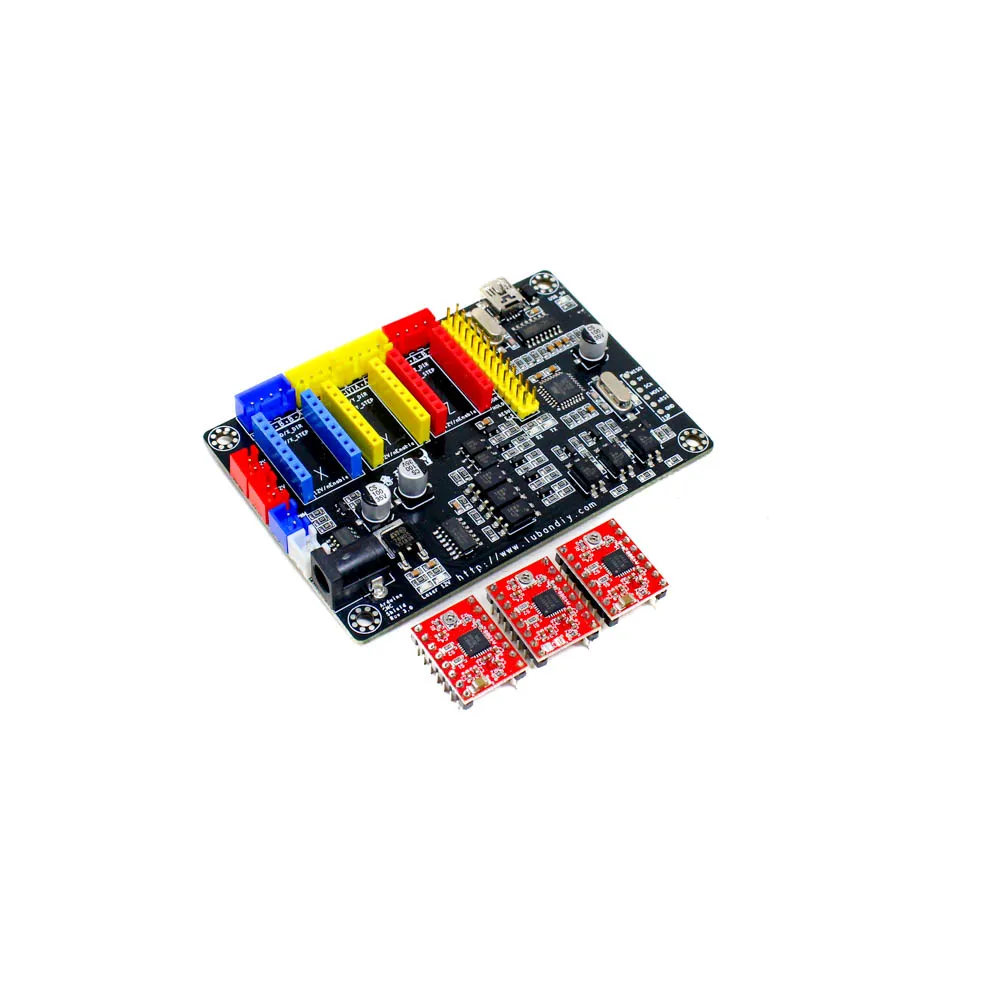

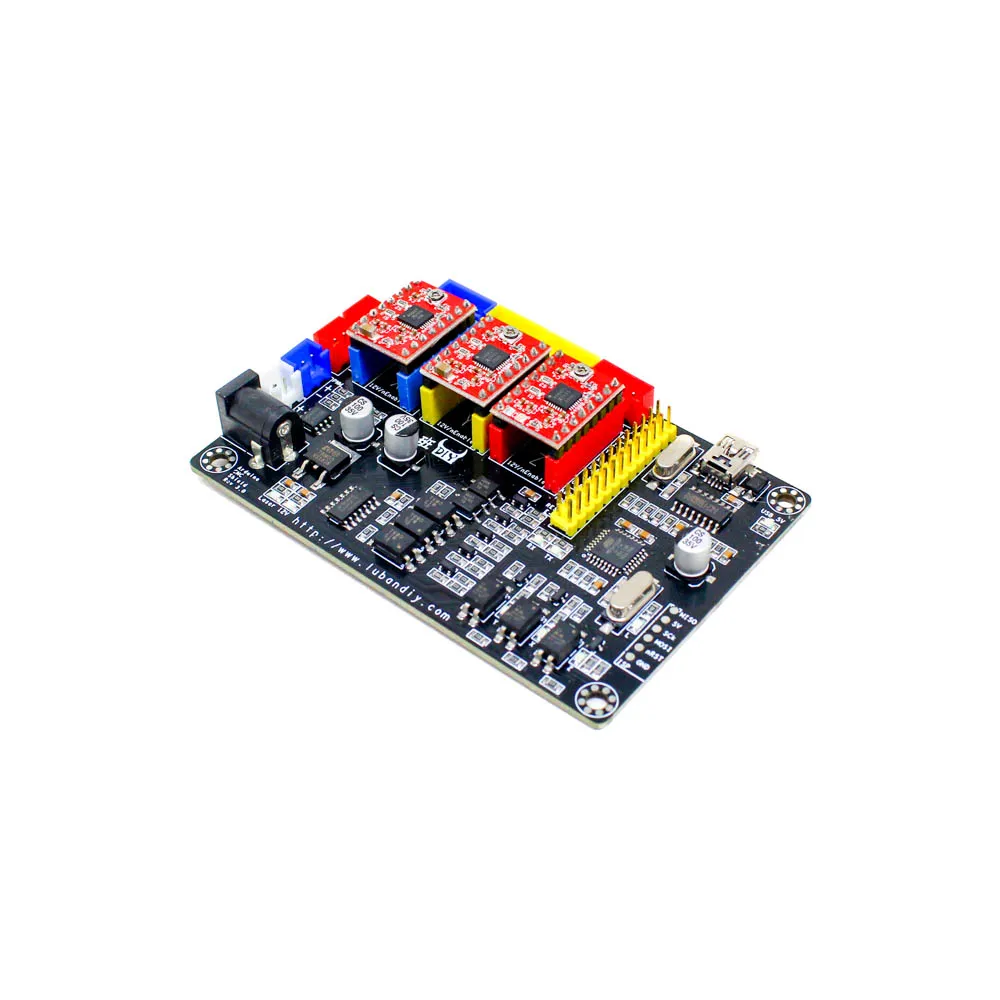

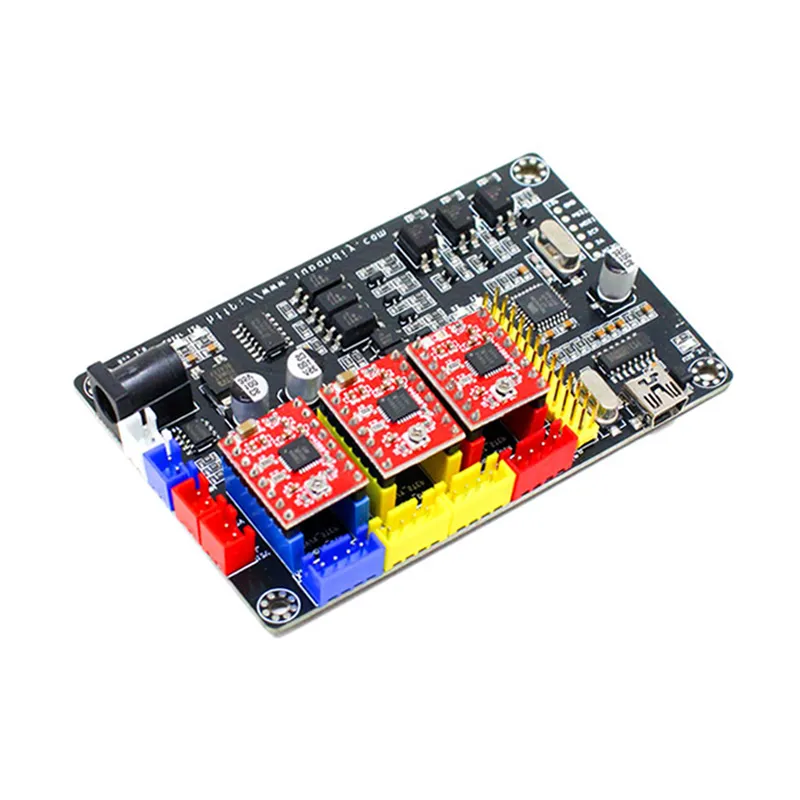

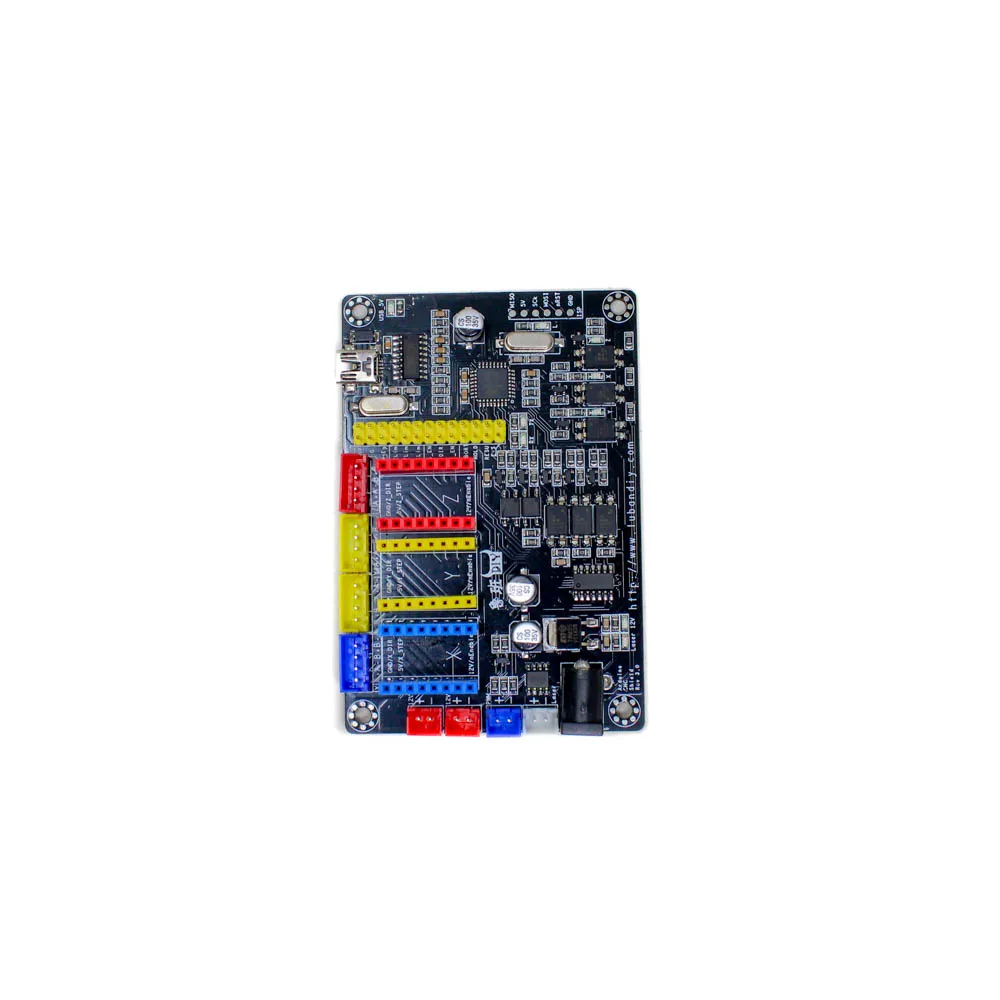

The LBA-B-V4 is a versatile 3-axis stepper motor drive controller motherboard designed for CNC and laser engraving applications. It features high-power laser support, opto-isolation, and is compatible with Arduino setups for easy integration into custom projects.

Features

  • Integrated 3-axis (XYZ) stepper motor control for CNC machines.
  • Supports high-power lasers from 100mW up to 5W with adjustable control.
  • Features full opto-isolation for enhanced safety and noise reduction.
  • Pre-loaded with the latest CNC firmware for immediate use.
  • Compatible with Arduino, simplifying development and project integration.

Out of stock

Description

This CNC Three Axis Stepper Motor Drive Controller Motherboard provides a robust solution for driving stepper motors in XYZ configurations, making it ideal for various CNC routers, laser engravers, and automation projects. Designed with embedded systems in mind, it supports high-power laser modules and includes features like limit switch inputs for precise movement control and external relay support for auxiliary functions. Its gold-plated pins ensure reliable electrical contact and long-term durability.

Equipped with the latest CNC firmware, the board ensures precise motion control and seamless operation. The full opto-isolation technology enhances system stability by protecting sensitive control circuits from motor noise and high-current spikes. Developers can easily integrate this controller into their existing Arduino-based environments, leveraging familiar programming paradigms for rapid prototyping and deployment.

Key Features

  • XYZ three-axis control for comprehensive motion capabilities.
  • Supports stepper motors with up to 2A current per axis.
  • Integrated laser power adjustment and low-light function for precise laser operation (100mW to 5W).
  • Full opto-isolation between control and power sections for electrical safety.
  • Equipped with the latest stable CNC firmware for reliable performance.
  • Includes inputs for limit switches to prevent overtravel.
  • Offers support for an external relay for accessory control.
  • Features motor subdivision for smoother movement and higher resolution.

Applications

  • DIY CNC router machines and milling platforms.
  • Laser engraving and cutting systems.
  • Automated drawing and plotting machines.
  • Robotics projects requiring multi-axis stepper control.
  • Educational and prototyping platforms for motion control.

Technical Specifications

Model No. / NameLBA-B-V4
Axis ControlXYZ Three Axis
Supply Voltage12V DC
Stepper Motor CurrentUp to 2A (Max)
Laser Power Range100mW to 5W
Board Dimensions120mm x 65mm
Mounting Pitch Size112mm x 57mm
Weight58g

Frequently Asked Questions

What power supply does this CNC controller require?

The LBA-B-V4 controller operates on a 12V DC power supply. It is crucial to provide a stable and sufficient current supply, especially when driving multiple stepper motors and a high-power laser, to ensure optimal performance and prevent damage to components.

Is this board compatible with GRBL firmware?

Yes, the board comes pre-loaded with the latest CNC firmware, which is typically a GRBL variant, making it compatible with popular GRBL control software. This allows for straightforward G-code interpretation and control from your computer, simplifying CNC and laser operations.

What is the maximum laser power supported by this board?

This controller motherboard supports laser modules ranging from 100mW up to a maximum of 5W. It includes adjustable laser power control and a low-light function, providing flexibility for various engraving and cutting tasks, from fine detail work to more aggressive material removal.

How does the opto-isolation feature benefit my projects?

Full opto-isolation effectively separates the control signals from the high-current motor drive circuits. This crucial feature prevents electrical noise, voltage spikes, and ground loop issues from affecting the microcontroller, enhancing system stability, reliability, and protecting sensitive components from damage.

Package Includes

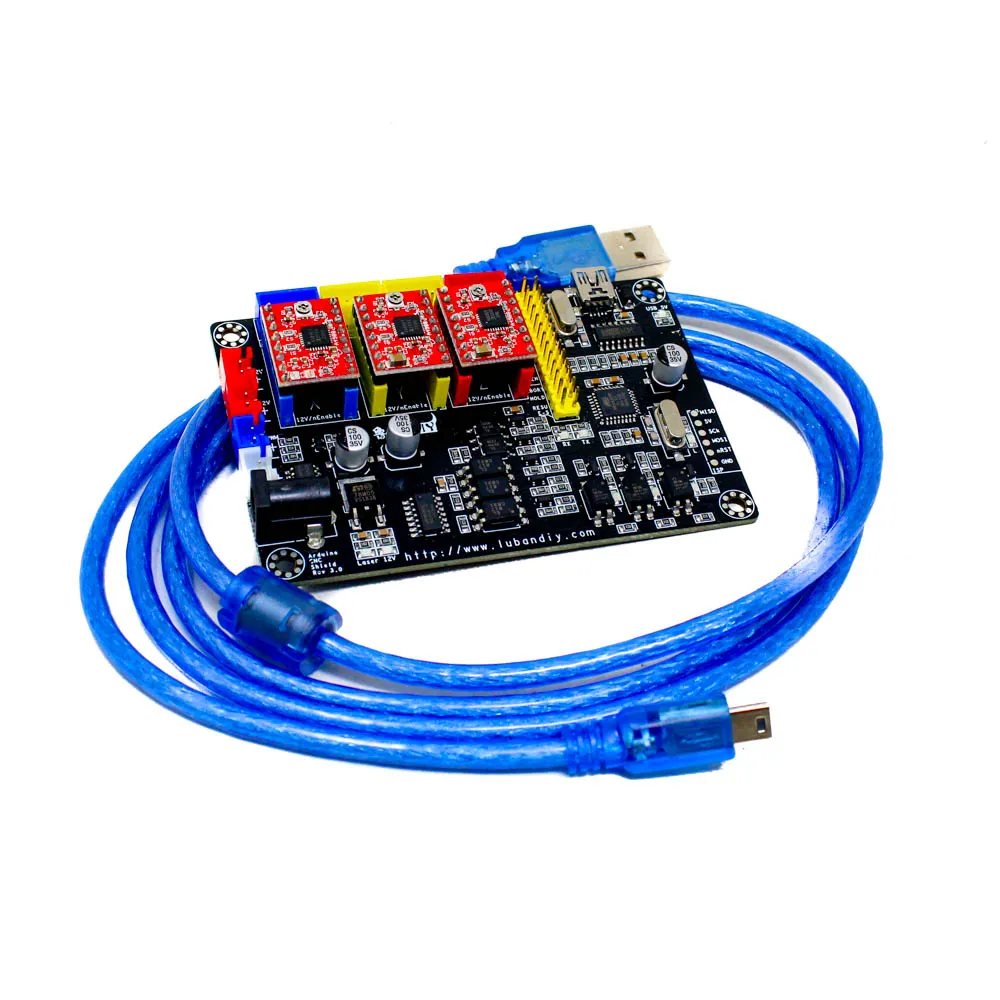

  • 1 x CNC Three Axis Stepper Motor Drive Controller Motherboard

Additional Information

Weight 0.058 kg
Dimensions 12 × 6.5 cm
