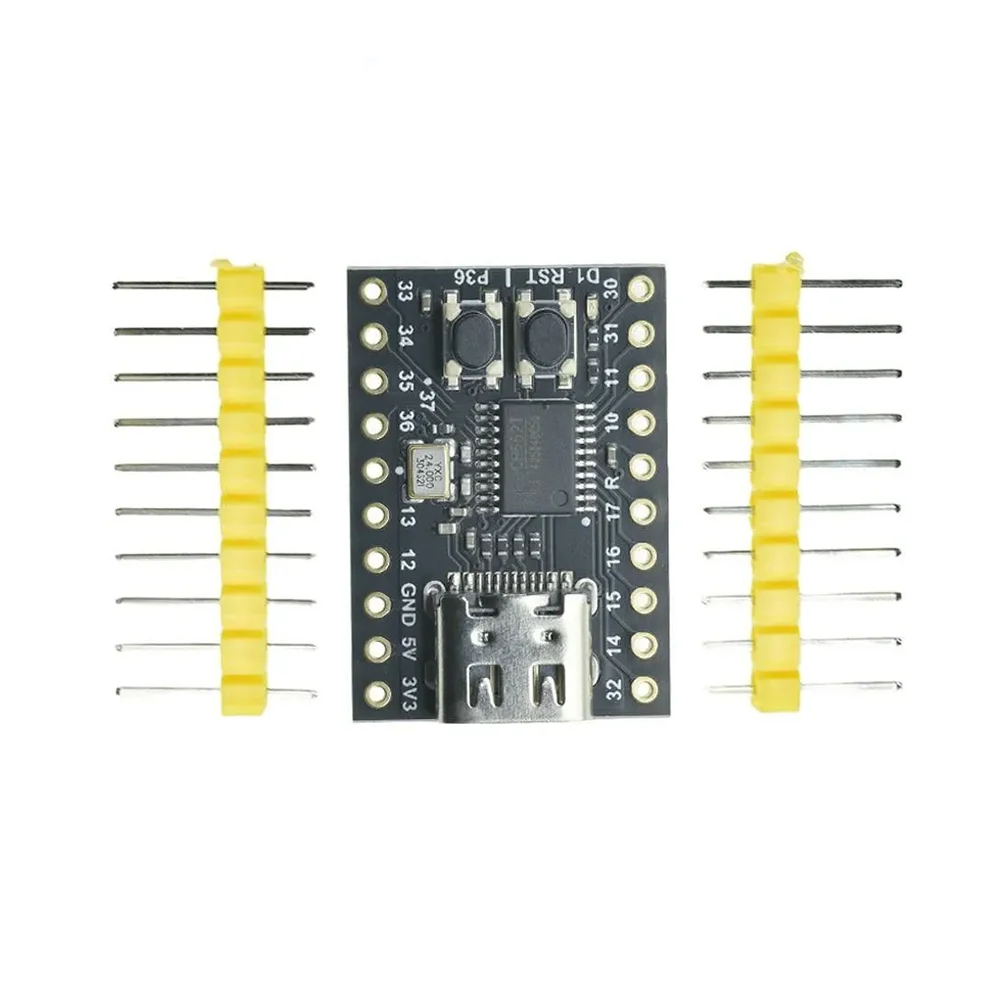

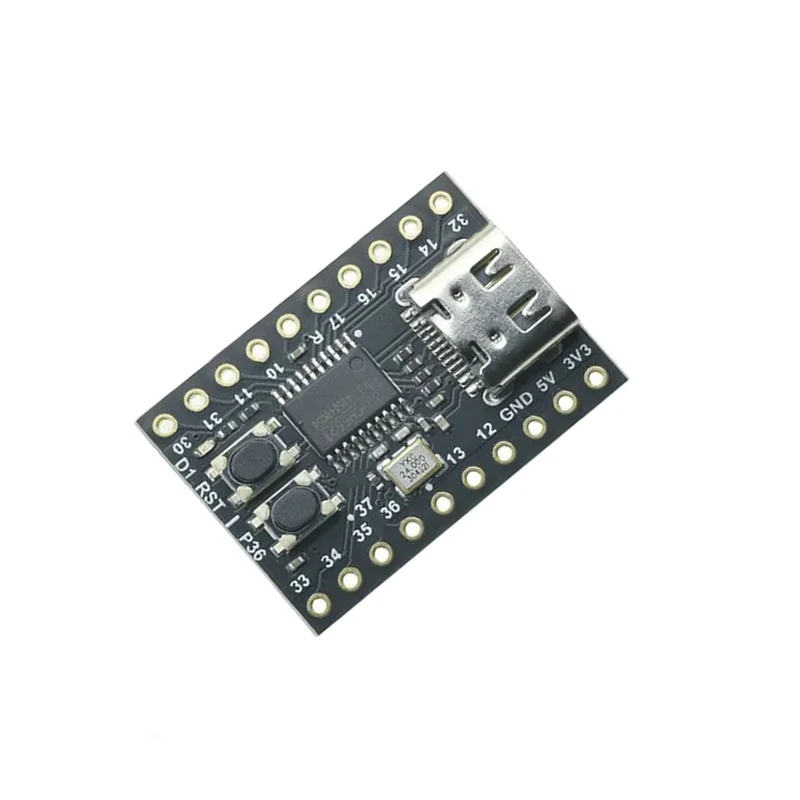

WeAct Studio CH552T Mini Core Board MCS51 DIP20 TSSOP20
The WeAct Studio CH552T Mini Core Board is a compact development platform for the enhanced E8051-kernel CH552 microcontroller, offering MCS51 instruction set compatibility, USB device control, and support for Keil, Arduino, and SDCC development environments.
Features
- Enhanced E8051 core delivers 8-15x faster average instruction speed than standard MCS51.
- Integrated USB device controller and dual asynchronous serial ports for versatile connectivity.
- Supports up to 24MHz system frequency with 16KB ROM and 1KB xRAM with DMA.
- Built-in ADC for analog sensing and touch key capacitance detection.
- Compact DIP20/TSSOP20 form factor ideal for embedded system prototyping and learning.
Out of stock
The WeAct Studio CH552T Mini Core Board provides a streamlined development interface for the CH552 microcontroller, an enhanced E8051-kernel device fully compatible with the classic MCS51 instruction set. Its architecture features 79% single-byte, single-cycle instructions, significantly boosting processing throughput for embedded applications requiring responsive control and data handling.
This board integrates key peripherals including a USB device controller, dual UARTs, SPI, and a multi-channel ADC, enabling direct interfacing for sensor data acquisition, human interface devices, and serial communication protocols. The inclusion of 1KB of on-chip xRAM with DMA support facilitates efficient data movement without CPU overhead, optimizing performance for data-intensive tasks.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
