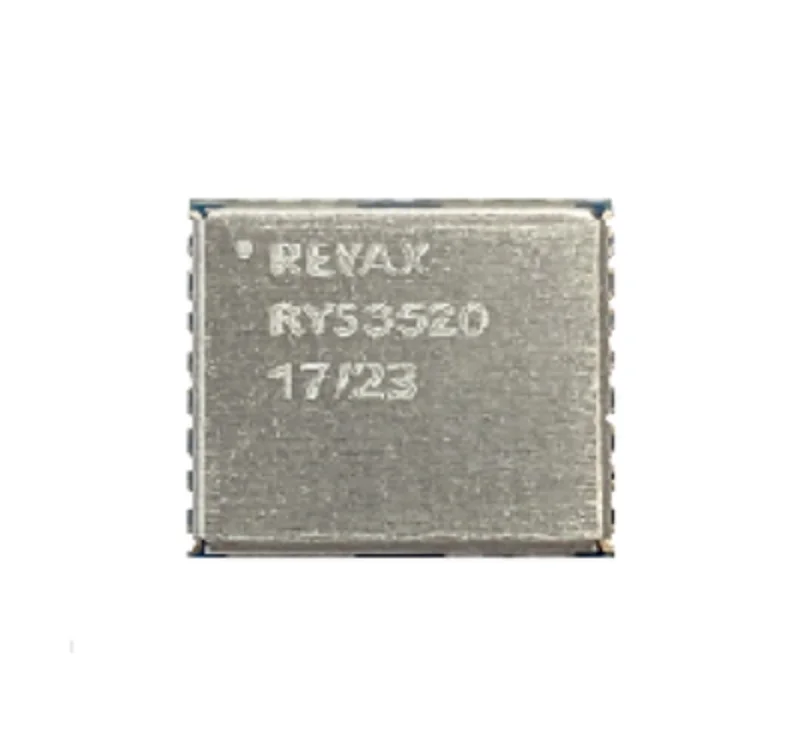

Reyax RYS3520 GNSS Module w/ 3.3V UART Interface
The Reyax RYS3520 is a high-performance multi-GNSS module supporting GPS, GLONASS, Galileo, BeiDou, and QZSS with SBAS augmentation, featuring a 3.3V UART interface for easy integration into IoT tracking and positioning systems.
Features
- Multi-GNSS support for GPS, GLONASS, Galileo, BeiDou, and QZSS with SBAS (WAAS, EGNOS) augmentation.
- High-sensitivity receiver with integrated 12 multi-tone active interference cancellers for robust signal acquisition.
- 3.3V UART serial interface (NMEA 0183 v4.10 protocol) for simple MCU integration (Arduino, ESP32, Raspberry Pi).
- Enhanced RF front-end with SAW filter, LNA, and TCXO for improved indoor/outdoor path detection.
- Wide operating voltage (2.5V to 3.6V) and industrial temperature range (-40°C to 85°C) for harsh environments.
Out of stock
The Reyax RYS3520 GNSS module is engineered for high-accuracy, multi-constellation positioning in demanding IoT applications. Its advanced receiver architecture integrates 12 active interference cancellers and an enhanced SAW filter, LNA, and TCXO to maintain signal integrity in challenging RF environments, from urban canyons to indoor spaces.
Operating from a 2.5V to 3.6V supply, the module outputs standard NMEA 0183 sentences over a UART interface, making it firmware-compatible with popular development platforms like Arduino, ESP-IDF, and Raspberry Pi. Its industrial-grade construction and wide temperature tolerance make it suitable for asset tracking, telematics, drone navigation, and remote environmental monitoring systems where reliability is critical.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 5 × 6 × 1 cm |
