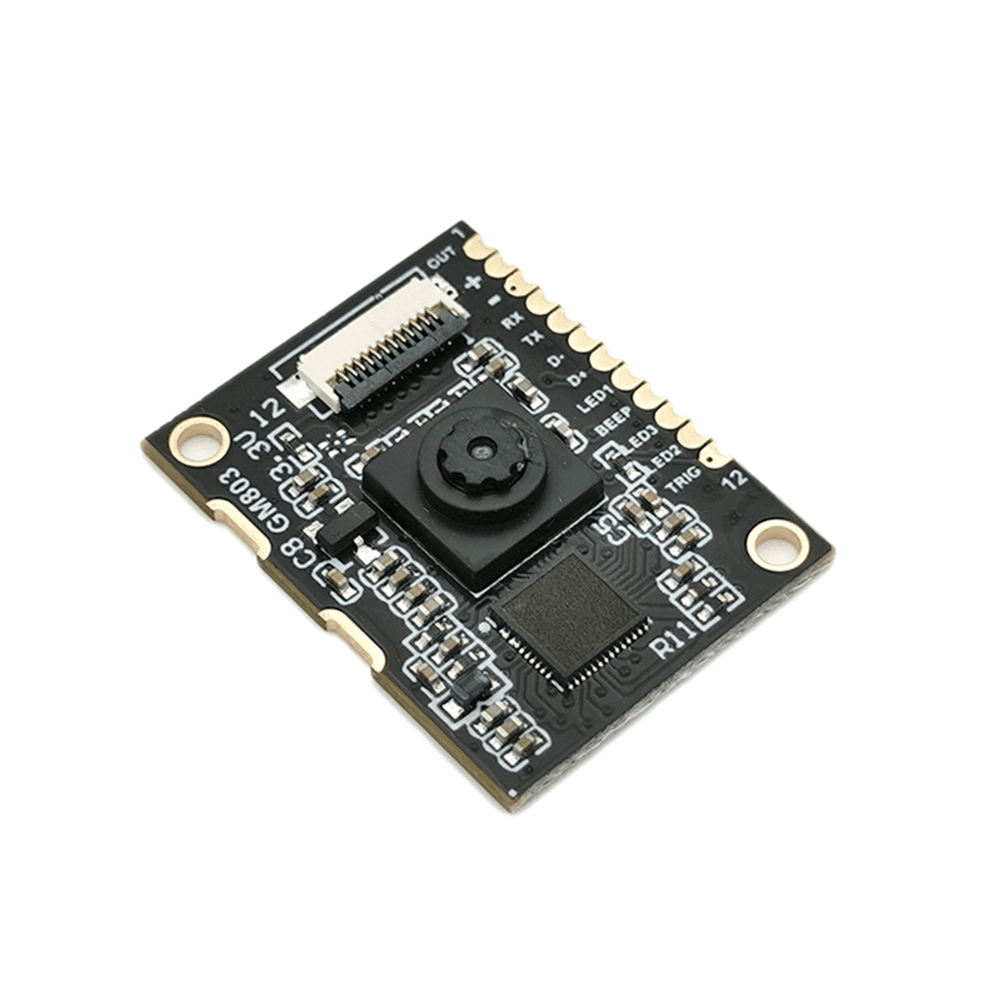

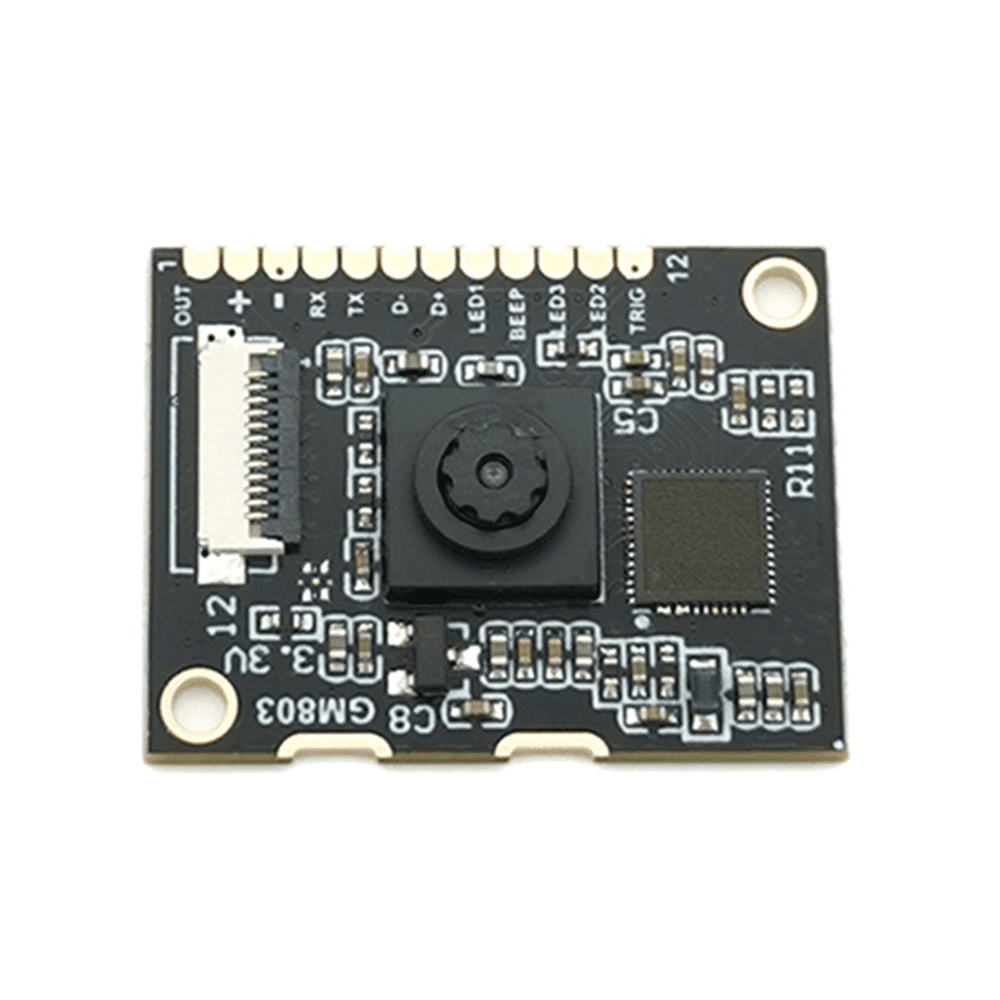

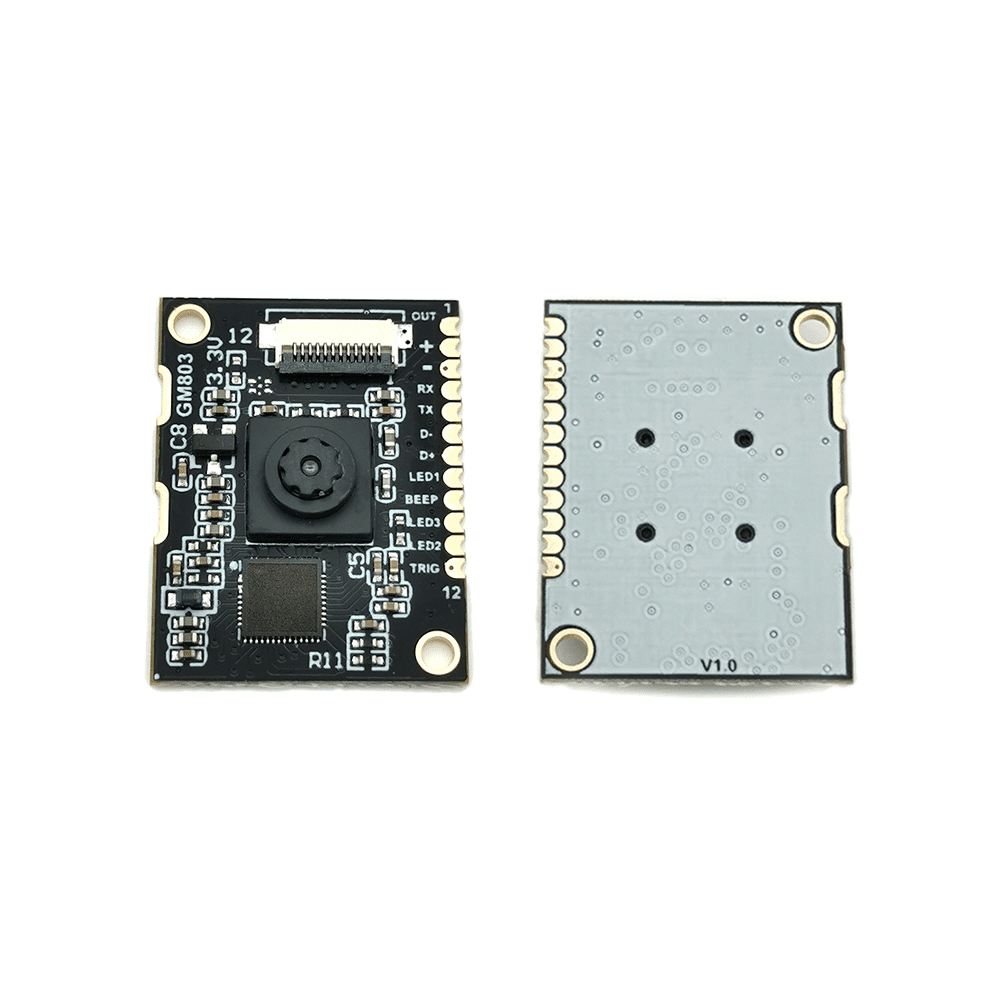

Grow GM803-L Barcode Scanner Module - UART/USB Interface, 7-50cm Range
The Grow GM803-L is a versatile 1D/2D barcode scanner module featuring a high-resolution CMOS sensor, supporting UART and USB interfaces for seamless integration into embedded systems, POS terminals, and industrial automation platforms.
Features
- High-resolution CMOS sensor with 640×480 pixel scan mode for reliable 1D and 2D code reading.
- Dual UART (TTL) and USB host interfaces for flexible connectivity with microcontrollers and PCs.
- Extended reading distance range from 7 cm to 50 cm for versatile mounting and application needs.
- Fast startup time of ≤250ms ensures rapid deployment and high-throughput scanning operations.
- Integrated LED and buzzer provide immediate visual and auditory feedback for successful reads.
Out of stock
The GM803-L barcode scanner module utilizes a high-sensitivity CMOS image sensor to capture and decode a comprehensive range of 1D linear and 2D Matrix barcodes, including QR Code, Data Matrix, PDF417, EAN, UPC, and Code 128. Its optimized optical design and recommended uniform white lighting ensure consistent performance across varying surface materials and print qualities.
Engineered for embedded integration, the module operates on a 3.3V DC supply and communicates via simple serial command protocols over UART or USB. The compact form factor and included 60mm flat cable facilitate installation in space-constrained environments such as kiosks, vending machines, and automated logistics systems.
Additional Information
| Weight | 0.025 kg |
|---|---|

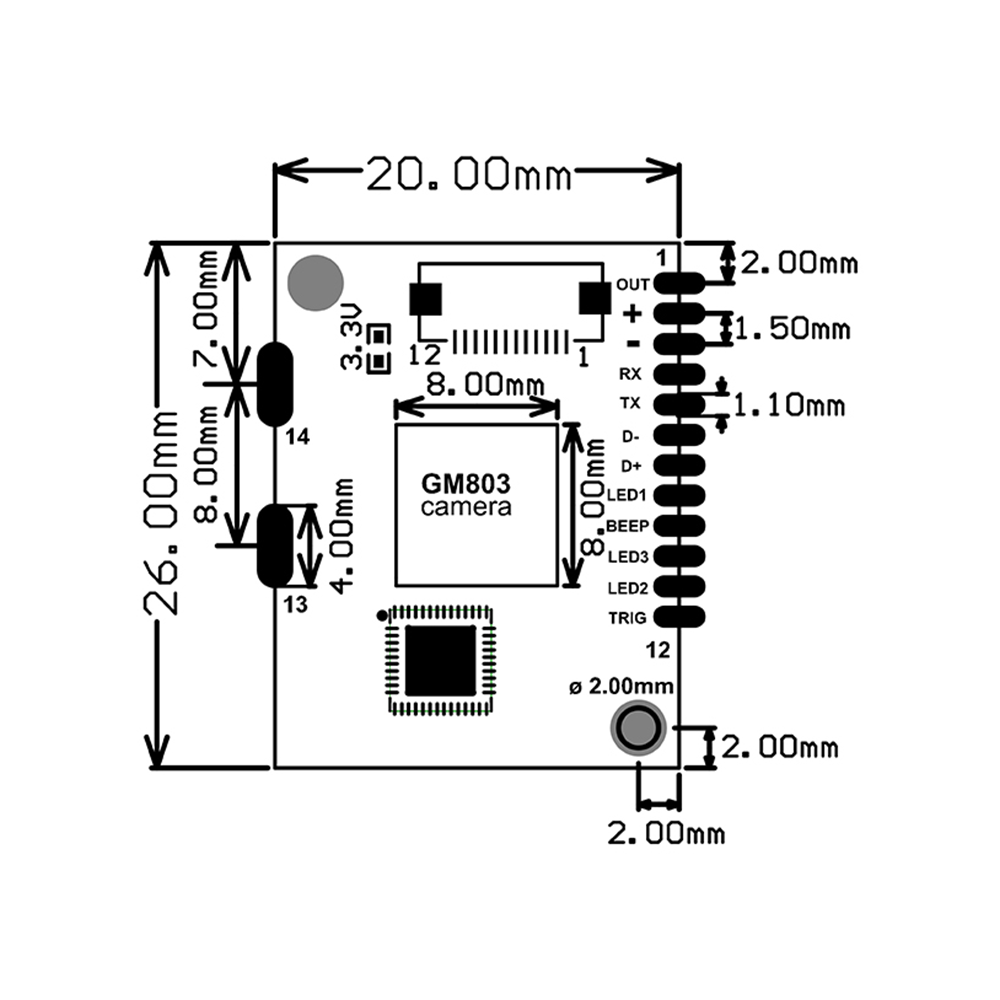

| Dimensions | 5 × 6 × 2 cm |
