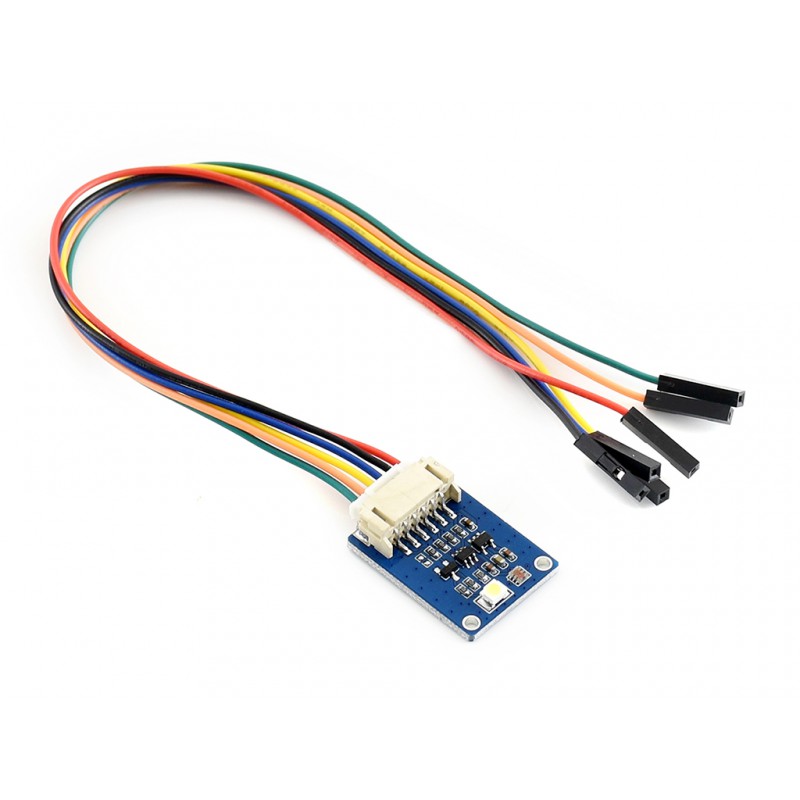

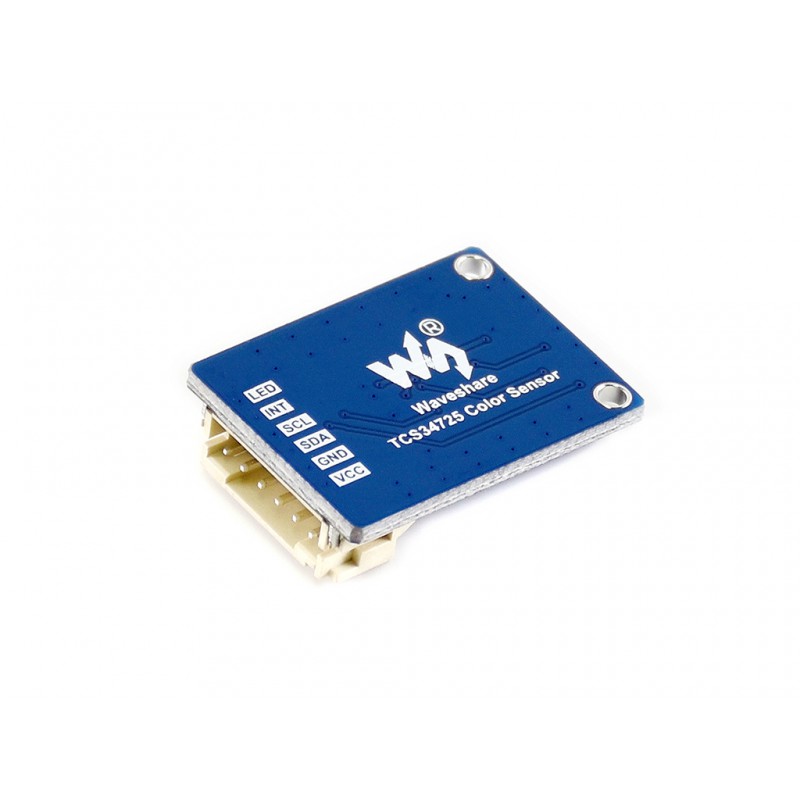

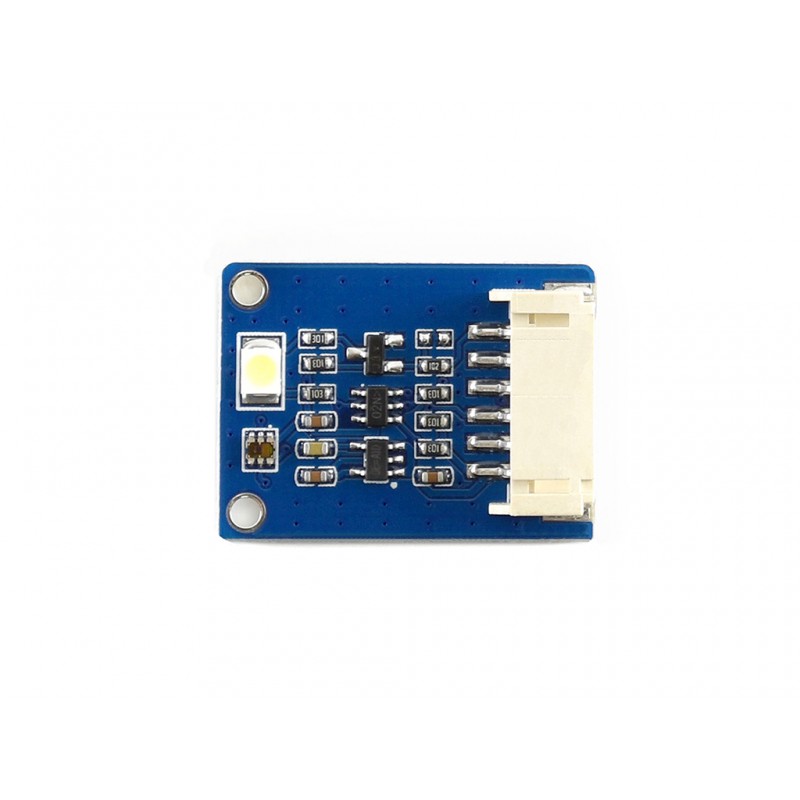

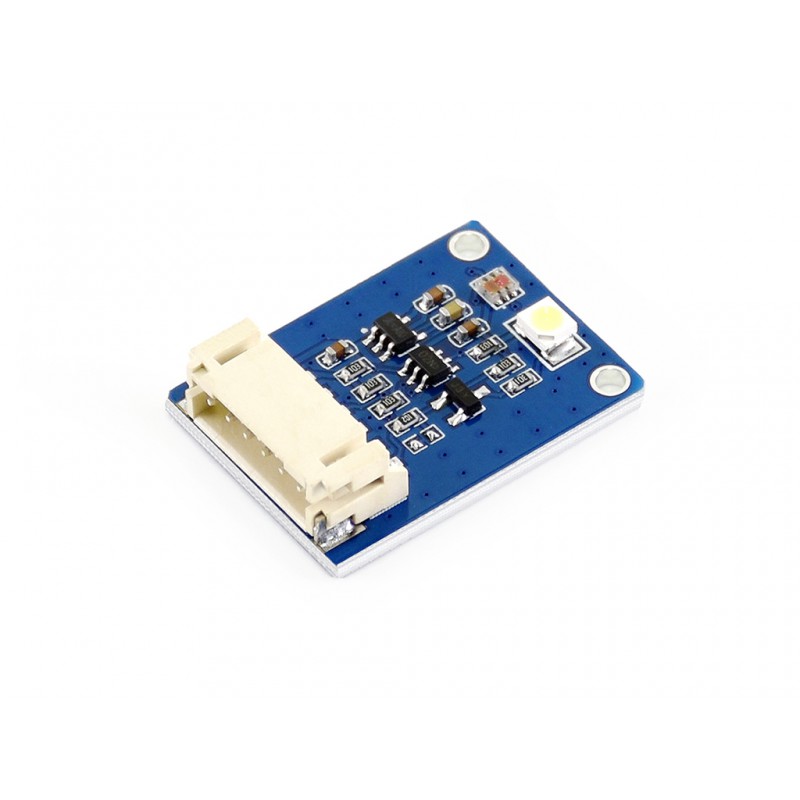

Waveshare TCS34725FN Color Sensor Module - I2C Interface, 3.3V/5V, 16-bit RGBC
The Waveshare TCS34725 Color Sensor Module is a high-precision RGBC (Red, Green, Blue, Clear) light-to-digital converter designed for microcontroller platforms like Arduino, Raspberry Pi, and STM32. Operating from 3.3V or 5V logic, it provides 16-bit resolution per channel via I2C interface for accurate color identification and ambient light sensing.
Features
- High-sensitivity TCS34725FN sensor with integrated IR blocking filter for accurate color measurement.
- I2C digital interface simplifies connection, requiring only SDA and SCL pins.
- Dual-voltage operation (3.3V/5V) with onboard level translator for broad system compatibility.
- 16-bit resolution per RGBC channel enables wide dynamic range and precise light sensing.
- Onboard programmable LED fill-light with PWM dimming for controlled illumination.
Out of stock
The Waveshare TCS34725 module utilizes the TCS34725FN color sensor, a digital converter that transforms incident light into separate red, green, blue, and clear (luminance) digital values. Its integrated IR blocking filter significantly reduces the infrared spectral component, ensuring color readings are not skewed by ambient IR light, which is critical for accurate RGB analysis under varying lighting conditions.
Designed for easy integration, the module includes a voltage level translator, making it directly compatible with both 3.3V and 5V microcontroller systems without external logic shifting. The onboard white LED provides adjustable fill-light via PWM control, allowing for consistent readings in low-light environments. The interrupt pin supports programmable upper and lower thresholds for light intensity, enabling efficient event-driven operation.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.7 × 2 cm |
