Waveshare SIM7600G-H 4G M.2 HAT for Raspberry Pi, LTE Cat4 GNSS

₹7,769.00 (Inclusive of all taxes)
Out of Stock

The Waveshare SIM7600G-H M.2 4G HAT equips your Raspberry Pi, Jetson Nano, or PC with robust LTE Cat4 global cellular connectivity and integrated GNSS positioning. It provides high-speed 4G, 3G, and 2G communication capabilities via its M.2 interface and a versatile USB 3.1 connection.

Features

  • Features LTE Cat4 cellular communication with global band support (4G/3G/2G).
  • Integrated multi-constellation GNSS for precise positioning (GPS, Beidou, Glonass, Galileo, QZSS).
  • M.2 form factor with USB 3.1 (USB 2.0 compatible) for high-speed host connectivity.
  • Supports Raspberry Pi, Jetson Nano, and PC via a flexible USB interface.
  • Enables dial-up, phone calls, SMS, TCP/UDP, MQTT, and HTTP(S) protocols.

Out of stock

Description

The Waveshare SIM7600G-H M.2 4G HAT delivers comprehensive wireless communication capabilities for embedded systems and IoT projects. Built around the SIM7600G-H module, it supports a wide range of LTE-FDD, LTE-TDD, UMTS/HSDPA/HSPA+, and GSM/GPRS/EDGE bands, ensuring global connectivity for diverse applications.

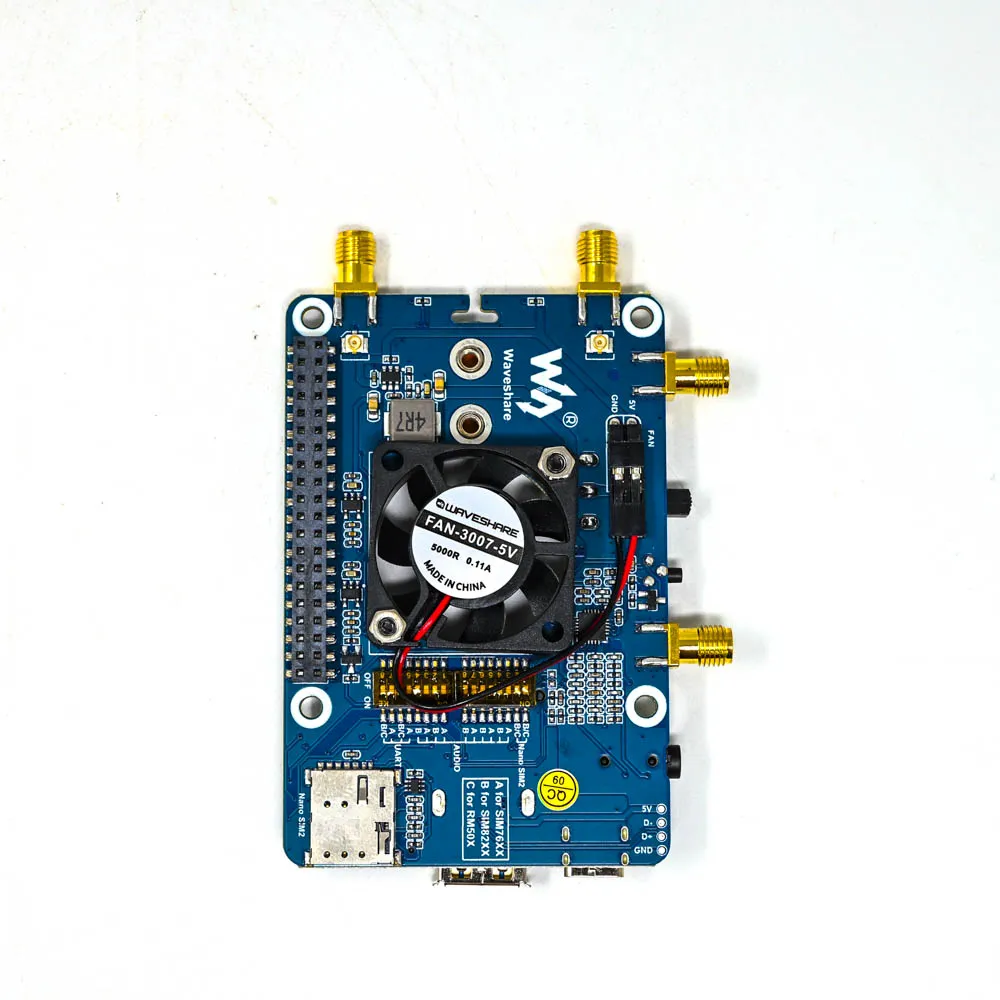

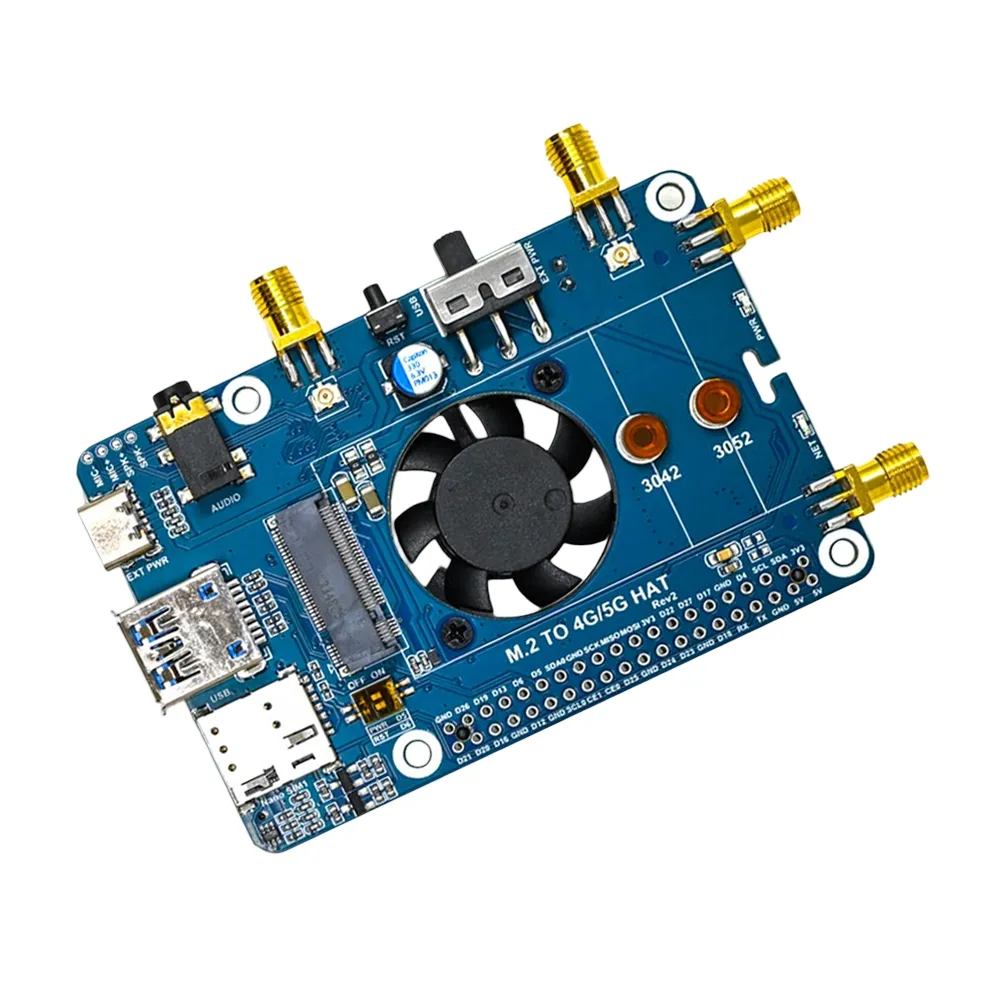

This HAT integrates an M.2 interface and connects to host boards like the Raspberry Pi or NVIDIA Jetson Nano via a high-speed USB 3.1 port (backward compatible with USB 2.0). Beyond cellular data, it offers GNSS positioning with support for GPS, Beidou, Glonass, Galileo, and QZSS, making it suitable for location-aware systems. The board also includes an audio jack and decoder for phone call functionality, alongside onboard control pins (UART, PWR, RST) and a dedicated USB-C power input for enhanced stability.

Key Features

  • Supports dial-up, phone calls, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and more.
  • Integrated GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, and LBS base station.

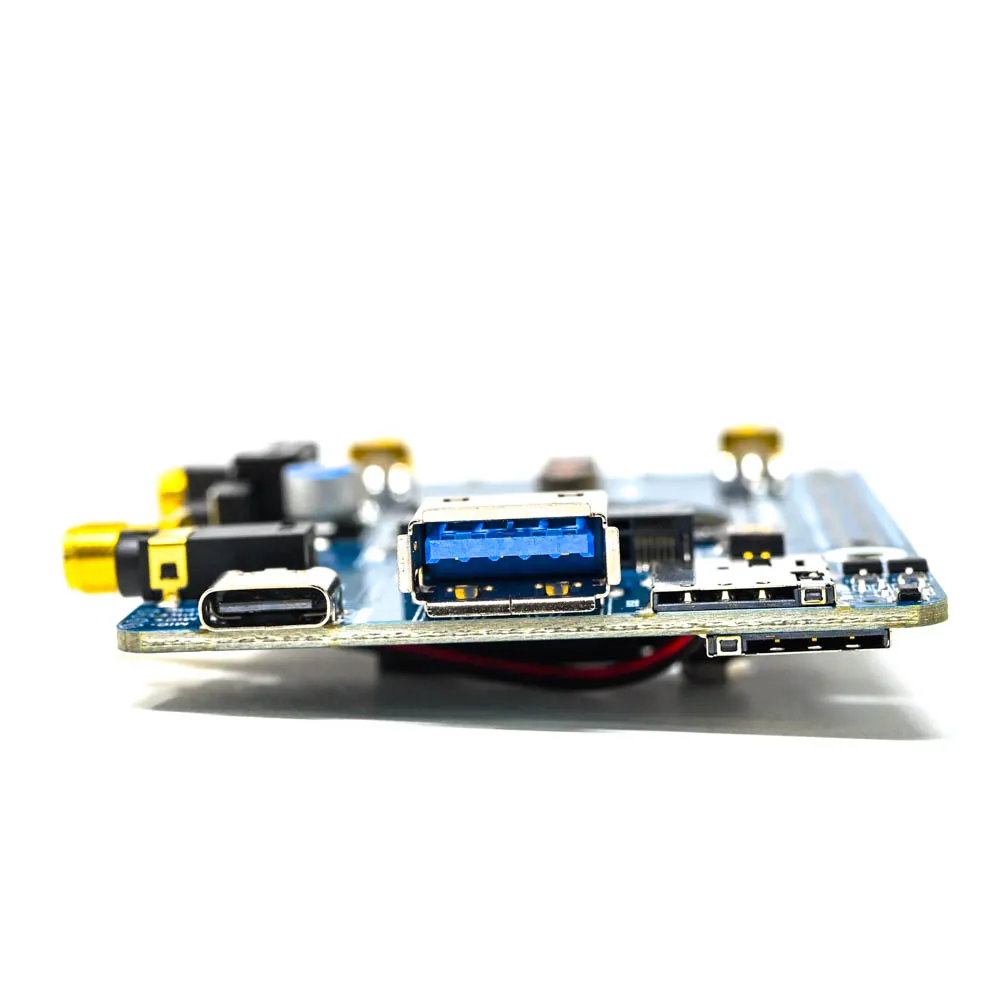

  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano hosts.
  • Onboard UART, PWR, and RST control pins with built-in voltage level translator, enabled via DIP switch for Raspberry Pi/Arduino compatibility.
  • USB-C connector for standalone module power supply, enhancing stability for higher loads.
  • Onboard power supply on/off switch, reset button, and LED indicator for easy operation and status monitoring.

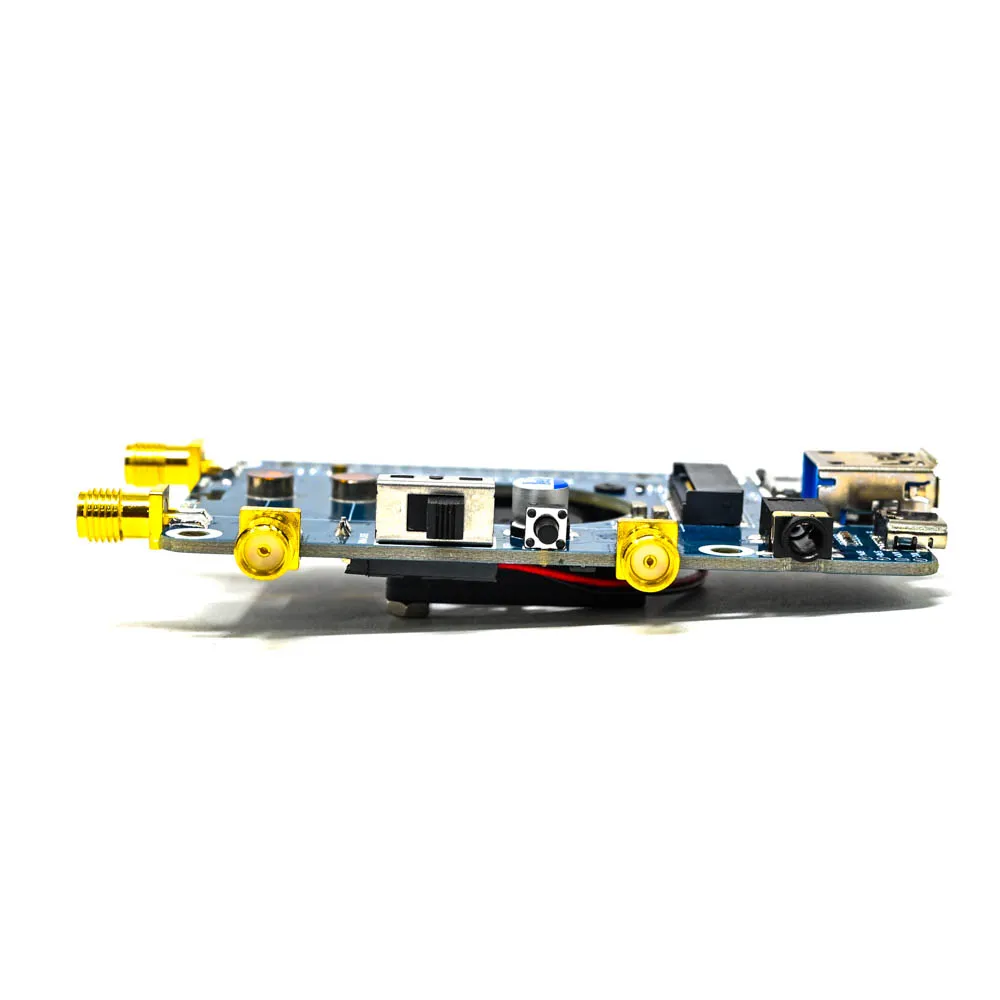

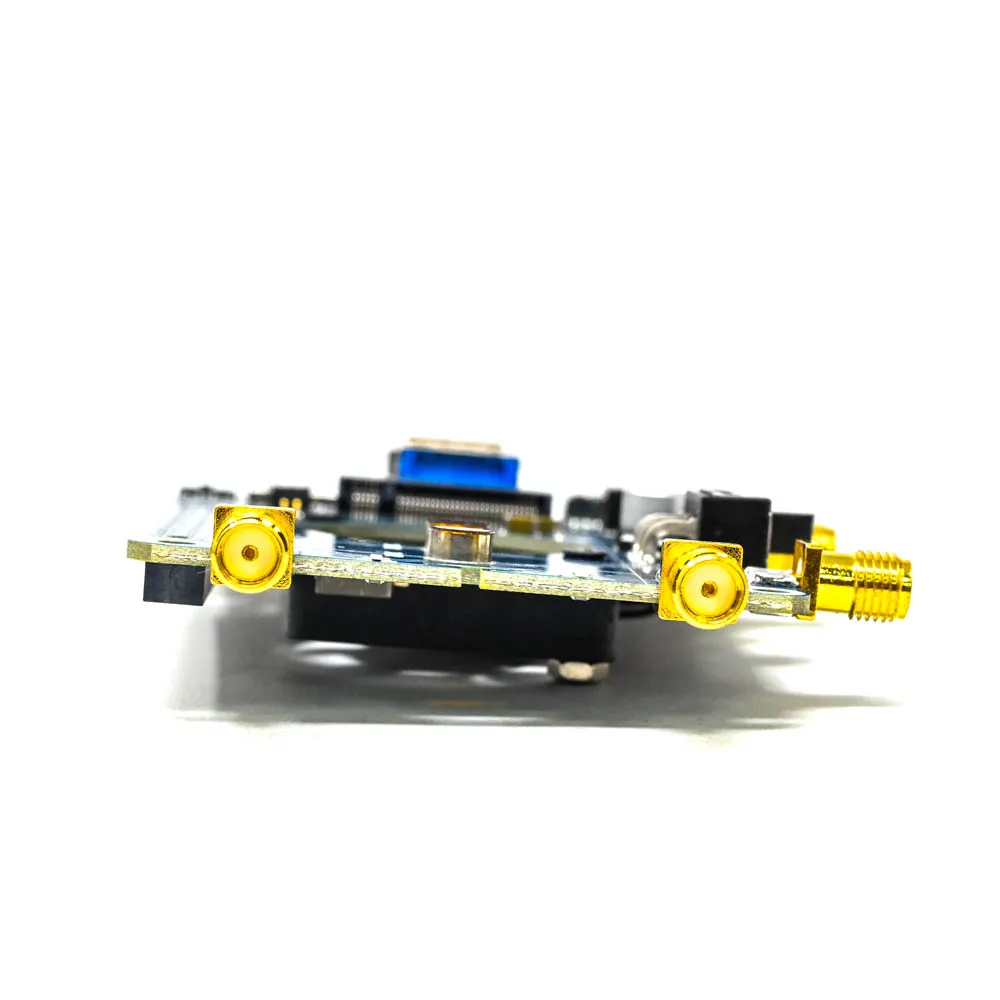

  • Reserved 4x SMA to IPEX antenna interfaces, with 2 pre-soldered connectors for flexible antenna placement.
  • Onboard audio jack and audio decoder for voice communication functionality.
  • High-efficiency power supply circuit capable of up to 3A output current.

Applications

  • IoT gateways and edge computing devices requiring cellular connectivity.
  • Telematics and asset tracking solutions with integrated GNSS.
  • Remote monitoring and data logging applications in isolated environments.
  • Smart city infrastructure for sensor data transmission.
  • Cellular backup for wired networks or portable communication projects.

Technical Specifications

Item TypeHAT
CompatibilityPi Series
HAT TypeGNSS HAT
Model NameMicrocontroller (SIM7600G-H)
Supported ProtocolsDial-up, phone calls, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S)
GNSS SystemsGPS, Beidou, Glonass, Galileo, QZSS, LBS base station
USB Standard2.0/3.0 compatible
Max. Operating Current3A
LTE-FDD BandsB1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD BandsB34, B38, B39, B40, B41
3G (UMTS/HSDPA/HSPA+) BandsB1, B2, B4, B5, B6, B8, B19
2G (GSM/GPRS/EDGE) Frequencies850, 900, 1800, 1900 MHz

Frequently Asked Questions

What host devices are compatible with the Waveshare SIM7600G-H M.2 4G HAT?

This HAT is designed for compatibility with Raspberry Pi series boards, NVIDIA Jetson Nano, and general PCs. It connects via a USB 3.1 port, which is backward compatible with USB 2.0, providing flexible integration into various development environments and embedded systems for high-speed cellular communication.

What cellular bands does the SIM7600G-H module support for global connectivity?

The SIM7600G-H module supports a comprehensive range of global bands, including LTE-FDD, LTE-TDD, UMTS/HSDPA/HSPA+, and GSM/GPRS/EDGE. This wide band coverage ensures its suitability for deployment in diverse geographical regions, providing reliable 4G, 3G, and 2G cellular communication capabilities for IoT and M2M applications.

Which GNSS systems are integrated into this HAT for positioning services?

The HAT integrates multi-constellation GNSS capabilities, supporting GPS, Beidou, Glonass, Galileo, and QZSS. Additionally, it leverages LBS base station positioning for enhanced location accuracy. This comprehensive GNSS support makes the module ideal for applications requiring precise geographical data, such as asset tracking and navigation.

How is power supplied to the SIM7600G-H module when used with a host board?

The module typically draws power from the host board via the USB connection. However, for applications requiring higher current or more stable power delivery, an onboard USB-C connector allows for a dedicated, standalone power supply. This flexible power option ensures robust operation, especially when driving additional peripherals or maintaining network stability.

What communication protocols and functionalities does the SIM7600G-H HAT support?

The SIM7600G-H HAT supports a wide array of communication functionalities including dial-up networking, phone calls, and SMS messaging. For data applications, it supports key IoT protocols such as TCP, UDP, MQTT, HTTP(S), and FTP(S). These diverse protocols enable seamless integration into various cloud platforms and remote control systems for data transmission.

Package Includes

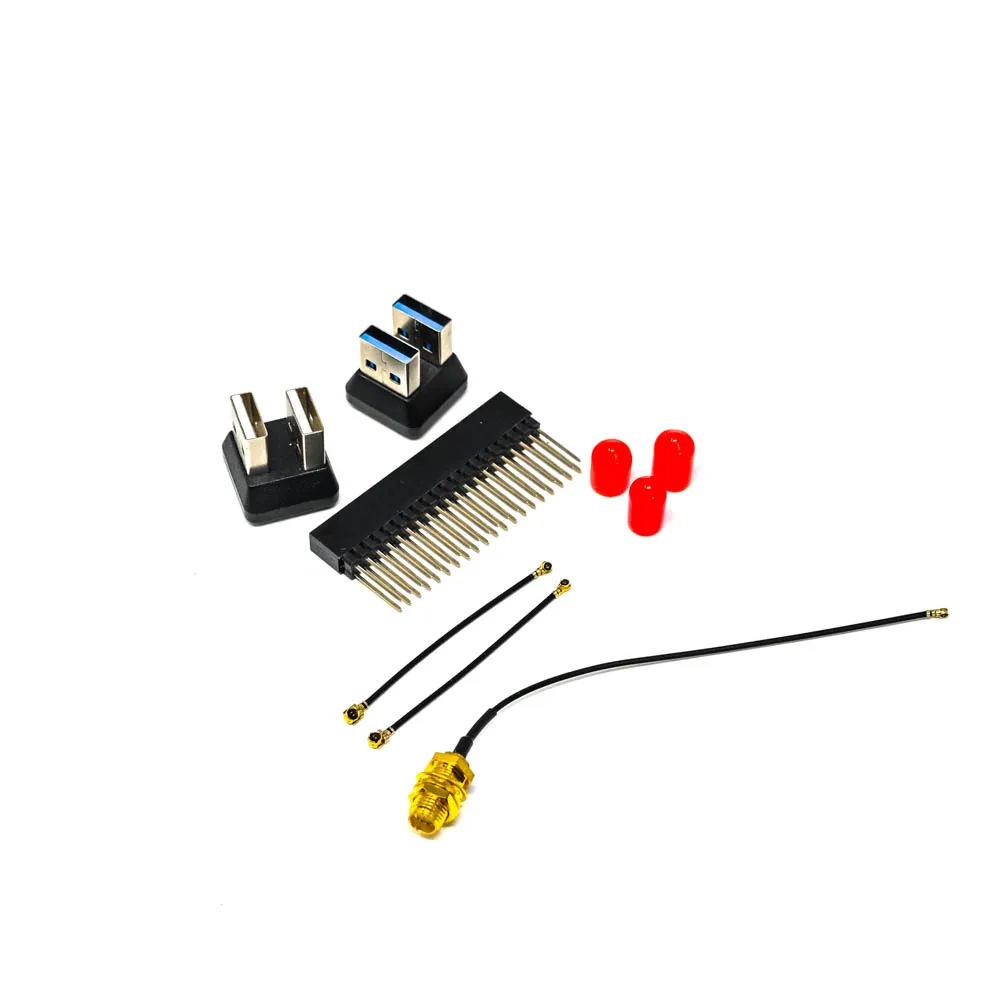

  • 1 x Waveshare SIM7600G-H M.2 4G HAT for Raspberry Pi
  • 1 x M.2 TO 4G/5G HAT Adapter

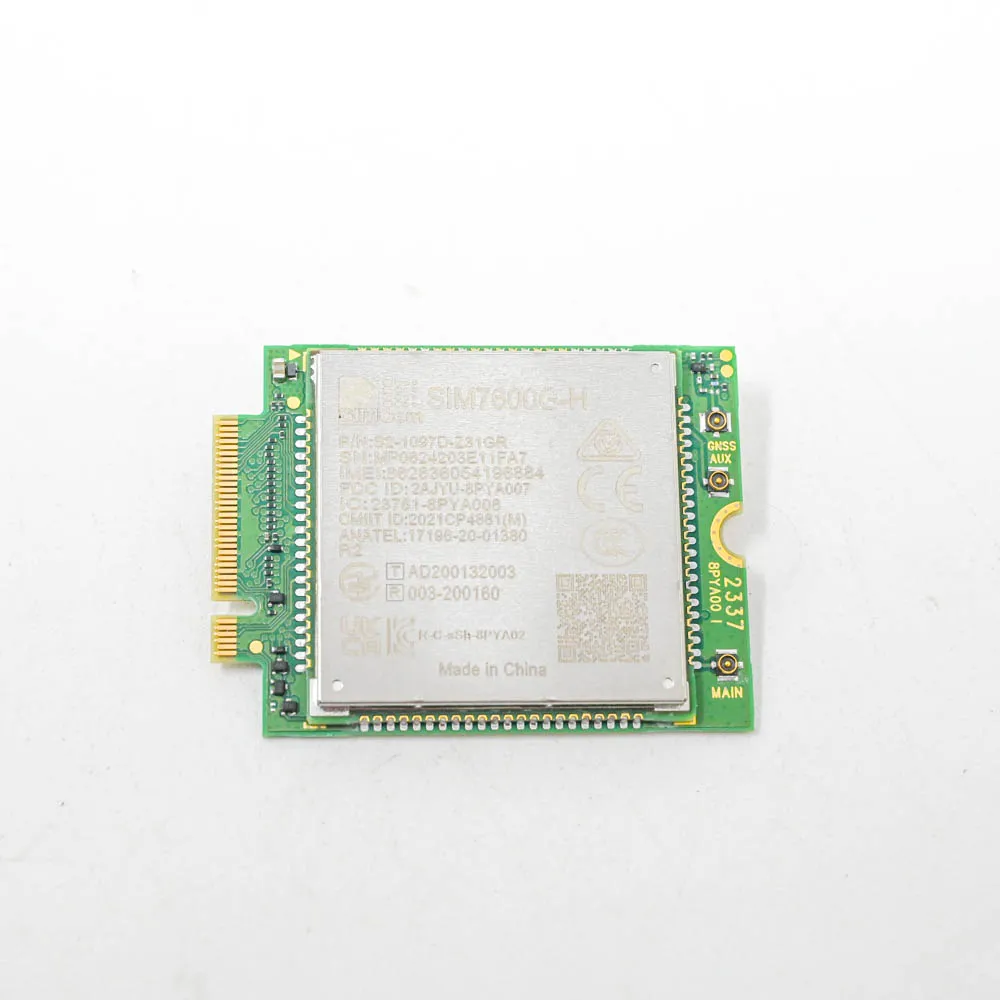

  • 1 x SIM7600G-H-M.2 Module

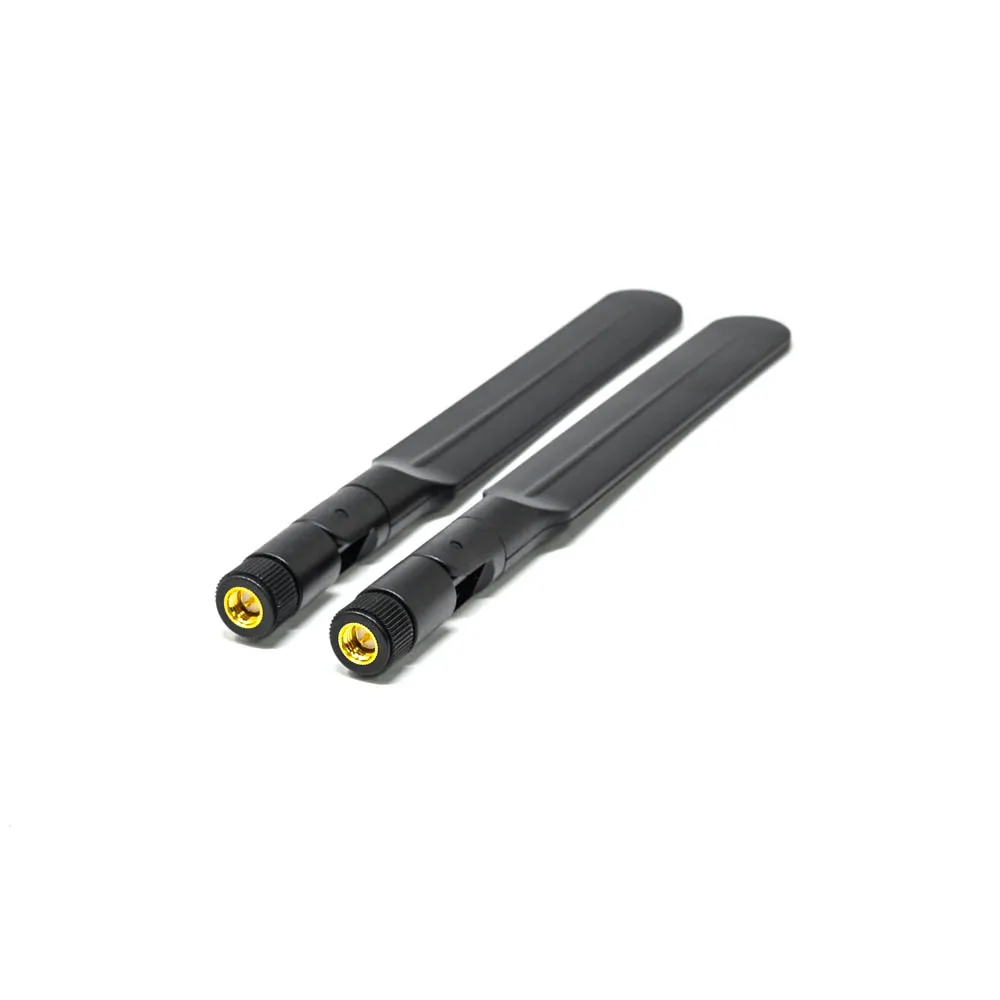

  • 2 x Antenna
  • 2 x IPEX Adapter Cable
  • 1 x 2*20PIN Pin Header

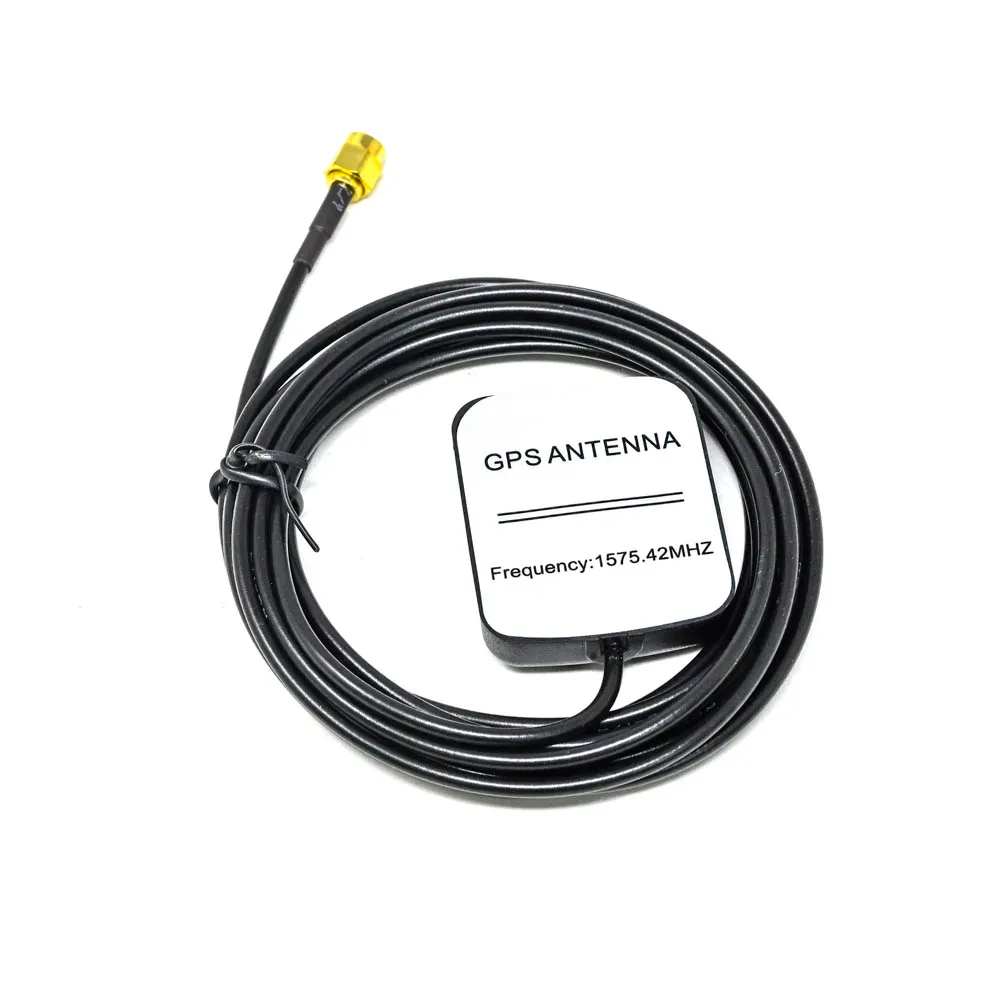

  • 1 x Passive GPS Antenna

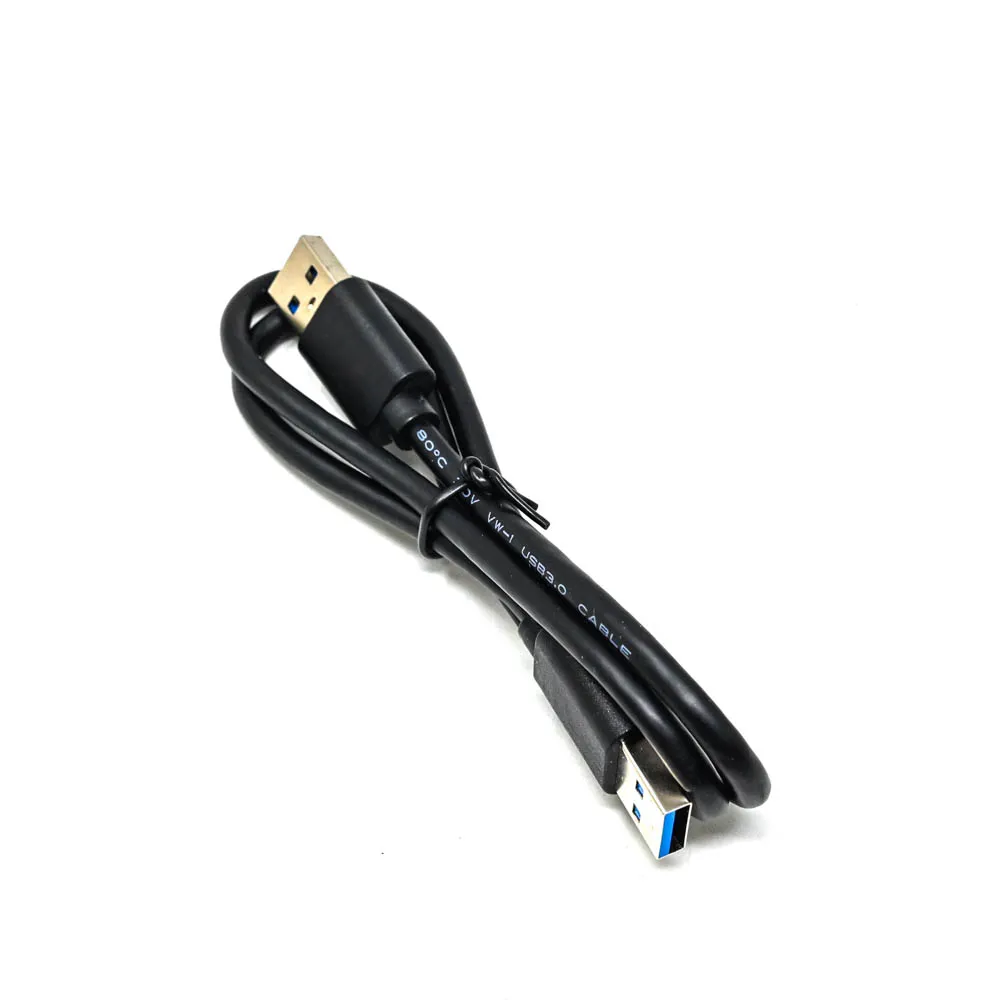

  • 1 x Dual Plug USB3.0 Cable
  • 1 x USB3.0 Adapter
  • 1 x USB2.0 Adapter
  • 2 x SMA Protective Cap
  • 1 x Screws Pack

Additional Information

Weight 0.05 kg
Dimensions 10 × 7 × 3 cm
