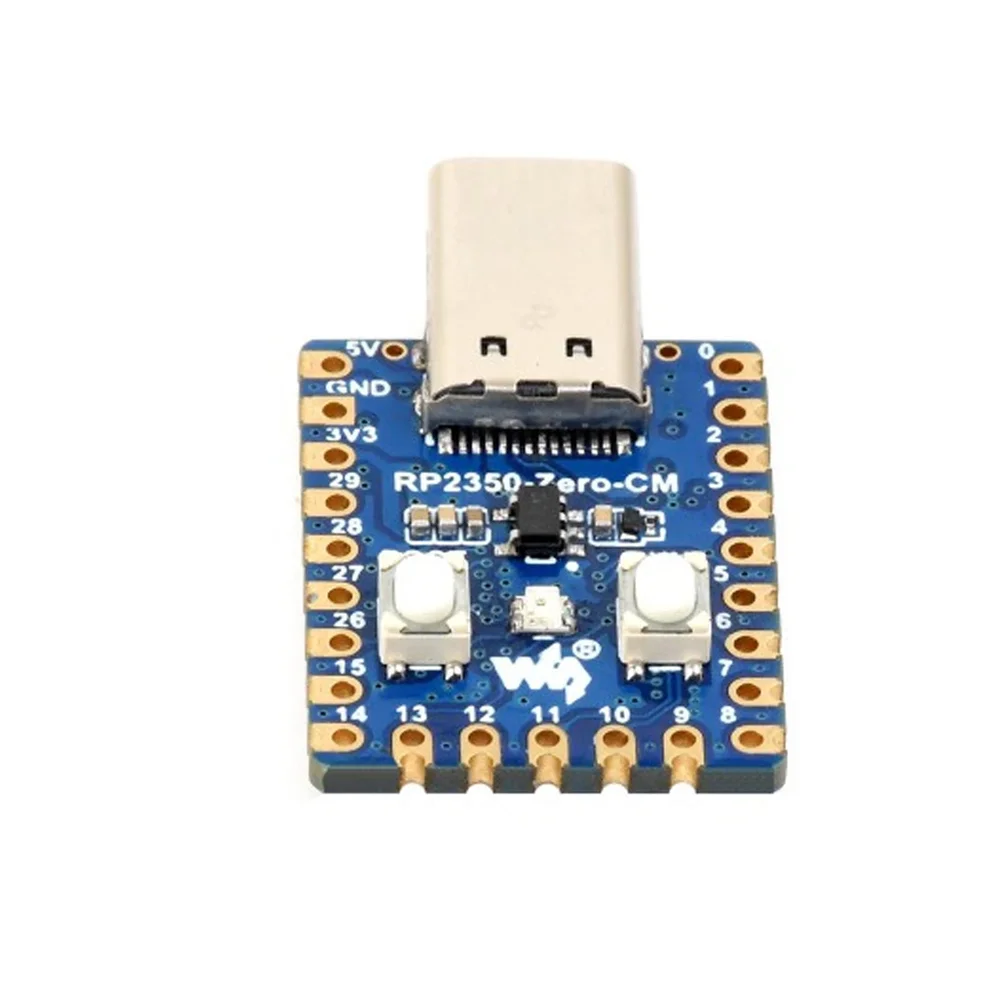

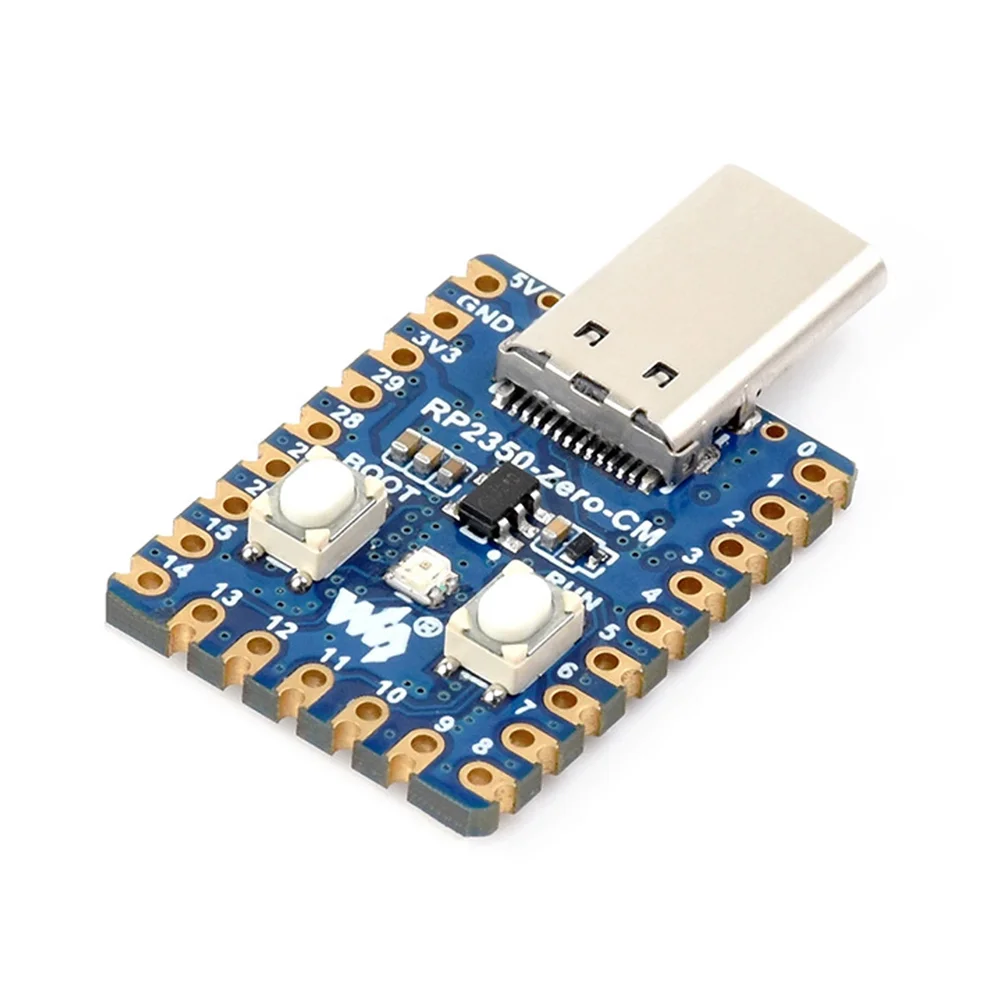

Waveshare RP2350-Zero-CM Mini Development Board, Dual-Core RP2350A, Castellated
The Waveshare RP2350-Zero-CM is a compact, castellated-edge development board based on the Raspberry Pi RP2350A microcontroller, featuring a unique dual-core, dual-architecture (Arm Cortex-M33 / RISC-V) design for embedded projects. It is programmable via USB-C drag-and-drop and is ideal for space-constrained IoT applications requiring flexible I/O and low-power modes.
Features
- Dual-core, dual-architecture RP2350A SoC supports Arm Cortex-M33 or RISC-V cores, clockable up to 150 MHz for flexible processing.
- Castellated module edge allows direct SMD soldering onto custom carrier PCBs, enabling ultra-compact end-product integration.
- Onboard USB Type-C male port provides both power supply and drag-and-drop programming via USB mass storage mode.
- Comprehensive I/O includes 29 multifunction GPIOs, 2x SPI/I2C/UART, 4x 12-bit ADC, 16 PWM channels, and 12 PIO state machines.
- Low-power sleep and dormant modes extend battery life, making it suitable for portable and remote sensing applications.
Out of stock
The Waveshare RP2350-Zero-CM Mini Development Board is engineered for developers requiring a high-performance, space-efficient microcontroller platform. Its core is the Raspberry Pi RP2350A, which uniquely offers a choice between dual Arm Cortex-M33 cores or dual Hazard 3 RISC-V cores, providing architectural flexibility for different firmware toolchains and performance needs. The board’s compact, castellated-edge design is a key feature, allowing it to be directly soldered as a surface-mount component onto a custom PCB, eliminating connectors and saving significant vertical space.
With 520KB of SRAM and 2MB of onboard Flash, the board supports complex embedded applications. Its extensive peripheral set, including programmable I/O (PIO) state machines, enables precise timing control for custom protocols without CPU overhead. Power management is handled via the USB-C port, which also serves as the primary programming interface using a simple drag-and-drop method, streamlining the development workflow for rapid prototyping and deployment in IoT nodes, industrial controllers, and compact automation devices.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 10 × 8 × 2 cm |
