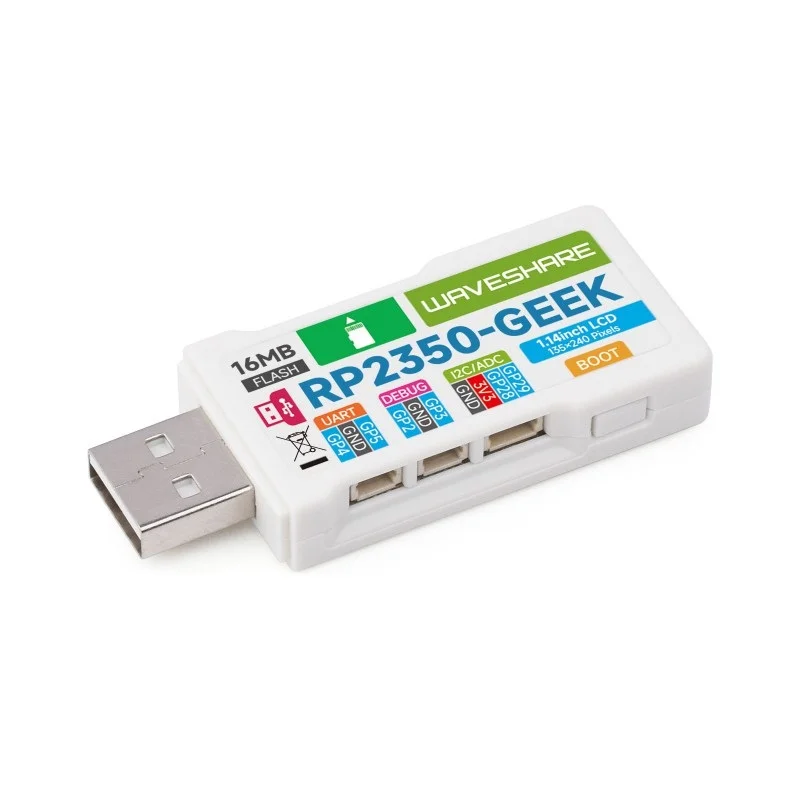

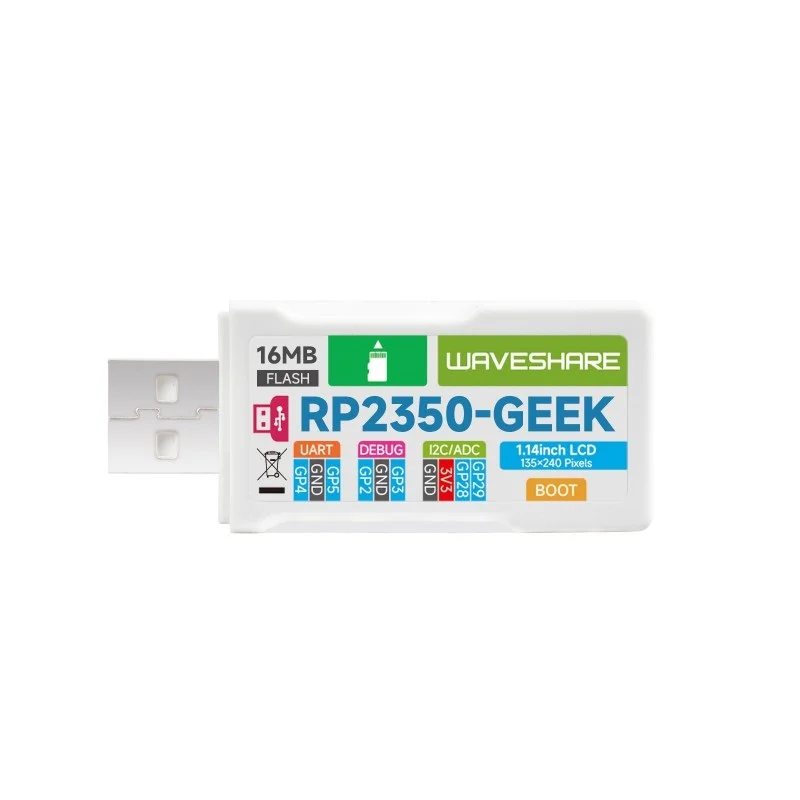

Waveshare RP2350-GEEK Development Board w/ 1.14-Inch IPS LCD
The Waveshare RP2350-GEEK is a compact development board built around the Raspberry Pi RP2350 microcontroller, featuring an integrated 1.14-inch IPS LCD for embedded UI projects. It includes a CMSIS-DAP debug interface and USB-UART bridge for seamless programming via OpenOCD and Arduino IDE.
Features
- RP2350 Microcontroller: Features the dual-core ARM Cortex-M33+ chip from Raspberry Pi for robust embedded processing.

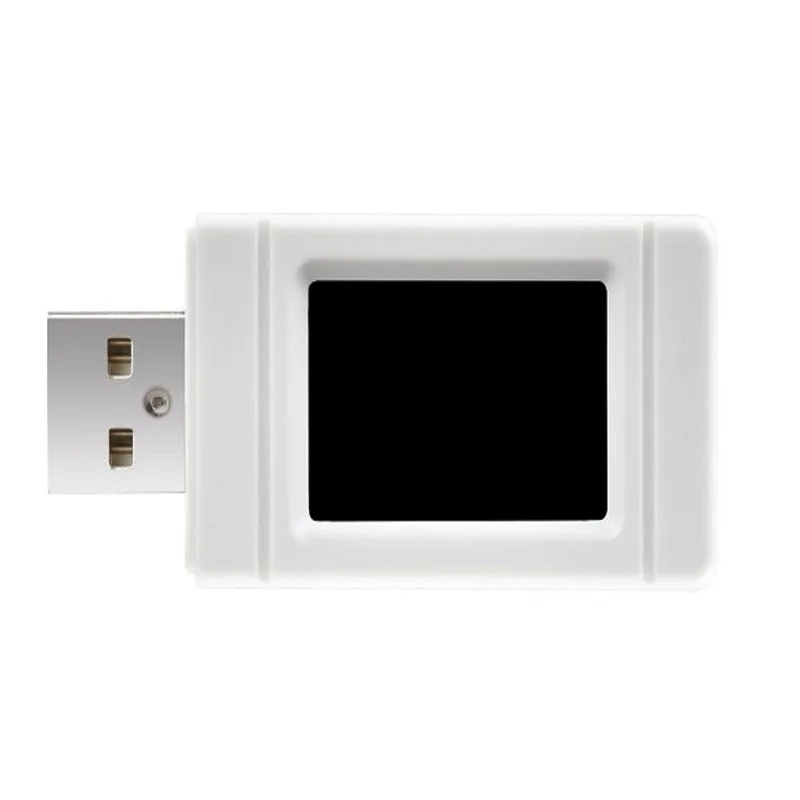

- Integrated 1.14″ IPS Display: 240×135 pixel, 65K-color LCD enables local GUI and status visualization without external screens.
- Onboard CMSIS-DAP Debugger: Standard interface for programming and debugging ARM-based targets via the 3-pin SWD port.
- Multi-Interface Connectivity: Includes USB Type-A host, 4-pin I2C port, and UART bridge for peripheral expansion and testing.
- Open-Source Firmware: Fully customizable codebase supports easy upgrades and integration with OpenOCD, PlatformIO, and MicroPython.
Out of stock
The Waveshare RP2350-GEEK Development Board serves as a versatile hardware platform centered on the Raspberry Pi RP2350 microcontroller, designed for embedded developers and IoT prototyping. Its integrated 1.14-inch IPS LCD provides a crisp, color display for building user interfaces, sensor dashboards, or diagnostic readouts directly on the device, eliminating the need for separate display modules.
Engineered for streamlined development, the board incorporates a CMSIS-DAP compliant debug interface, allowing direct connection to most ARM Cortex-M based microcontrollers for in-circuit programming and debugging via tools like OpenOCD. The onboard USB to UART bridge and dedicated I2C port facilitate rapid testing and integration of external sensors, EEPROMs, or actuators, while the USB Type-A host port supports additional peripheral connectivity.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 11 × 7 × 3 cm |
