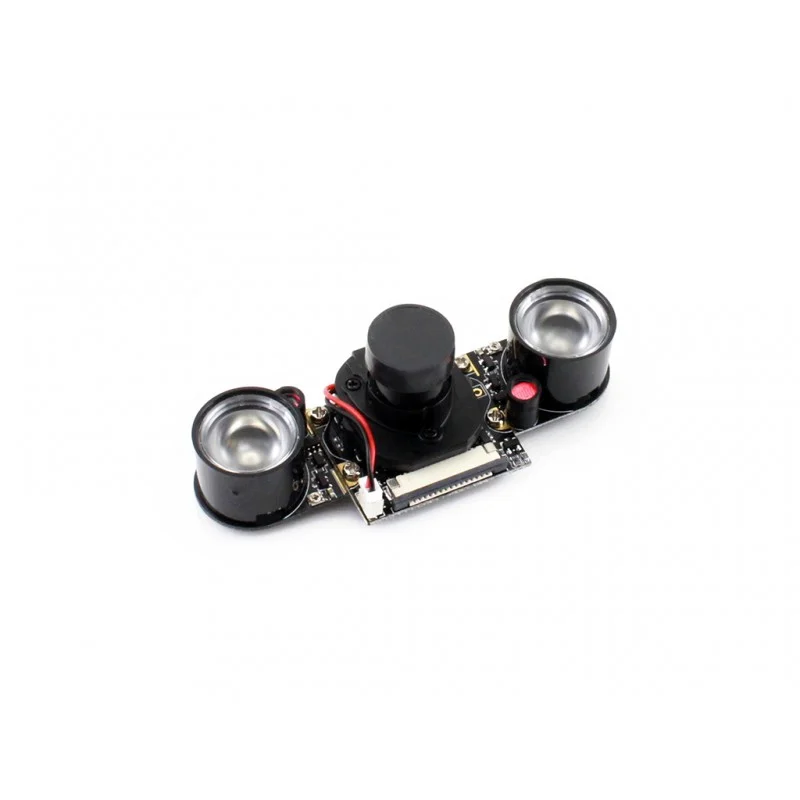

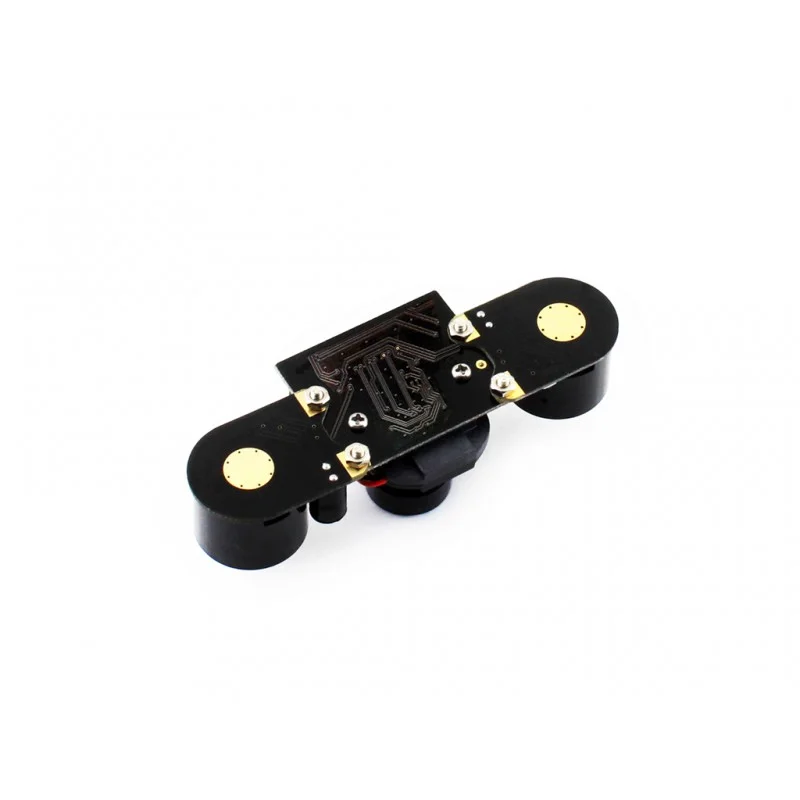

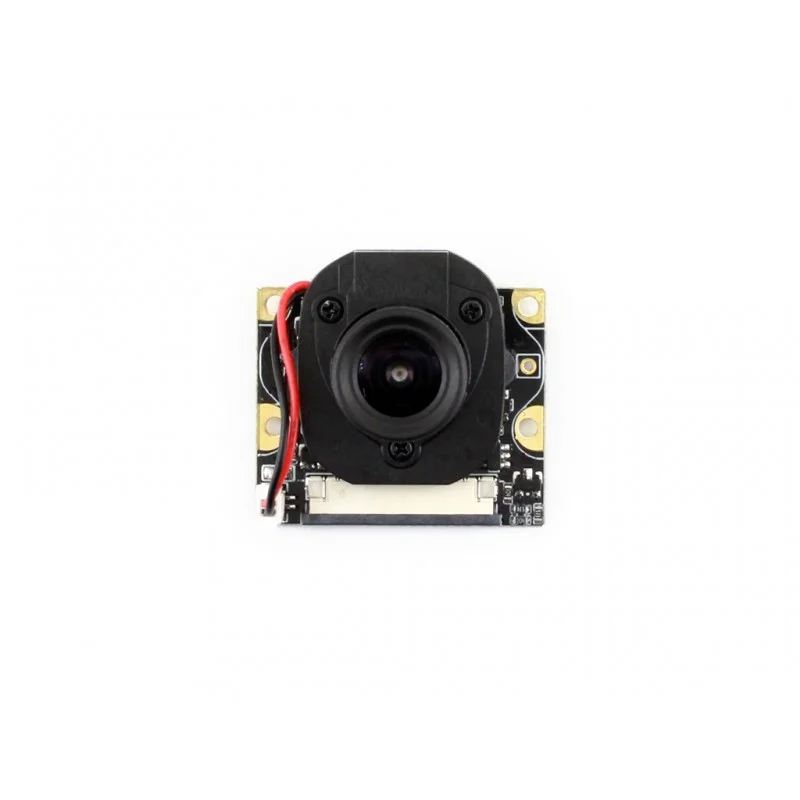

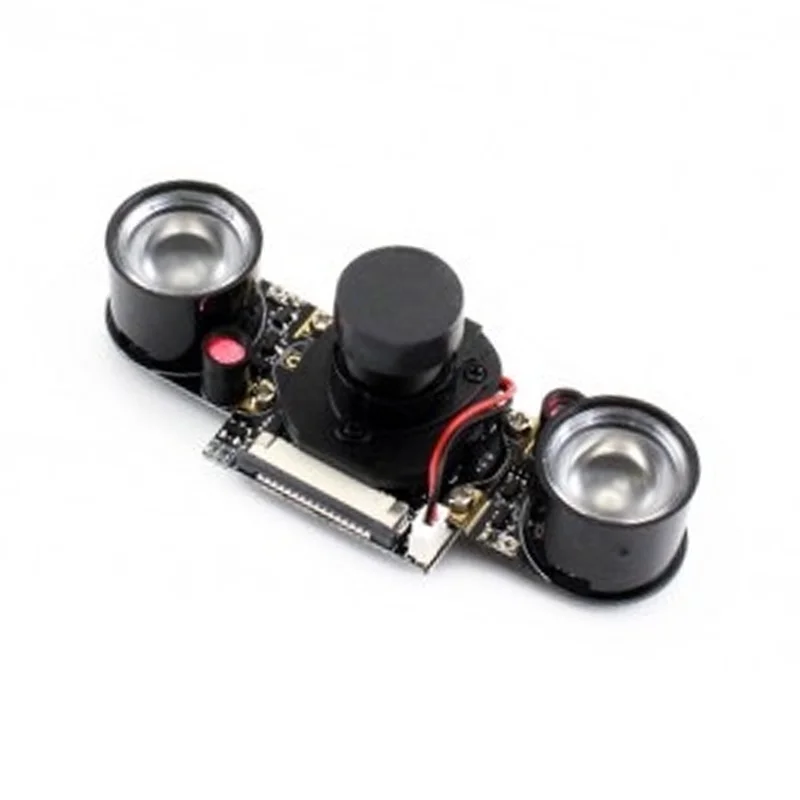

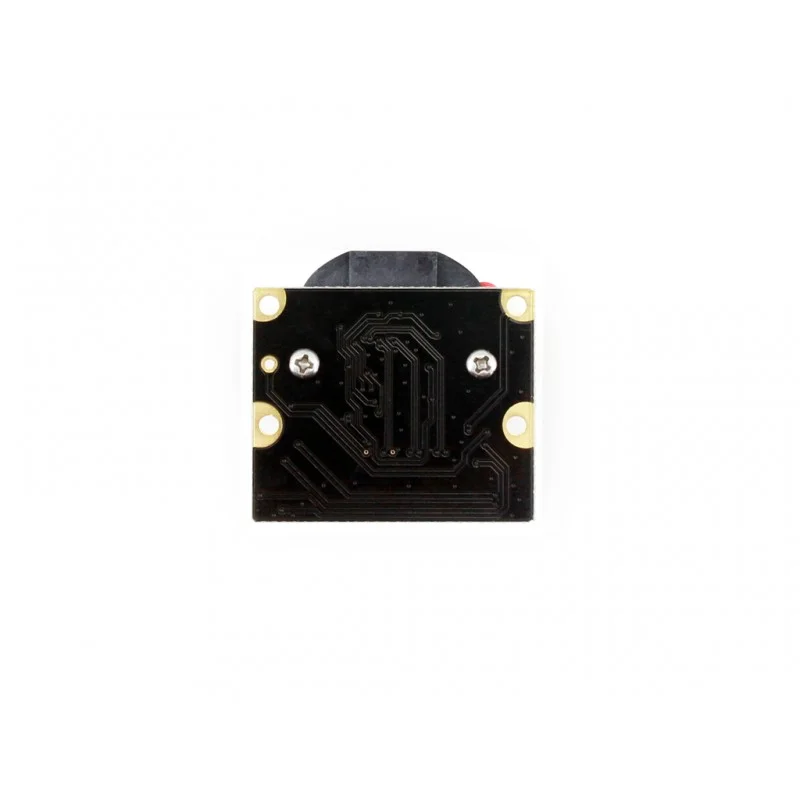

Waveshare Raspberry Pi IR-CUT Camera Module w/ Night Vision
The Waveshare Raspberry Pi IR-CUT Camera is a 5MP OV5647 sensor module designed for Raspberry Pi, featuring an embedded IR-CUT filter for true color daytime imaging and integrated infrared LEDs for night vision, connecting via the CSI interface.
Features
- 5MP OV5647 Sensor delivers 1080p resolution for clear video capture on all Raspberry Pi models via the CSI interface.
- Embedded IR-CUT Filter automatically switches to provide accurate daytime colors and enhanced low-light infrared sensitivity.
- Integrated Infrared LEDs enable night vision functionality for 24/7 surveillance and monitoring applications.
- Adjustable Focus Lens (3.6mm, F2.0) allows for fine-tuning of image sharpness from ~10cm to infinity.
- Onboard 3.3V Power Output supports direct connection of auxiliary infrared LED boards or flash modules.
Out of stock

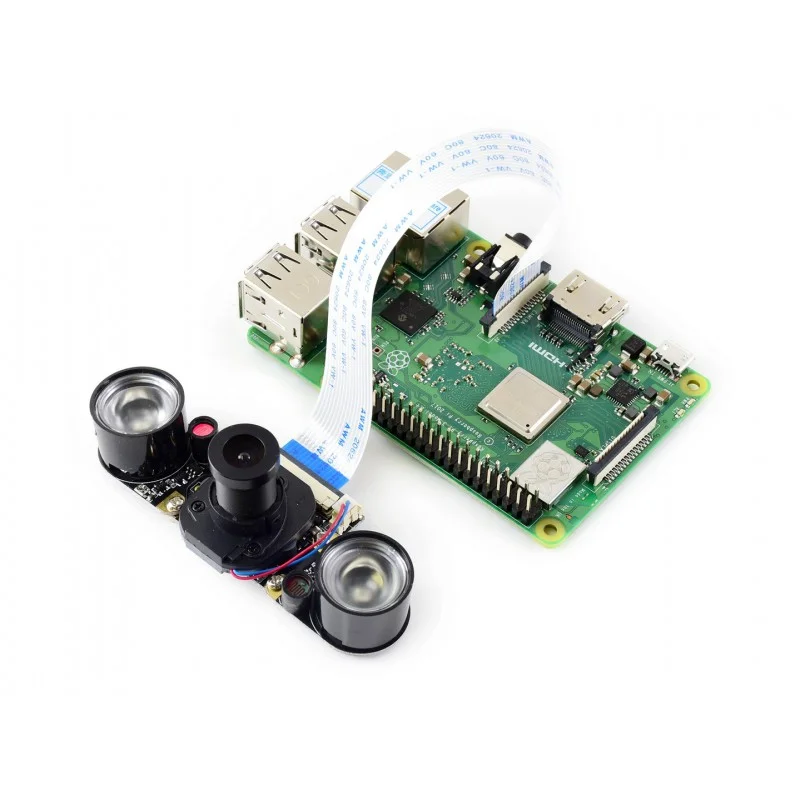

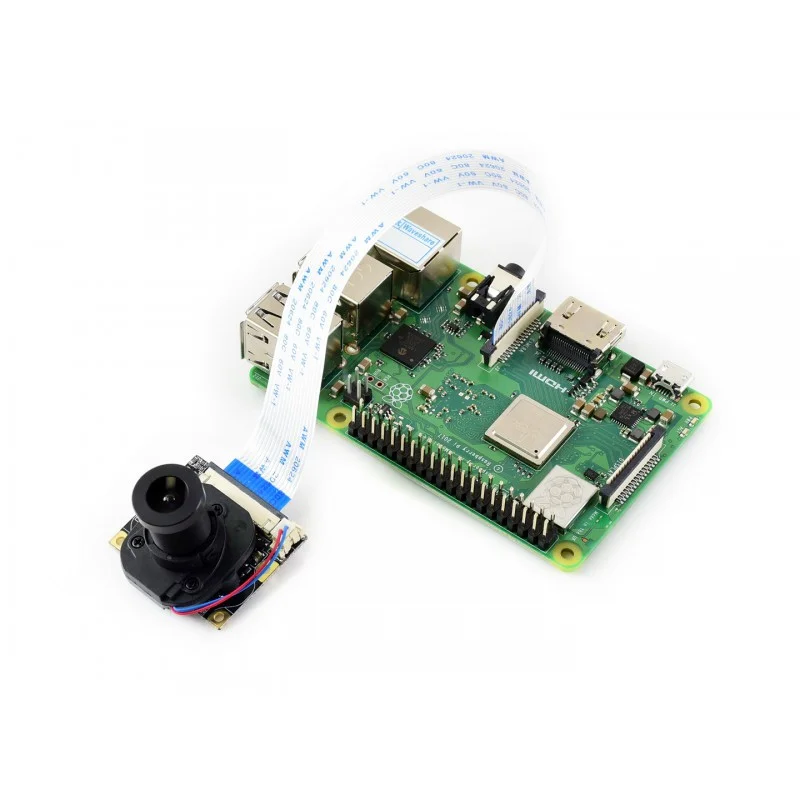

The Waveshare Raspberry Pi IR-CUT Camera Module integrates a 1/4-inch OV5647 CMOS sensor with a mechanically actuated IR-CUT filter, enabling seamless transition between full-color daylight imaging and high-sensitivity monochrome night vision. It connects directly to the Raspberry Pi’s Camera Serial Interface (CSI), positioned between the audio jack and HDMI port, and is compatible with all Pi revisions including the Pi Zero and Compute Module.
This module is engineered for continuous operation in smart security, wildlife monitoring, and IoT vision systems. The removable IR filter physically moves aside in low-light conditions, allowing infrared light to reach the sensor, which is illuminated by the included IR LED boards. The lens offers a 50-degree diagonal field of view with manual focus adjustment, while the board provides screw mounting points and a dedicated 3.3V output to power additional external IR illuminators.
Additional Information
| Weight | 0.036 kg |
|---|---|
| Dimensions | 11.1 × 7.6 × 3.1 cm |
