Waveshare OV5647 5MP OIS Camera Module for Raspberry Pi

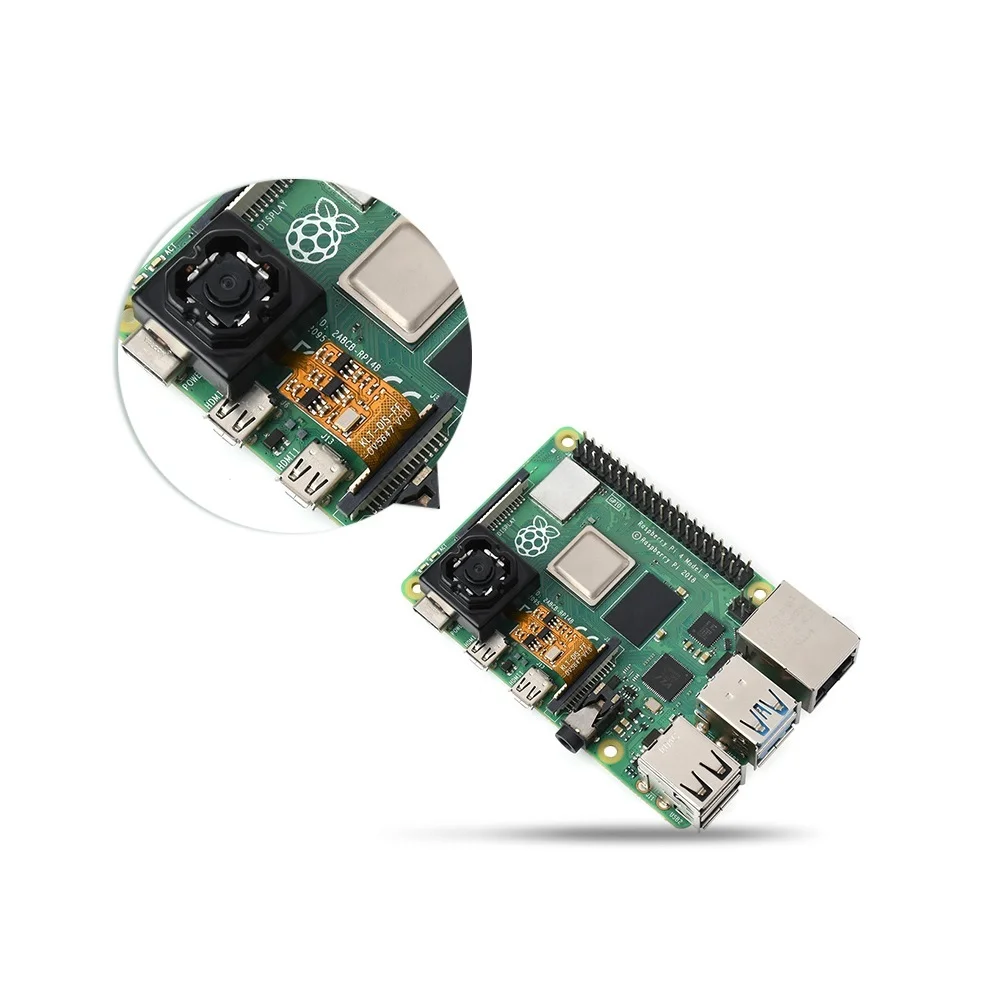

First, ensure your Raspberry Pi is powered off. Connect the camera's ribbon cable to the CSI-2 port on the Pi, making sure the connectors are aligned. Boot into Raspberry Pi OS, open the terminal, and run 'sudo raspi-config' to enable the camera interface under 'Interface Options'. Reboot. You can then use standard libcamera commands like 'libcamera-hello' or 'rpicam-still' to test capture. The OIS system is active by default when the camera is powered; no software configuration is needed for the stabilization hardware.

The OV5647 sensor and the dual-axis OIS mechanism draw power directly from the Raspberry Pi's CSI-2 interface. Typical operating current is similar to standard Pi camera modules, around 120-150mA during active capture, with the OIS coils adding minimal extra load. The module does not require an external power supply. Ensure your Raspberry Pi's power adapter can provide sufficient current for both the Pi and the camera, especially if using a Pi Zero or in a power-constrained setup.

This module is designed for the standard CSI-2 camera interface found on most Raspberry Pi models (Pi 3, 4, Zero, etc.). It is not directly compatible with Compute Modules that lack a physical CSI connector unless you use a compatible carrier board that exposes the CSI pins. For other single-board computers like the NVIDIA Jetson, you would need a physical adapter for the ribbon cable and may require custom device tree and driver configuration, as support is not guaranteed.

Yes, the dual-axis OIS system is a hardware-based stabilization mechanism that operates continuously whenever the camera is powered. It physically moves the lens element to counteract shake, benefiting both still image capture and video recording. This results in sharper single frames and smoother video footage, especially noticeable in handheld or moving platform applications. The stabilization is always active and does not require specific software mode selection.
