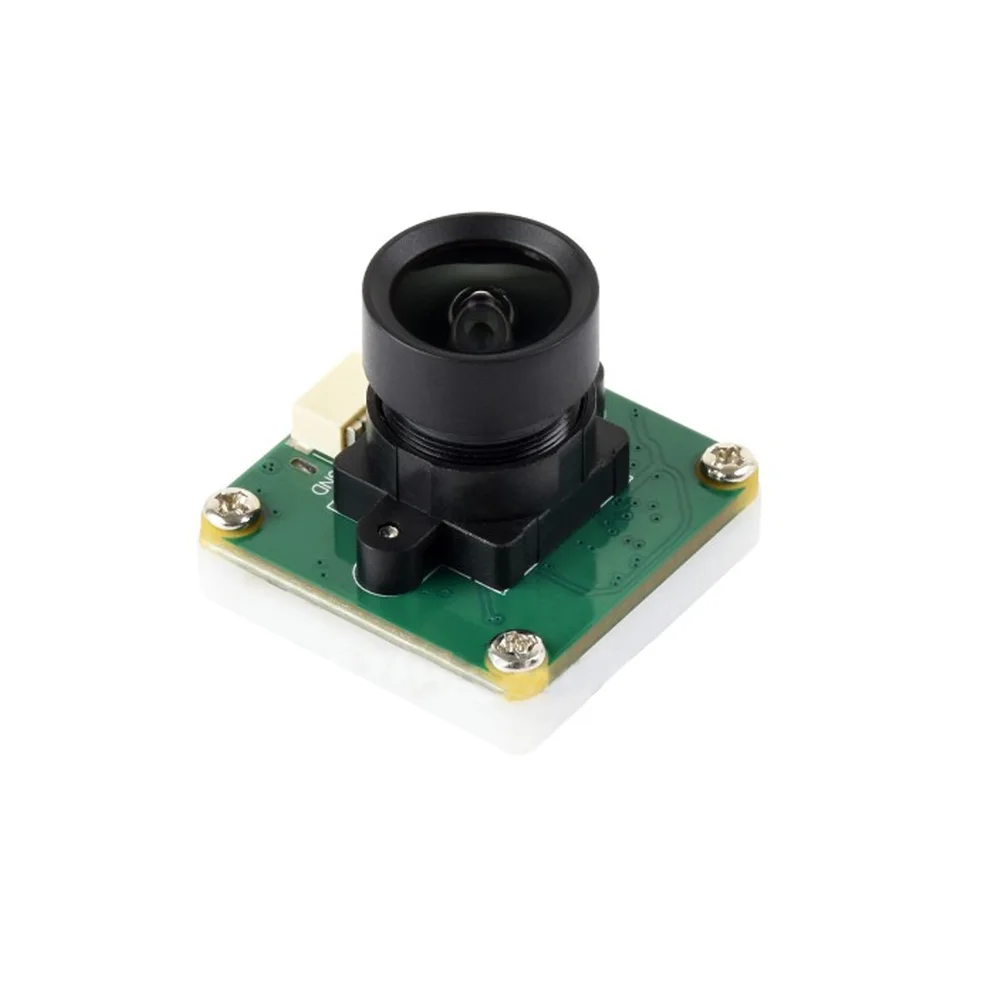

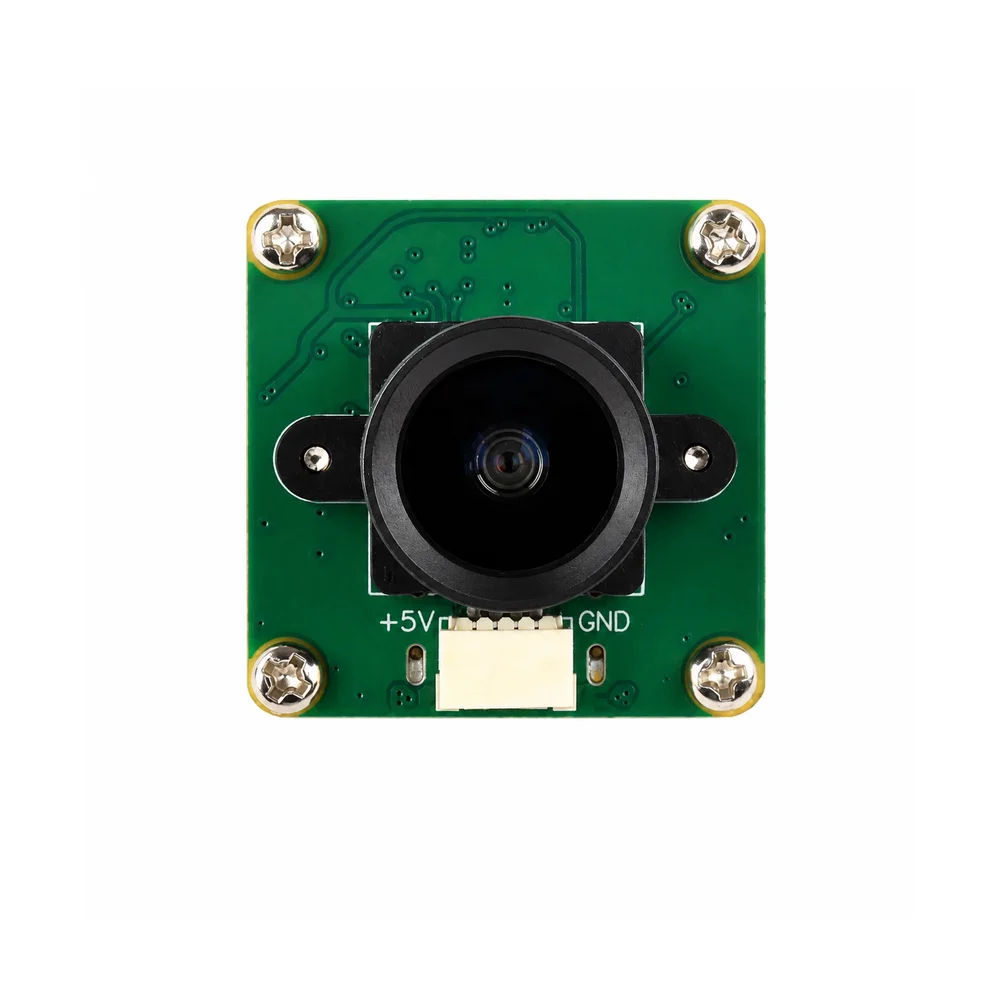

Waveshare OV4689 4MP USB Camera, 92° FOV, Type-C & SH1.0
The Waveshare OV4689 is a 4MP USB camera module featuring a 92° distortion-free lens and dual connectivity via USB 2.0 Type-C and an SH1.0 4-pin header. It’s designed for plug-and-play integration into embedded vision, robotics, and monitoring systems, delivering up to 60 FPS video.
Features
- 4MP OV4689 sensor delivers high-resolution 2688 x 1520 static images and smooth video.
- 92° wide-angle, distortion-free lens provides a broad, natural field of view for monitoring applications.
- Dual interface offers flexible connectivity: standard USB 2.0 Type-C and an SH1.0 4-pin header for embedded systems.
- Compact 25 x 25 mm form factor with M12 mount is ideal for space-constrained designs like drones or handheld devices.
- Supports MJPG encoding at up to 60 FPS for real-time, fluid video capture in vision processing pipelines.
Out of stock
The Waveshare OV4689 4MP USB Camera is a compact imaging solution built around the 1/3-inch OV4689 CMOS sensor. Its fixed-focus, wide-angle lens assembly provides a 92° field of view with minimal distortion, ensuring accurate scene capture for computer vision and surveillance tasks. The module operates on a standard 5V supply and is designed for straightforward integration.
This camera offers versatile connectivity options, featuring a primary USB 2.0 Type-C port for immediate plug-and-play functionality with single-board computers and PCs, alongside an SH1.0 4-pin header for direct wiring into custom embedded systems or microcontrollers. Its robust construction and wide operating temperature range make it suitable for deployment in diverse environments, from indoor robotics to outdoor telemetry systems.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
