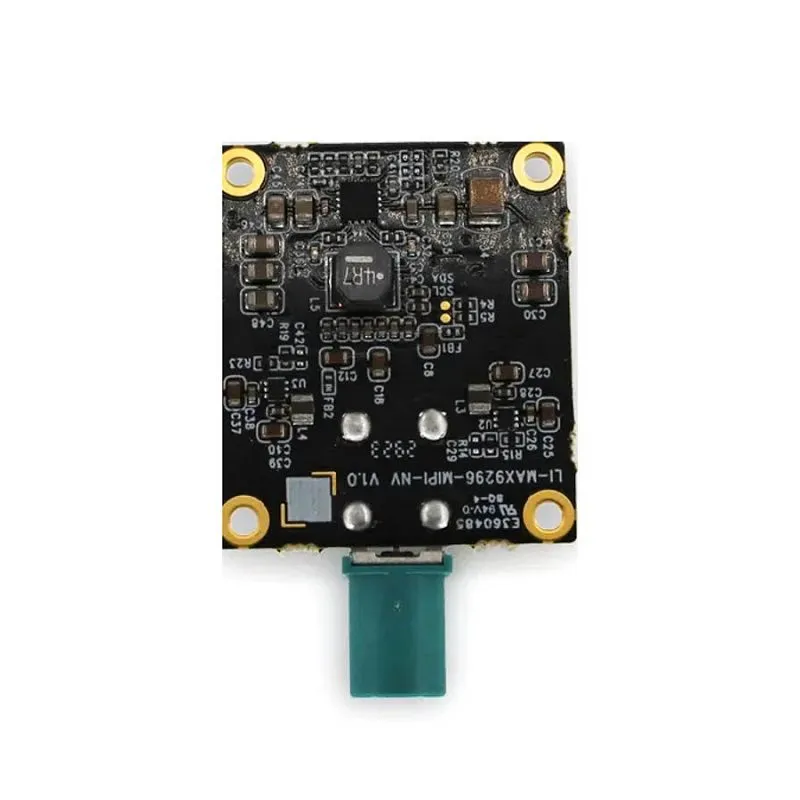

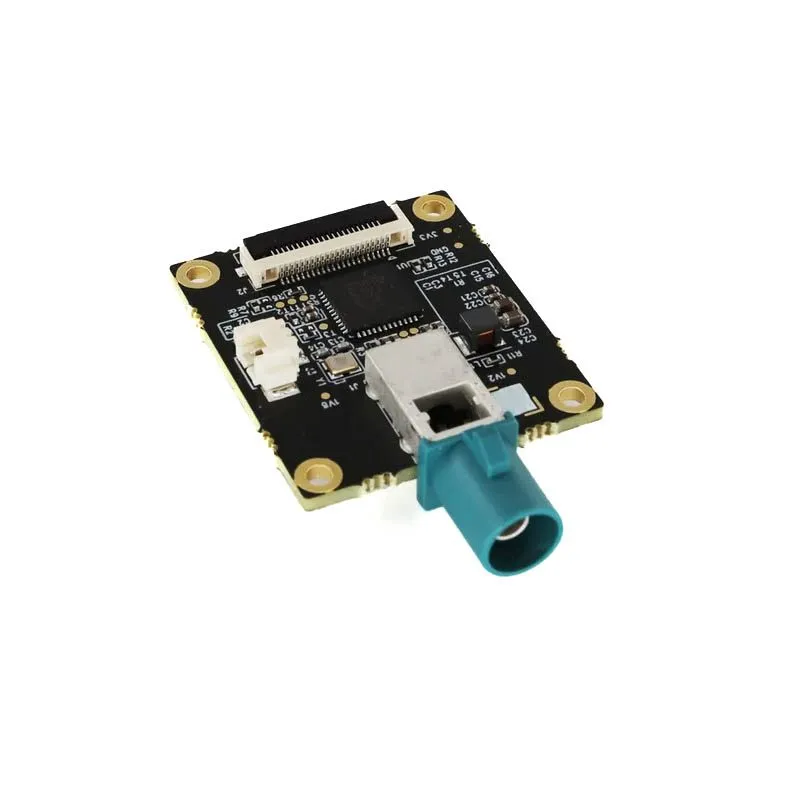

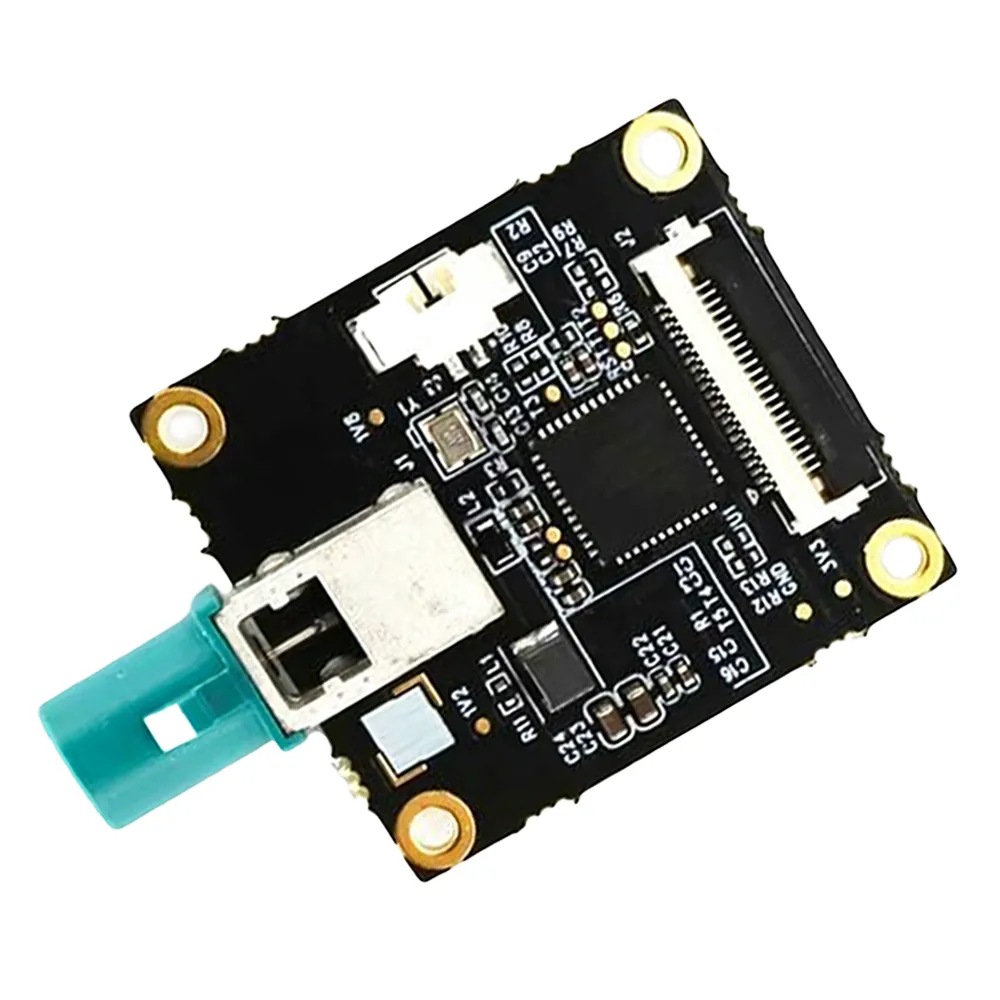

Stereolabs ZED Link Mono Capture Card for NVIDIA AI
The Stereolabs ZED Link Capture Card Mono enables high-quality GMSL2 camera integration with NVIDIA Orin and Xavier NX/Nano platforms, supporting resolutions up to 4K@30fps. It provides 5V-19V power input, 12V output, and robust external trigger and sync capabilities for advanced embedded vision and edge AI applications.
Features
- Compatible with NVIDIA Orin and Xavier NX/Nano Developer Kits.
- Supports one ZED X, ZED X Mini, or ZED X One GMSL2 camera.
- Enables video capture up to 4K@30fps with 6 Gb/s bandwidth.
- Features external trigger and hardware synchronization via J4 header.
- Utilizes Maxim MAX9296A deserializer for reliable high-speed data.
Out of stock
The Stereolabs ZED Link Capture Card Mono is engineered for seamless integration with GMSL2 cameras, facilitating high-quality video capture at resolutions up to 4K@30fps. Designed to support a total bandwidth of up to 6 Gb/s, it ensures rapid and dependable data transmission. This compact card connects to the CSI port of compatible carrier boards through a 22-pin, 0.5mm pitch connector, making it an ideal choice for embedded and edge AI deployments.
This capture card system offers full compatibility with NVIDIA Orin NX and Nano, as well as Xavier NX and Nano Developer Kits, ensuring effortless integration into diverse AI edge computing platforms. It supports either one ZED X or ZED X Mini camera, or a single ZED X One camera, providing versatility for various vision-centric applications. An external 5V to 19V DC power supply is required for operation, with a convenient 12V power output available over the cable. For precise synchronization in complex systems, the card supports external triggering and hardware sync via MFP0 (Out) and MFP1 (In) through its J4 header. At its core, the system leverages the robust Maxim MAX9296A deserializer, guaranteeing reliable high-speed data transmission.
The package includes a JST to jack connector and a CSI cable, offering a ready-to-use solution for developing advanced vision systems. Its robust design and feature set cater to demanding industrial and research applications requiring high-fidelity camera input and precise control in challenging environments.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 4.155 × 2.8 cm |
