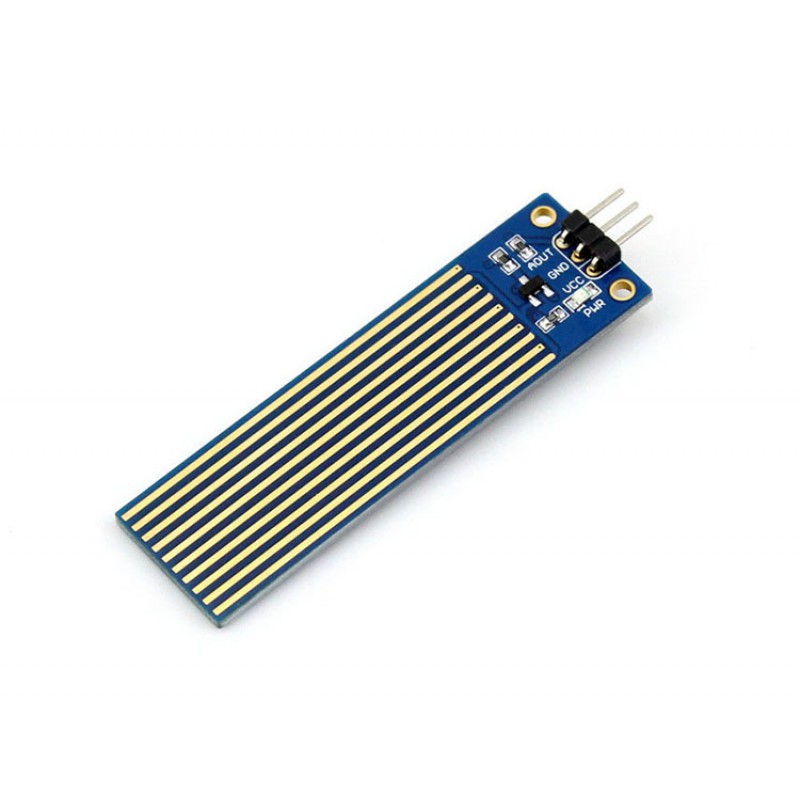

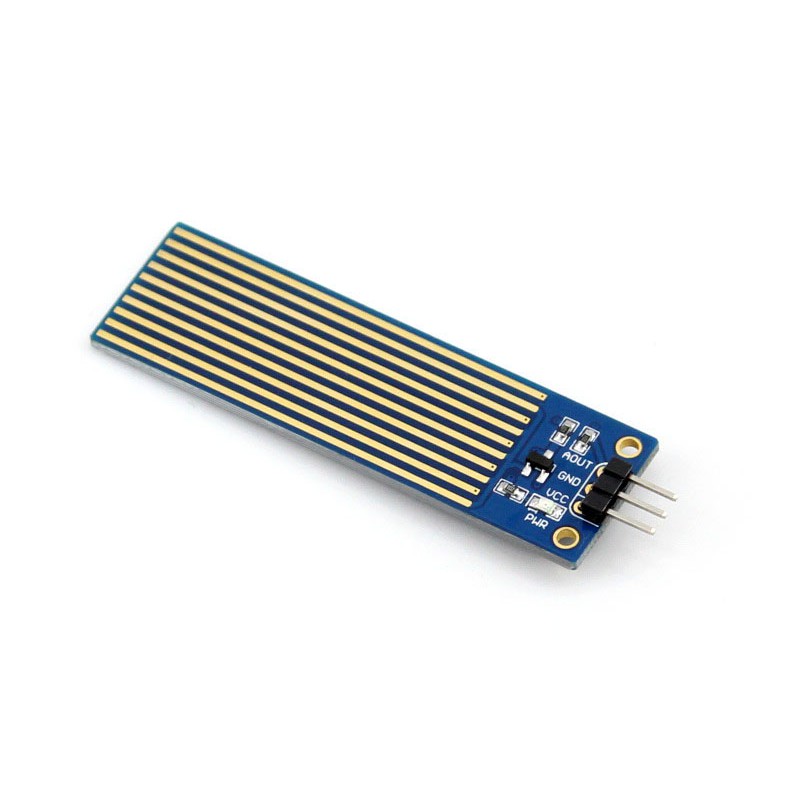

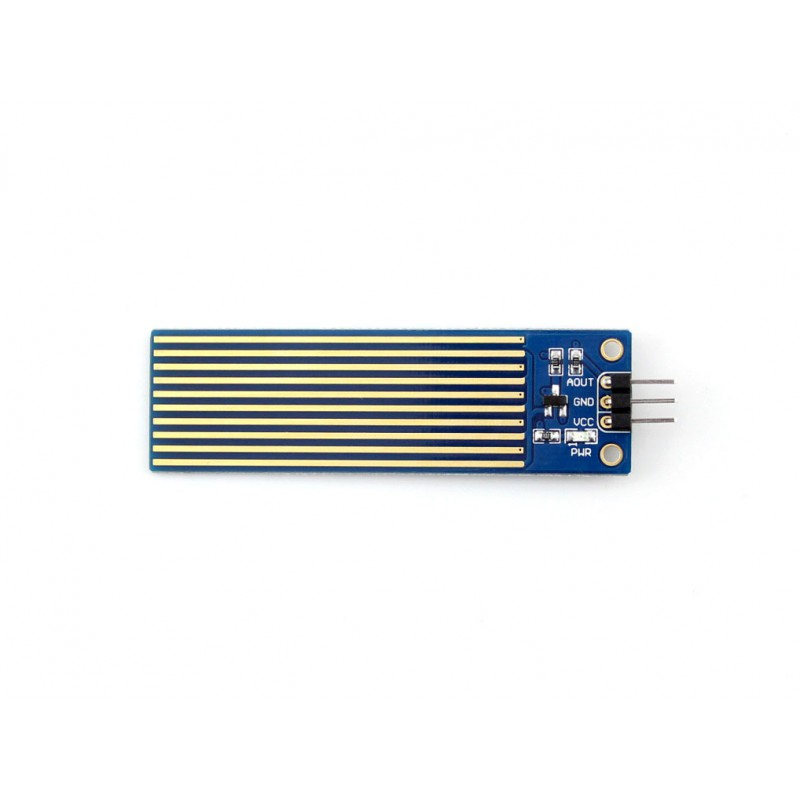

Waveshare Liquid Level Sensor - 0-48mm Detection Depth, Analog Output, 2.0mm Mounting Holes
The Waveshare Liquid Level Sensor is a compact analog sensor designed for vertical immersion to detect liquid levels up to 48mm. Operating from 2.0V to 5.0V, its analog output is directly compatible with microcontroller ADCs on platforms like Arduino, Raspberry Pi, and Propeller boards for precise level monitoring in reservoirs and tanks.
Features
- 0-48mm Detection Depth: Provides analog voltage output proportional to the depth of immersion for precise level measurement.
- 2.0V to 5.0V Operating Range: Low-voltage operation ensures compatibility with 3.3V and 5V microcontroller systems like Arduino and Raspberry Pi.
- Compact & Mountable Design: Features 2.0mm mounting holes for secure installation in tight-space applications.
- Fast Response Time: Delivers quick detection of liquid level changes for real-time monitoring and alarm systems.
Out of stock
The Waveshare Liquid Level Sensor operates on a conductive sensing principle, where the output analog voltage varies linearly with the depth of the sensor’s probe immersed in a liquid. This provides a straightforward method for integrating liquid level data into digital control systems via an ADC.
Designed for vertical installation, its compact form factor (19.0mm x 63.0mm) and 2.0mm mounting holes allow for rigid mounting in confined spaces. It is suitable for use with a variety of non-corrosive, non-toxic liquids in controlled environments, making it ideal for hobbyist projects and industrial prototyping.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 6.3 × 1.9 cm |
