Waveshare Jetson Orin Nano/NX Module Carrier Board
The Waveshare Jetson Orin Nano/NX Module Carrier Board is a development platform for NVIDIA’s Jetson Orin Nano and NX modules, providing comprehensive connectivity for AI edge computing, robotics, and computer vision projects with dual CSI camera ports, USB 3.2 Gen 2, and M.2 expansion slots.
Features
- Supports NVIDIA Jetson Orin Nano and Orin NX modules via a 260-pin DO-DIMM socket for AI edge computing.
- Features dual CSI camera ports (4-lane/2-lane + 2-lane) for advanced computer vision and AI applications.
- Offers high-speed connectivity with 4x USB 3.2 Gen 2 Type-A ports and 1x Type-C port for up to 10Gbps data transfer.

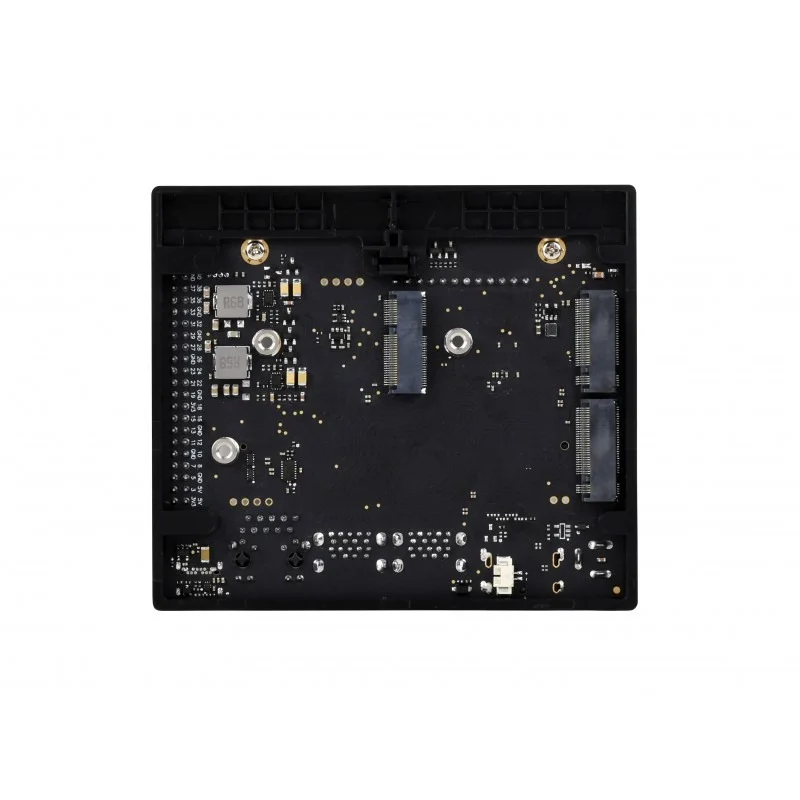

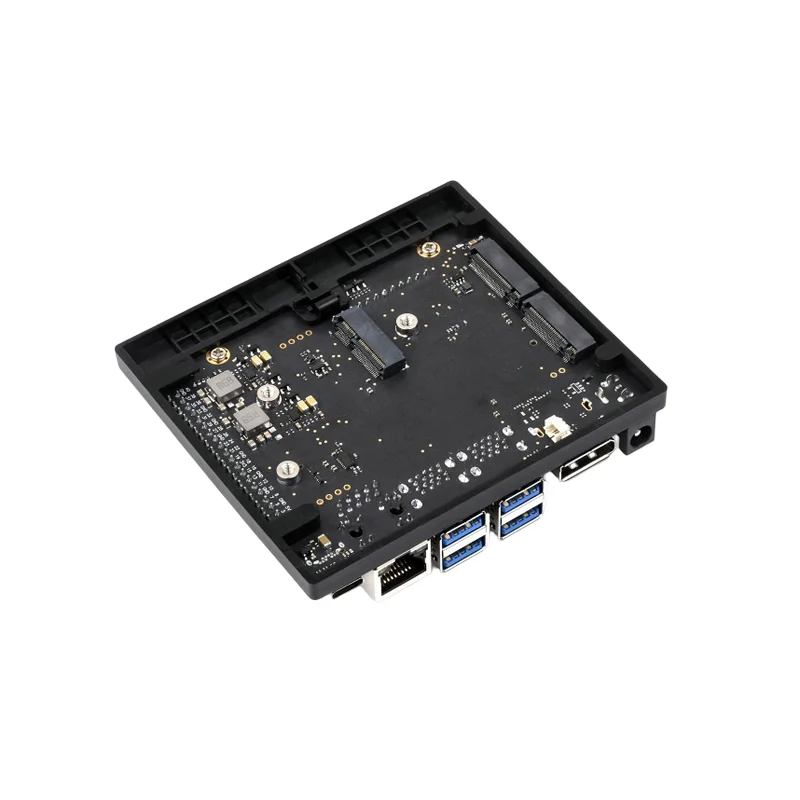

- Provides flexible expansion with dual M.2 Key M slots for NVMe SSDs and an M.2 Key E slot for Wi-Fi/Bluetooth modules.
- Includes a color-coded 40-pin GPIO header for easy access to I2C, SPI, and UART interfaces for rapid prototyping.
Out of stock

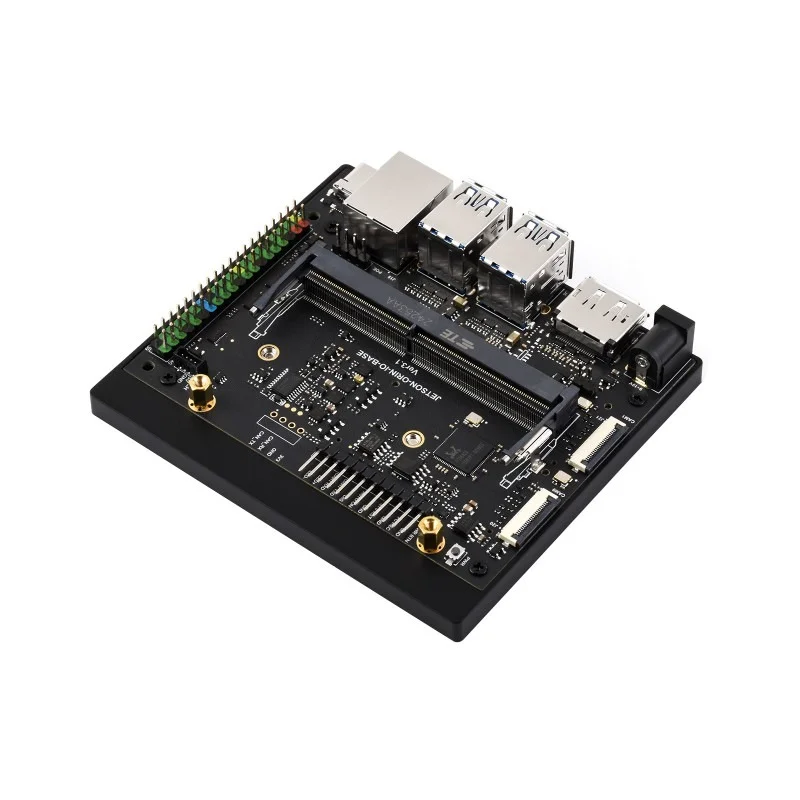

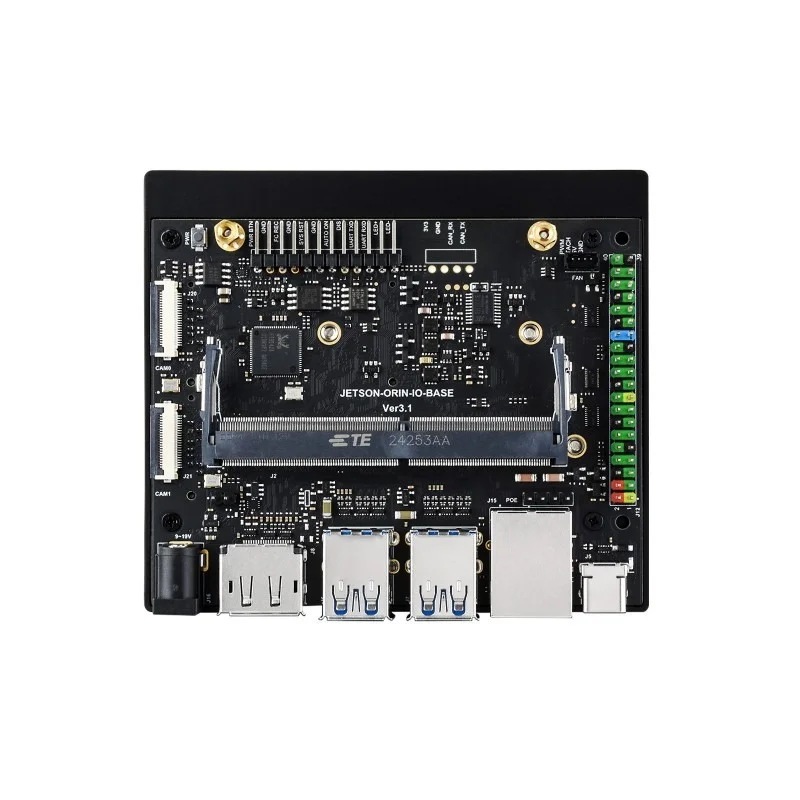

The Waveshare Jetson Orin Nano/NX Module Carrier Board is engineered as a robust development platform tailored for NVIDIA’s powerful Jetson Orin Nano and Orin NX system-on-modules. It replicates the form factor and peripheral layout of the official NVIDIA developer kit, offering a seamless transition from prototyping to deployment in AI-driven applications. The board integrates a high-speed USB 3.2 Gen 2 hub, dual CSI camera interfaces for multi-sensor vision pipelines, and multiple M.2 expansion slots for storage and wireless connectivity.
Designed for system integrators and AI developers, this carrier board provides the essential I/O and power management to fully leverage the Orin module’s AI accelerators. The color-coded GPIO header simplifies connection to external sensors, actuators, and communication modules, while the dedicated DisplayPort supports 4K output for visualization. Its compact footprint and comprehensive interface set make it ideal for building embedded AI systems in robotics, smart vision, and industrial automation.
Additional Information
| Weight | 0.082 kg |
|---|---|
| Dimensions | 10.3 × 9 cm |
